6E5-14301-13-00 Yamaha 115CETO Carby Assy | Genuine Used Part

🔧 Product Description

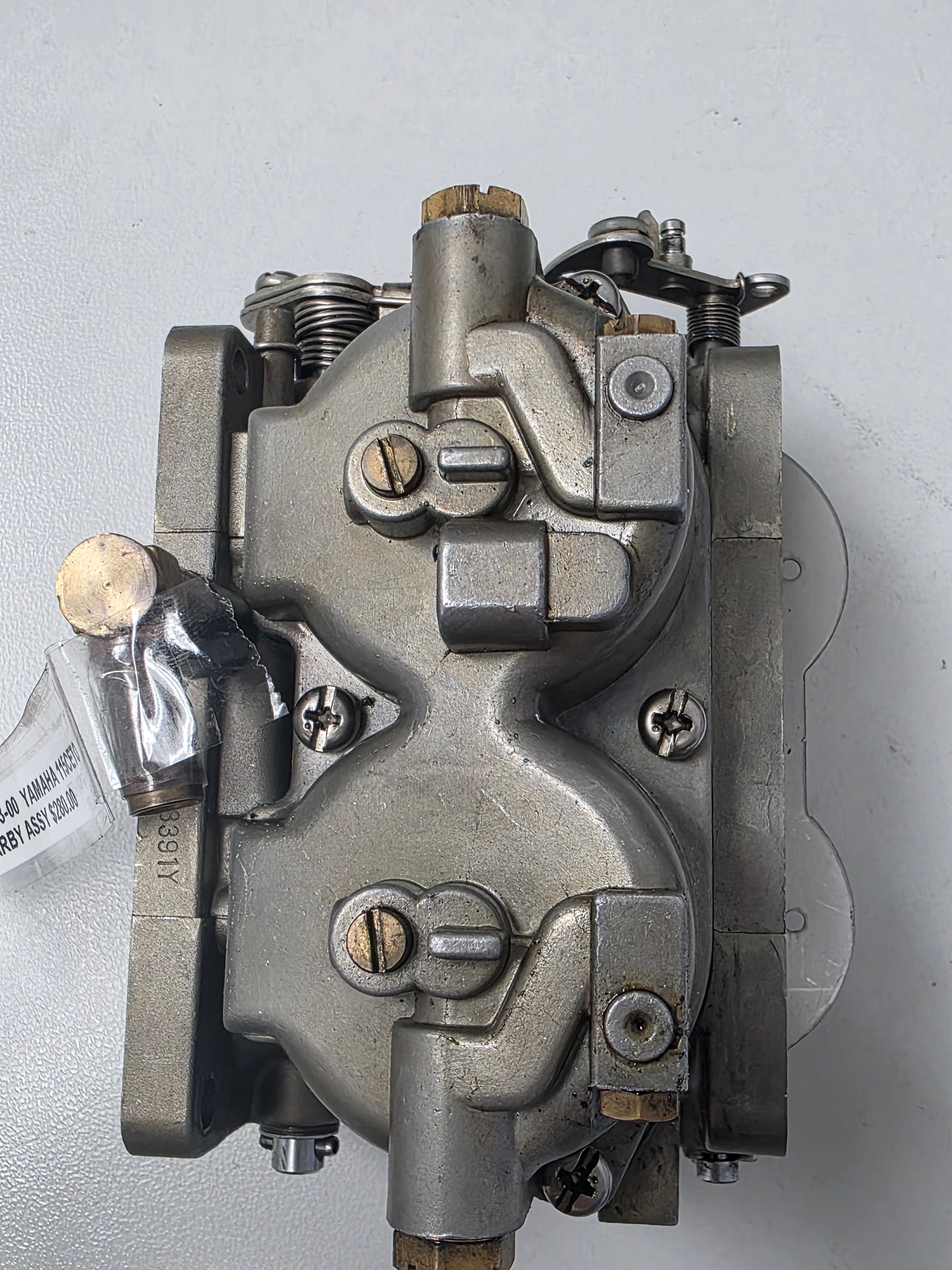

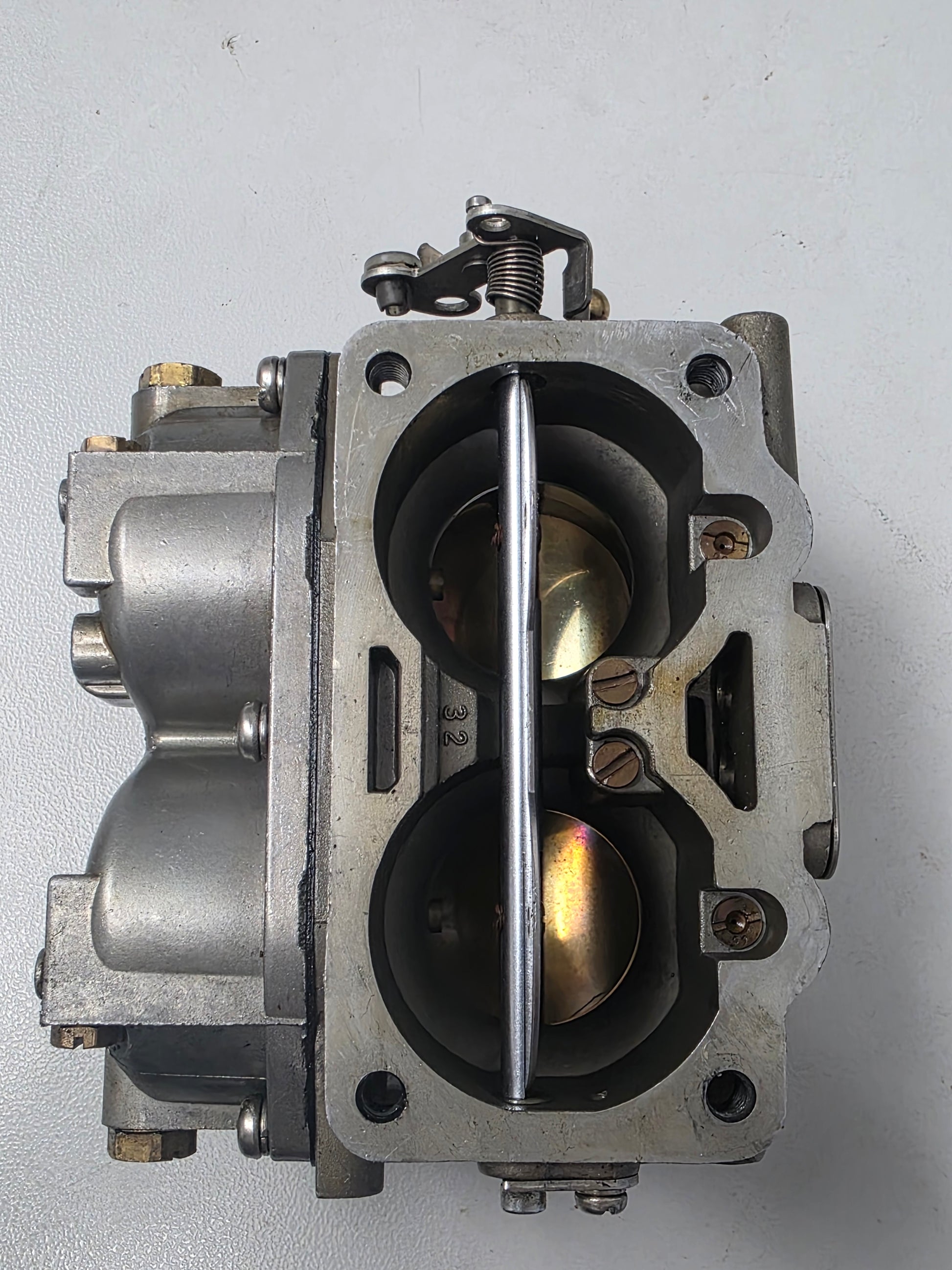

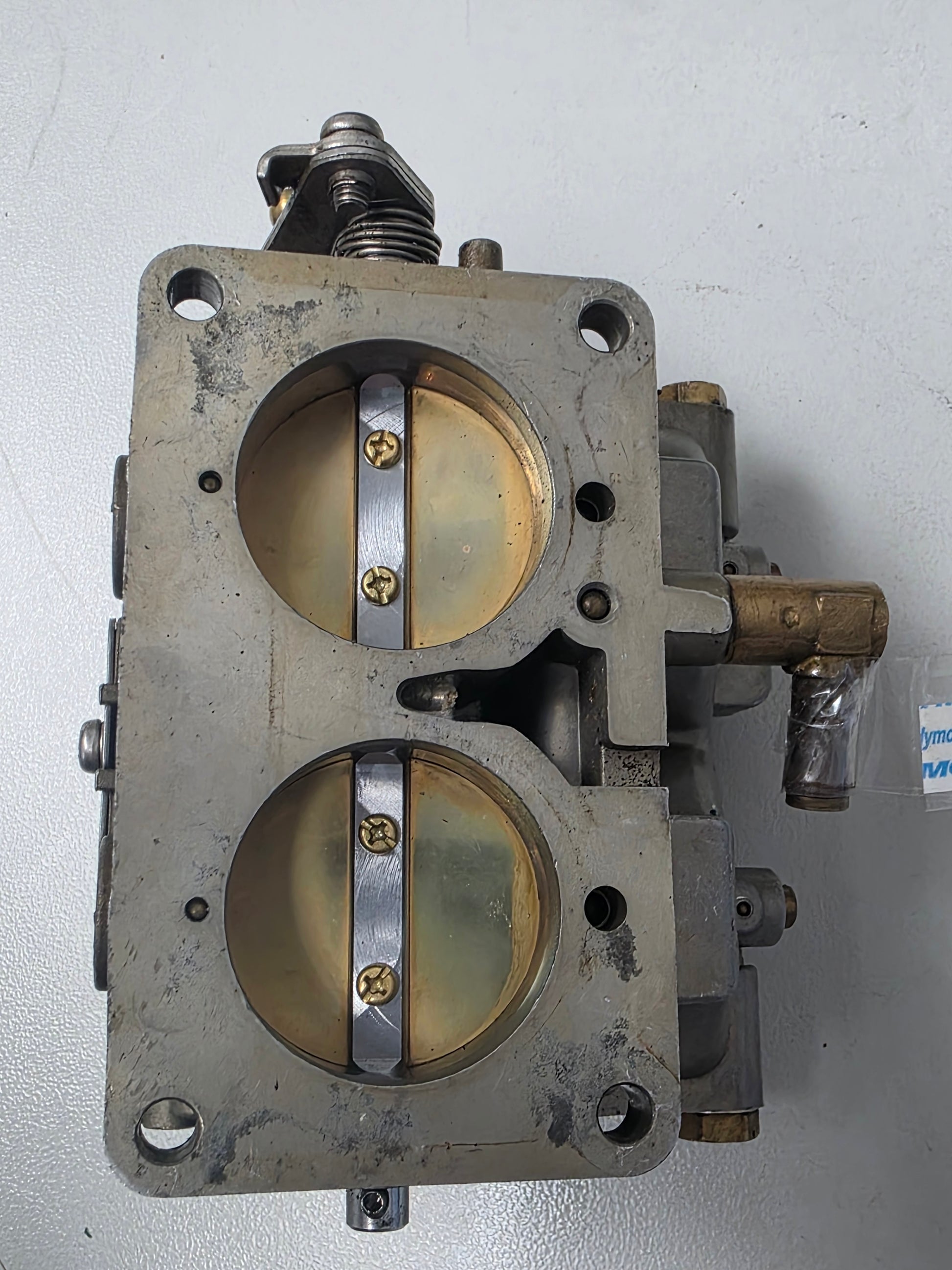

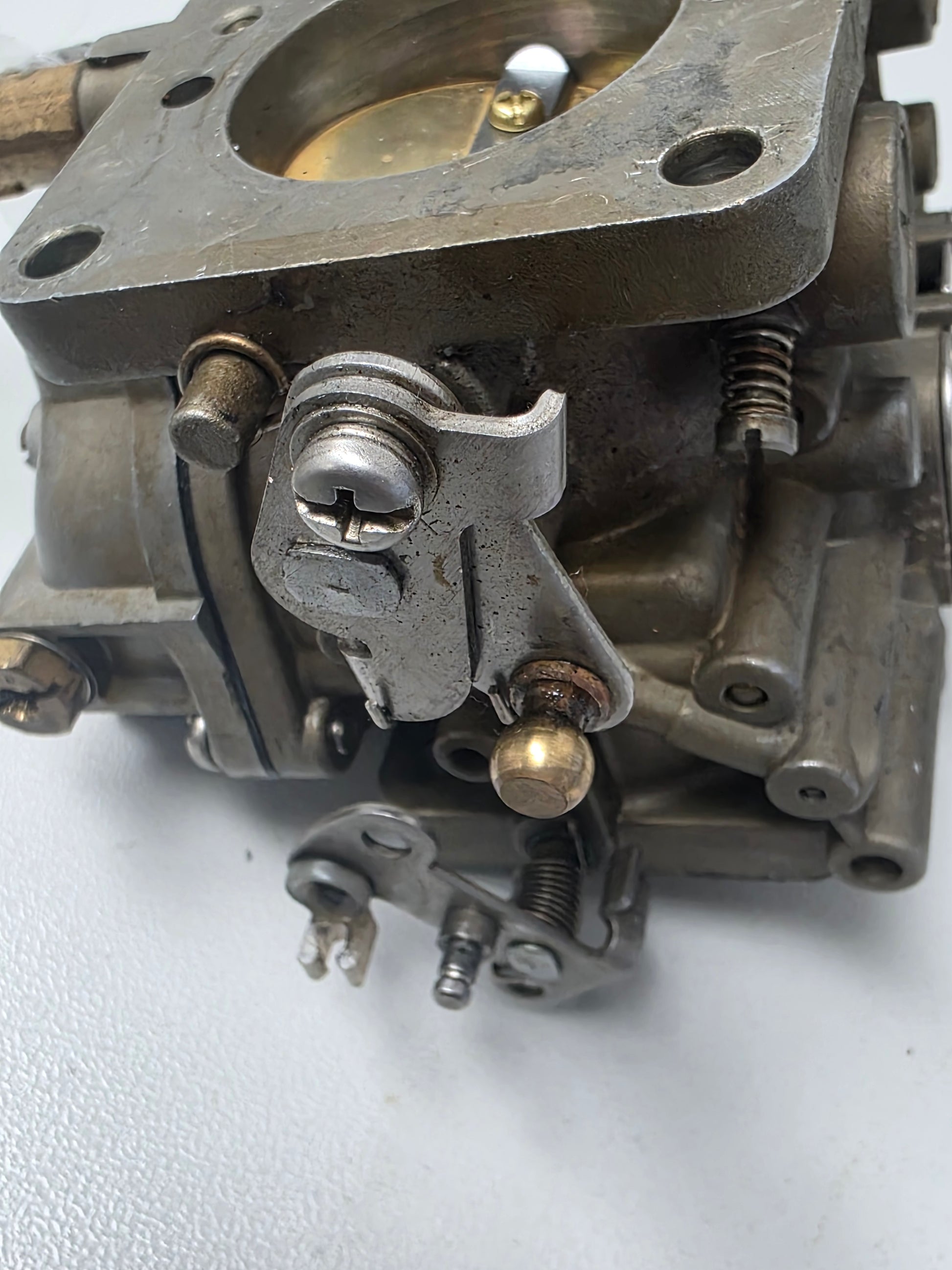

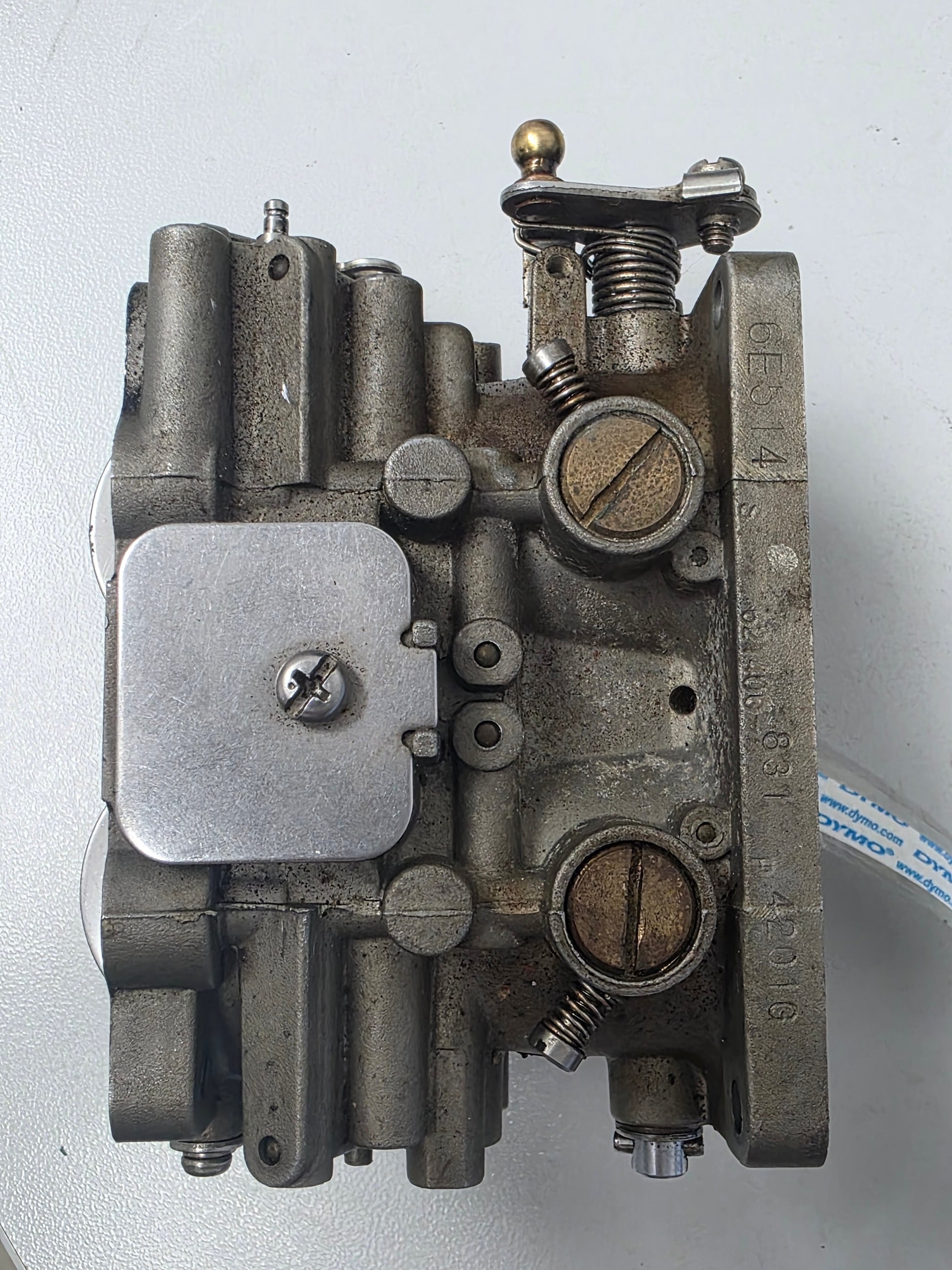

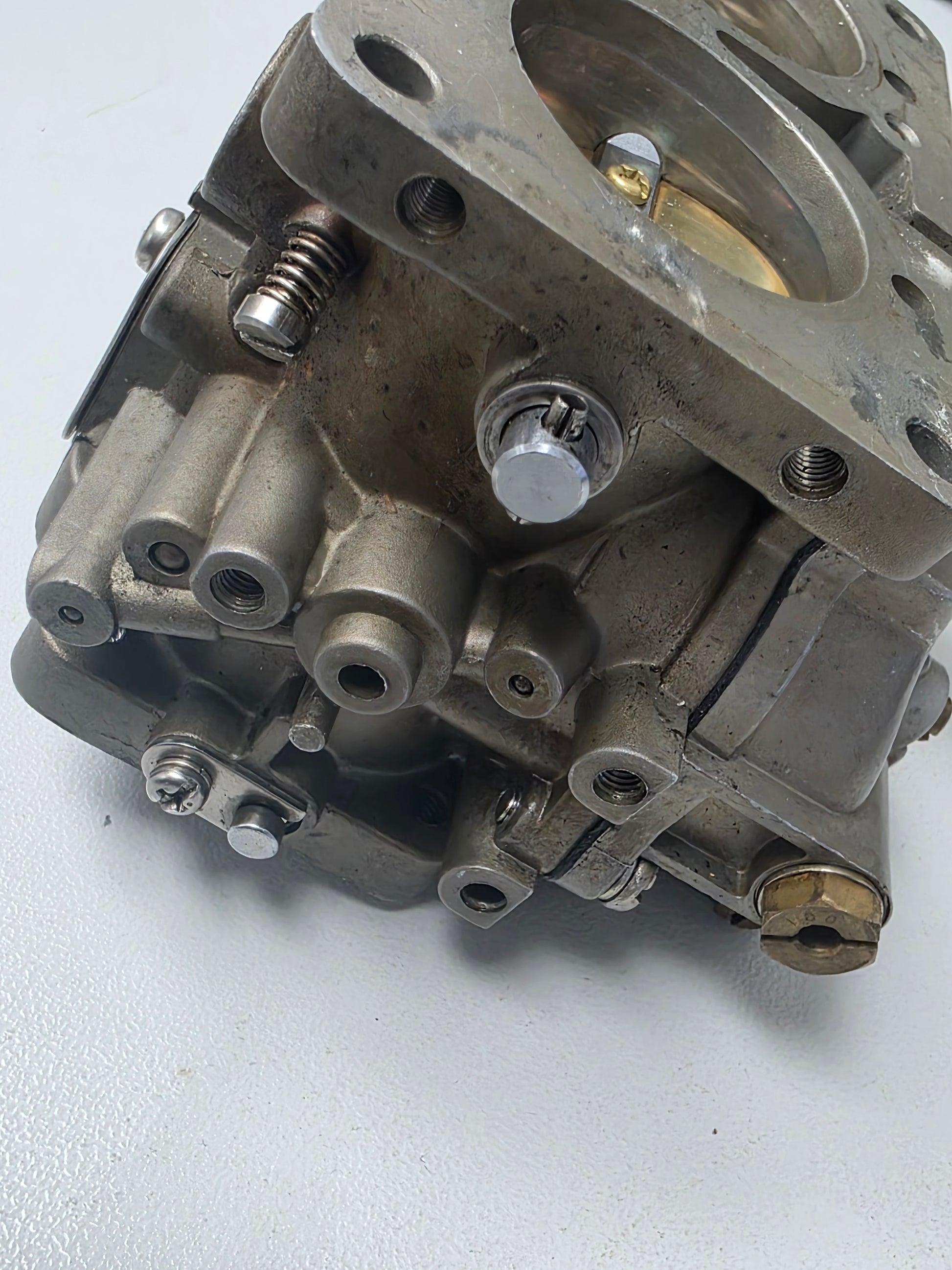

Genuine Yamaha Upper Carburettor Assembly No. 1 - Part Number: 6E5-14301-13-00

A genuine Yamaha upper carburettor assembly for selected 115HP and 130HP V4 two-stroke outboards, including 115CETO model families.

This is the upper carburettor in the two-carburettor V4 intake system. It meters fuel and air for the upper cylinder pair and is calibrated to operate with lower carburettor 6E5-14302-13-00.

⚙️ Key Features

• Genuine Yamaha upper carburettor assembly
• Correct current part number 6E5-14301-13-00
• Supersedes earlier -11 and -12 revisions
• Upper carburettor in the Yamaha V4 two-carb system
• Matching lower assembly 6E5-14302-13-00

🚤 Compatibility

Commonly used on

• Yamaha 115HP and 130HP V4 carburetted two-stroke outboards

Typically suits

• Engine models:
• Yamaha 115CETO and 115CETOL V4 two-stroke
• Yamaha 115ETLJ - 1986
• Yamaha 115ETLH - 1987
• Yamaha 115ETLG - 1988
• Yamaha P115TLRR - 1993
• Yamaha C115TLRR - 1993
• Yamaha 130TLRR - 1993
• 115HP and 130HP V4 engines using upper carburettor revisions -11, -12 or -13
• HP Range: 115HP - 130HP
• Engine Type: Yamaha V4 carburetted two-stroke outboard
• Year Range: Approximately 1986-1993

🔌 Function

The upper carburettor meters fuel and air for the upper cylinder pair. It must be synchronised with the lower carburettor and ignition linkage to maintain even cylinder loading.

⚠️ Common Signs of Failure

• Upper cylinders run lean or excessively rich
• Fuel leaks from the bowl or needle-and-seat assembly
• Engine hesitates, bogs or loses top-end power
• Poor idle caused by blocked pilot passages
• Carburettor is out of synchronisation with the lower assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-14301-13-00 → Supersedes 6E5-14301-12-00
• 6E5-14301-12-00 → Supersedes 6E5-14301-11-00
• 6E5-14301-11-00 earlier OEM upper carburettor

OEM / Related Numbers

• 6E5-14301-13-00
• 6E5-14301-12-00
• 6E5-14301-11-00
• 6E5143011300
• 6E5-14302-13-00 matching lower carburettor

Aftermarket / Verified Equivalents

• Southcentral Outboards: remanufactured Yamaha upper carburettor
• FITKITBT: carburettor repair kit for the 6E5-14301 family
• Marine carburettor specialists: rebuilt 6E5-14301 exchange assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
