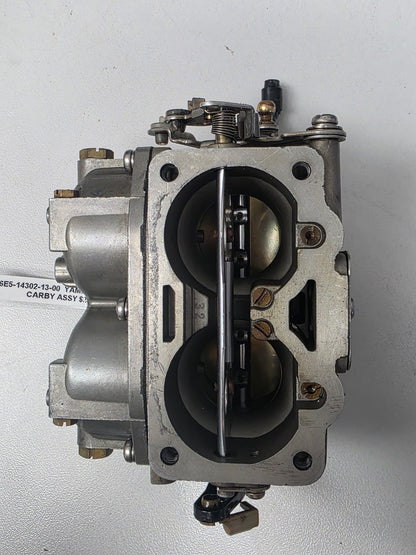

6E5-14302-13-00 Yamaha 115CETO Carby Assy | Genuine Used Part

🔧 Product Description

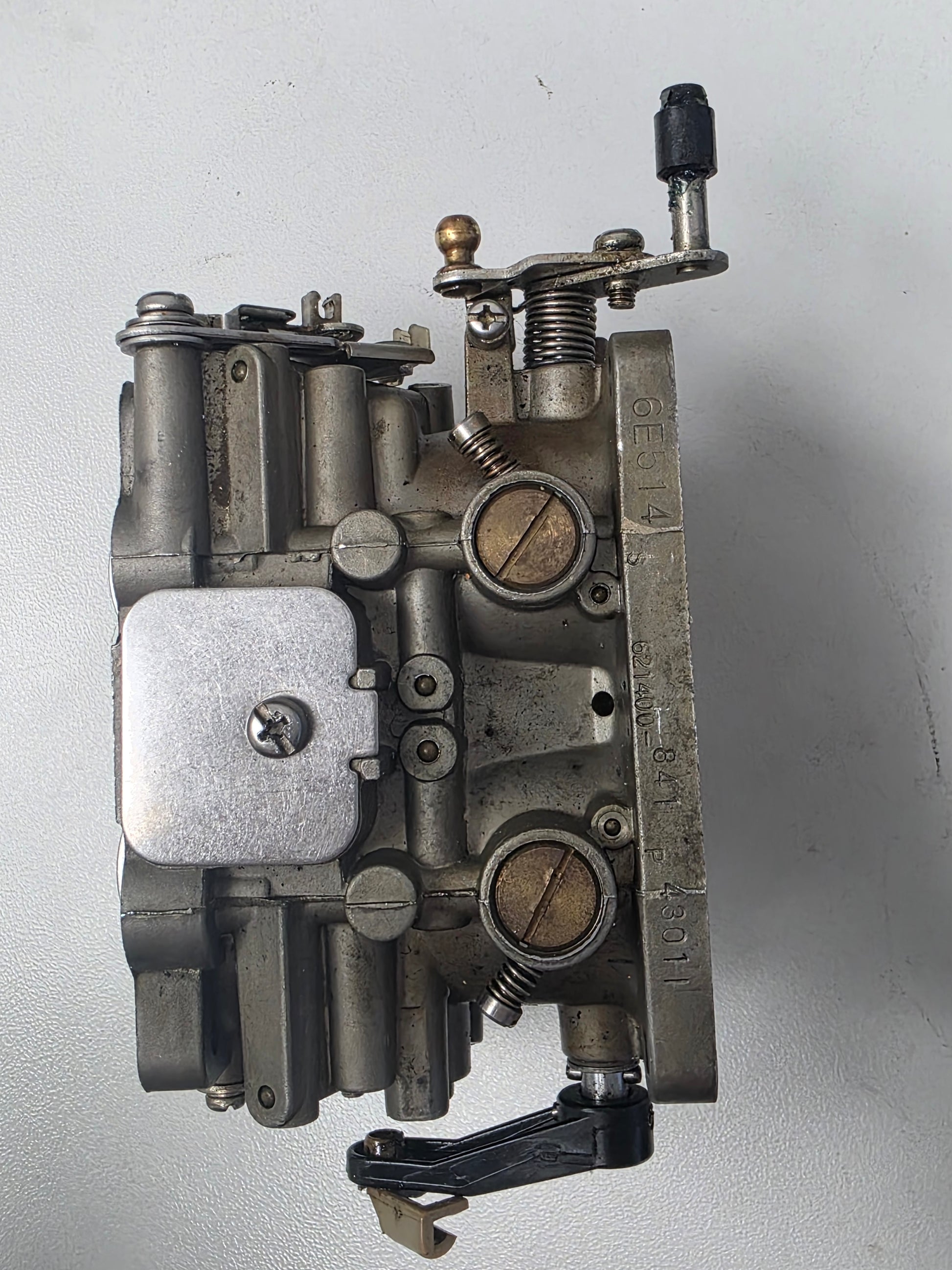

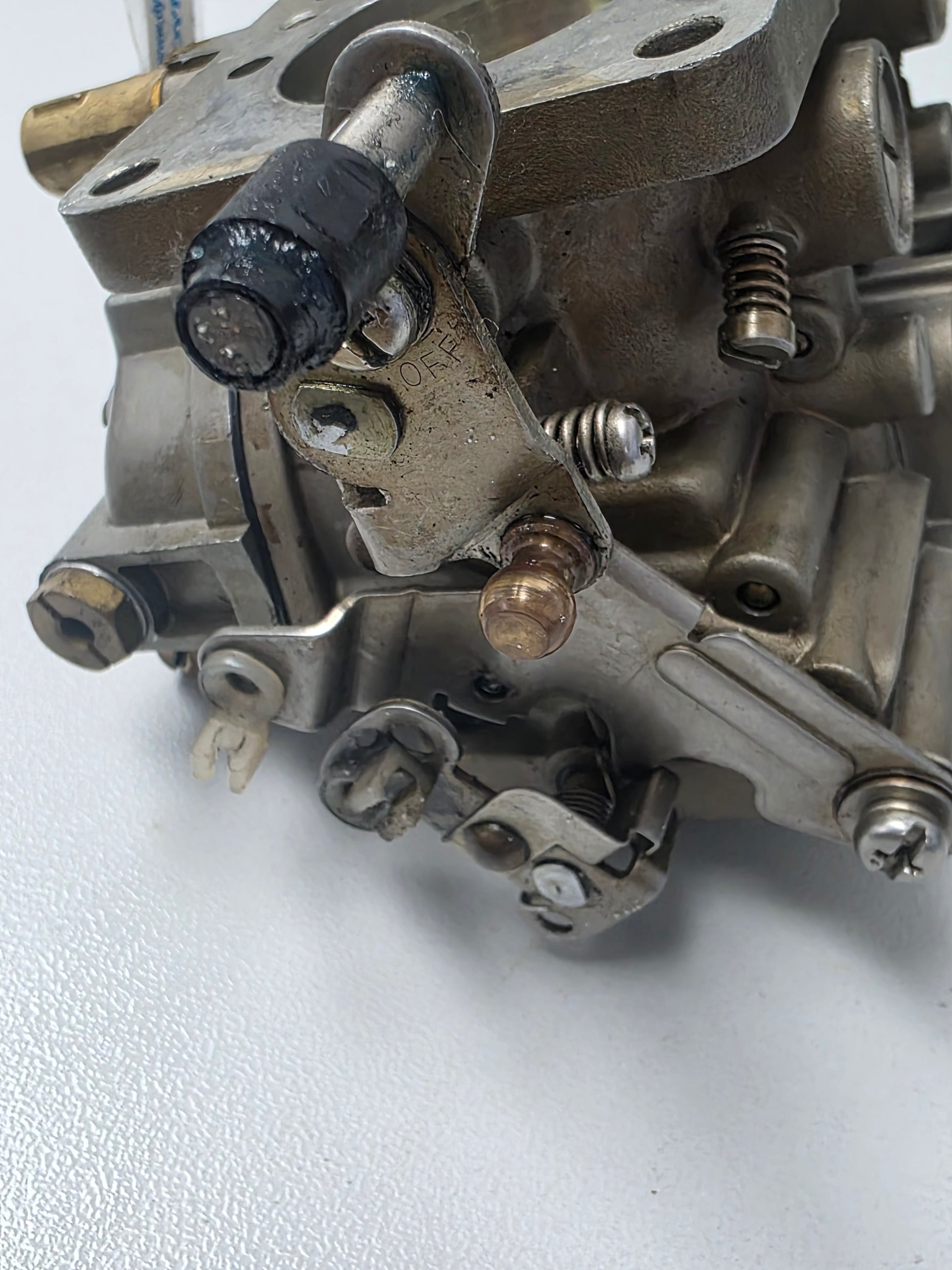

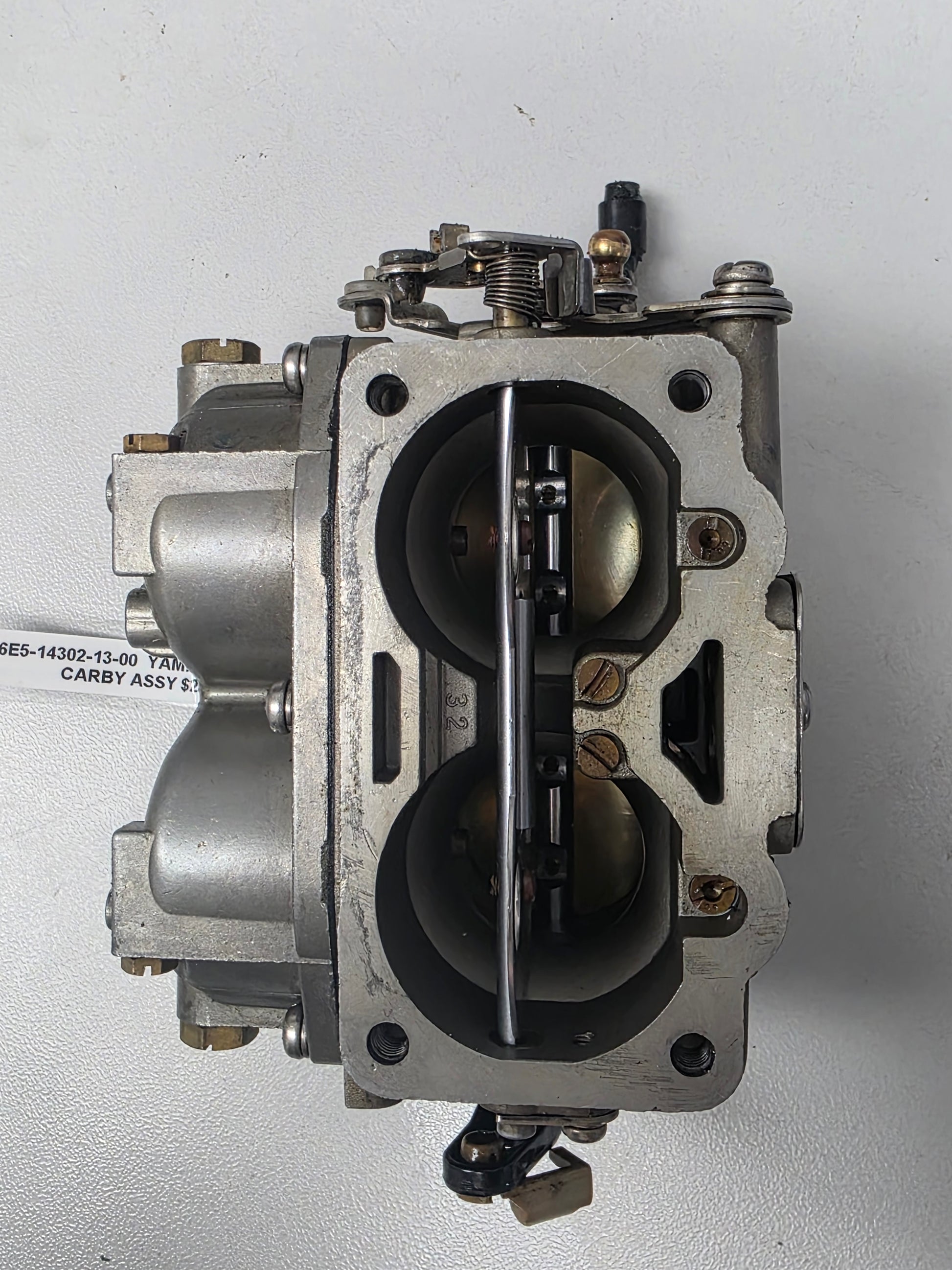

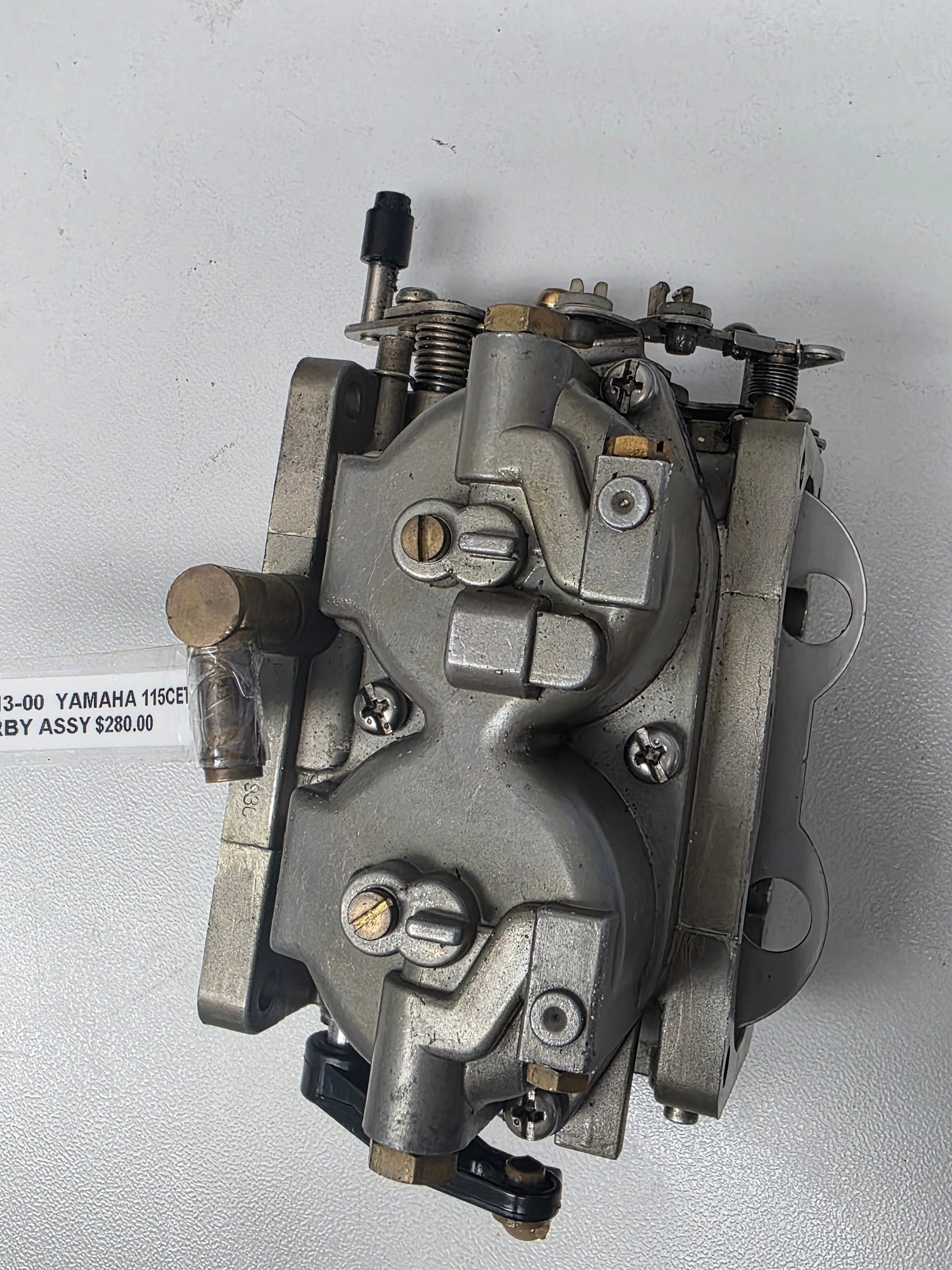

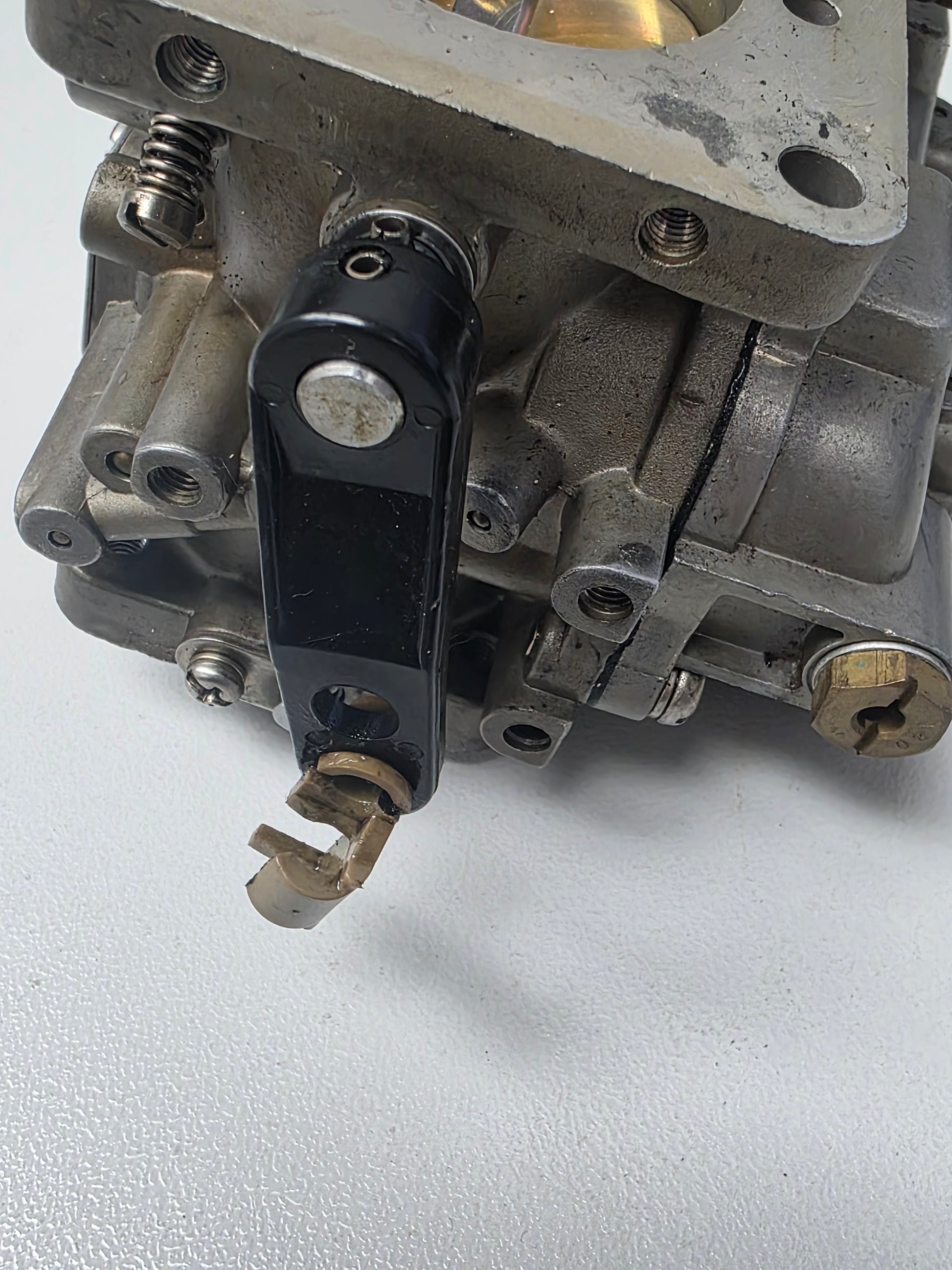

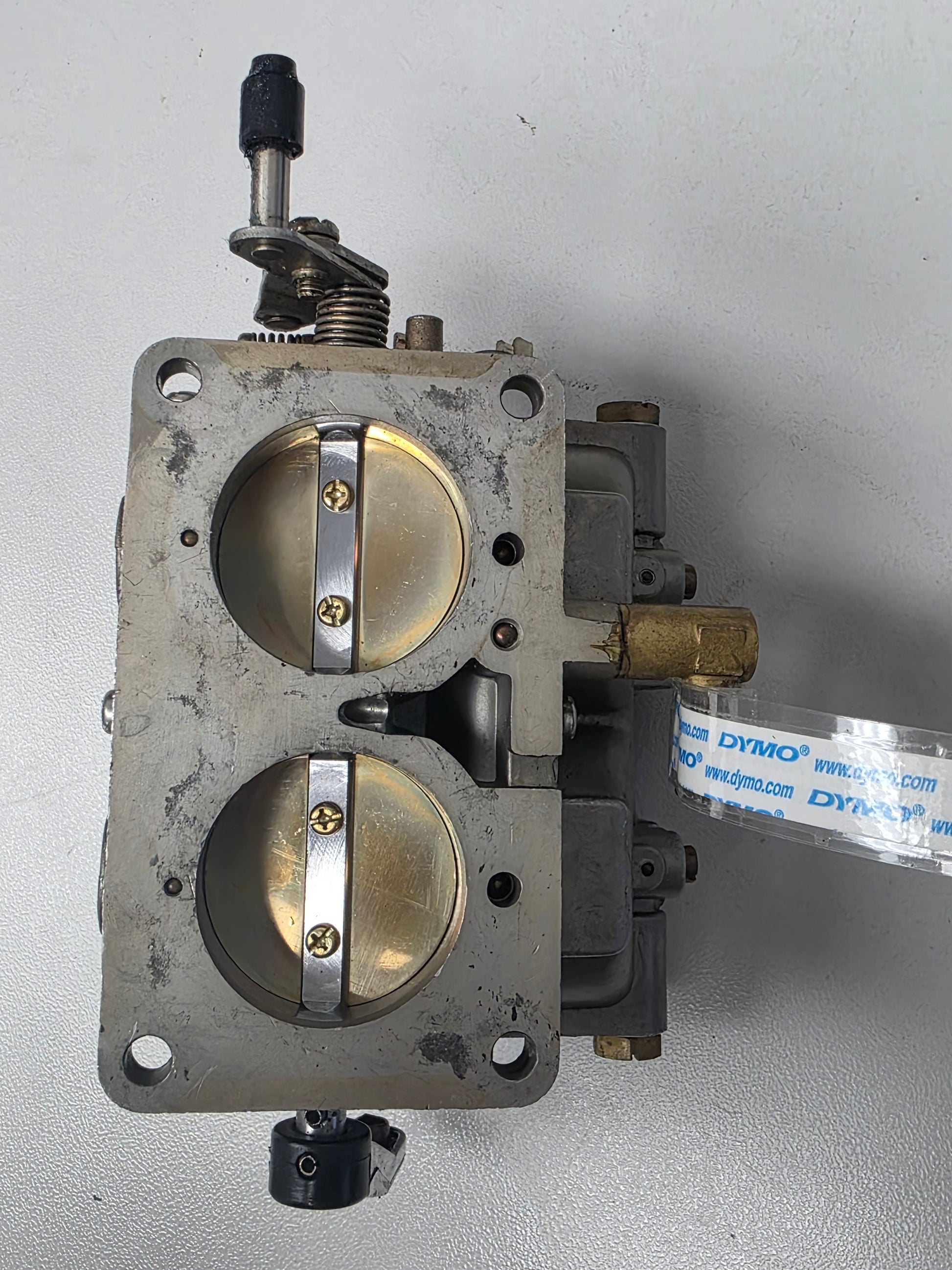

Genuine Yamaha Lower Carburettor Assembly No. 2 - Part Number: 6E5-14302-13-00

A genuine Yamaha lower carburettor assembly for selected 115HP and 130HP V4 two-stroke outboards, including 115CETO model families.

This is the lower carburettor in the V4 intake system and supplies the lower cylinder pair. It is matched to upper carburettor 6E5-14301-13-00.

⚙️ Key Features

• Genuine Yamaha lower carburettor assembly
• Correct current part number 6E5-14302-13-00
• Supersedes earlier -11 and -12 revisions
• Lower carburettor in the Yamaha V4 two-carb system
• Matching upper assembly 6E5-14301-13-00

🚤 Compatibility

Commonly used on

• Yamaha 115HP and 130HP V4 carburetted two-stroke outboards

Typically suits

• Engine models:
• Yamaha 115CETO and 115CETOL V4 two-stroke
• Yamaha 115ETLJ - 1986
• Yamaha 115ETLH - 1987
• Yamaha 115ETLG - 1988
• Yamaha P115TLRR - 1993
• Yamaha C115TLRR - 1993
• Yamaha 130TLRR - 1993
• 115HP and 130HP V4 engines using lower carburettor revisions -11, -12 or -13
• HP Range: 115HP - 130HP
• Engine Type: Yamaha V4 carburetted two-stroke outboard
• Year Range: Approximately 1986-1993

🔌 Function

The lower carburettor meters fuel and air for the lower cylinder pair. Correct jetting, float level and synchronisation with the upper carburettor are required for balanced V4 operation.

⚠️ Common Signs of Failure

• Lower cylinders run lean or rich
• Carburettor floods or leaks fuel
• Engine stalls when returning to idle
• Blocked main or pilot jets reduce performance
• Linkage or throttle plates do not synchronise correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-14302-13-00 → Supersedes 6E5-14302-12-00
• 6E5-14302-12-00 → Supersedes 6E5-14302-11-00
• 6E5-14302-11-00 earlier OEM lower carburettor

OEM / Related Numbers

• 6E5-14302-13-00
• 6E5-14302-12-00
• 6E5-14302-11-00
• 6E5143021300
• 6E5-14301-13-00 matching upper carburettor

Aftermarket / Verified Equivalents

• Southcentral Outboards: remanufactured Yamaha lower carburettor
• FITKITBT: carburettor repair kit for the 6E5-14302 family
• Marine carburettor specialists: rebuilt 6E5-14302 exchange assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
