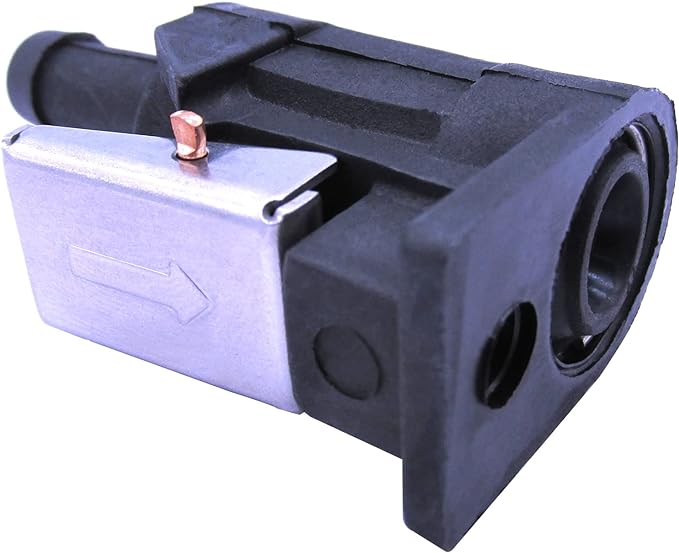

6E5-24305-06 Yamaha Fuel Connector Fitting | Genuine OEM Yamaha Outboard Part

🔧 Product Description

Genuine Yamaha Engine-Side 8mm Fuel Connector - Part Number: 6E5-24305-06

A genuine Yamaha engine-side quick-connect fuel fitting for selected Yamaha two-stroke and four-stroke outboards.

The connector provides a detachable connection between the portable-tank or vessel fuel hose and the engine fuel inlet. It uses an approximately 8mm / 5/16-inch fuel passage and seals automatically when the mating connector is properly attached.

⚙️ Key Features

• Genuine Yamaha OEM engine-side fuel connector
• Correct current Yamaha part number 6E5-24305-06
• Approximately 8mm / 5/16-inch fuel connection
• Quick-release connection for the external fuel hose
• Cross-references with Sierra, Recmar and Mercury / Mariner connectors

🚤 Compatibility

Commonly used on

• Yamaha engine-side removable fuel-hose connections
• Portable fuel-tank and under-floor tank supply hoses using the matching Yamaha female connector

Typically suits

• Engine models:
• Yamaha 6HP two-stroke and four-stroke
• Yamaha 8HP two-stroke and four-stroke
• Yamaha 9.9HP two-stroke and four-stroke
• Yamaha 15HP two-stroke and four-stroke
• Yamaha 20HP two-stroke and four-stroke
• Yamaha 25HP two-stroke and four-stroke
• Yamaha 30HP two-stroke and four-stroke
• Yamaha 40HP two-stroke and four-stroke
• Yamaha 50HP two-stroke and four-stroke
• Yamaha 60HP two-stroke and four-stroke
• Yamaha 70HP two-stroke and four-stroke
• Yamaha 75HP outboard applications using the external connector
• Yamaha 80HP outboard applications using the external connector
• Yamaha 90HP outboard applications using the external connector
• HP Range: Approximately 6HP - 90HP
• Engine Type: Yamaha carburetted and EFI two-stroke / four-stroke outboard
• Year Range: Approximately 1980s onward, dependent on engine fuel-inlet arrangement

🔌 Function

The connector joins the vessel fuel hose to the engine while providing a sealed connection that can be quickly disconnected for storage or fuel-tank removal.

⚠️ Common Signs of Failure

• Fuel leaks around the connector
• Engine loses power because air enters the fuel line
• Connector will not lock onto the mating fitting
• Internal valve sticks closed and restricts fuel flow
• O-ring or locking tabs become worn or damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-24305-06 → Supersedes 6E5-24305-05
• 6E5-24305-05 → Supersedes 6E5-24305-04
• 6E5-24305-04 → Supersedes 6E5-24305-02
• 6E5-24305-02 → Supersedes 6E5-24305-01
• 6E5-24305-01 → Supersedes 6E5-24305-00

OEM / Related Numbers

• 6E5-24305-06
• 6E5-24305-06-00
• 6E5-24305-05
• 6E5-24305-04
• 6E5-24305-02
• 6E5-24305-01
• 6E5-24305-00
• 6Y2-24305-05
• 6Y2-24305-06
• Mercury / Mariner: 13563A3
• Mercury / Mariner: 13563B3
• Mercury / Quicksilver: 22-13563Q3
• Mercury / Quicksilver: 22-13563T3

Aftermarket / Verified Equivalents

• Sierra: 18-80415
• Recmar: REC6YL-24305-06
• Mercury / Quicksilver: 22-13563Q3
• Mercury / Quicksilver: 22-13563T3
• Aftermarket 8mm Yamaha engine fuel connector: 6E5-24305-06 replacement

📦 Condition

• Genuine Yamaha part
• Brand new
• Supplied in original or equivalent packaging
