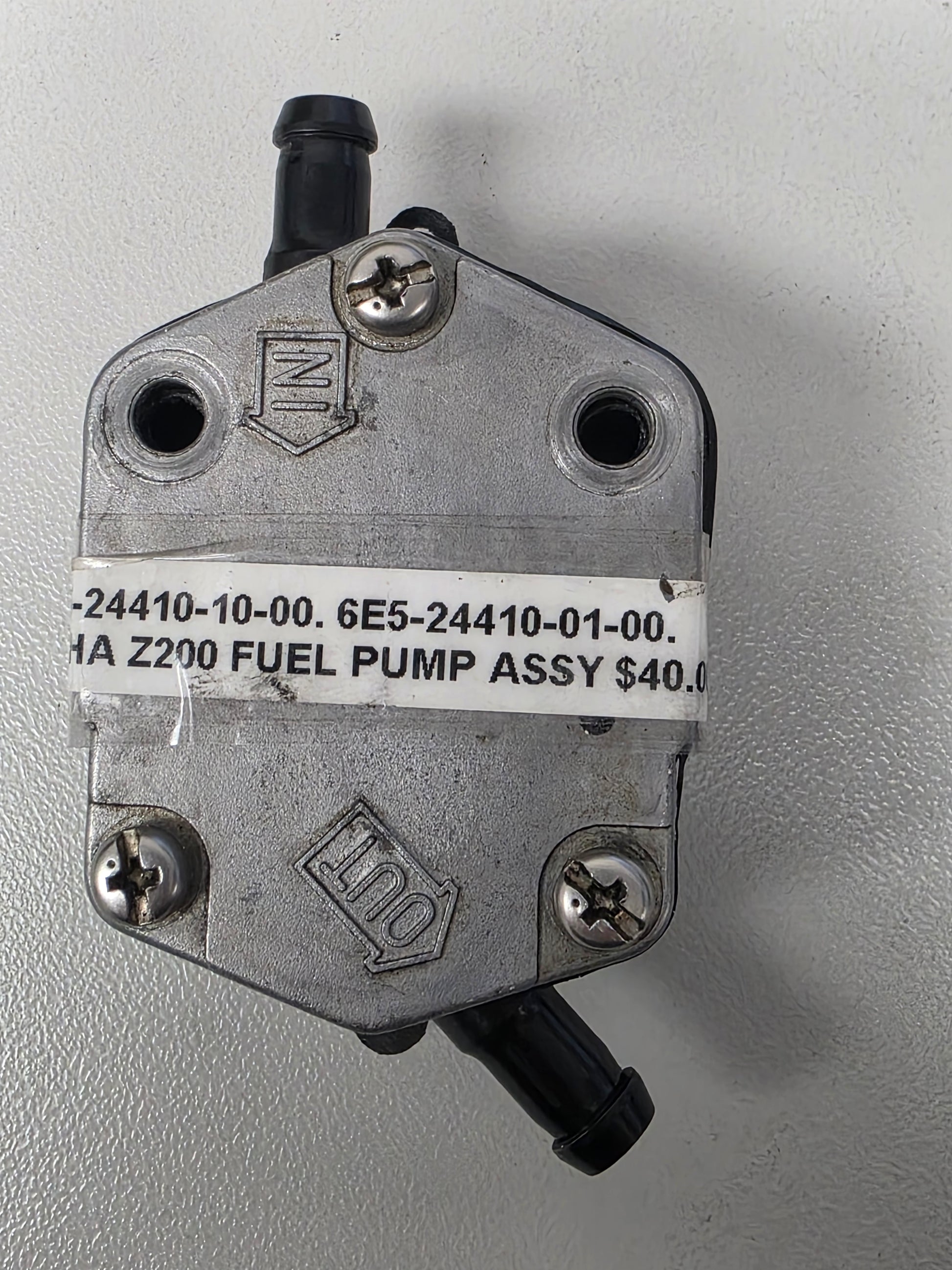

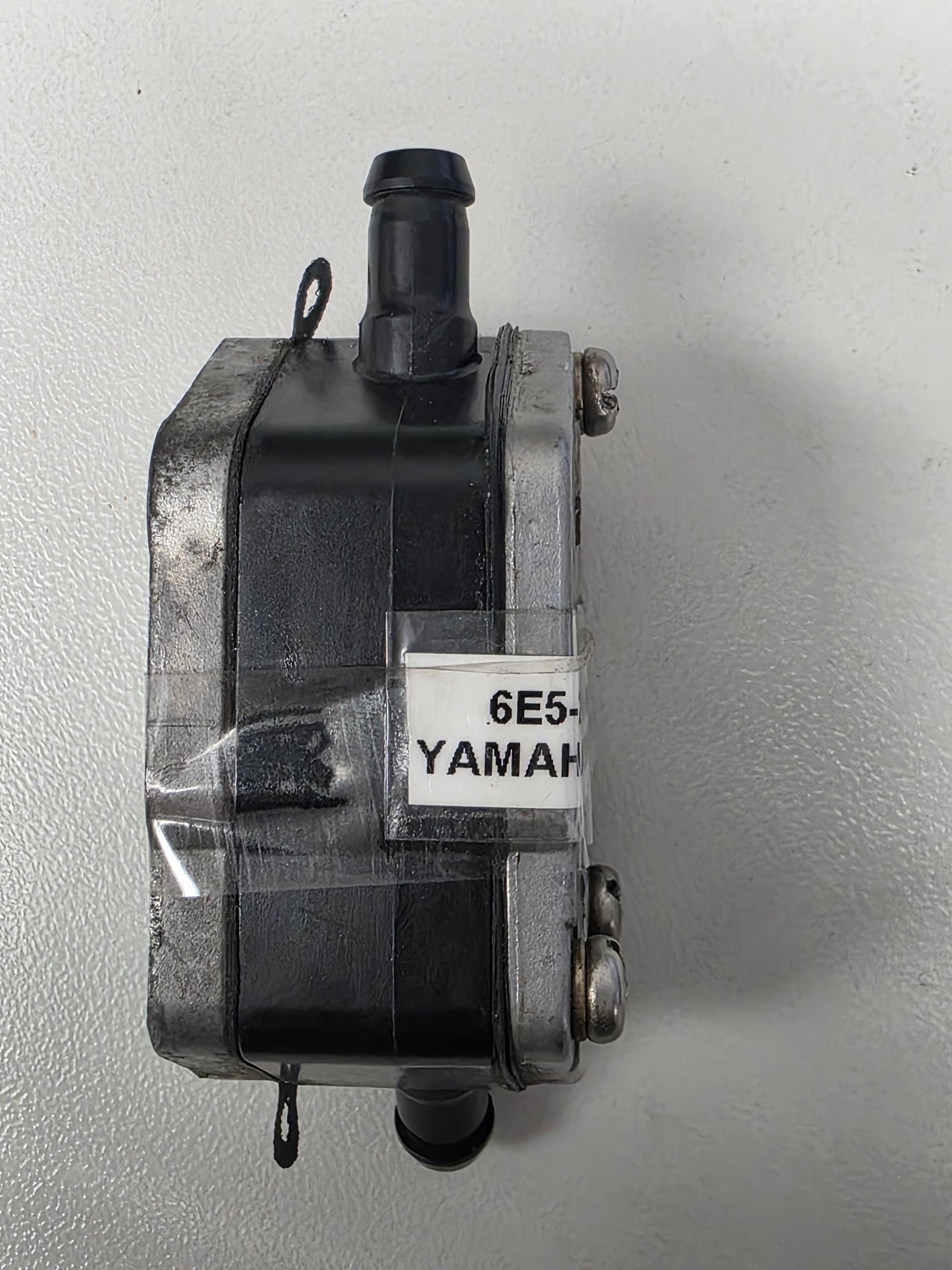

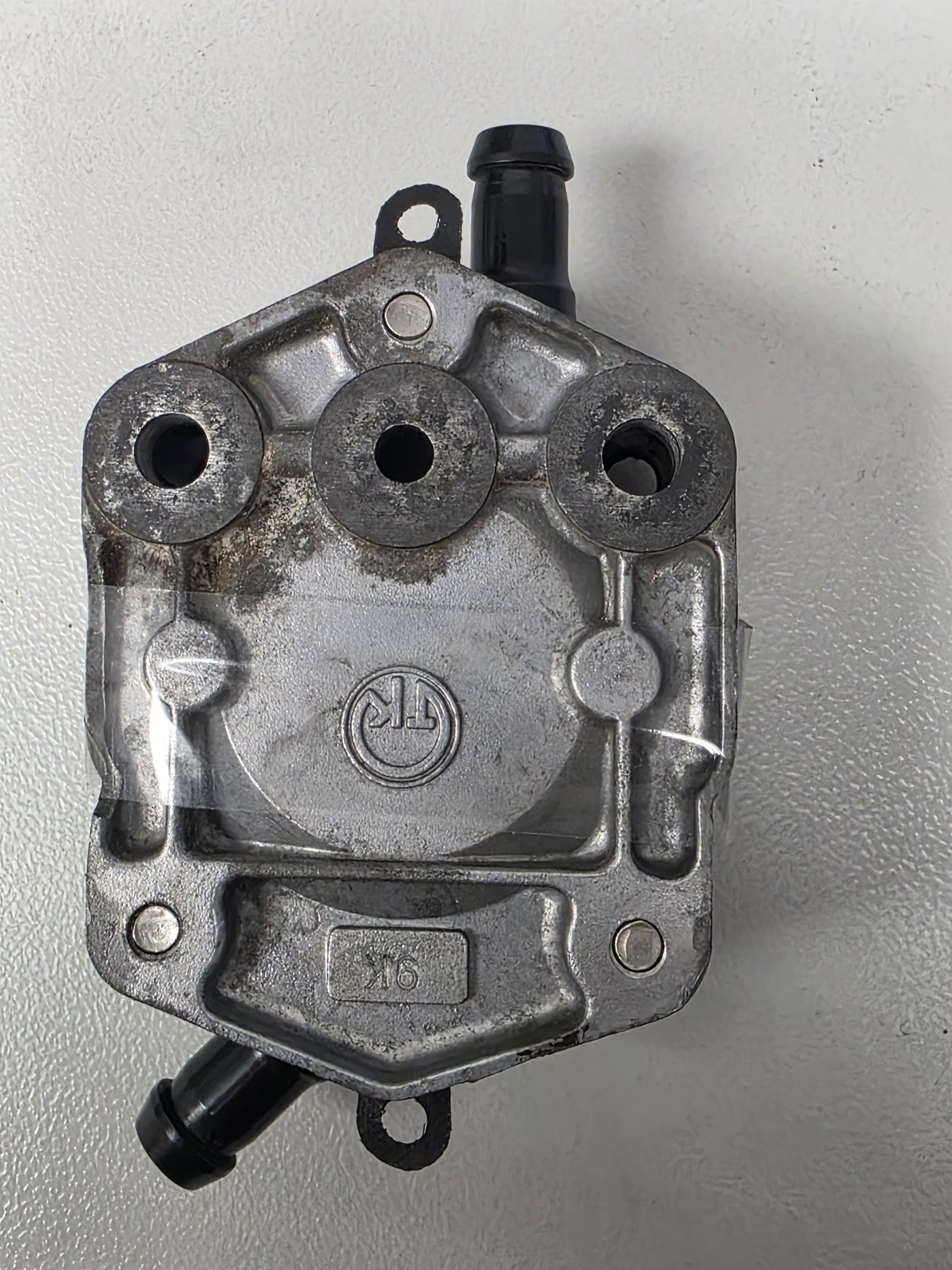

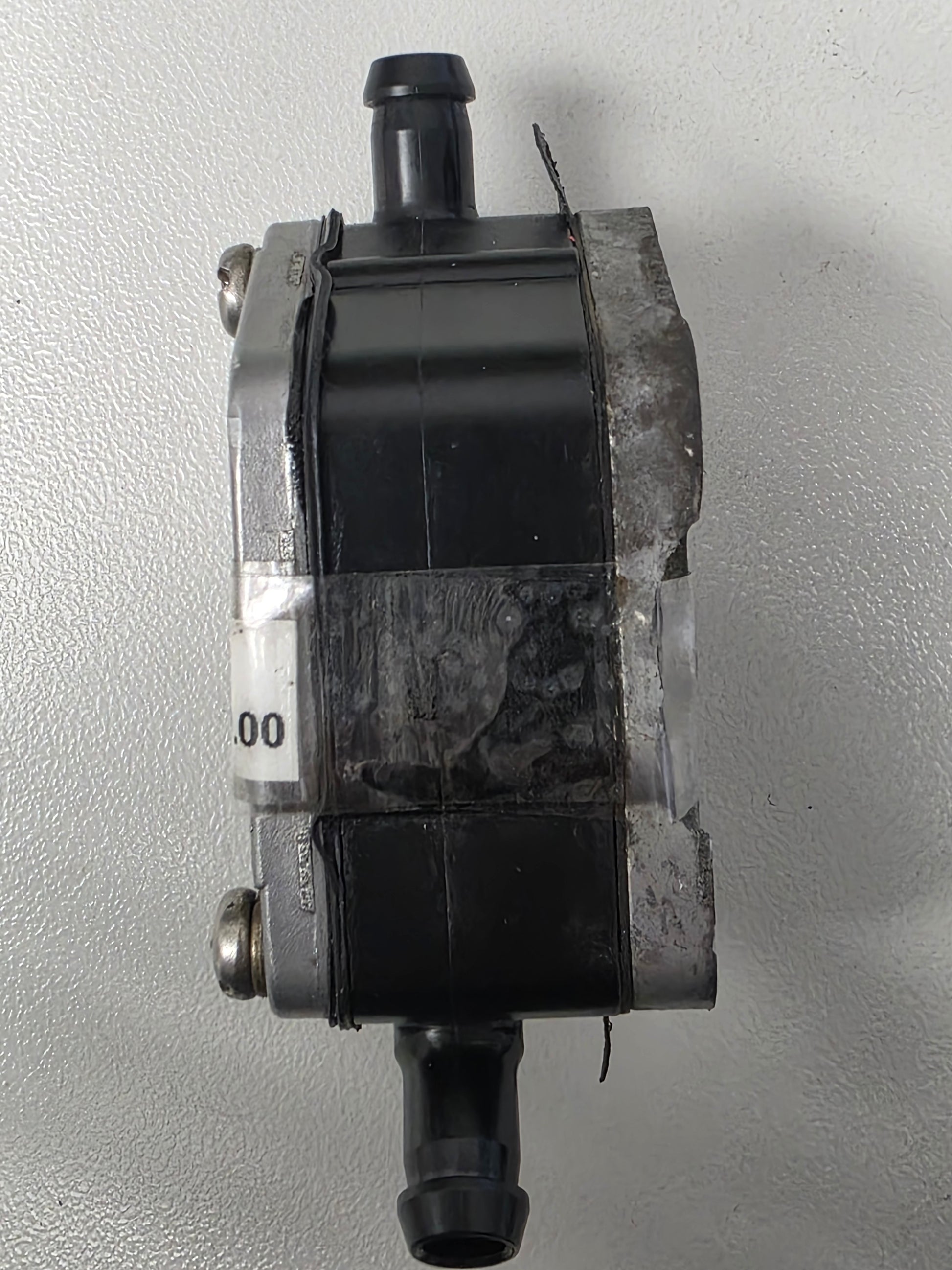

6E5-24410-10-00 6E5-24410-01-00 Yamaha Z200 Fuel Pump Assy | Genuine Used Part

🔧 Product Description

Genuine Yamaha Z150 / Z175 / Z200 HPDI Low-Pressure Fuel Pump - Earlier Part Numbers: 6E5-24410-10-00 / 6E5-24410-01-00

A genuine Yamaha diaphragm lift-pump assembly used on selected Z-series HPDI and related V6 two-stroke engines. Part numbers 6E5-24410-10-00 and 6E5-24410-01-00 are earlier references within the 6E5 pump family and are serviced by later pump 6E5-24410-03-00 in applicable catalogues.

⚙️ Key Features

• Genuine Yamaha OEM low-pressure pump
• Earlier references 6E5-24410-10-00 and 6E5-24410-01-00
• Later service replacement 6E5-24410-03-00
• Used on selected Z150, Z175 and Z200 HPDI engines
• Multiple pumps may be installed on one V6 engine

🚤 Compatibility

• Yamaha Z150 HPDI
• Yamaha LZ150 counter-rotation HPDI
• Yamaha Z175 and VZ175 HPDI families
• Yamaha Z200, VZ200 and LZ200 HPDI families
• Documented 2001 Yamaha 200HP applications
• Related 115HP-300HP V4 / V6 engines using the same 6E5 pump family
• Exact pump quantity and hose layout are controlled by engine model and fuel-system diagram

🔌 Function

The pump lifts fuel into the vapour separator, where the electric high-pressure system supplies the HPDI injectors.

⚠️ Common Signs of Failure

• HPDI engine loses power at higher RPM
• Vapour separator fuel level falls
• One pump in the bank fails
• Diaphragm leaks fuel
• Primer bulb must be pumped repeatedly
• Pulse hose or check valve fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-24410-03-00 supersedes 6E5-24410-10-00 and 6E5-24410-01-00 in applicable service catalogues
• Other related earlier numbers include 6E5-24410-00, -02, -04, -05 and -09
• Mercury 8M6010284 and 8M0175309 are related cross-brand service references for compatible pump applications

OEM / Related Numbers

• 6E5-24410-10-00
• 6E5-24410-01-00
• 6E5-24410-03-00 current service pump
• Mercury 8M6010284
• Mercury 8M0175309
• Related gaskets, pulse hoses and vapour-separator fuel lines

Aftermarket / Verified Equivalents

• Sierra 18-7349
• Mallory 9-35301
• Recmar 6E5-family replacement
• Offshore Marine 6217615A
• Other marine replacements cross-referenced to 6E5-24410-03

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
