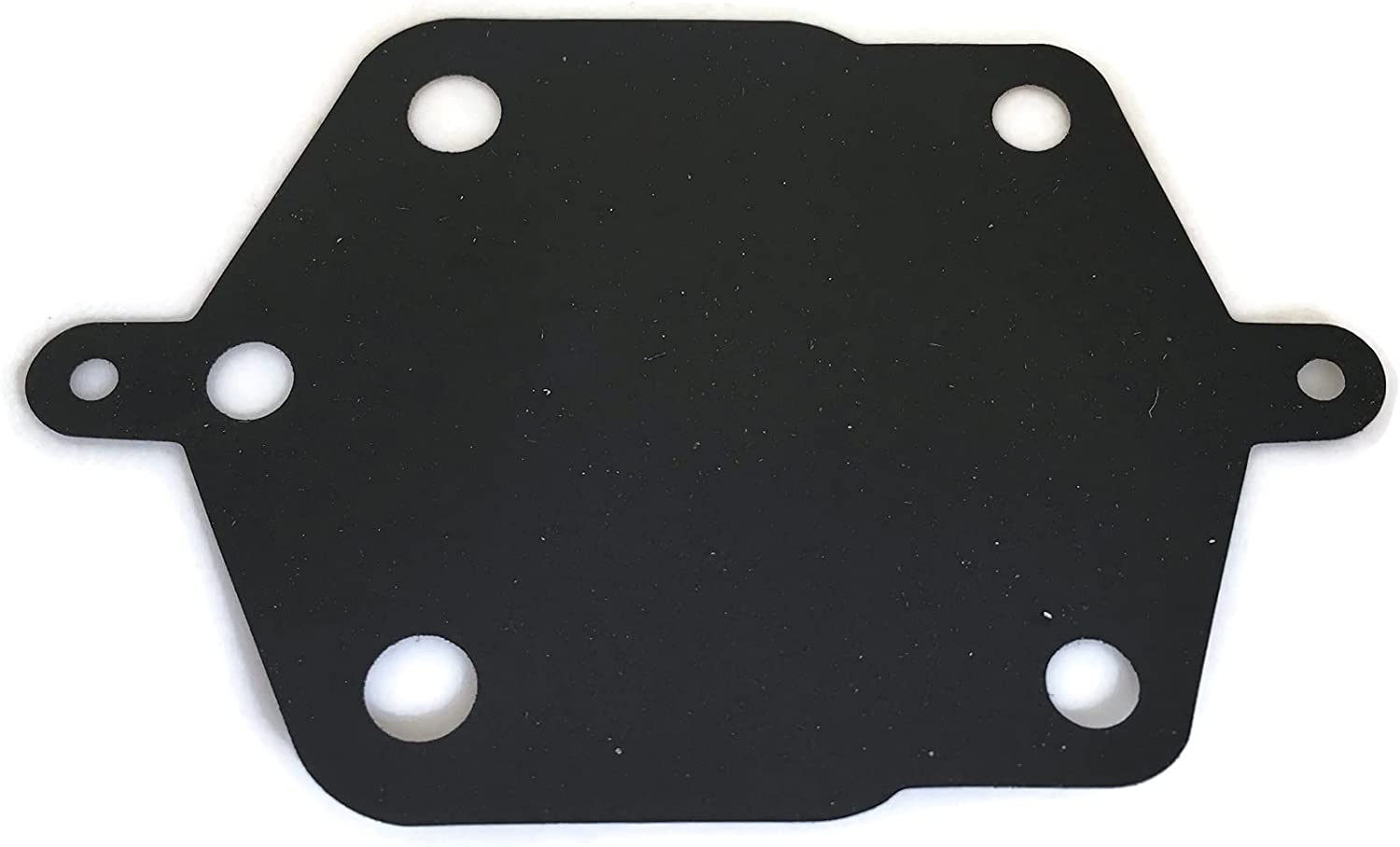

Genuine Yamaha Fuel Pump Pulse Diaphragm - Part Number: 6E5-24411-01
A genuine Yamaha flexible diaphragm for the mechanical fuel pump used on selected V4 and V6 two-stroke outboards.
The diaphragm responds to alternating crankcase pressure and vacuum pulses. Its movement operates the pump valves and transfers fuel through the low-pressure fuel system.
⚙️ Key Features
- Genuine Yamaha OEM fuel-pump diaphragm
- Correct Yamaha part number 6E5-24411-01
- Flexible fuel-resistant diaphragm material
- Services the 6E5-24410 mechanical fuel-pump family
- Sierra diaphragm and complete repair-kit options available
🚤 Compatibility
Commonly used on
- Yamaha 6E5-series mechanical fuel pumps
- V4 and V6 two-stroke crankcase-pulse fuel systems
Typically suits
- Engine models:
- Yamaha 115HP V4 two-stroke
- Yamaha 130HP V4 two-stroke
- Yamaha 150HP V6 two-stroke
- Yamaha 175HP V6 two-stroke
- Yamaha 200HP V6 two-stroke
- Yamaha 225HP V6 two-stroke
- Yamaha 250HP V6 two-stroke
- Yamaha 300HP V6 applications using pump 6E5-24410
- Yamaha ProV and Excel V6 fuel-pump applications
- Yamaha Saltwater Series carburetted and EFI engines using the 6E5 pump family
- HP Range: 115HP - 300HP
- Engine Type: Yamaha V4 and V6 carburetted / EFI two-stroke outboard
- Year Range: Approximately 1984-2004, dependent on fuel-pump assembly
🔌 Function
The diaphragm converts crankcase pulses into pumping movement that draws fuel into the pump and pushes it toward the engine's fuel-metering system.
⚠️ Common Signs of Failure
- Engine starves for fuel at higher speed
- Primer bulb must be pumped to keep the engine running
- Fuel enters the pulse hose or crankcase
- Engine floods or runs excessively rich
- Diaphragm becomes stiff, split or perforated
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E5-24411-01 → Supersedes 6E5-24411-00
- 6E5-24411-00 earlier OEM diaphragm reference
- 6E5-24411-10 related diaphragm reference for selected pump variations
OEM / Related Numbers
- 6E5-24411-01
- 6E5-24411-01-00
- 6E5-24411-00
- 6E5-24411-10
- 6E5-24410-03 related complete fuel pump
- 6E5-24434-02 related pump gasket
- 6E5-24435-01 related pump gasket
- 6E5-24471-00 related diaphragm
Aftermarket / Verified Equivalents
- Sierra: 18-7843
- Sierra: 18-7788 complete fuel-pump repair kit
- Offshore Marine Parts: diaphragm repair kit for the 6E5-24410 pump family
- Aftermarket diaphragm: 6E5-24411-01 replacement
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
