6E5-24434-02 Yamaha Gasket Body | Genuine OEM Yamaha Outboard Part

🔧 Product Description

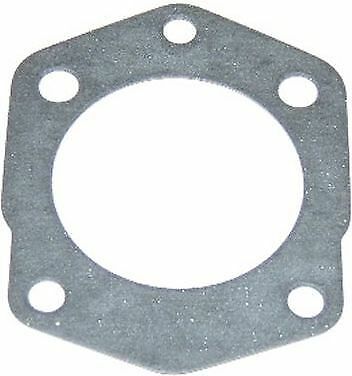

Genuine Yamaha Fuel Pump Body Gasket - Part Number: 6E5-24434-02

A genuine Yamaha body gasket for the 6E5-series mechanical diaphragm fuel pump.

The gasket seals one of the pump-body mating surfaces and separates the fuel, pulse and valve passages. Correct sealing is essential for the pump to develop fuel flow without drawing air or leaking externally.

⚙️ Key Features

• Genuine Yamaha OEM fuel-pump body gasket

• Correct Yamaha part number 6E5-24434-02

• Fuel-resistant pump-body sealing material

• Used in the 6E5-24410 V4 and V6 mechanical pump family

• Available separately and in complete aftermarket repair kits

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-24434-02 → Supersedes 6E5-24434-01

• 6E5-24434-01 → Supersedes 6E5-24434-00

• 6E5-24434-00 original pump-body gasket reference

OEM / Related Numbers:

• 6E5-24434-02

• 6E5-24434-02-00

• 6E5-24434-01

• 6E5-24434-00

• 6E5-24410-03 related complete fuel pump

• 6E5-24411-01 related diaphragm

• 6E5-24435-01 related body gasket 2

• 6E5-24471-00 related diaphragm

Aftermarket / Verified Equivalents:

• Poseidon Marine: 6E5-24434-02 replacement body gasket

• Sierra: supplied in 18-7788 fuel-pump repair kit

• Offshore Marine Parts: 6E5-series diaphragm-pump repair kit

• Aftermarket pump-body gasket: 6E5-24434-02 replacement

🚤 Compatibility

Commonly used on:

• Yamaha mechanical diaphragm fuel-pump body assemblies

• 6E5-24410-series V4 and V6 fuel pumps

Typically suits:

• Engine models:

• Yamaha 115HP V4 two-stroke

• Yamaha 130HP V4 two-stroke

• Yamaha 150HP V6 two-stroke

• Yamaha 175HP V6 two-stroke

• Yamaha 200HP V6 two-stroke

• Yamaha 225HP V6 two-stroke

• Yamaha 250HP V6 two-stroke

• Selected Yamaha 300HP two-stroke fuel-pump applications

• Yamaha ProV, Excel and Saltwater Series engines using pump 6E5-24410

• Yamaha 115ETLD, 115ETLF, 115ETLG and corresponding V4 production

• HP Range: 115HP - 300HP

• Engine Type: Yamaha V4 and V6 two-stroke outboard

• Year Range: Approximately 1984-2004, dependent on fuel-pump assembly

🔌 Function

The gasket seals the fuel-pump body joint and maintains separation between the crankcase-pulse chamber and fuel passages.

Common signs of failure:

• Fuel seeps from the pump-body joint

• Pump draws air and produces low fuel pressure

• Engine hesitates or loses power under load

• Fuel contaminates the pulse side of the pump

• Gasket is compressed, torn or damaged during disassembly

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
