6E5-24435-01 Yamaha Gasket Body 2 | Genuine OEM Yamaha Outboard Part

🔧 Product Description

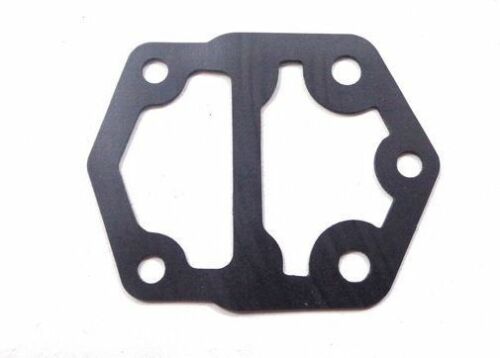

Genuine Yamaha Fuel Pump Body Gasket 2 - Part Number: 6E5-24435-01

A genuine Yamaha secondary body gasket for the 6E5-series mechanical fuel pump.

This gasket seals the second pump-body and cover interface, maintaining the correct separation between the fuel chambers, one-way valves and pulse-operated diaphragm assembly.

⚙️ Key Features

• Genuine Yamaha OEM fuel-pump body gasket 2

• Correct Yamaha part number 6E5-24435-01

• Fuel-resistant gasket construction

• Services Yamaha 6E5-24410-series mechanical pumps

• Included in aftermarket V4 / V6 fuel-pump repair kits

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-24435-01 → Supersedes 6E5-24435-00

• 6E5-24435-00 earlier OEM body-gasket reference

OEM / Related Numbers:

• 6E5-24435-01

• 6E5-24435-01-00

• 6E5-24435-00

• 6E5-24410-03 related complete fuel pump

• 6E5-24411-01 related diaphragm

• 6E5-24434-02 related body gasket

• 6E5-24471-00 related pump diaphragm

Aftermarket / Verified Equivalents:

• Sierra: supplied in 18-7788 fuel-pump repair kit

• Offshore Marine Parts: 6E5-series fuel-pump repair kit

• Aftermarket body gasket 2: 6E5-24435-01 replacement

🚤 Compatibility

Commonly used on:

• Yamaha 6E5-series mechanical diaphragm pumps

• V4 and V6 two-stroke low-pressure fuel systems

Typically suits:

• Engine models:

• Yamaha 115HP V4 two-stroke

• Yamaha 130HP V4 two-stroke

• Yamaha 150HP V6 two-stroke

• Yamaha 175HP V6 two-stroke

• Yamaha 200HP V6 two-stroke

• Yamaha 225HP V6 two-stroke

• Yamaha 250HP V6 two-stroke

• Selected Yamaha 300HP two-stroke applications

• Yamaha ProV and Excel fuel-pump assemblies

• Yamaha Saltwater Series engines using the 6E5-24410 pump family

• HP Range: 115HP - 300HP

• Engine Type: Yamaha V4 and V6 carburetted / EFI two-stroke outboard

• Year Range: Approximately 1984-2004, dependent on fuel-pump assembly

🔌 Function

The gasket closes the secondary pump-body joint so the internal valves and diaphragms can create the pressure differential required to move fuel.

Common signs of failure:

• Fuel leakage around the pump cover

• Air enters the fuel circuit

• Engine requires repeated primer-bulb pumping

• Fuel pressure falls at higher engine speed

• Gasket is hardened, flattened or torn

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
