6E5-24471-00 Yamaha Fuel Pump Diaphragm | Genuine OEM Yamaha Outboard Part

6E5-24471-00 Yamaha Fuel Pump Diaphragm | Genuine OEM Yamaha Outboard Part

$27.45 AUD
$27.45 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

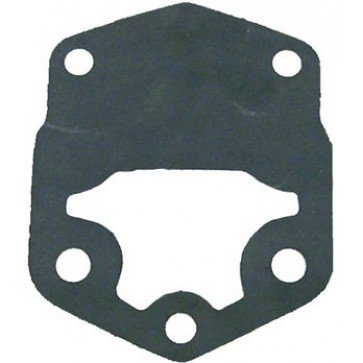

Genuine Yamaha Fuel Pump Valve Diaphragm - Part Number: 6E5-24471-00

A genuine Yamaha flexible diaphragm for selected 6E5-series mechanical fuel pumps.

The diaphragm forms part of the pumping and valve chamber, responding to pump-body pressure changes while directing fuel through the inlet and outlet passages.

⚙️ Key Features

  • Genuine Yamaha OEM fuel-pump diaphragm
  • Correct Yamaha part number 6E5-24471-00
  • Fuel-resistant flexible diaphragm construction
  • Used in Yamaha V4 and V6 mechanical fuel pumps
  • Sierra direct replacement diaphragm available

🚤 Compatibility

Commonly used on

  • Yamaha 6E5-series mechanical diaphragm fuel pumps
  • V4 and V6 two-stroke low-pressure fuel systems

Typically suits

  • Engine models:
  • Yamaha 115HP V4 two-stroke
  • Yamaha 130HP V4 two-stroke
  • Yamaha 150HP V6 two-stroke
  • Yamaha 175HP V6 two-stroke
  • Yamaha 200HP V6 two-stroke
  • Yamaha 225HP V6 two-stroke
  • Yamaha 250HP V6 two-stroke
  • Selected Yamaha 300HP V6 two-stroke applications
  • Yamaha ProV, Excel and Saltwater Series engines using pump 6E5-24410
  • HP Range: 115HP - 300HP
  • Engine Type: Yamaha V4 and V6 carburetted / EFI two-stroke outboard
  • Year Range: Approximately 1984-2004, dependent on fuel-pump design

🔌 Function

The diaphragm moves and seals within the pump chamber, helping the one-way valves draw fuel into the pump and discharge it toward the carburettors or low-pressure fuel rail.

⚠️ Common Signs of Failure

  • Engine starves for fuel at high speed
  • Fuel leaks through the pump pulse connection
  • Engine floods or runs rich
  • Primer bulb must be pumped while operating
  • Diaphragm becomes perforated, stiff or distorted

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6E5-24471-00 current OEM diaphragm reference
  • 6E5-24471-01 related later diaphragm reference for selected pump configurations

OEM / Related Numbers

  • 6E5-24471-00
  • 6E5-24471-00-00
  • 6E5-24471-01
  • 6E5-24410-03 related complete fuel pump
  • 6E5-24411-01 related pulse diaphragm
  • 6E5-24434-02 related pump-body gasket
  • 6E5-24435-01 related body gasket 2

Aftermarket / Verified Equivalents

  • Sierra: 18-7842
  • Sierra: supplied in 18-7788 fuel-pump repair kit
  • Recmar-style diaphragm: 6E5-24471-00 replacement
  • Aftermarket fuel-pump membrane: 6E5-24471-00 replacement

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
