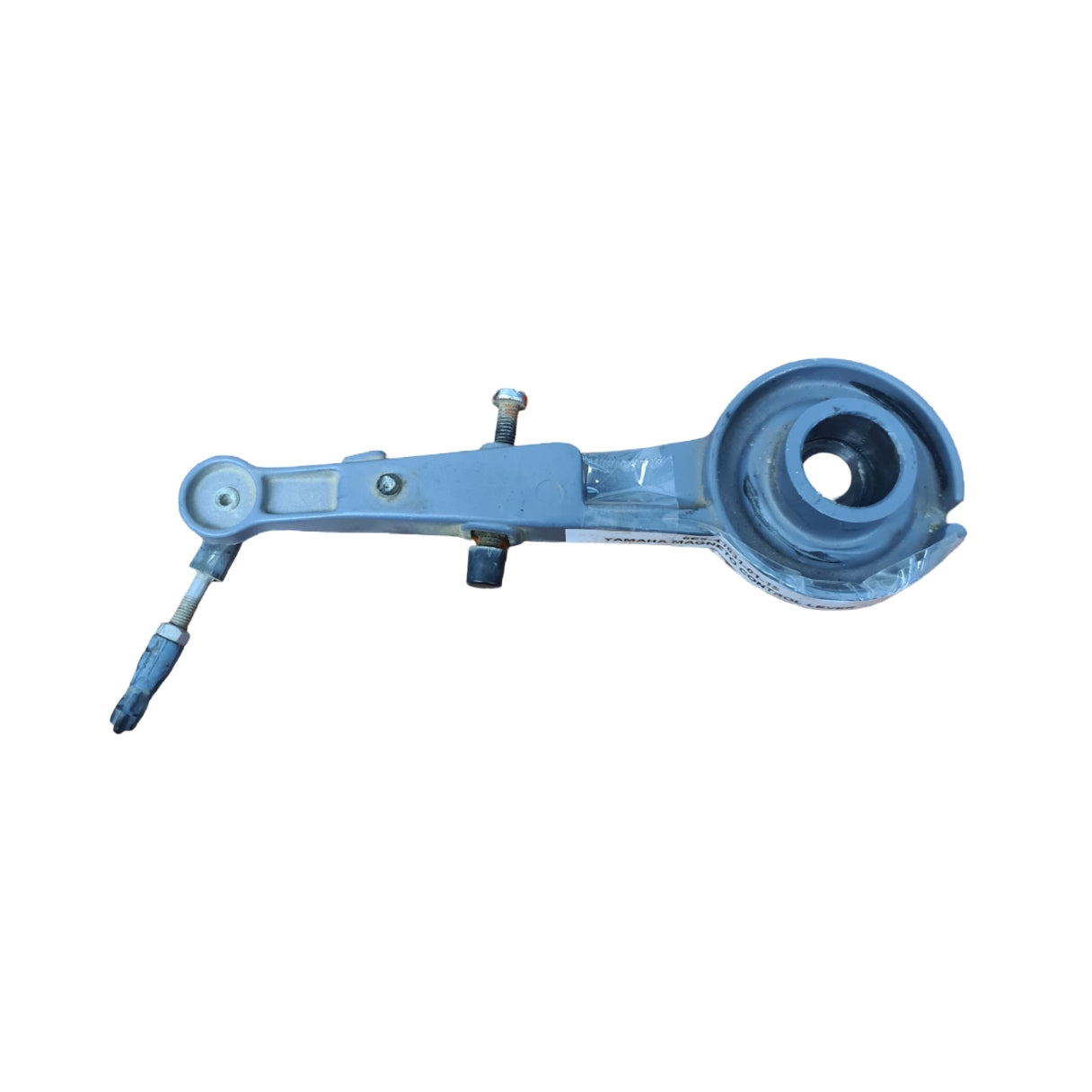

6E5-41631-01-1S Yamaha Magneto Control Lever | Genuine Used Part

🔧 Product Description

Genuine Yamaha 115HP 130HP Magneto Control Lever 1 - Part Number: 6E5-41631-01-1S

A genuine used Yamaha magneto-control lever for selected 115HP and 130HP carburetted V4 two-stroke outboards.

The lever forms one side of the ignition-timing linkage and converts movement from the control rod into rotation of the magneto or timing mechanism.

⚙️ Key Features

• Genuine used Yamaha magneto-control lever
• Correct part number 6E5-41631-01-1S
• Factory description: Lever, Magneto Control
• Painted finish suffix 1S
• Used on selected 115HP and 130HP V4 engines

🚤 Compatibility

Commonly used on

• Yamaha 115HP and 130HP V4 timing-control assemblies

Known catalogue fitment includes

• 1985-1990 115ET, 115ETL and 115ETX model groups
• 1988-1994 130ET, 130ETL, 130ETX and L130 groups
• 1991-1994 C115, P115, S115 and related models
• International 115CETO and 130BETO applications retaining the 6E5 linkage
• Selected production through approximately 2010
• HP Range: 115HP-130HP
• Engine Type: Yamaha carburetted V4 two-stroke outboard
• Production Range: Approximately 1985-2010
• Serial Note: Verify by complete model code and linkage diagram

🔌 Function

The lever transfers throttle-linked movement into the ignition-timing mechanism so timing advances correctly with engine speed and load.

⚠️ Common Signs of Failure

• Lever is bent or cracked
• Pivot hole is worn
• Timing advance is incomplete
• Linkage binds
• Engine hesitates under acceleration
• Excessive free play affects timing
• Full-advance adjustment cannot be achieved

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-41631-01-1S later painted reference
• 6E5-41631-01-94 earlier colour-suffix reference

OEM / Related Numbers

• 6E5-41631-01-1S
• 6E541631011S
• 6E5-41631-01-94
• 6E5-41632-02-1S matching magneto-control lever
• 688-41636-00-00 related magneto-control rod
• Related pivot bush, washer and retaining hardware

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
