🔧 Product Description

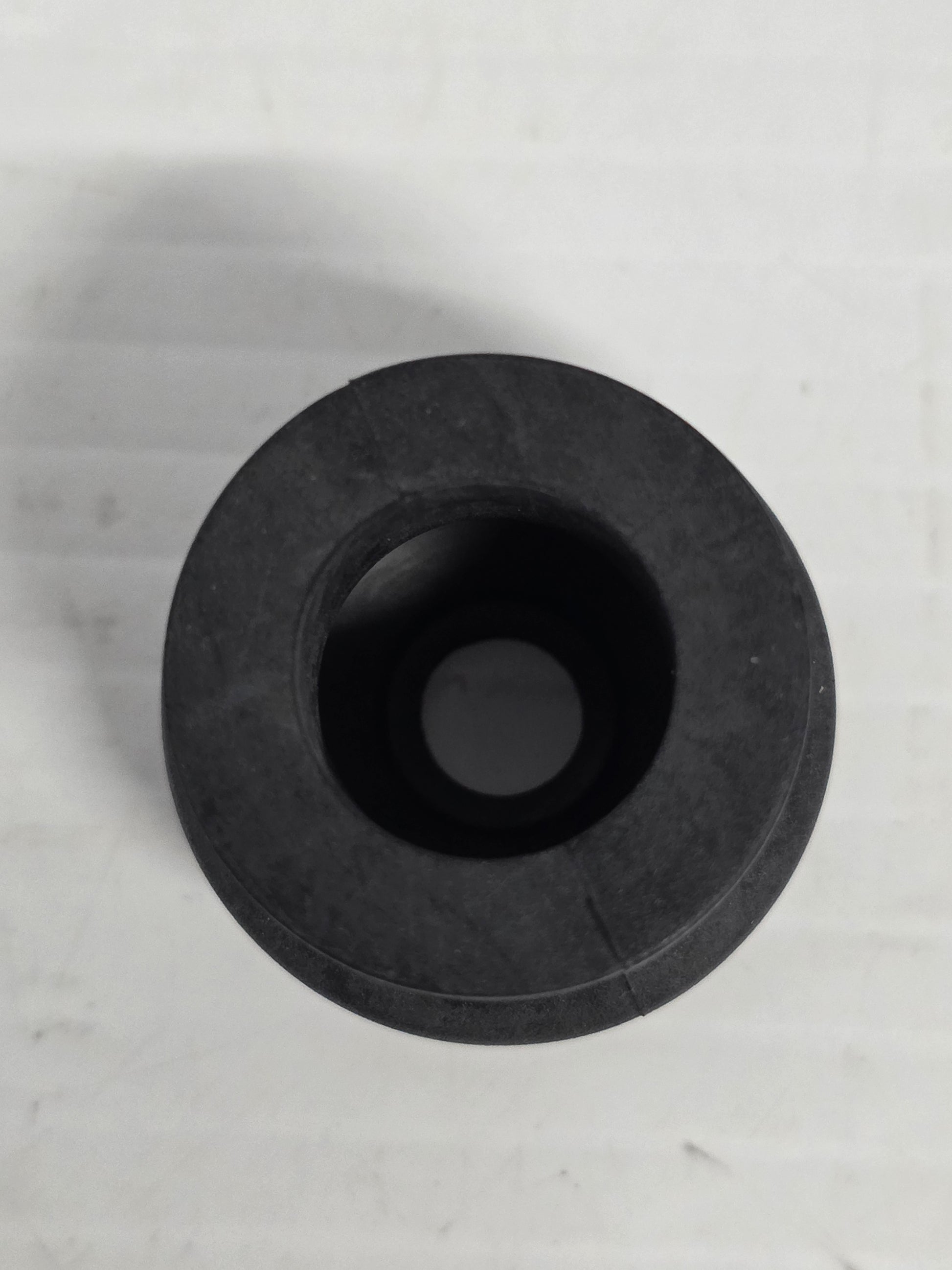

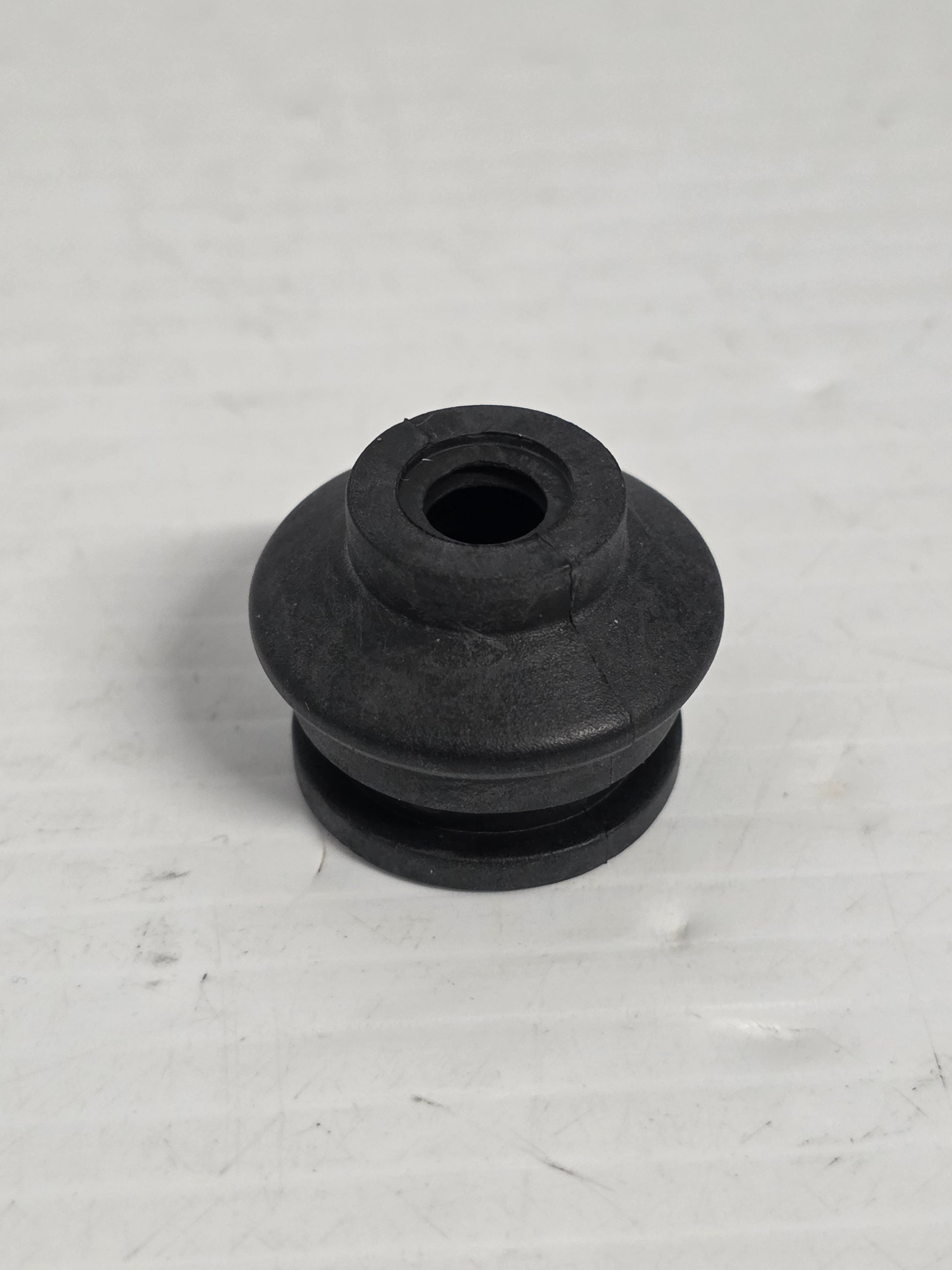

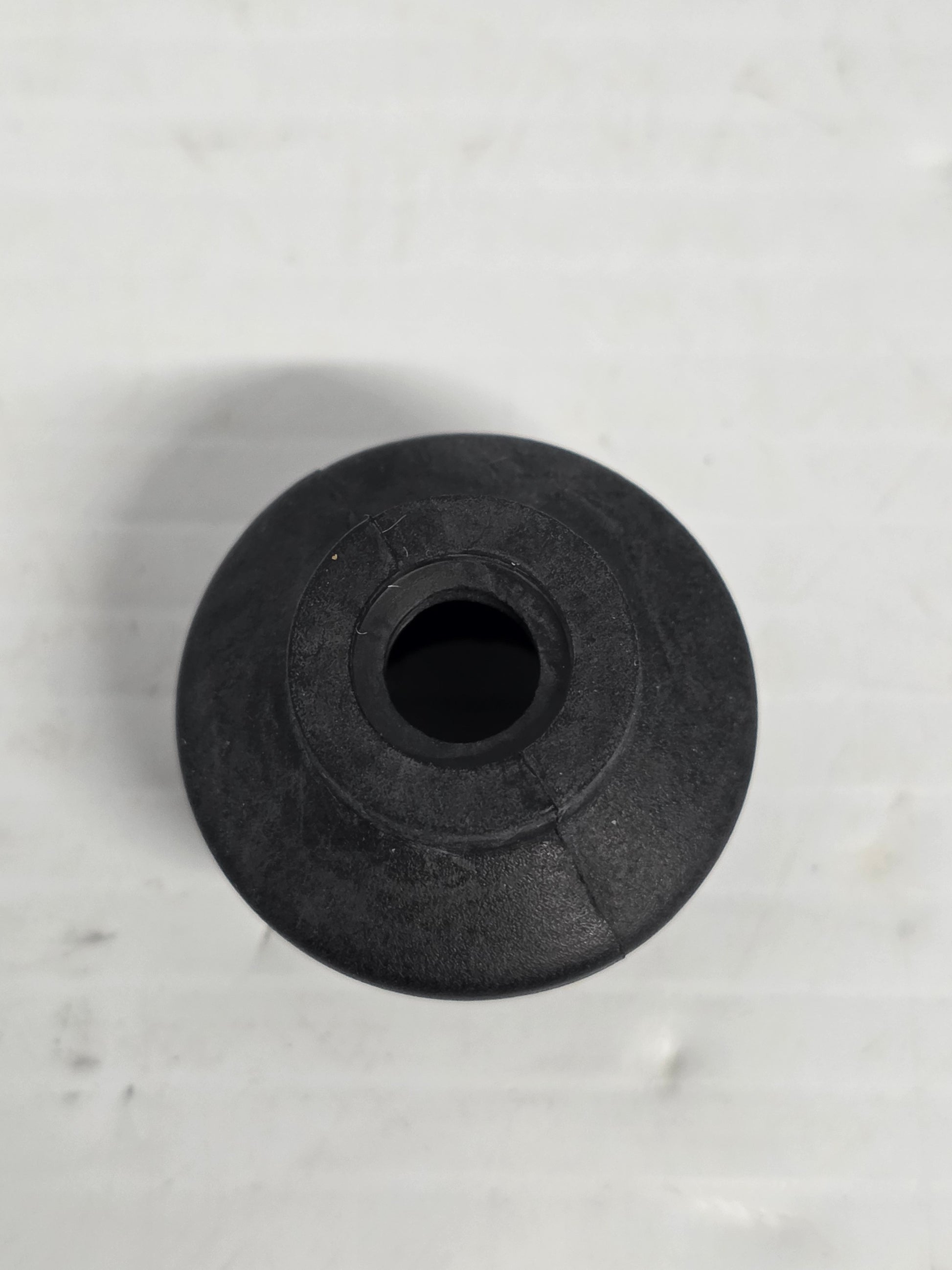

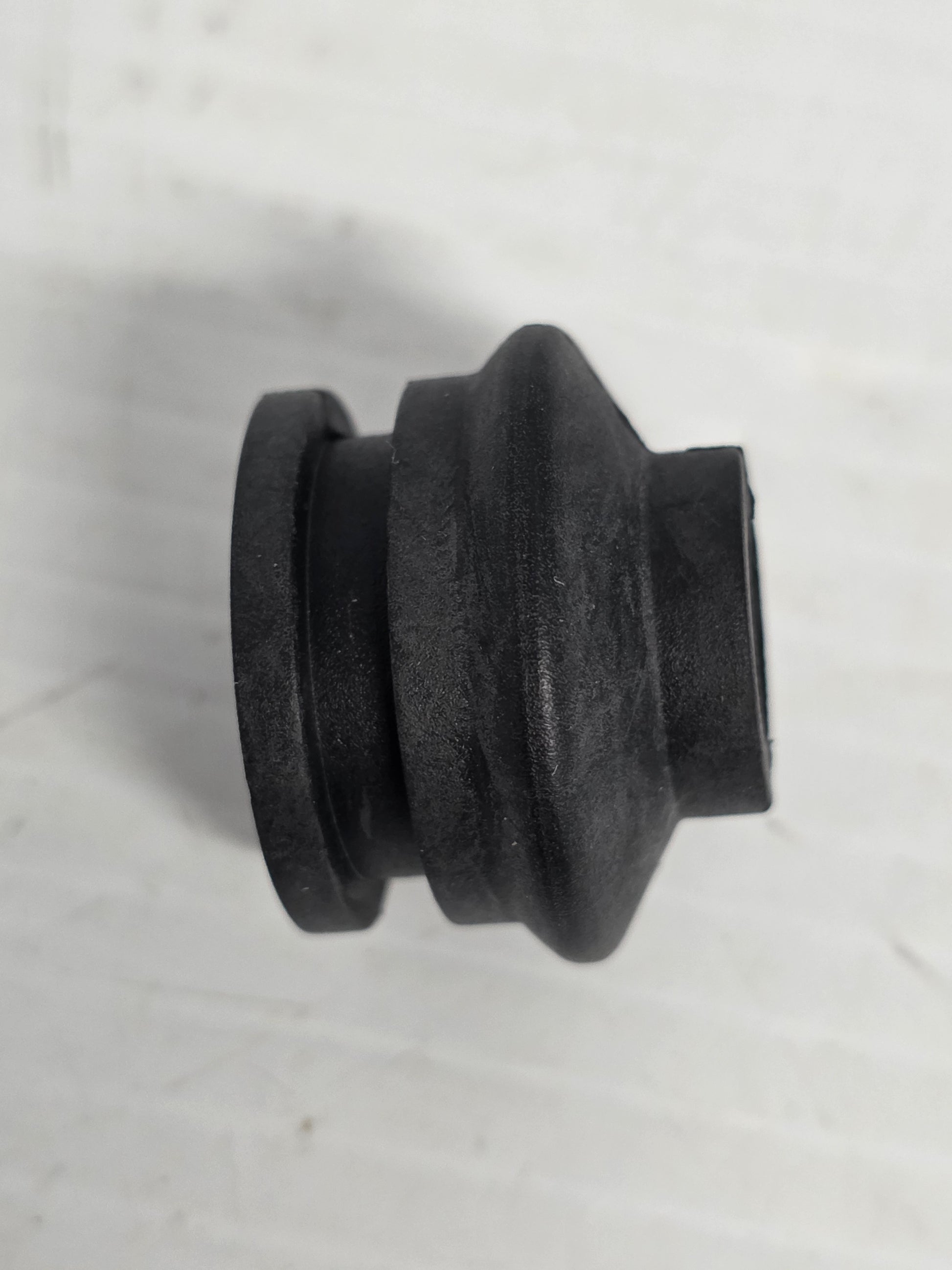

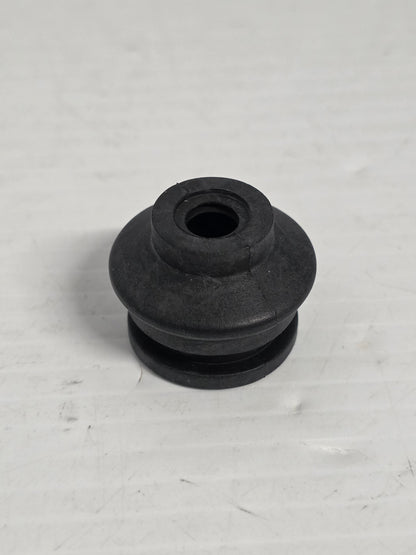

Genuine Yamaha Upper Water Tube Grommet - Part Number: 6E5-42724-01
A genuine Yamaha upper water-tube grommet for selected mid- and high-horsepower outboards.
The grommet seals and supports the cooling-water tube where it enters the upper casing or powerhead adaptor. It prevents cooling water escaping around the tube and helps maintain correct alignment between the lower-unit pump and powerhead cooling passages.
⚙️ Key Features
- Genuine Yamaha OEM upper water-tube grommet
- Correct current Yamaha part number 6E5-42724-01
- Supersedes earlier grommet 6E5-42724-00
- Seals and supports the water tube within the upper casing
- Heat- and water-resistant moulded rubber construction
🚤 Compatibility
Commonly used on
- Yamaha upper-casing cooling-water tube assemblies
- Powerhead, exhaust-guide and lower-unit service procedures
Typically suits
- Engine models:
- Yamaha 115HP V4 two-stroke
- Yamaha 130HP V4 two-stroke
- Yamaha 150HP V6 two-stroke
- Yamaha 175HP V6 two-stroke
- Yamaha 200HP V6 two-stroke
- Yamaha 225HP V6 two-stroke
- Yamaha 250HP V6 two-stroke
- Yamaha F115 four-stroke applications using the 6E5 upper-casing system
- Yamaha F150 four-stroke applications where specified
- Yamaha F200, F225 and F250 four-stroke applications using this water-tube grommet
- Upper-casing assemblies whose parts diagram specifies 6E5-42724-01
- HP Range: Approximately 115HP - 250HP
- Engine Type: Yamaha V4 / V6 two-stroke and selected four-stroke outboard
- Year Range: Approximately mid-1980s onward, dependent on upper-casing design
🔌 Function
The grommet seals the upper end of the cooling-water tube so water delivered by the lower-unit pump enters the engine cooling passages without leakage.
⚠️ Common Signs of Failure
- Cooling water leaks inside the upper casing
- Reduced water pressure at the powerhead
- Engine overheats despite a serviceable impeller
- Grommet is hardened, split or distorted
- Water tube becomes loose or misaligned during lower-unit installation
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E5-42724-01 → Supersedes 6E5-42724-00
- 6E5-42724-00 earlier OEM water-tube grommet reference
OEM / Related Numbers
- 6E5-42724-01
- 6E5-42724-01-00
- 6E5-42724-00
- 6E5-42724-00-00
- Upper water-tube grommet
- Cooling-water tube seal
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
