6E5-44120-02-00 Yamaha 115CETO Gear Shift Handle Assy | Genuine Used Part

🔧 Product Description

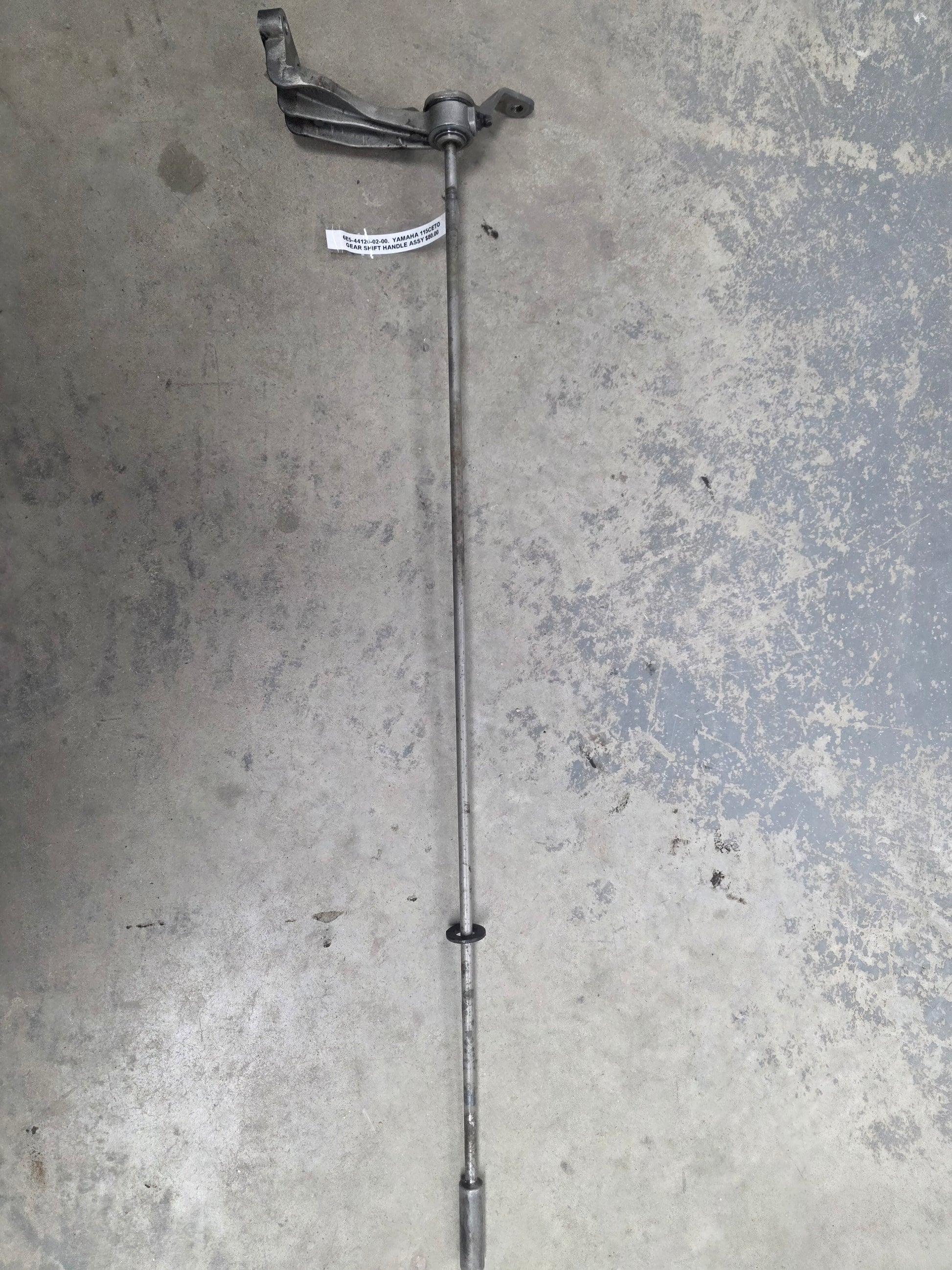

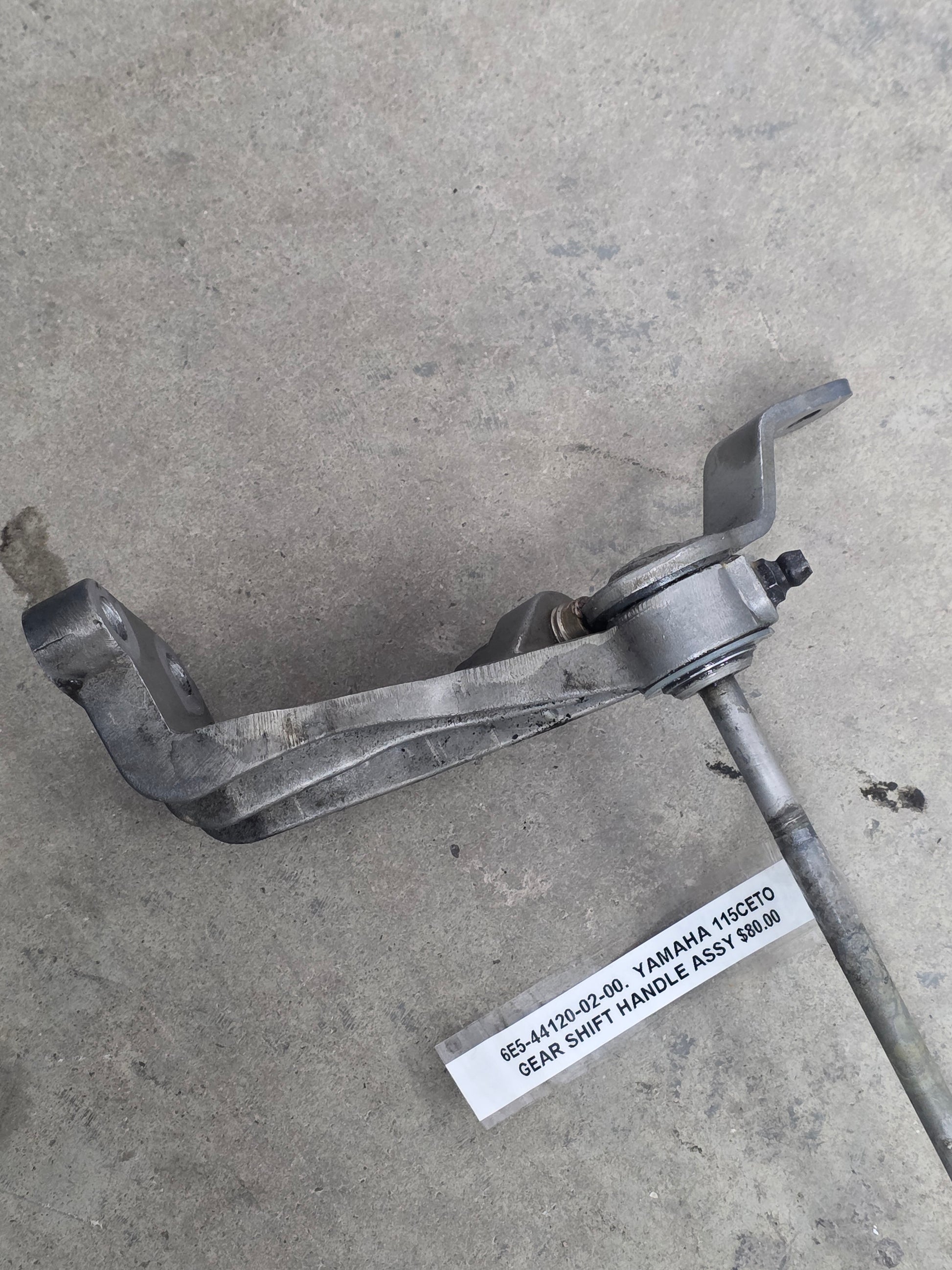

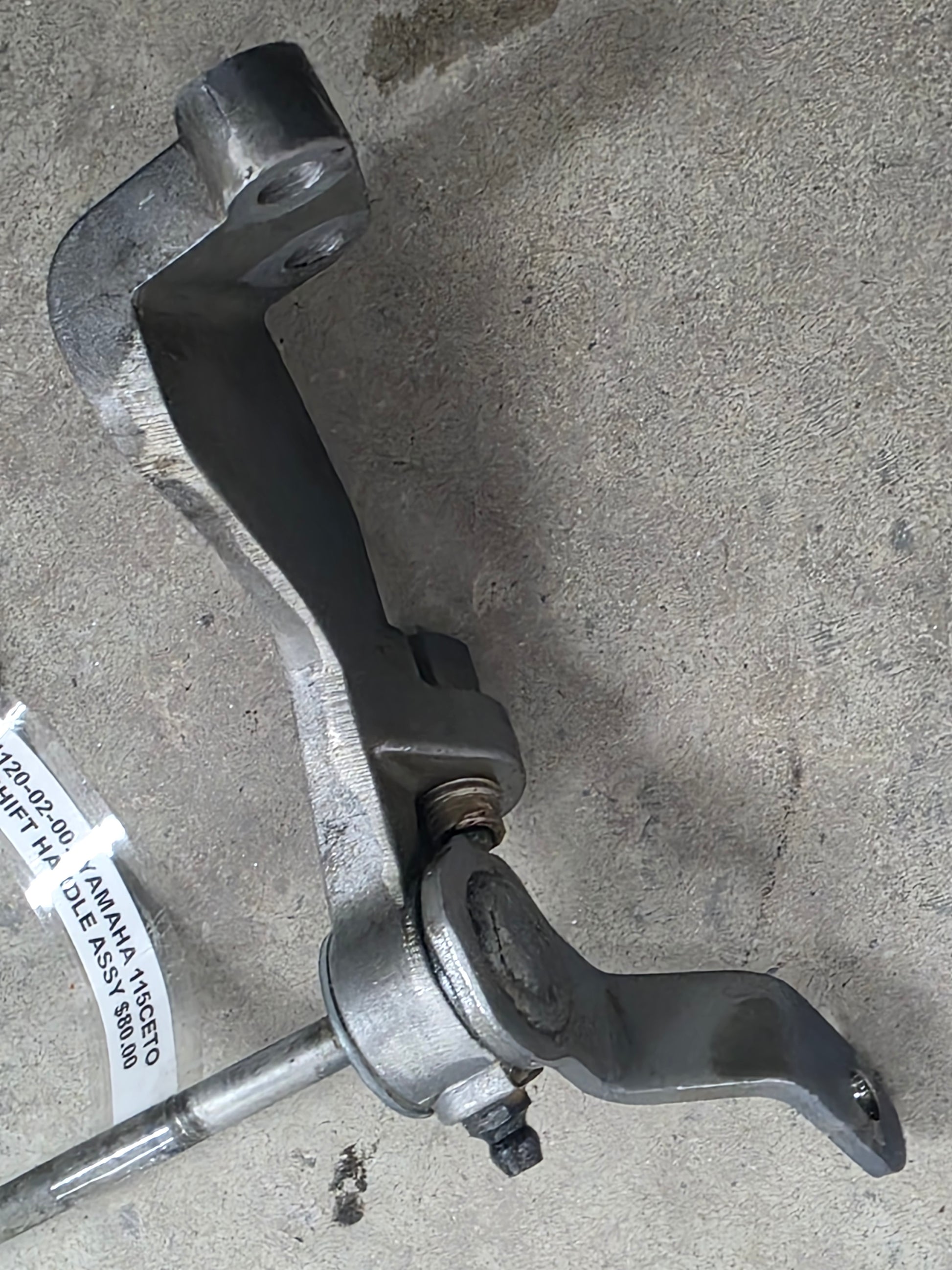

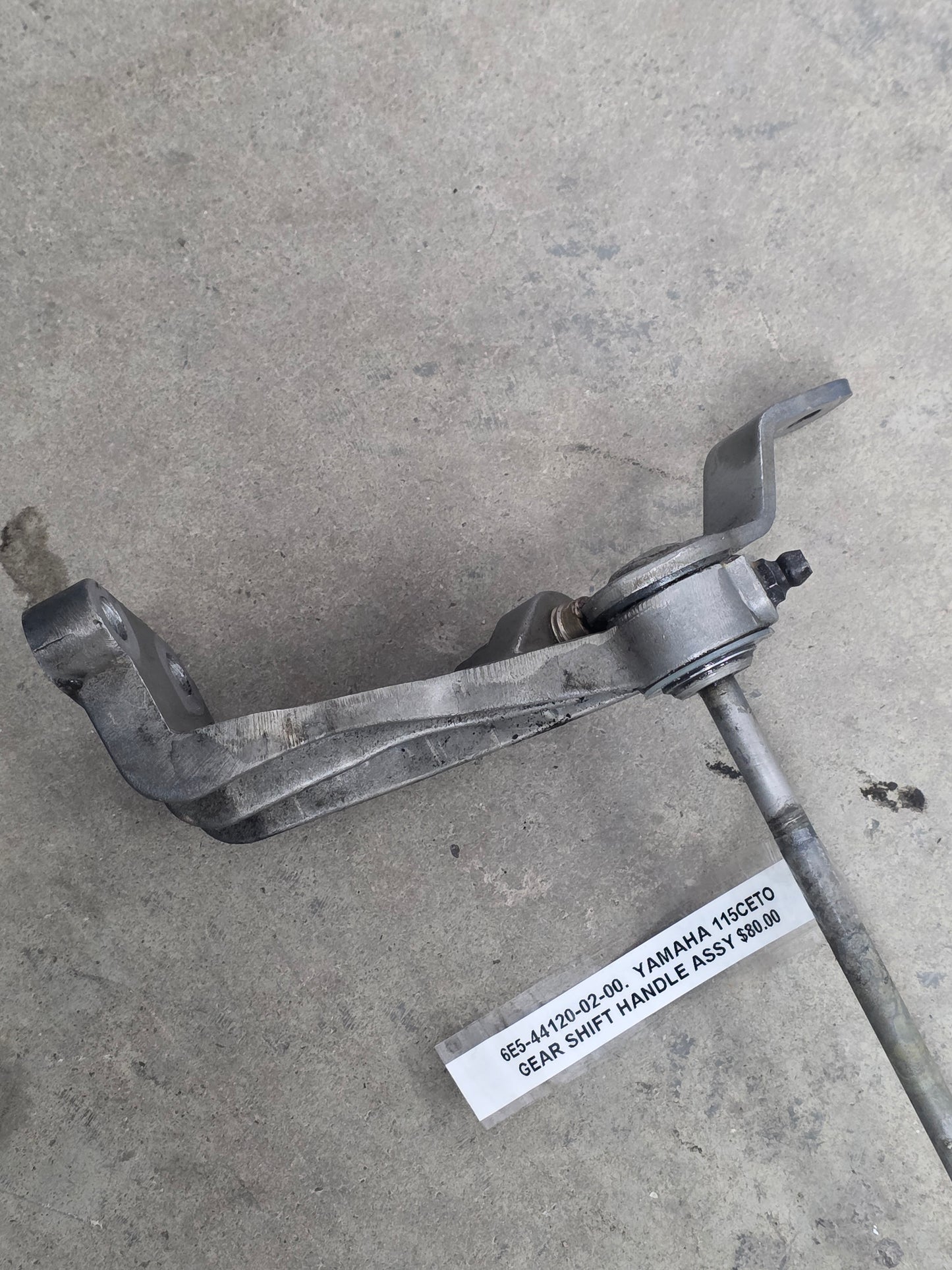

Genuine Yamaha 115CETO Long-Shaft Gear-Shift Handle Assembly - Part Number: 6E5-44120-02-00

A genuine Yamaha upper gear-shift handle assembly for selected 20-inch long-shaft V4 and V6 two-stroke outboards.

The handle transfers movement from the engine control linkage to the vertical shift rod. The -02 version is associated with the long-shaft control arrangement; extra-long-shaft engines use related 6E5-44120-22 / -23 / -25 configurations depending on production generation.

⚙️ Key Features

• Genuine Yamaha gear-shift handle assembly
• Correct part number 6E5-44120-02-00
• Long-shaft / 20-inch configuration
• Factory lever offset and pivot dimensions
• Used on selected 115HP-200HP two-strokes
• Suitable for the 115CETO control system where specified

🚤 Compatibility

Documented on selected

• Yamaha 115CETO
• Yamaha 115HP and 130HP V4 two-strokes
• Yamaha 150HP, 175HP and 200HP V6 two-strokes
• 1986 200ETXJ
• 1988 115ETLG
• 1989 200ETLF
• 1990 L130 and 200 model families
• 1993 C115, 115 and 130 model families
• Additional long-shaft engines whose control diagram specifies 6E5-44120-02-00
• Shaft Length: 20-inch / L
• Engine Type: Yamaha carburetted two-stroke outboard
• Fitment Requirement: Confirm shaft length and upper shift-rod design

🔌 Function

The handle pivots when the remote-control linkage moves and transfers that movement to the vertical shift rod leading to the gearcase.

⚠️ Common Signs of Failure

• Handle is bent or cracked
• Pivot bore is worn
• Shift linkage has excessive free play
• Forward or reverse does not fully engage
• Corrosion causes the handle to seize
• Incorrect shaft-length version prevents adjustment

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-44120-02-00 documented long-shaft handle assembly
• 6E5-44120-03-00 related later long-shaft configuration
• 6E5-44120-22-00, -23-00 and -25-00 related extra-long-shaft configurations
• Related versions are not automatically interchangeable because shaft length and lever geometry differ

OEM / Related Numbers

• 6E5-44120-02-00
• 6E5-44120-03-00
• 6E5-44120-22-00
• 6E5-44120-23-00
• 6E5-44120-25-00
• 6E5-44118-01-94 related bracket
• 6E5-44121-series related shift-rod lever
• 93210-09350 related O-ring
• 90386-16M66 related bushing
• 90202-16061 related washer
• 99009-16400 related circlip

Aftermarket / Verified Equivalents

• Specialist used 6E5-44120-02-00 shift handle
• Used complete Yamaha V4 / V6 upper shift-linkage assembly
• Professionally repaired original where shaft and lever alignment remain within specification
• No verified direct aftermarket assembly

📦 Condition

• Genuine used assembly
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect bushings, O-ring and retaining circlip before installation
