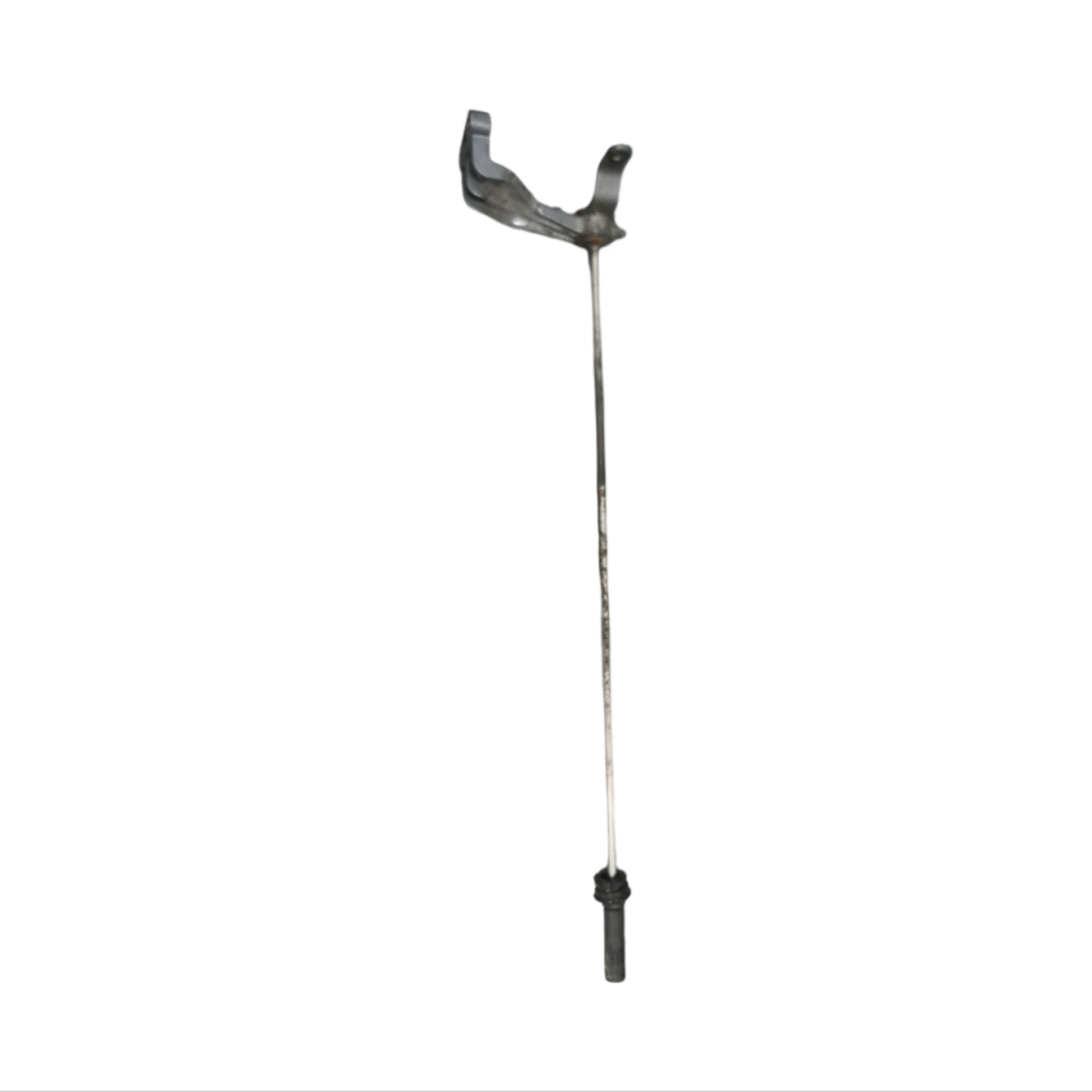

6E5-44120-05-00 6E5-44118-01-1S Yamaha Handle and Bracket | Genuine Used Part

🔧 Product Description

Genuine Yamaha 115HP-200HP Gear-Shift Handle and Bracket - Part Numbers: 6E5-44120-05-00 & 6E5-44118-01-1S

A genuine used Yamaha gear-shift handle assembly and supporting control bracket for selected V4 and V6 two-stroke outboard motors.

Part number 6E5-44120-05-00 identifies the gear-shift handle assembly, while 6E5-44118-01-1S identifies the related bracket used on selected control-linkage revisions.

⚙️ Key Features

• Genuine used Yamaha shift-linkage assembly
• 6E5-44120-05-00 gear-shift handle assembly
• 6E5-44118-01-1S supporting bracket
• Factory pivot and linkage geometry
• Used on selected 115HP-200HP two-stroke engines

🚤 Compatibility

Commonly used on

• Yamaha V4 and V6 upper gear-shift linkage

Typically suits

• Selected 115HP and 130HP carburetted V4 engines
• Selected 150HP, 175HP and 200HP V6 engines
• Z150, VZ150, Z175, VZ175, Z200 and VZ200 HPDI model groups where the 6E5 handle is specified
• International 115CETO and 130BETO applications
• HP Range: Approximately 115HP-200HP
• Engine Type: Yamaha V4 or V6 two-stroke outboard
• Production Range: Approximately late 1980s through the 2000s
• Serial Note: The bracket revision must be matched to the complete model code

🔌 Function

The handle pivots in the bracket and transfers control-cable movement into the engine's shift-rod linkage.

⚠️ Common Signs of Failure

• Handle pivot is worn
• Bracket is bent or cracked
• Gear selection is loose or incomplete
• Linkage does not return to neutral
• Bushes or pins are worn
• Retaining clips are missing
• Shift adjustment cannot be maintained

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-44120-05-00 → Supersedes 6E5-44120-03-00
• 6E5-44118-01-1S is an earlier bracket used on specified control revisions
• Later model groups may use a revised bracket and must be checked by full model code

OEM / Related Numbers

• 6E5-44120-05-00
• 6E5441200500
• 6E5-44120-03-00
• 6E5-44118-01-1S
• 6E544118011S
• 6E5-44117-00-94 related control bracket
• 6E5-44121-00-00 related shift-rod lever
• Related bushes, pins, washers and retaining clips

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Supplied as the pictured handle-and-bracket assembly
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
