• 6E5-45371-01 Yamaha Tab Trim with Fin | Genuine OEM Yamaha Outboard Part
1 1

6E5-45371-01 Yamaha Tab Trim with Fin | Genuine OEM Yamaha Outboard Part

6E5-45371-01 Yamaha Tab Trim with Fin | Genuine OEM Yamaha Outboard Part

$40.00 AUD
$40.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

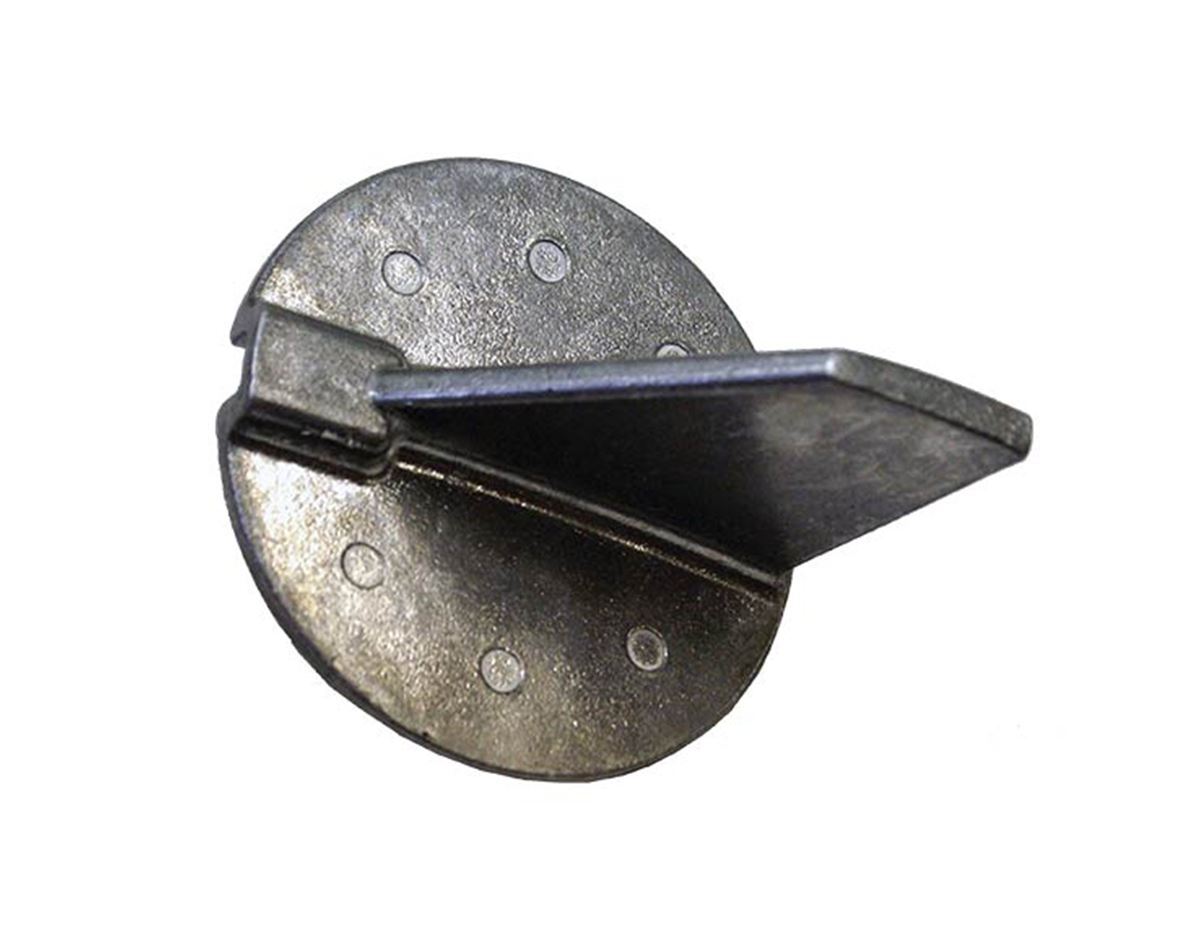

Genuine Yamaha Finned Trim Tab Anode - Part Number: 6E5-45371-01

A genuine Yamaha finned trim tab and sacrificial anode for selected 115HP to 225HP outboards.

The component mounts beneath the anti-ventilation plate. Its adjustable fin helps counteract propeller steering torque, while the sacrificial alloy protects the aluminium gearcase from galvanic corrosion.

⚙️ Key Features

  • Genuine Yamaha OEM finned trim-tab anode
  • Correct Yamaha part number 6E5-45371-01
  • Adjustable fin for steering-torque correction
  • Sacrificial corrosion protection for the lower unit
  • Sierra, GLM, Martyr, CMP and Tecnoseal replacements available

🚤 Compatibility

Commonly used on

  • Yamaha anti-ventilation plates and lower-unit gearcases
  • Propeller installations requiring a finned trim tab for steering correction

Typically suits

  • Engine models:
  • Yamaha F115 four-stroke
  • Yamaha LF115 four-stroke
  • Yamaha VF115 VMAX SHO
  • Yamaha 115HP two-stroke
  • Yamaha 130HP two-stroke
  • Yamaha 150HP early two-stroke applications
  • Yamaha 175HP early two-stroke applications
  • Yamaha 200HP early two-stroke applications
  • Yamaha 225HP gearcases using the 6E5 finned trim tab
  • Yamaha high-performance 60HP to 130HP gearcases where specified
  • Conventional and counter-rotation lower units using the matching mounting pattern
  • HP Range: Principally 115HP - 225HP, with additional 60HP - 130HP high-performance applications
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Year Range: Approximately 1984 onward, dependent on gearcase and propeller clearance

🔌 Function

The trim tab helps offset steering pull created by propeller rotation and sacrifices its own metal to protect the aluminium lower unit from galvanic corrosion.

⚠️ Common Signs of Failure

  • Anode has lost approximately half its original material
  • Trim-tab surface is deeply pitted or crumbling
  • Steering pull increases after the tab moves
  • Tab is bent or damaged by propeller contact
  • Anode has been painted or isolated from the gearcase

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6E5-45371-01 current Yamaha finned trim-tab reference
  • 6E5-45371-10 earlier / alternate service reference replaced by 6E5-45371-01 where specified
  • 6E5-45371-00 earlier OEM trim-tab reference

OEM / Related Numbers

  • 6E5-45371-01
  • 6E5-45371-01-00
  • 6E5-45371-10
  • 6E5-45371-00
  • 6E5453710100

Aftermarket / Verified Equivalents

  • Sierra: 18-6097
  • GLM: 12744
  • Martyr / CMP: CM6E54537101Z
  • Tecnoseal: 01103
  • Camp: 2329
  • QuickMarine: 6E5-45371-01 trim-tab anode replacement

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
