🔧 Product Description

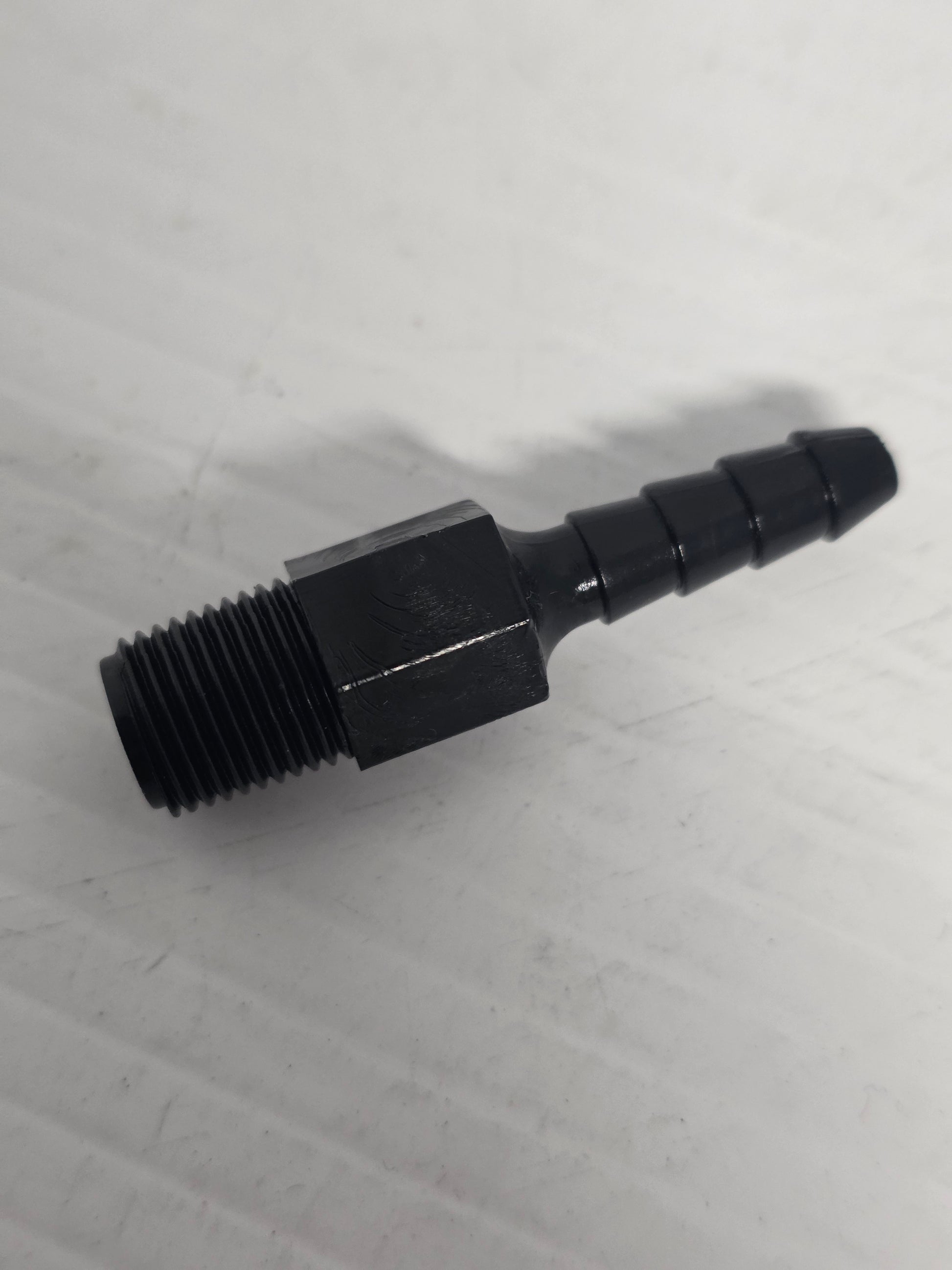

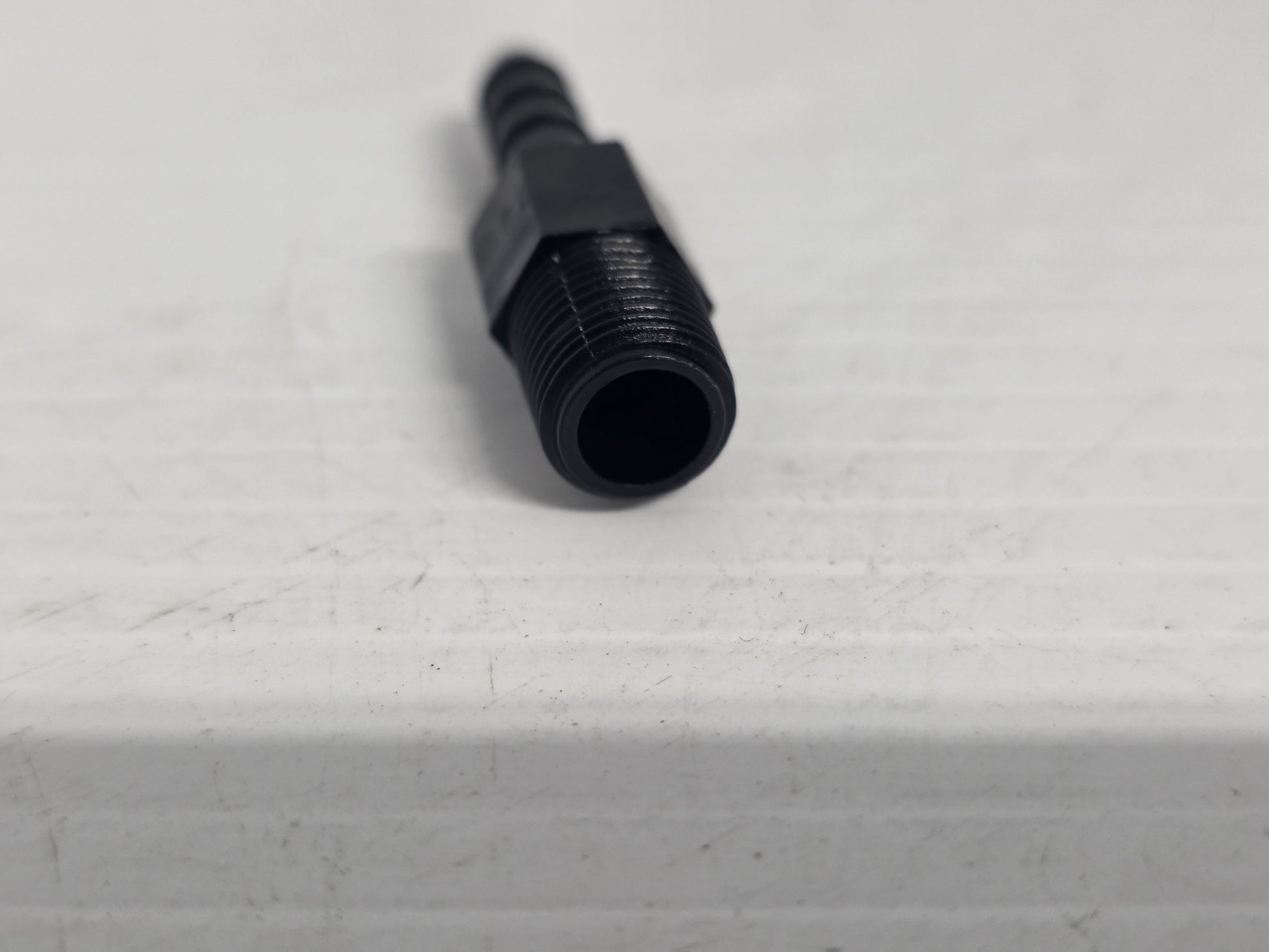

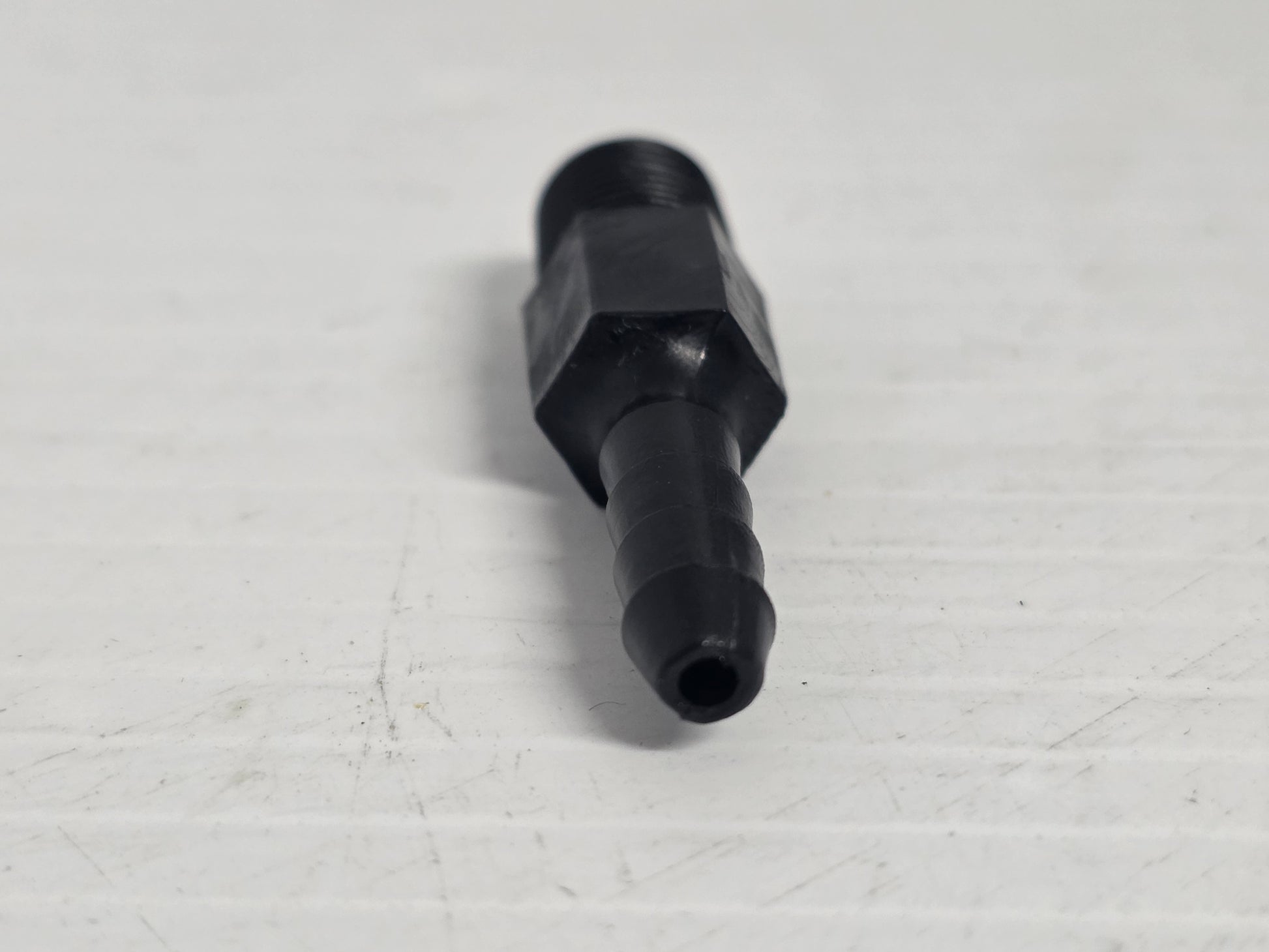

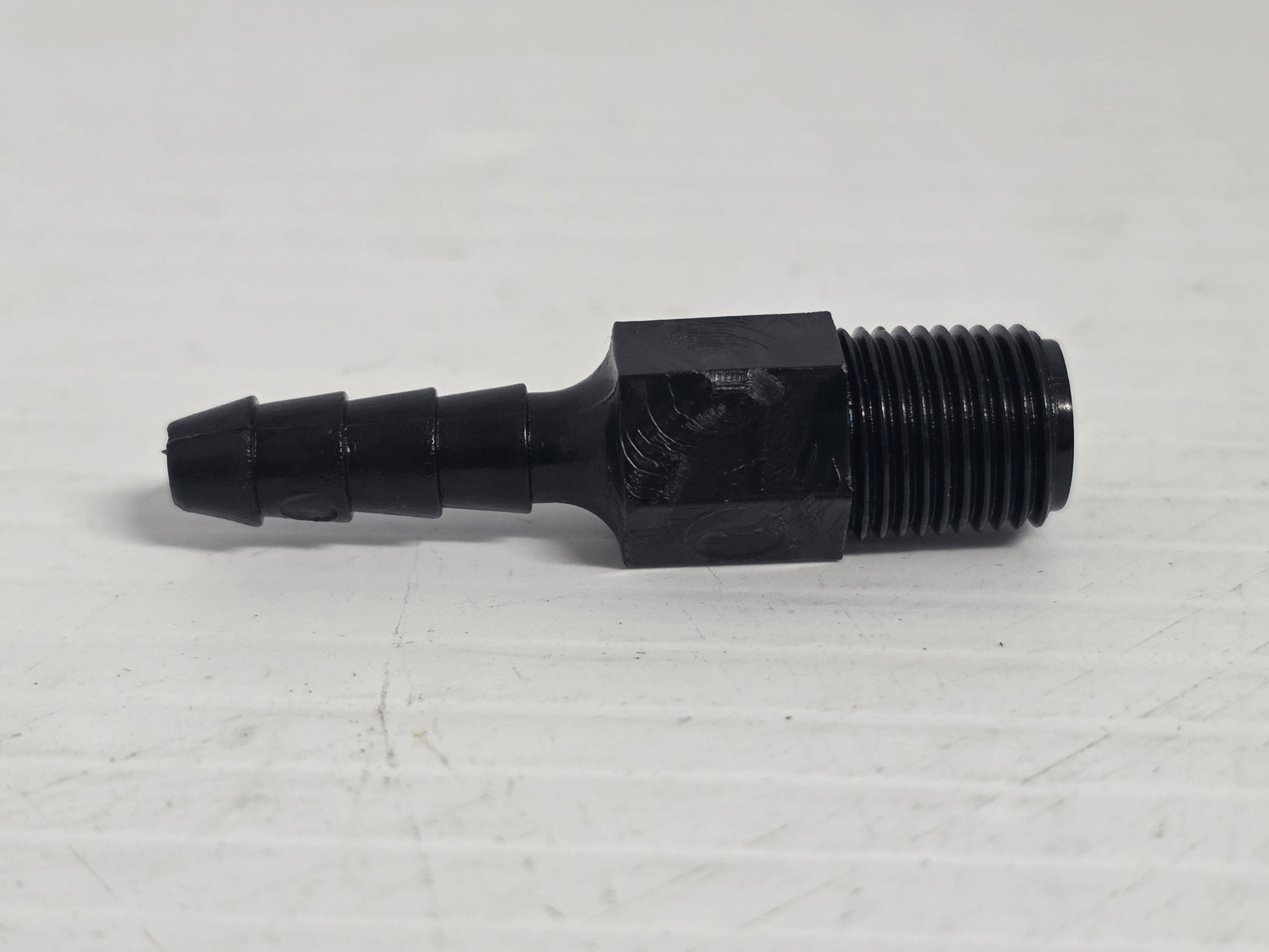

Genuine Yamaha Lower-Unit Pitot Speedometer Hose Nipple - Part Number: 6E5-45378-00
A genuine Yamaha threaded hose nipple for the lower-unit pitot speedometer system.
The fitting screws into the gearcase and connects the internal pitot-water passage to the small hose leading to the boat speedometer. Water pressure generated as the boat moves is transmitted through the hose to operate the gauge.
⚙️ Key Features
- Genuine Yamaha OEM pitot hose fitting
- Correct Yamaha part number 6E5-45378-00
- M10 x 1.0 threaded connection
- Barbed outlet for the factory speedometer hose
- Direct aftermarket replacement fittings available
🚤 Compatibility
Commonly used on
- Yamaha lower-unit pitot speedometer systems
- Gearcases with an internal water-pressure speed pickup
Typically suits
- Engine models:
- Yamaha 115HP two-stroke - approximately 1984-1999
- Yamaha 130HP two-stroke
- Yamaha 150HP two-stroke
- Yamaha 175HP two-stroke
- Yamaha 200HP two-stroke
- Yamaha 220HP two-stroke
- Yamaha 225HP two-stroke
- Yamaha 115ETLN through 115TJRX production
- Selected Yamaha 30HP to 90HP gearcases using the same pitot fitting
- Yamaha lower units whose speedometer diagram specifies 6E5-45378-00
- HP Range: Approximately 30HP - 225HP
- Engine Type: Yamaha two-stroke and selected four-stroke outboard
- Year Range: Approximately 1984 onward, dependent on lower-unit casting
🔌 Function
The fitting transfers dynamic water pressure from the lower-unit pitot opening to the mechanical boat speedometer hose.
⚠️ Common Signs of Failure
- Speedometer remains at zero while underway
- Speed reading is low or erratic
- Water leaks around the fitting
- Hose repeatedly disconnects from the barb
- Fitting is blocked by sand, mud or marine growth
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E5-45378-00 current OEM pitot hose-nipple reference
OEM / Related Numbers
- 6E5-45378-00
- 6E5-45378-00-00
- Pitot hose nipple
- Lower-unit speedometer fitting
- M10 x 1.0 to hose-barb adapter
Aftermarket / Verified Equivalents
- Aftermarket M10 x 1.0 pitot hose connector: 6E5-45378-00 replacement
- QuickMarine-style lower-unit speedometer fitting
- Generic Yamaha pitot hose nipple: 6E5-45378-00
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
