6E5-45941-00-EL 6E5-45941-00-00 Yamaha K Series 13 x 19 Aluminium Propeller – RH 15 Spline | Genuine Used Part

🔧 Product Description

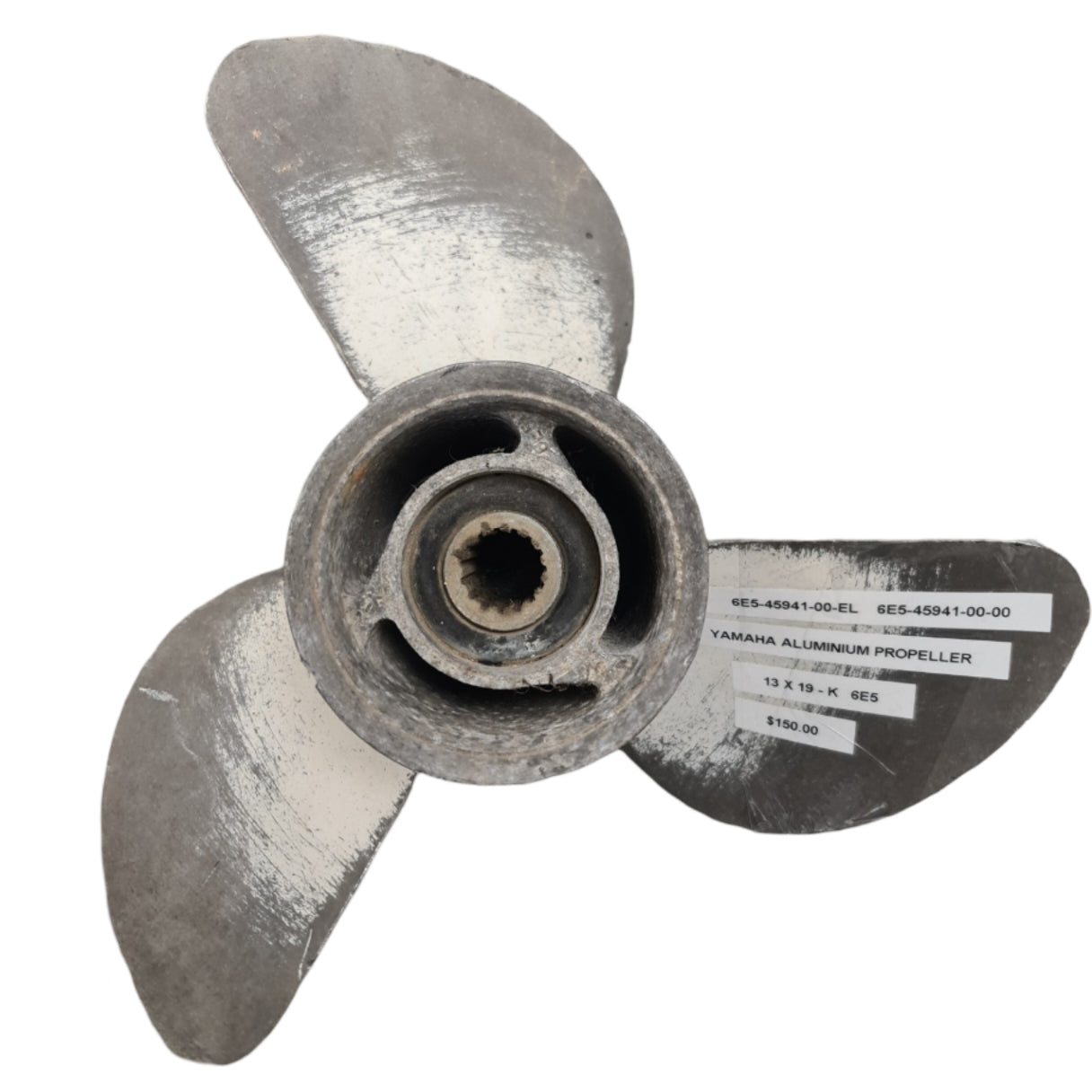

Genuine Yamaha K Series 13 x 19 Aluminium Propeller - Part Number: 6E5-45941-00-EL / 6E5-45941-00-00

A genuine used Yamaha K Series three-blade right-hand aluminium propeller for mid-range Yamaha outboards using the 4 1/4-inch 15-spline gearcase.

The 19-inch pitch is a higher-pitch option for lighter or faster boats. Correct selection requires the engine to remain within its specified full-throttle RPM range under the normal operating load.

⚙️ Key Features

• Genuine Yamaha Marine K Series propeller
• 13-inch diameter x 19-inch pitch
• Three-blade aluminium construction
• Right-hand rotation with pressed 15-spline hub
• Used on Yamaha mid-range 4 1/4-inch gearcases

🚤 Compatibility

Commonly used on

• Yamaha K-series 4 1/4-inch mid-range outboard gearcases
• Standard right-hand applications capable of carrying 19 inches of pitch

Typically suits

• Engine models:
• Yamaha T50 and T60 high-thrust four-stroke models using the K-series 4 1/4-inch gearcase
• Yamaha F70 four-stroke
• Yamaha F75 and F80 four-stroke
• Yamaha F90 and F100 four-stroke
• Yamaha F115 four-stroke
• Yamaha VF90 and VF115 V MAX SHO
• Selected Yamaha 60HP-130HP two-stroke models using the K-series 15-spline gearcase
• Final propeller selection is controlled by gearcase, rotation, boat load and achieved wide-open-throttle RPM
• HP Range: 50HP high-thrust and approximately 60HP - 130HP
• Engine Type: Yamaha two-stroke or four-stroke outboard with K-series 15-spline gearcase
• Year Range: Approximately 1980s onward, model and gearcase controlled

🔌 Function

The propeller converts torque into thrust. Its 19-inch pitch can reduce engine RPM and increase potential cruising or top speed compared with lower-pitch options when the hull and load are suitable.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-45941-00-00 → Supersedes 6E5-45941-00-EL
• 6E5-45941-00-00 also replaces earlier 6E5-45941-00-36 finish reference

OEM / Related Numbers

• 6E5-45941-00-EL
• 6E5-45941-00-00
• 6E5-45941-00-36
• 6E54594100EL
• 6E5459410000

Aftermarket / Verified Equivalents

• Solas Amita 3: 3411-130-19 - 13 x 19 aluminium Yamaha K-series alternative
• Solas Rubex 3: 9411-130-19 with RBX-208 Yamaha mid-range hub
• Michigan Wheel Vortex / Match: 13 x 19 aluminium modular-hub alternative
• Yamaha K Series black stainless 19-pitch propeller - stainless performance alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
