6E5-45947-00-EL 6E5-45947-00-00 Yamaha K Series 13 1/2 x 15 Aluminium Propeller – RH 15 Spline | Genuine Used Part

🔧 Product Description

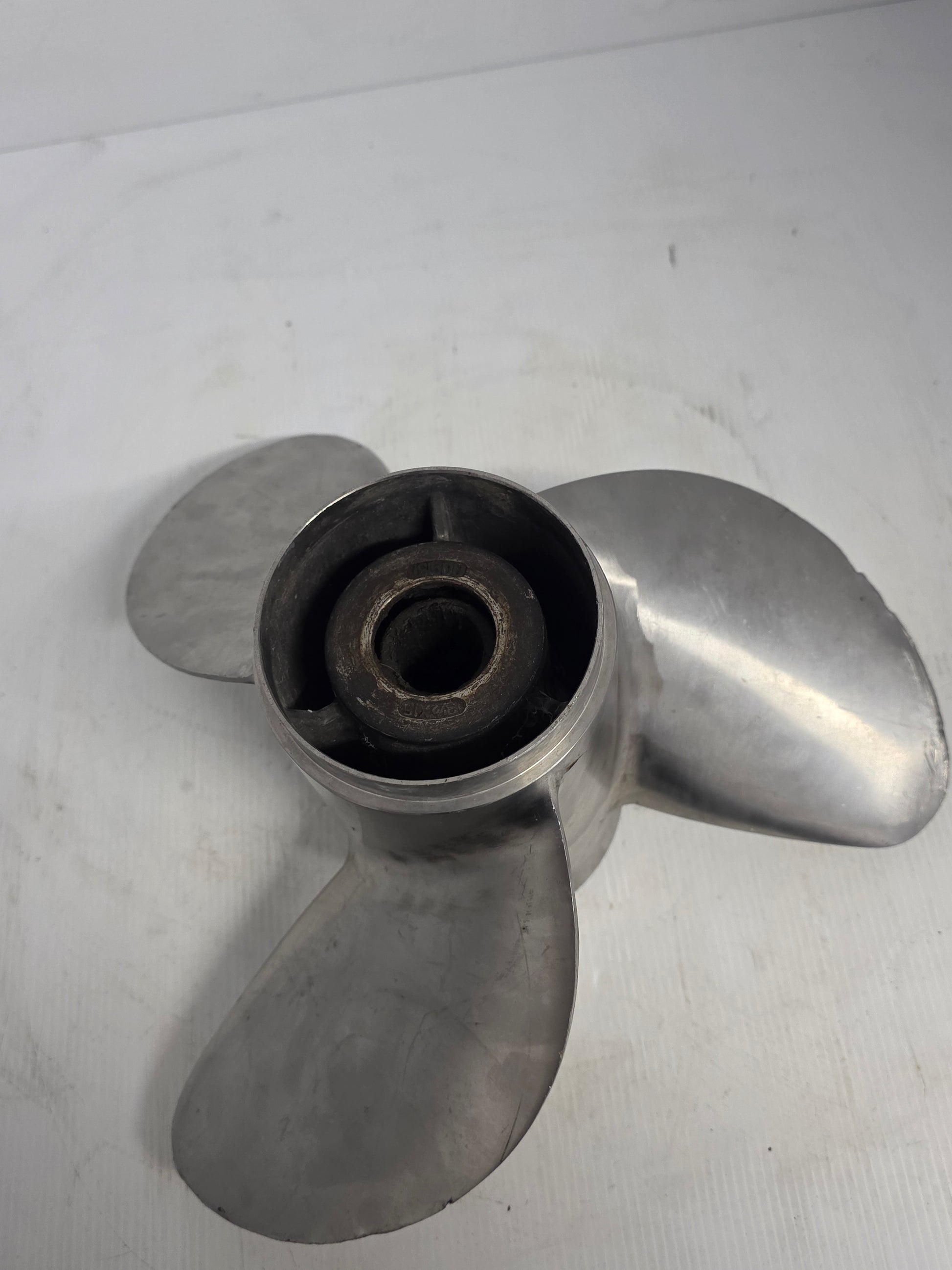

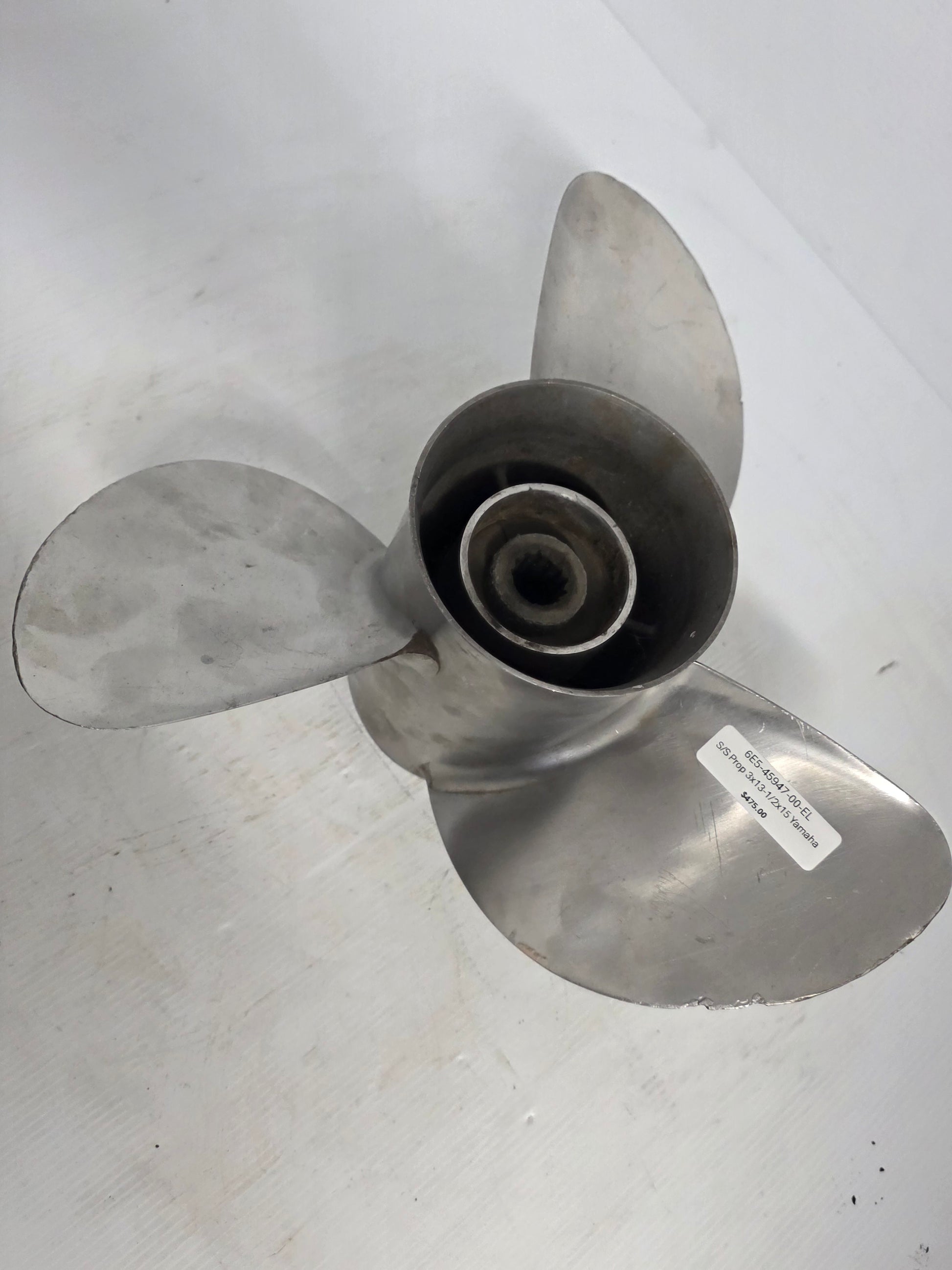

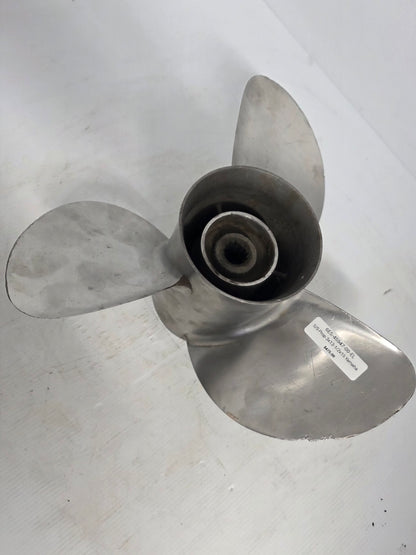

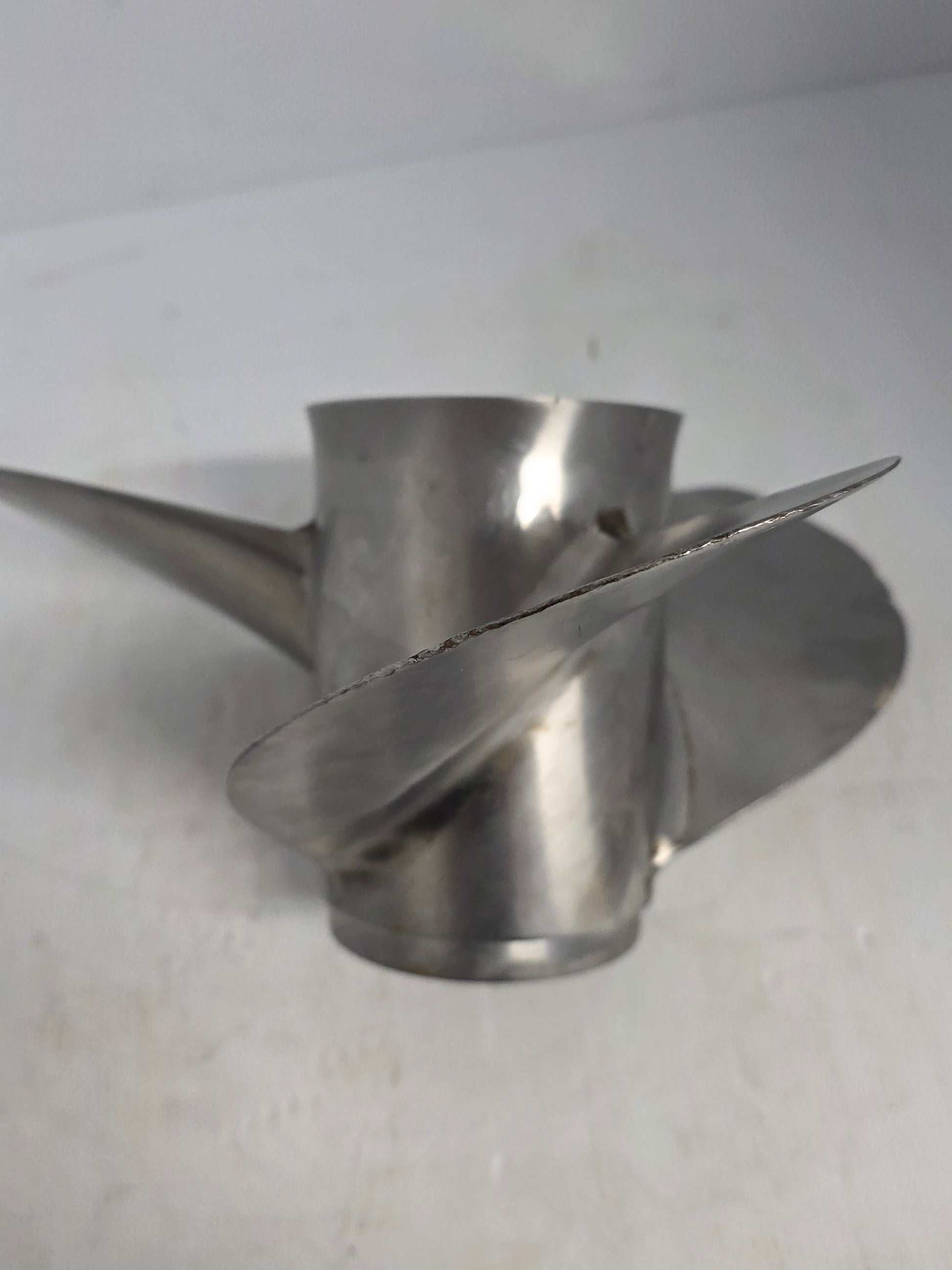

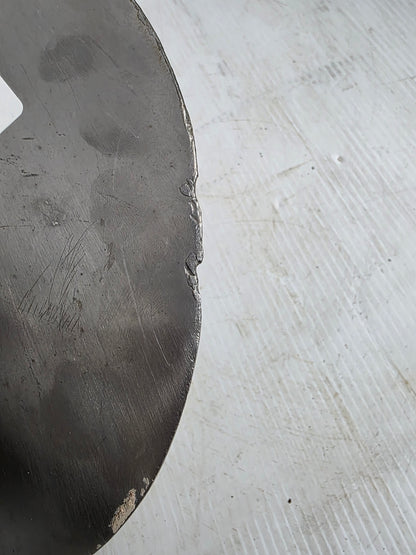

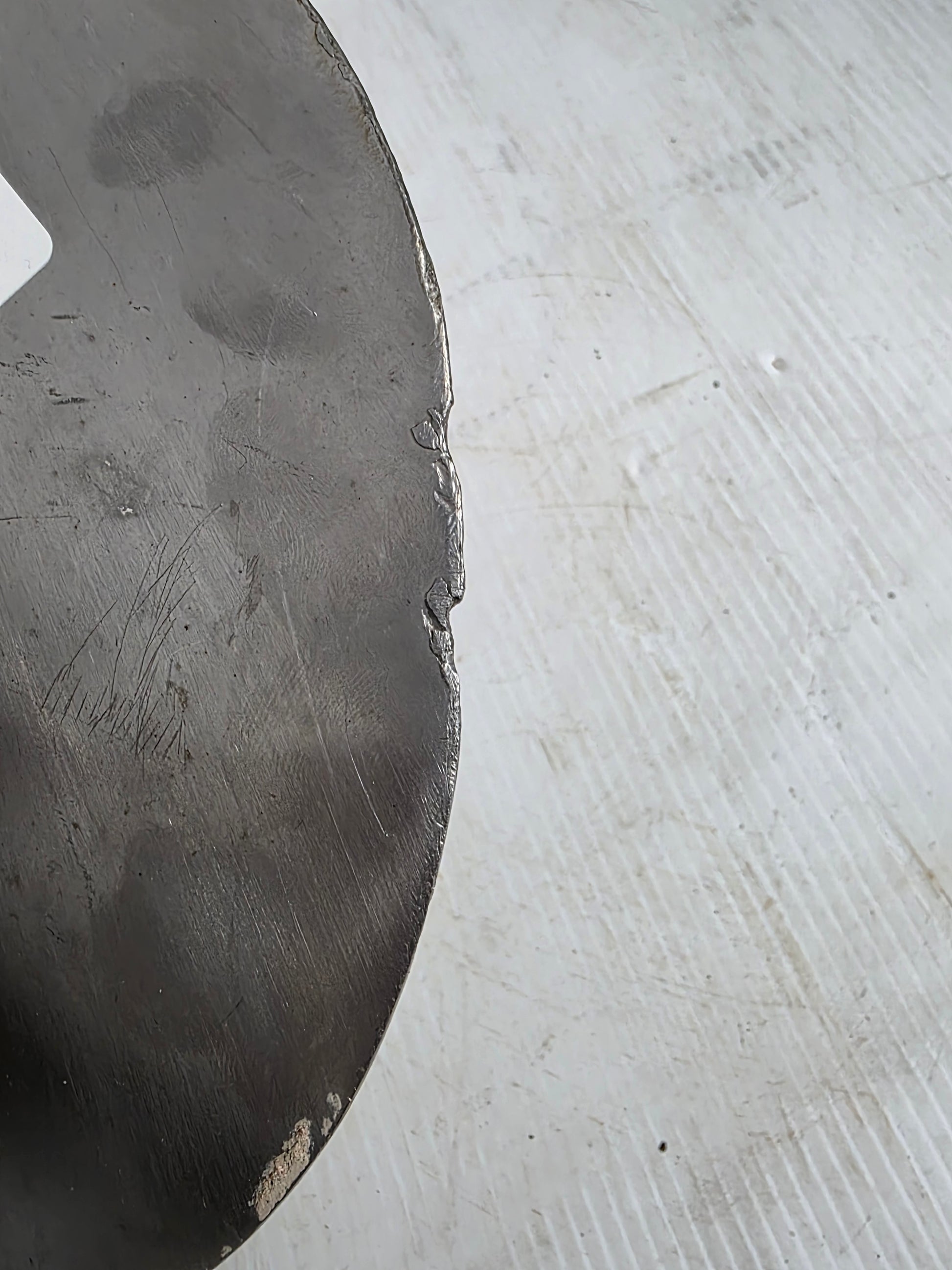

Genuine Yamaha K Series 13 1/2 x 15 Aluminium Propeller - Part Number: 6E5-45947-00-EL / 6E5-45947-00-00

A genuine used Yamaha K Series three-blade right-hand aluminium propeller for mid-range Yamaha outboards using the 4 1/4-inch 15-spline gearcase.

Despite the supplied stainless-steel description, this part number identifies an aluminium propeller. The 15-inch pitch provides stronger acceleration and load carrying than the 17- or 19-pitch K Series options.

⚙️ Key Features

• Genuine Yamaha Marine K Series propeller
• 13 1/2-inch diameter x 15-inch pitch
• Three-blade aluminium construction

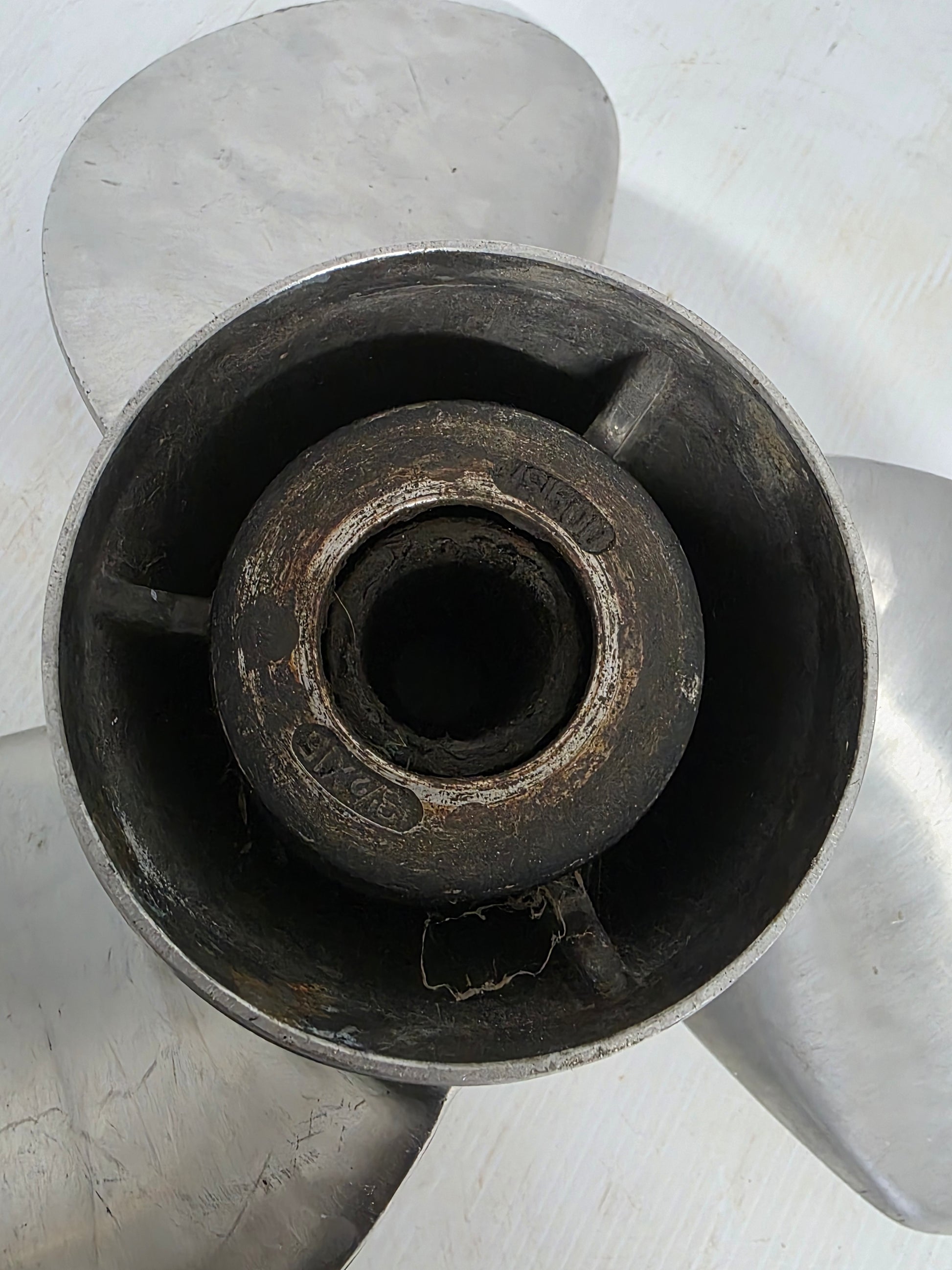

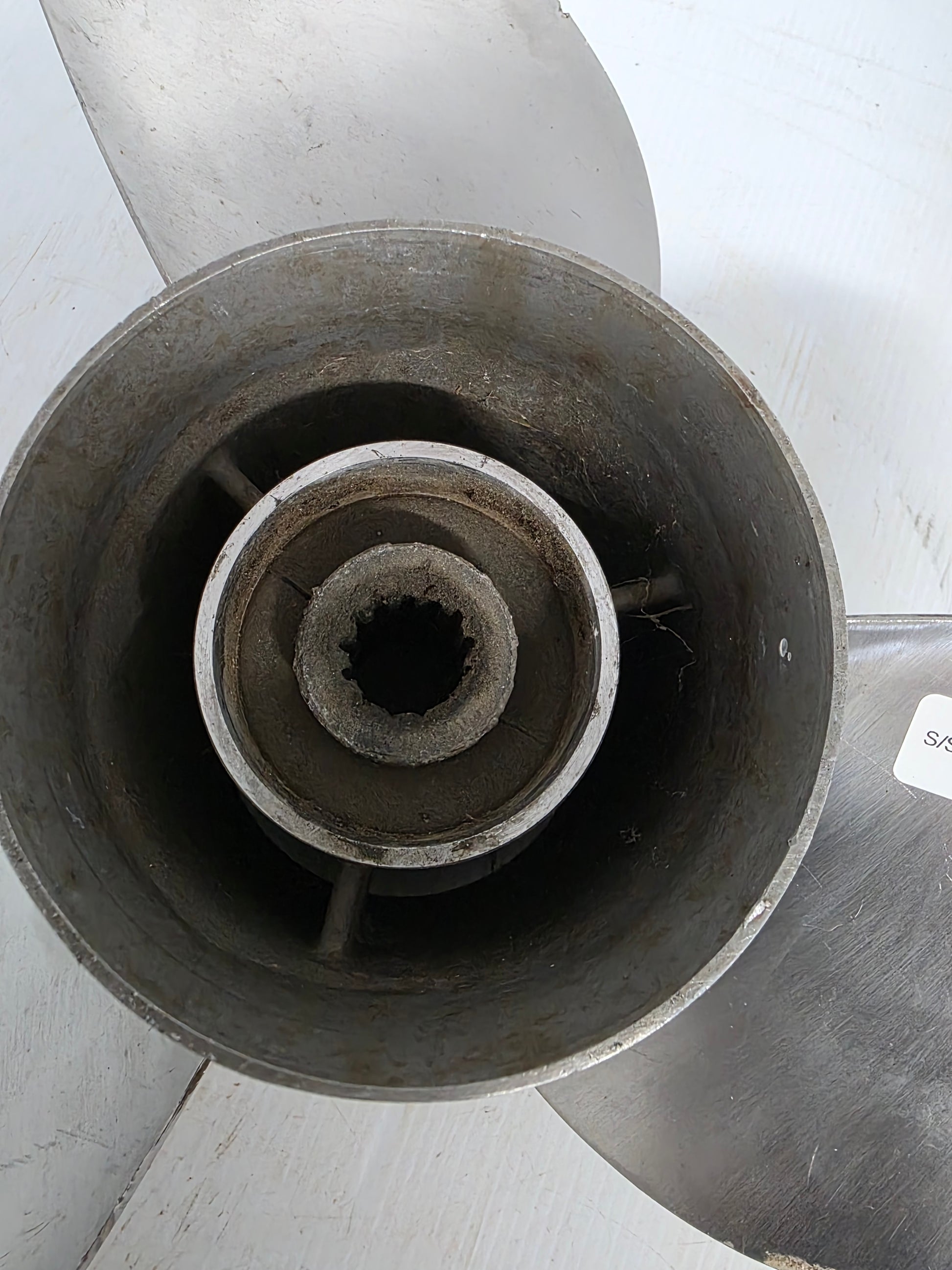

• Right-hand rotation with pressed 15-spline hub
• Corrected material identification: aluminium, not stainless steel

🚤 Compatibility

Commonly used on

• Yamaha K-series 4 1/4-inch mid-range outboard gearcases
• General-purpose and heavier-load applications requiring 15 inches of pitch

Typically suits

• Engine models:
• Yamaha T50 and T60 high-thrust four-stroke models using the K-series 4 1/4-inch gearcase
• Yamaha F70 four-stroke
• Yamaha F75 and F80 four-stroke
• Yamaha F90 and F100 four-stroke
• Yamaha F115 four-stroke
• Yamaha VF90 and VF115 V MAX SHO
• Selected Yamaha 60HP-130HP two-stroke models using the K-series 15-spline gearcase
• Final propeller selection is controlled by gearcase, rotation, boat load and achieved wide-open-throttle RPM
• HP Range: 50HP high-thrust and approximately 60HP - 130HP
• Engine Type: Yamaha two-stroke or four-stroke outboard with K-series 15-spline gearcase
• Year Range: Approximately 1980s onward, model and gearcase controlled

🔌 Function

The propeller converts engine torque into thrust. The 15-inch pitch supports strong planing, acceleration and load carrying while allowing more engine RPM than a higher-pitch propeller.

⚠️ Common Signs of Failure

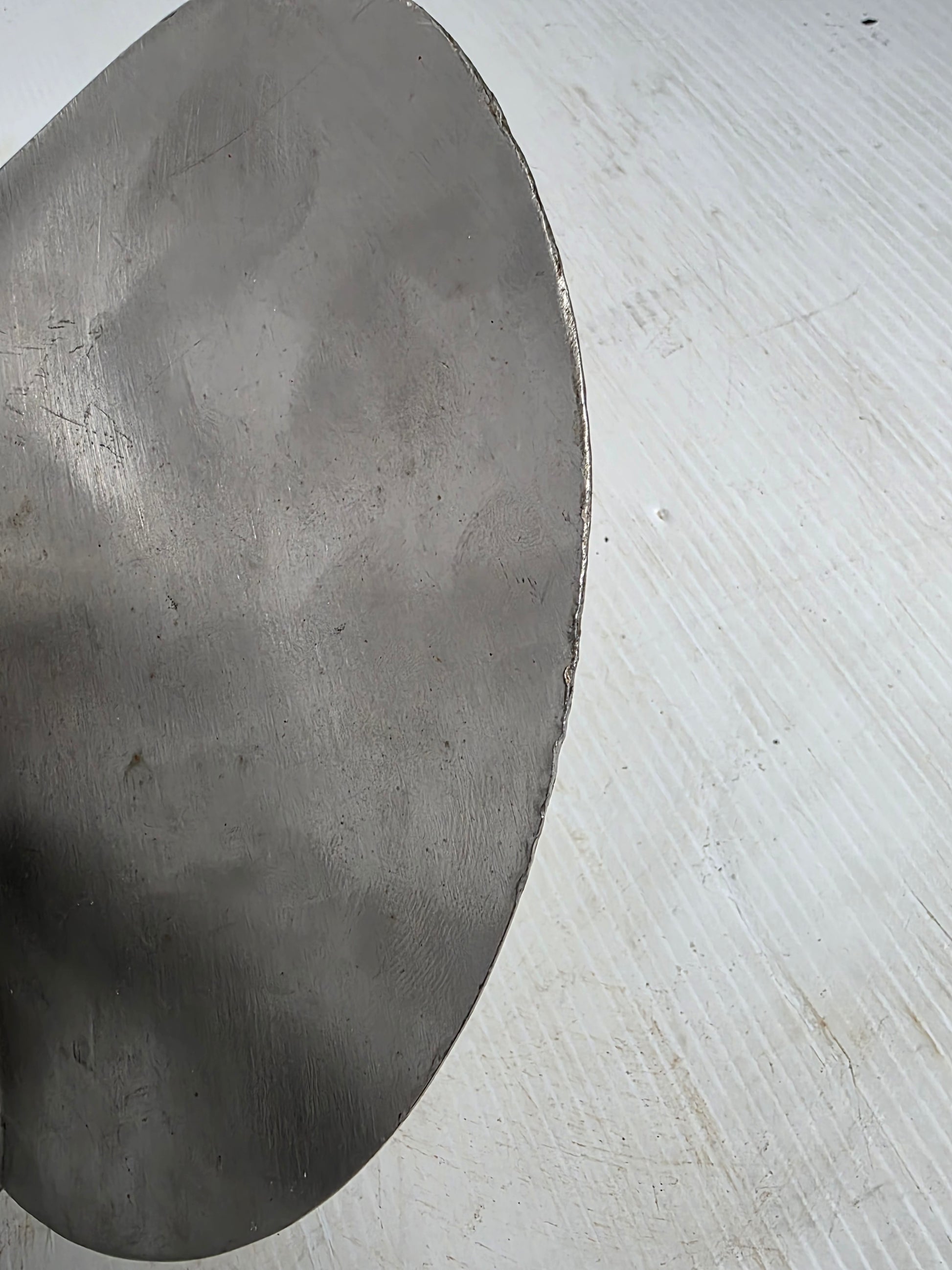

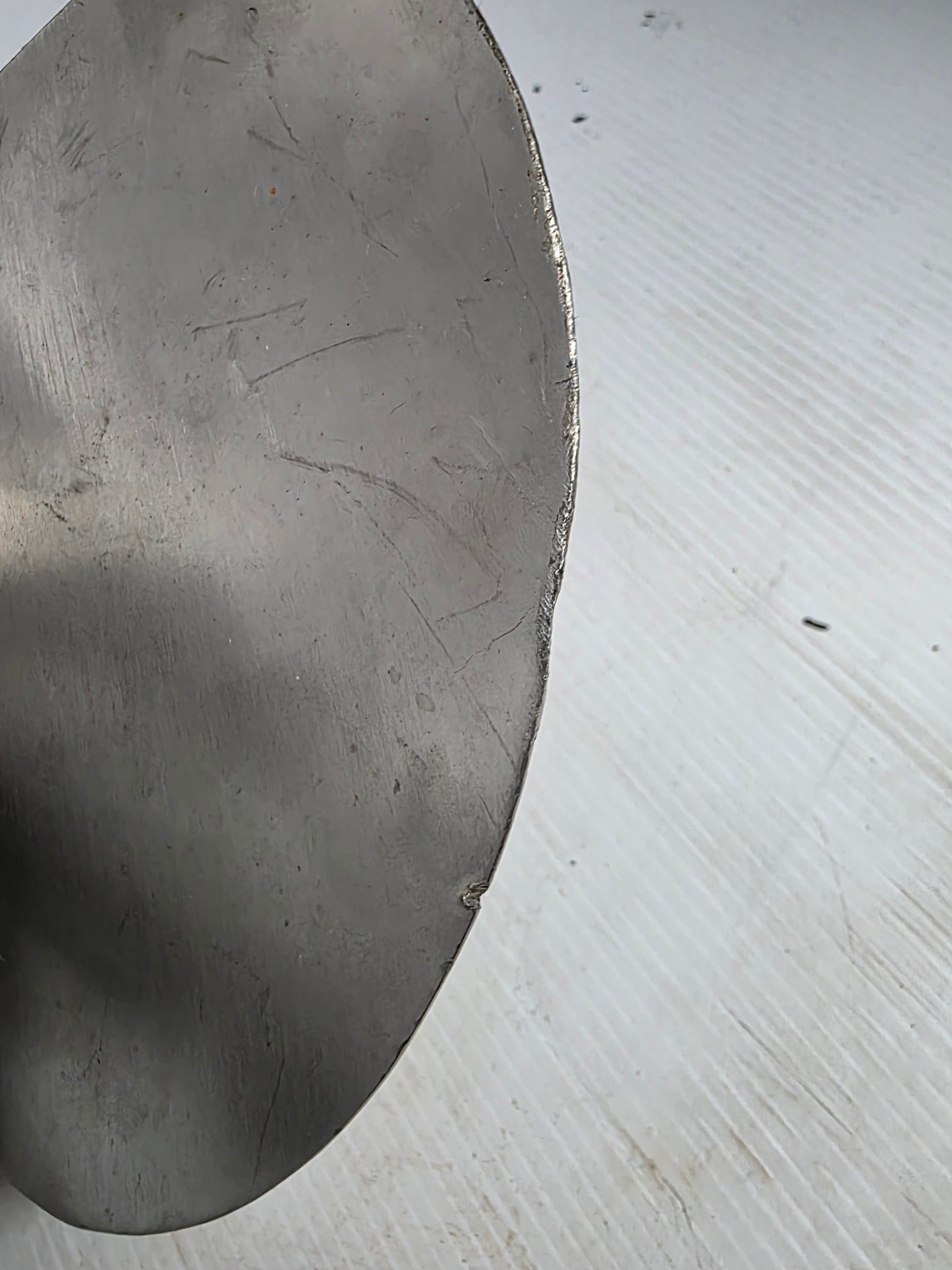

• Blades are bent, chipped, cracked or out of track
• The hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-45947-00-00 current Yamaha service reference
• 6E5-45947-00-00 → Supersedes 6E5-45947-00-EL

OEM / Related Numbers

• 6E5-45947-00-EL
• 6E5-45947-00-00
• 6E54594700EL
• 6E5459470000
• 6FP-45943-00-00 related later 13 1/2 x 15 K-series aluminium propeller

Aftermarket / Verified Equivalents

• Solas Amita 3: 3411-135-15 - 13 1/2 x 15 aluminium Yamaha K-series alternative
• Solas Rubex 3: 9411-135-15 with RBX-208 Yamaha mid-range hub
• Michigan Wheel Vortex / Match: 13 1/2 x 15 aluminium modular-hub alternative
• Yamaha K Series stainless-steel 15-pitch functional alternative where available

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
