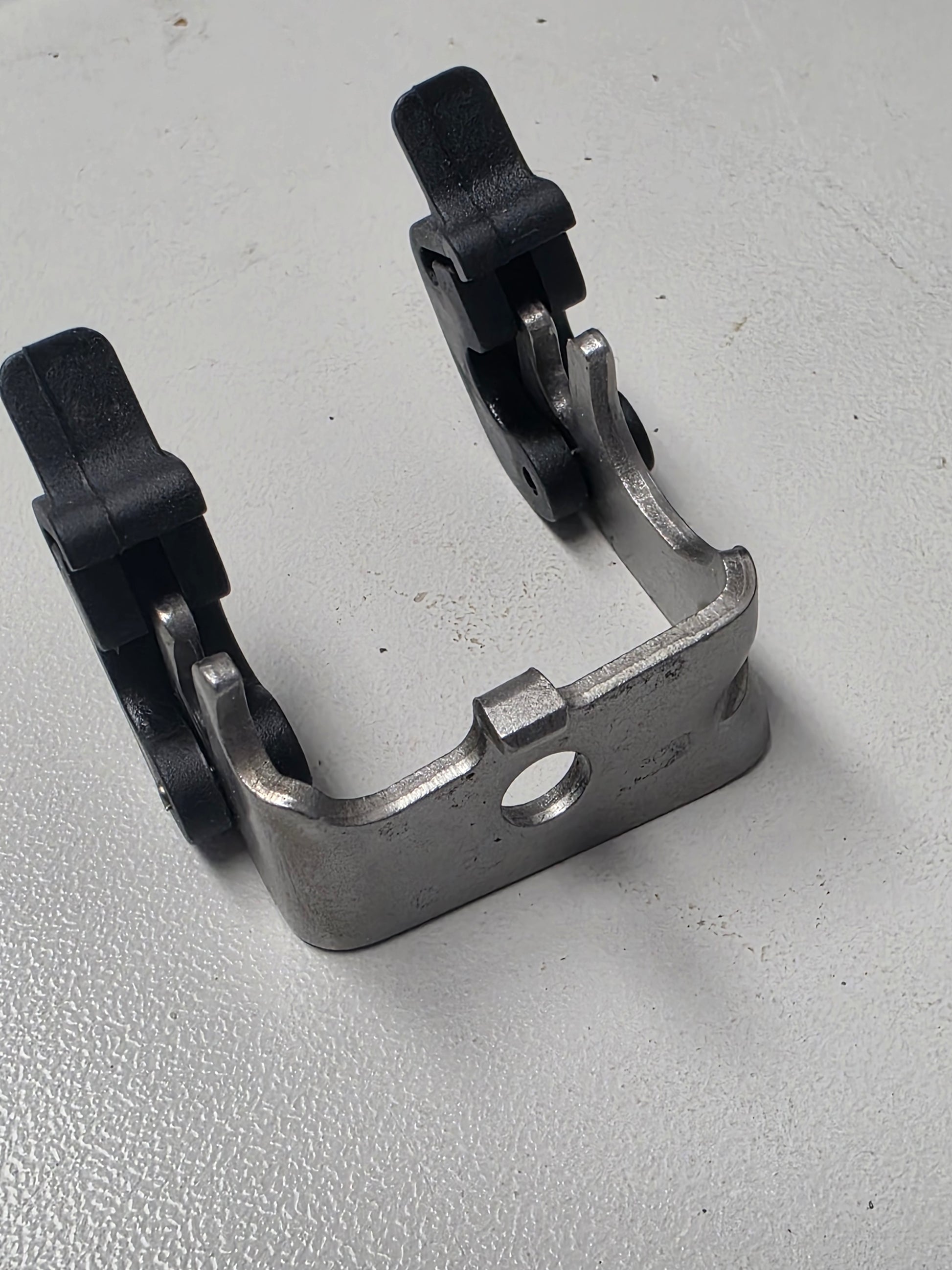

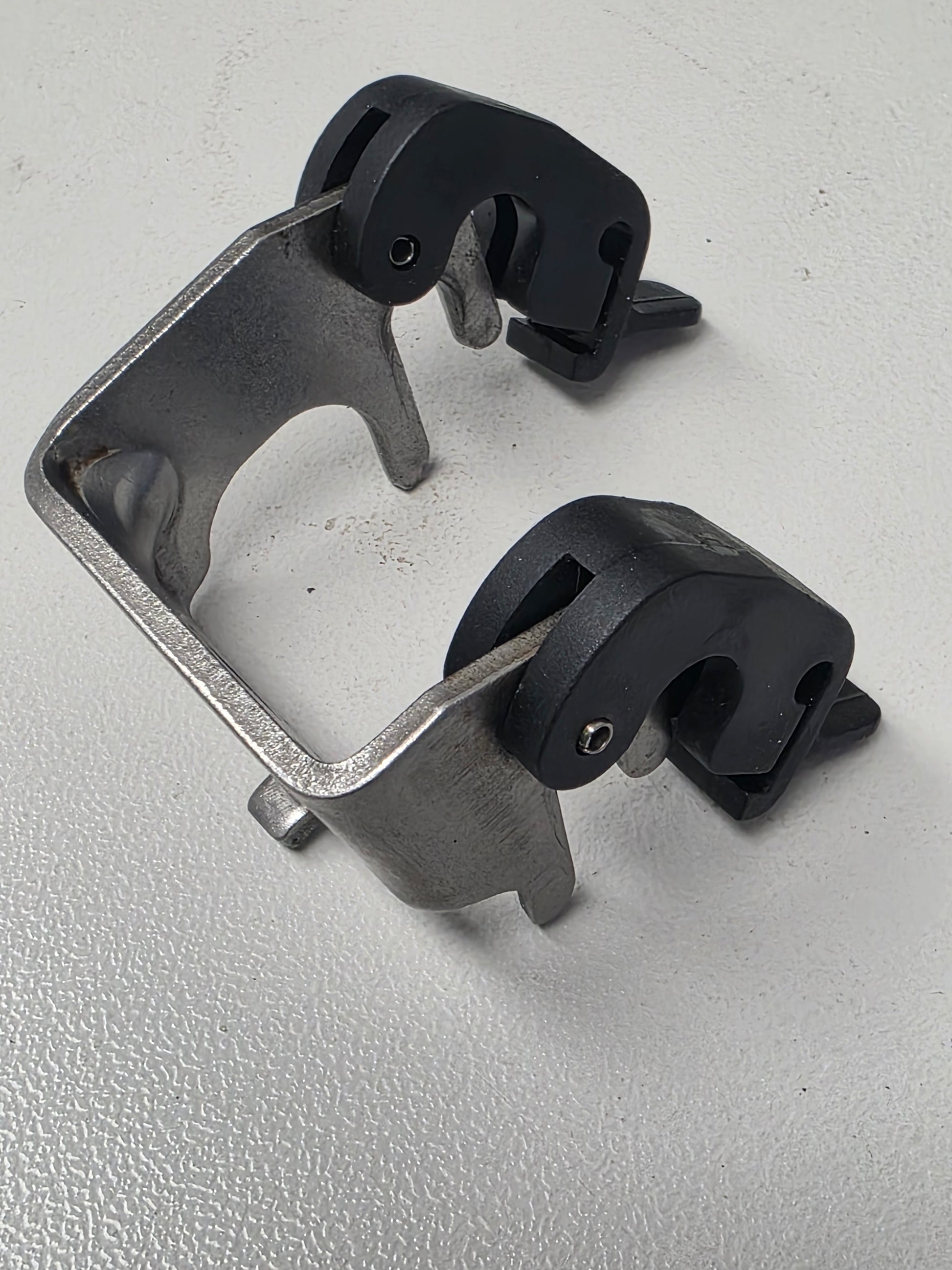

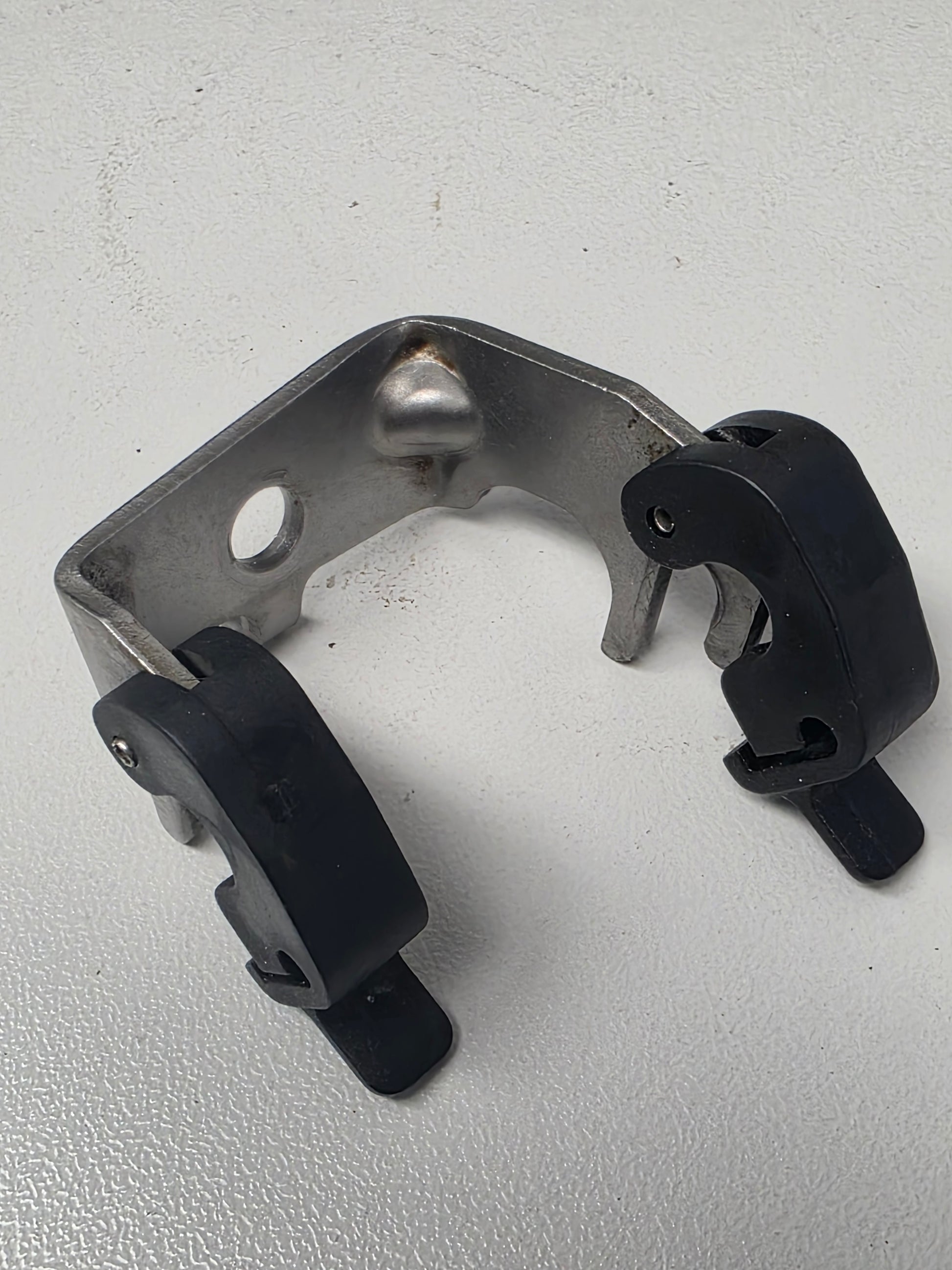

6E5-48538-00-00 6E5-48531-00-00 Yamaha 115CETO Remote Control Bracket & Clamps | Genuine Used Part

🔧 Product Description

Genuine Yamaha Remote-Control Cable Bracket and Clamp Set - Part Numbers: 6E5-48531-00-00 / 6E5-48538-00-00

A genuine used Yamaha remote-control cable bracket with cable clamps for selected V4 and V6 outboards. Earlier listings used 6E5-48538-00-006, which contains an extra digit; the correct cable-clamp number is 6E5-48538-00-00. The set locates the throttle and shift cables at the engine.

⚙️ Key Features

• Genuine Yamaha remote-control cable bracket set
• Bracket number 6E5-48531-00-00
• Correct clamp number 6E5-48538-00-00
• Supports throttle and shift cable routing
• Used on broad Yamaha mechanical-control applications

🚤 Compatibility

Commonly used on

• Yamaha 115HP and 130HP V4 two-stroke engines
• Yamaha 150HP-250HP V6 mechanical-control engines
• Later F150-F250 mechanical-control systems reuse the 6E5 cable clamp with different brackets

Typically suits

• 115CETO / 115TLR / C115 / S115
• 130BETO / 130TLR / S130
• 150 / 175 / 200 / 225 / 250 mechanical-control models
• Confirmed diagram use from the late 1980s through modern mechanical-control engines
• Verify bracket number because later engines may retain the clamp but use a different remote-control bracket
• HP Range: Approximately 115HP - 250HP
• Control Type: Mechanical throttle and shift cables
• Engine Type: Yamaha two-stroke and selected four-stroke outboards
• Fitment Requirement: Confirm bracket, clamp quantity, cable ends and linkage orientation

🔌 Function

The bracket fixes the cable outer casings while the clamps prevent movement, allowing the inner cables to operate the throttle and shift linkages accurately.

⚠️ Common Signs of Failure

• Cracked or bent bracket
• Cable clamps missing or stripped
• Excessive throttle or shift cable movement
• Misadjusted linkage travel
• Corrosion or seized cable-end hardware

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6E5-48531-00-00 established remote-control bracket 1 reference
• 6E5-48538-00-00 established cable-clamp reference
• Supplied 6E5-48538-00-006 is a typographical variation, not a valid Yamaha format

OEM / Related Numbers

• 6E5-48531-00-00
• 6E5485310000
• 6E5-48538-00-00
• 6E5485380000
• 6E5-48344-00-00 related remote-control cable end
• 91690-30012-00 related spring pin
• Bracket, lever and cable-end hardware vary by engine family

Aftermarket / Verified Equivalents

• No direct aftermarket bracket or clamp set verified
• Used genuine Yamaha sets are the practical replacement
• Aftermarket control cables can be used only with the correct Yamaha cable ends and bracket geometry

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
