6E5-81948-22-00 Yamaha Relay Bracket | Genuine Used Part

6E5-81948-22-00 Yamaha Relay Bracket | Genuine Used Part

$15.00 AUD
$15.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

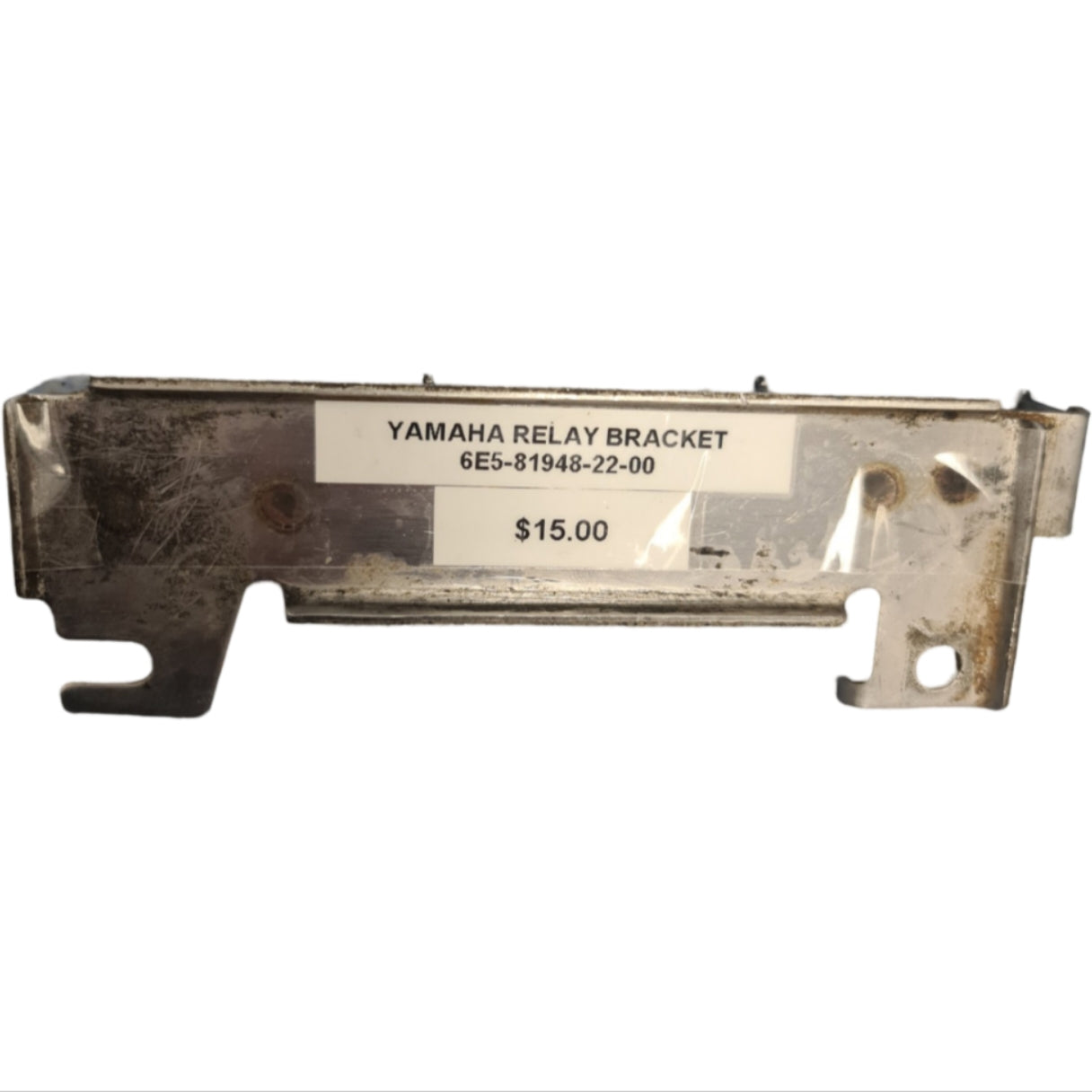

Genuine Yamaha Relay / Electrical Bracket - Part Number: 6E5-81948-22-00

A genuine Yamaha bracket used in the electrical assembly of selected Yamaha 115HP and 130HP two-stroke outboards. This bracket supports relay and electrical components inside the cowling and must be matched by the exact electrical diagram.

⚙️ Key Features

  • Genuine Yamaha electrical bracket
  • Correct OEM part number 6E5-81948-22-00
  • Used in electrical / relay bracket assemblies
  • Common on 115HP and 130HP Yamaha two-strokes
  • Must be matched by model code and bracket diagram

🚤 Compatibility

Commonly used on

  • Yamaha 115HP / 130HP two-stroke electrical assemblies
  • Relay and electrical support bracket positions

Typically suits

  • Yamaha 115TLRV 1997 electrical 2 diagram
  • Yamaha 115TLRC 2004 bracket / electrical diagram
  • Yamaha 115TXR 2005 electrical 2 diagram
  • Yamaha 115B 6E57 2007 electrical 2 diagram
  • Yamaha 130TLRS 1994 bracket diagram
  • Yamaha 130HP two-stroke, including 2002 130HP listings
  • HP Range: 115HP / 130HP
  • Engine Type: Yamaha two-stroke outboard
  • Year Range: 1994-2007 confirmed diagram examples
  • Serial Note: Confirm by model code and electrical bracket diagram before installation.

🔌 Function

The bracket holds relay and electrical components in their correct position, preventing vibration damage and harness strain.

⚠️ Common Signs of Failure

  • Broken or bent bracket
  • Relay or electrical component loose in cowling
  • Wiring strain around relay area
  • Missing mounting hardware
  • Corrosion at bracket mounting points
  • Harness rubbing against engine components
  • Electrical component movement under vibration

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6E5-81948-22-00 current Yamaha bracket reference

OEM / Related Numbers

  • 6E5-81948-22-00
  • 6E5819482200
  • Relay bracket
  • Electrical bracket
  • Bracket, electrical 2

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
