6E5-8195A-01-00 Yamaha Relay Assembly | Genuine Used Part

🔧 Product Description

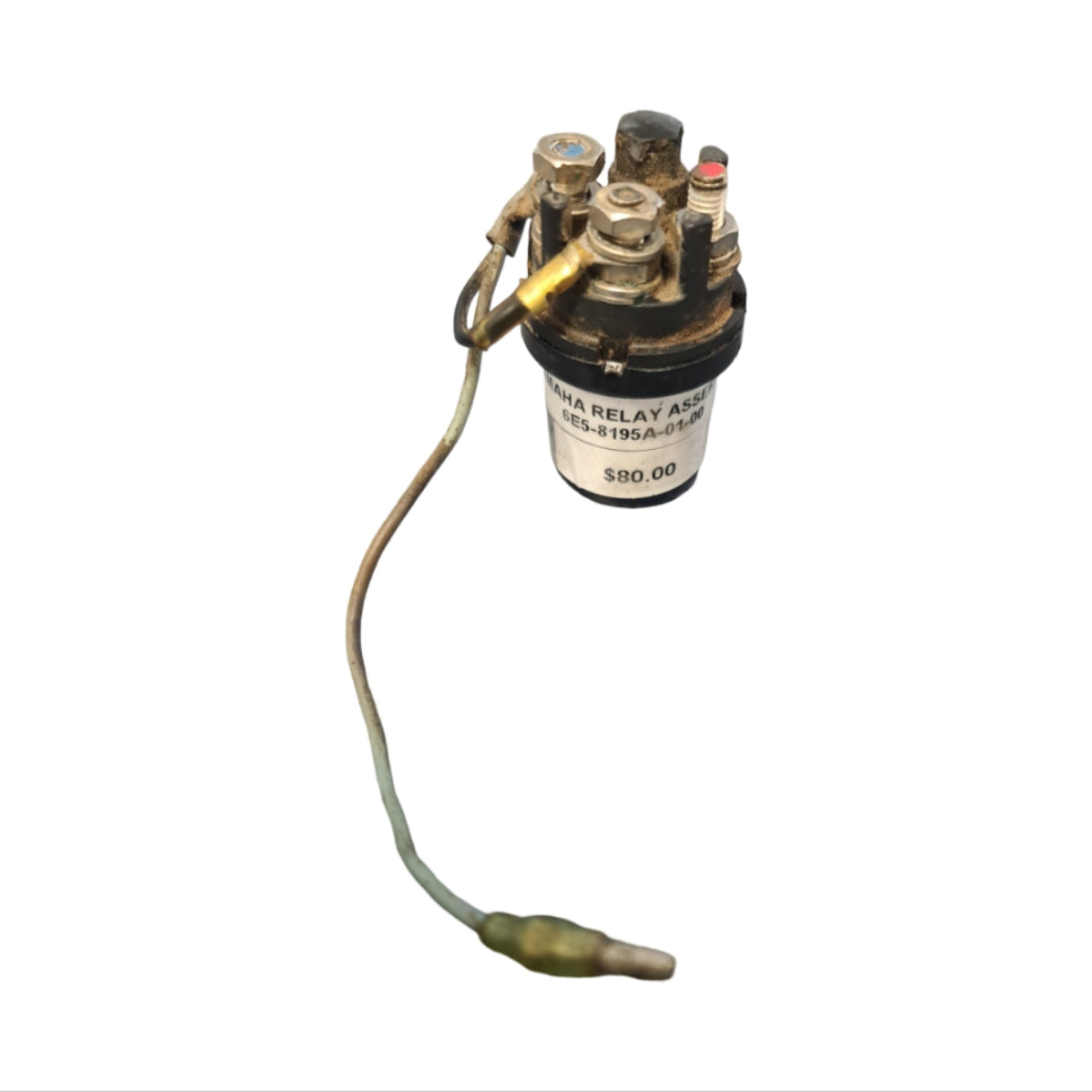

Genuine Yamaha Trim Down Relay Assembly - Part Number: 6E5-8195A-01-00

A genuine Yamaha relay assembly used in selected Yamaha power trim and tilt systems. This relay is commonly identified as the trim down relay and is associated with the green-wire trim circuit on compatible Yamaha outboards.

⚙️ Key Features

• Genuine Yamaha relay assembly

• Correct OEM part number 6E5-8195A-01-00

• Commonly used as trim down relay

• Green-wire trim down circuit reference in replacement data

• Used on selected Yamaha 115HP to 200HP / 225HP trim systems

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-8195A-01-00 Yamaha trim down relay assembly reference

• 6E5-8195A-01 short-form Yamaha trim down relay reference

• 6E5-81950-01-00 related trim up relay assembly reference

• 6E5-8195C-01 related relay reference in replacement data

OEM / Related Numbers:

• 6E5-8195A-01-00

• 6E5-8195A-01

• 6E58195A0100

• 6E58195A01

• 6E5-81950-01-00

• 6E5-8195C-01

• Trim down relay

• Relay assembly

• Power trim relay

• Green wire relay

Aftermarket / Verified Equivalents:

• Aftermarket replacement for 6E5-8195A-01 / 6E5-81950-01 / 6E5-8195C-01

🚤 Compatibility

Commonly used on:

• Yamaha power trim and tilt relay systems

Typically suits:

• Engine models:

• Yamaha 115HP power trim relay applications

• Yamaha 130HP power trim relay applications

• Yamaha 150HP power trim relay applications

• Yamaha 175HP power trim relay applications

• Yamaha 200HP power trim relay applications

• Yamaha 225HP power trim relay applications where 6E5 relay assemblies are specified

• Yamaha 115HP - 200HP replacement-data trim relay applications from approximately 1990-2005

• HP Range: commonly 115HP - 225HP depending on trim system

• Engine Type: Yamaha outboard power trim and tilt electrical relay system

• Year Range: approximately 1990 - 2005 in confirmed used and replacement data; final fitment is model-code controlled

• Serial Note: Match by exact Yamaha model code, serial number, relay wire colour, connector style and trim relay diagram before installation.

🔌 Function

The trim down relay switches current to the power trim motor when the operator activates the trim down circuit.

Common signs of failure:

• Trim will not move down

• Relay clicks but trim motor does not run

• Trim works up but not down

• Intermittent trim operation

• Burnt or corroded relay terminals

• Trim motor runs when relay is bypassed

• Trim operation returns when a known-good relay is fitted

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
