6E5-83671-00-00 Yamaha Trim Gauge | Genuine Used Part

🔧 Product Description

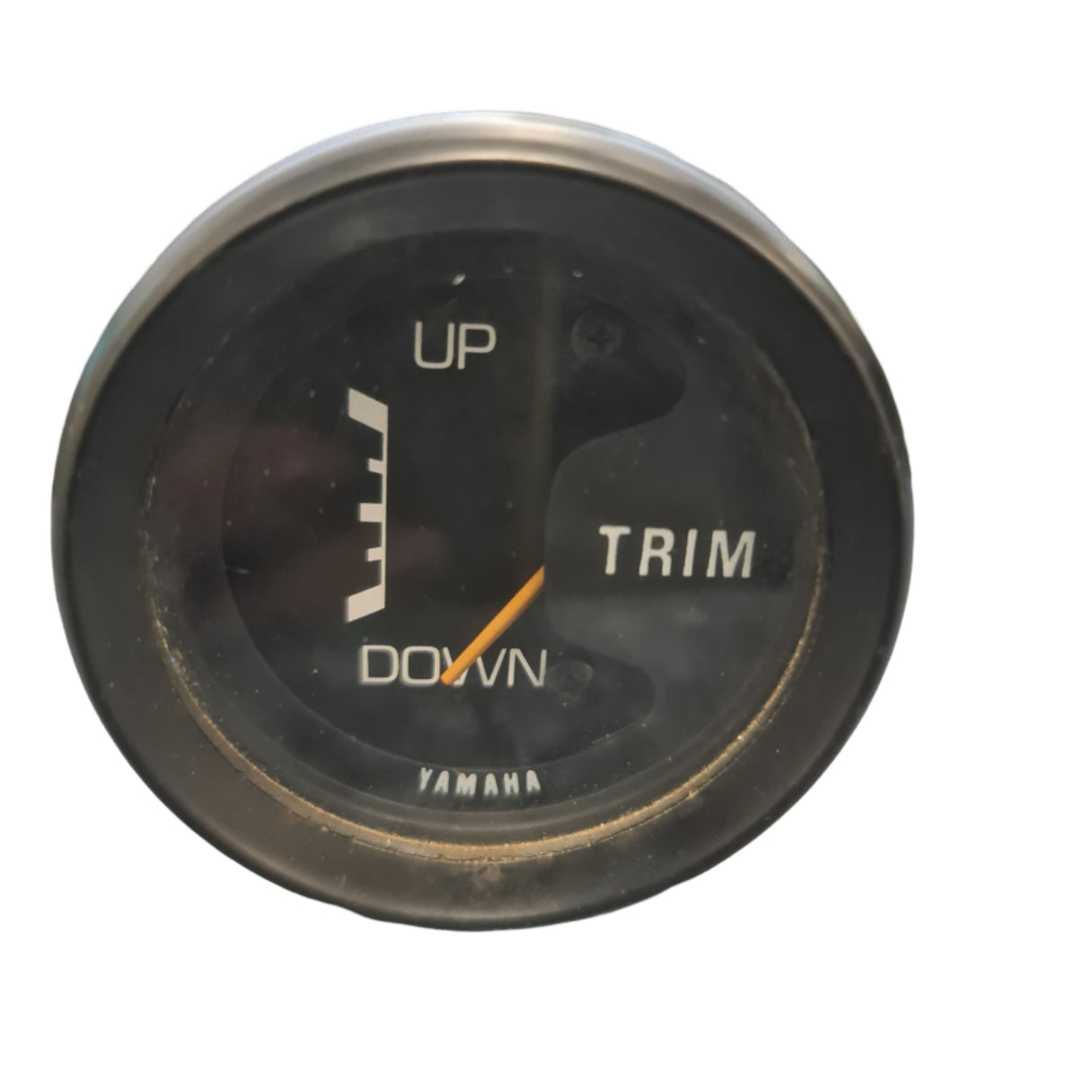

Genuine Yamaha Early-Style Trim Meter - Part Number: 6E5-83671-00-00

A genuine Yamaha trim-position gauge used with selected early power-trim outboard installations.

Yamaha 6E5-83671-00-00 is an early trim-meter reference and is cross-referenced in later catalogues to 6Y5-83670-01-00. The gauge must be matched to the original trim sender, lead harness and connector style.

⚙️ Key Features

• Genuine Yamaha trim meter
• Original part number 6E5-83671-00-00
• Early Yamaha analogue trim-display design
• Displays engine position from DOWN to UP
• Designed for original Yamaha sender and harness systems

🚤 Compatibility

Commonly used on

• Early Yamaha power-trim outboards
• Documented mid-1980s Yamaha V4 and V6 installations
• Selected 115HP and 200HP models using the 6E5 trim sender system
• Engine Type: Yamaha two-stroke outboard
• Electrical System: 12V DC
• Fitment Requirement: Confirm sender part number, wire count and connector style before installation
• Important: Early and later Yamaha trim-sender systems are not automatically interchangeable

🔌 Function

The trim sender changes resistance as the outboard rotates on its trim and tilt bracket. The gauge converts the sender signal into an approximate engine-position reading.

⚠️ Common Signs of Failure

• Gauge remains fully UP or DOWN
• Reading is reversed or inaccurate
• Needle moves intermittently
• Sender and harness test correctly but the gauge does not respond
• Gauge bulb or internal movement has failed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6Y5-83670-01-00 → Replaces 6E5-83671-00-00 in documented catalogues
• 6E5-83671-00-00 original early trim-gauge reference

OEM / Related Numbers

• 6E5-83671-00-00
• 6Y5-83670-01-00
• 6E5-83672-01-00 related trim sender
• 6E5-82553-10-00 related extension harness
• 688-83664-00-00 related gauge damper

Aftermarket / Verified Equivalents

• Yamaha 6Y5-83670-01-00 where the sender and wiring are compatible
• Specialist used early Yamaha trim meters
• Universal trim gauges are not direct replacements unless calibrated for the original sender

📦 Condition

• Genuine used part
• Removed from running engine installation where applicable
• In good working condition unless otherwise stated
• Trim sender and harness are not included unless specifically stated
