6E5-85580-00-00 Yamaha Pulser Coil | Genuine Used Part

🔧 Product Description

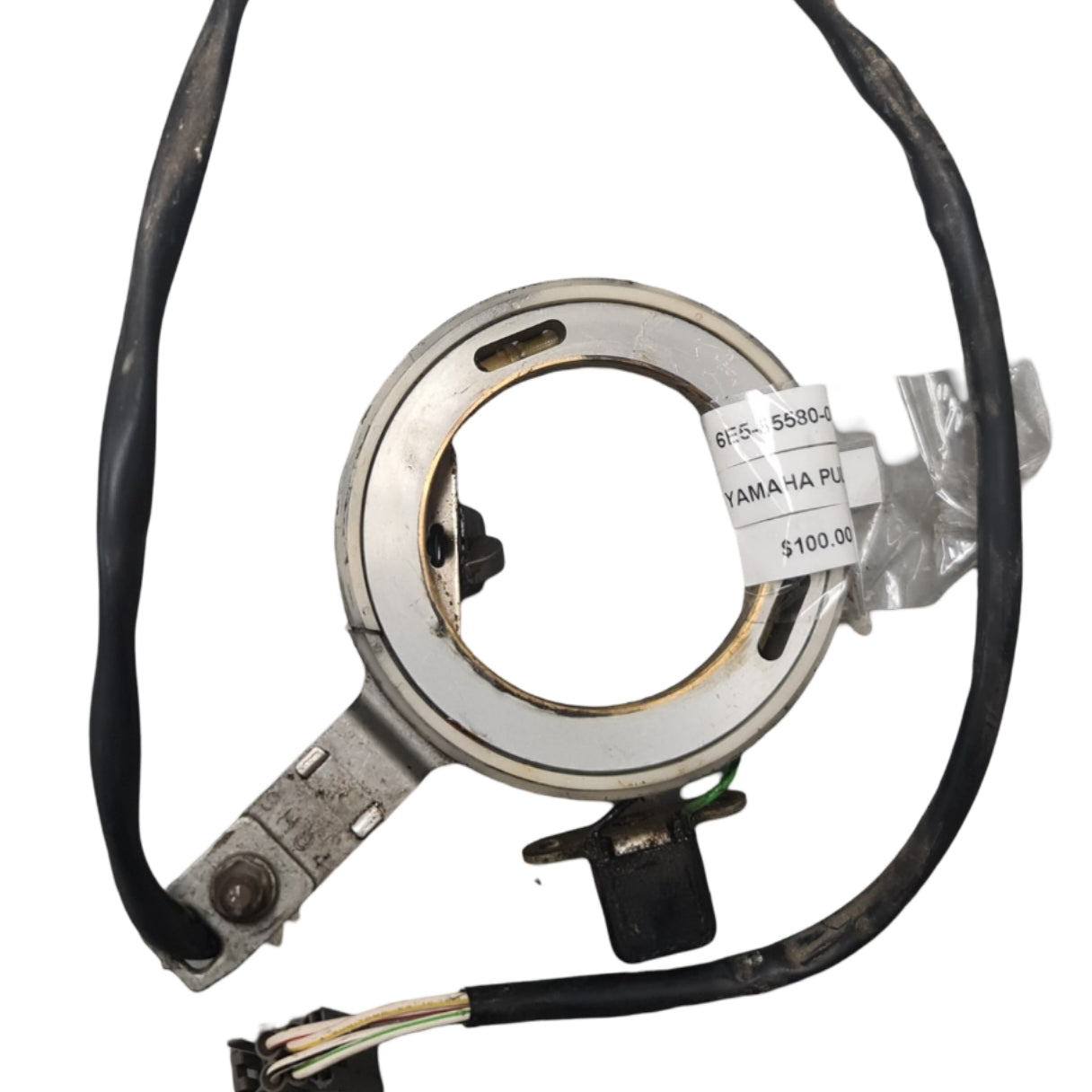

Genuine Yamaha Pulser Coil - Part Number: 6E5-85580-00-00

A genuine Yamaha pulser coil used on selected Yamaha 115HP and 130HP V4 two-stroke ignition systems. This trigger coil provides timing signal input to the CDI ignition system.

⚙️ Key Features

• Genuine Yamaha pulser coil

• Correct Yamaha part number 6E5-85580-00-00

• 4-wire ring-terminal style pulser coil assembly

• Used on selected Yamaha 115HP and 130HP V4 two-stroke engines

• Match by original pulser coil number, wiring colours and trigger layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-85580-00-00 Yamaha pulser coil reference

• 6E5-85580-12-00 related Yamaha pulser coil reference

OEM / Related Numbers:

• 6E5-85580-00-00

• 6E5855800000

• 6E5-85580-00

• 6E58558000

• 6E5-85580-12-00

• Pulser coil

• Trigger coil

• Ignition pulser

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Yamaha V4 two-stroke CDI ignition systems

Typically suits:

• Engine models:

• Yamaha 115HP V4 two-stroke - 1986-1999

• Yamaha 130HP V4 two-stroke - 1986-1999

• Yamaha 115HP donor reference - 1987 115HP

• Yamaha 115HP donor reference - 1998 115HP

• Yamaha 130HP V4 applications using 6E5 pulser coil assembly

• HP Range: 115HP - 130HP

• Engine Type: Yamaha V4 two-stroke outboard ignition system

• Year Range: approximately 1986 - 1999

• Serial Note: Match by Yamaha model code, original pulser coil number, four-wire layout and ring-terminal connections.

🔌 Function

The pulser coil detects crankshaft / trigger position and sends timing signals to the CDI so the ignition coils fire at the correct time.

Common signs of failure:

• No spark

• Intermittent spark loss

• Misfire under load

• Hard starting

• Engine cuts out when warm

• Trigger signal outside specification

• Spark returns when a known-good pulser coil is fitted

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
