6E5-W0093-06 Aftermarket Yamaha Carburetor Kit 15B, 130B, L150C, 200B, 200C, 225B | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha V4/V6 carburettor repair kit - Replacement Part Number: 6E5-W0093-06

A service kit for selected Yamaha 115HP-225HP carburetted V4 and V6 two-stroke outboards. The supplied title's "15B" reference corresponds to the 115B family. The kit includes paired needle valves, pins, clips, slow-jet plugs, O-rings and all listed gaskets.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Designed for selected 115HP-225HP V4/V6 two-stroke engines

• Includes paired inlet-valve and float-control components

• Cross-references to Sierra, Mallory, OBR and Recmar kits

• Supports consistent servicing of multi-carburettor banks

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-W0093-06 (primary Yamaha service reference)

OEM / Related Numbers:

• 6E5-W0093-06

• Related 6G5-W0093-05

• Related 6K7-W0093-03

• Related 6N6-W0093-01

Aftermarket / Verified Equivalents:

• Sierra: 18-7002

• Mallory: 9-37504

• OBR Red Rhino: YA-C02

• Recmar: REC6E5-W0093-06

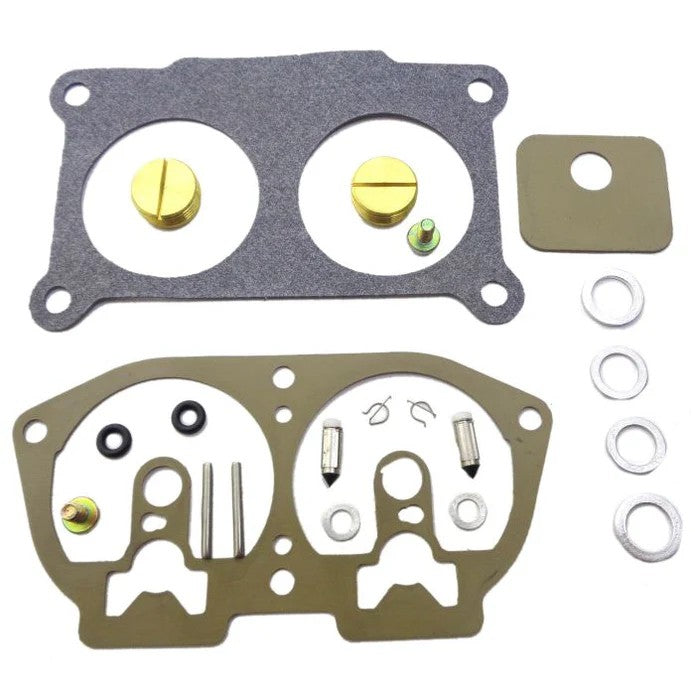

Included Components:

• 1 × Gasket - Part Number: 6E5-14198-A2-00

• 2 × Needle valves - Part Number: 6E5-14546-00-00

• 2 × Float pins - Part Number: 6E5-14386-02-00

• 1 × Float-chamber gasket - Part Number: 6E5-14384-03-00

• 2 × Gaskets - Part Number: 6E5-14398-01-00

• 2 × Gaskets - Part Number: 6E5-14979-00-00

• 2 × Gaskets - Part Number: 6J8-14995-00-00

• 1 × Gasket - Part Number: 6E5-14959-01-00

• 2 × Clips - Part Number: 6E5-14159-00-00

• 2 × Slow-jet plugs - Part Number: 6E5-14394-00-00

• 2 × O-rings - Part Number: 6E5-14997-00-00

• 2 × Plugs - Part Number: 6E5-14328-01-00

• Title Correction: The listed "15B" application is the Yamaha 115B model family.

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha 115, B115 and C115

• Yamaha 130B

• Yamaha L150C, S150 and C150

• Yamaha 175, 200B, 200C and 225B 2.6L carburetted V6 families

• Pro-series P115, P150, P175 and P200 applications using 6E5-W0093-06

• HP Range: Approximately 115HP - 225HP

• Engine Type: Carburetted V4/V6 two-stroke outboard

• Year Range: Core service family approximately 1992 - 1996

• Quantity Required: Confirm by carburettor-bank configuration

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
