6E5-W0093-07 Aftermarket Yamaha Carburetor Kit 115BE/B (1996-2002), 115C/CET (2007-13), 130B/9BET (2007) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha 115HP/130HP carburettor repair kit - Replacement Part Number: 6E5-W0093-07

A service kit for selected Yamaha 115HP and 130HP carburetted two-stroke engines. The later 6E5-W0093-09 service package supersedes or replaces the -07 family on applicable engines and provides the component composition listed below.

⚙️ Key Features

• Suitable for selected 115HP and 130HP two-stroke carburettors

• Later service composition uses individually numbered Yamaha components

• Includes paired needle valves, float pins, drain valves, plugs and seals

• Cross-references to Recmar aftermarket packaging

• Original carburettor and engine model code must be checked

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E5-W0093-09 → Later service replacement for 6E5-W0093-07 on applicable engines

OEM / Related Numbers:

• 6E5-W0093-07

• 6E5-W0093-09

• Related 6N6-W0093-07

• Related 6N6-W0093-08

• Related 6N6-W0093-09

Aftermarket / Verified Equivalents:

• Recmar: REC6E5-W0093-07

• Recmar later service equivalent: REC6E5-W0093-09

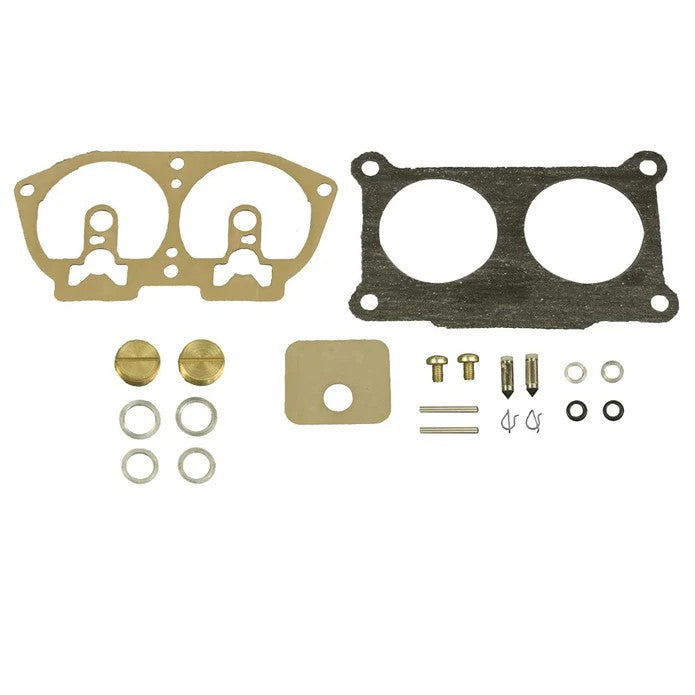

Included Components:

• 2 × Clips - Part Number: 6E5-14159-00-00

• 1 × Gasket - Part Number: 6E5-14198-A2-00

• 2 × Needle valves - Part Number: 6E5-14546-00-00

• 2 × Float pins - Part Number: 6E5-14386-02-00

• 2 × Drain valves - Part Number: 64D-14394-00-00

• 1 × Float-chamber gasket - Part Number: 64D-14384-01-00

• 2 × Gaskets - Part Number: 6E5-14398-00-00

• 2 × Plugs - Part Number: 6E5-14328-01-00

• 2 × Gaskets - Part Number: 6E5-14979-00-00

• 1 × Gasket - Part Number: 6J8-14995-00-00

• 2 × Gaskets - Part Number: 61U-14959-00-00

• Component Note: The listed items are the documented later -09 service composition used when superseding the -07 family.

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha 115BE and 115B approximately 1996-2002

• Yamaha 115C and 115CET global-market applications approximately 2007-2013

• Yamaha 130B and related 130BET/130AET model-code applications

• HP Range: 115HP - 130HP

• Engine Type: Carburetted V4 two-stroke outboard

• Year Range: Approximately 1996 - 2013 by model code

• Quantity Required: Confirm by carburettor-bank configuration

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
