6E9-W0093-02 Aftermarket Yamaha Carburettor Kit 40G/QE/QE-2/QM (1992-99) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Two-Carburettor Repair Kit - Replaces Part Number: 6E9-W0093-02

New aftermarket two-carburettor service kit replacing Yamaha 6E9-W0093-02. It services the twin-carburettor 40HP two-cylinder family used on 40G/QE/QM and CV40 model variants.

⚙️ Key Features

• Services both carburettors on the applicable engine

• Includes two needle-valve, float and pilot-screw sets

• Correct service family for selected two-cylinder 40HP models

• Marine fuel-resistant gaskets and O-rings

• Match the original carburettor and model code before ordering

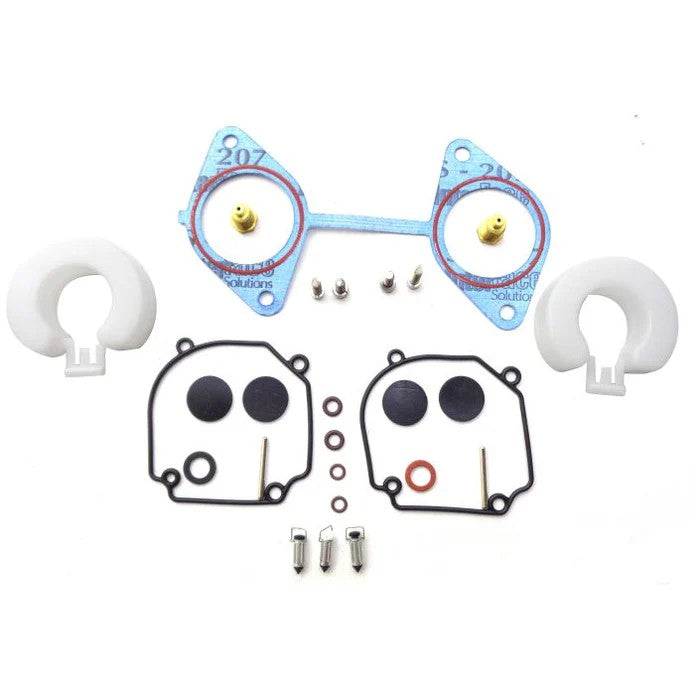

🧰 Kit Contents

• 1 × Carburettor-set gasket - Yamaha P/N 6E9-14198-A0-00

• 2 × Screw with washer - Yamaha P/N 97980-04114-00

• 2 × Needle-valve assembly - Yamaha P/N 6H3-14590-01-00

• 2 × Float-chamber gasket - Yamaha P/N 676-14984-00-00

• 2 × Float-arm pin - Yamaha P/N 688-14548-00-00

• 2 × Float pin - Yamaha P/N 676-14186-00-00

• 2 × Clip - Yamaha P/N 663-14159-00-00

• 2 × Float - Yamaha P/N 676-14985-01-00

• 2 × Pilot screw - Yamaha P/N 692-14923-00-00

• 2 × O-ring - Yamaha P/N 93210-04228-00

• 2 × O-ring - Yamaha P/N 93210-04230-00

• 4 × Gasket - Yamaha P/N 688-14126-00-00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E9-W0093-02-00 (Yamaha OEM service reference)

OEM / Related Numbers:

• 6E9W009302

• 6E9-W0093-02-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7740

• Mallory: 9-37519

• GLM: 40693

• Recmar: REC6E9-W0093-02

🚤 Compatibility

Commonly used on:

• Yamaha two-cylinder 40HP carburetted two-stroke outboards

Typically suits:

• Engine models:

• 40G

• 40QE

• 40QE-2

• 40QM (approximately 1992-1999)

• CV40 two-cylinder (approximately 1991-1993)

• HP Range: 40HP

• Engine Type: Twin-cylinder, twin-carburettor two-stroke outboard

• Year Range: Approximately 1991 - 1999

• Serial / Model Identification: Use the engine model code and stamped carburettor identification as the controlling fitment reference.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
