6E9-W0093-03 Aftermarket Yamaha Carburettor Kit 40QEZ/QWC (1997-98) C40 2-Cylinder (1995-98) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Two-Carburettor Repair Kit - Replaces Part Number: 6E9-W0093-03

New aftermarket two-carburettor repair kit replacing Yamaha 6E9-W0093-03. It is used on the later two-cylinder C40/40Q carburettor family and cross-references Mercury/Mariner service numbers used on the same Yamaha-built platform.

⚙️ Key Features

• Complete service package for two carburettors

• Later 6E9 two-cylinder 40HP carburettor family

• Includes floats, needle valves, pilot screws and sealing parts

• Cross-brand Yamaha-built Mariner application coverage

• Fuel-resistant marine service materials

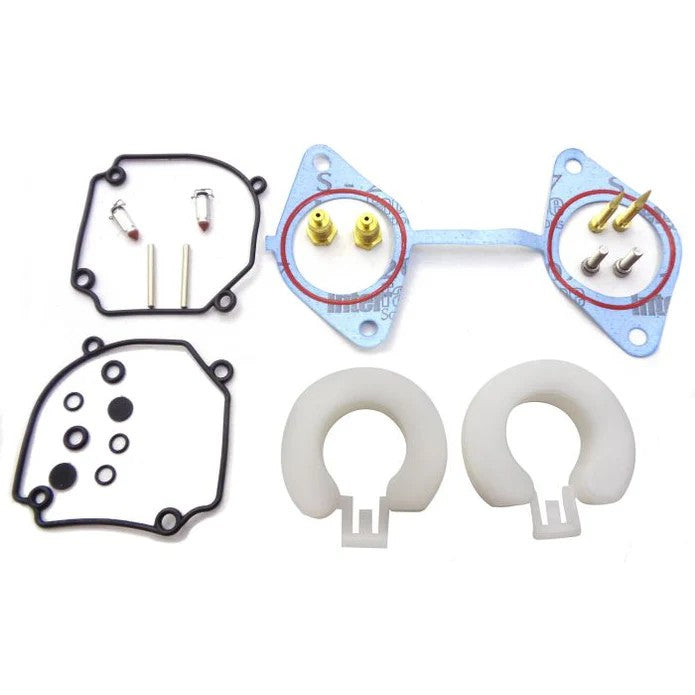

🧰 Kit Contents

• 1 × Carburettor-set gasket - Yamaha P/N 6E9-14189-A0-00

• 2 × Screw with washer - Yamaha P/N 97980-04114-00

• 2 × Needle-valve assembly - Yamaha P/N 6E9-14590-01-00

• 2 × Float-chamber gasket - Yamaha P/N 676-14984-00-00

• 2 × Float-arm pin - Yamaha P/N 688-14548-00-00

• 2 × Float pin - Yamaha P/N 676-14186-00-00

• 2 × Clip - Yamaha P/N 633-14159-00-00

• 2 × Float - Yamaha P/N 676-14985-01-00

• 2 × Pilot screw - Yamaha P/N 692-14923-00-00

• 2 × O-ring - Yamaha P/N 93210-04228-00

• 2 × O-ring - Yamaha P/N 93210-04230-00

• 4 × Gasket - Yamaha P/N 688-14126-00-00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6E9-W0093-03-00 → Later service reference associated with 6E9-W0093-02-00 applications where specified

OEM / Related Numbers:

• 6E9W009303

• 97667M

• 97667T

Aftermarket / Verified Equivalents:

• Sierra: 18-7741

• Mallory: 9-37513

• GLM: 40509

• Recmar: REC6E9-W0093-03

🚤 Compatibility

Commonly used on:

• Yamaha and Yamaha-built Mariner two-cylinder 40HP outboards

Typically suits:

• Engine models:

• 40QEZ (approximately 1997-1998)

• 40QWC (approximately 1997-1998)

• C40 two-cylinder (approximately 1994/1995-1998)

• Mariner applications specifying 97667M or 97667T

• HP Range: 40HP

• Engine Type: Twin-cylinder, twin-carburettor two-stroke outboard

• Year Range: Approximately 1994 - 1998

• Serial / Model Identification: Confirm the later two-cylinder C40/40Q carburettor arrangement.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
