6F6-W0093-00 Aftermarket Yamaha Carburettor Kit E40 Models (1989-1997) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Carburettor Repair Kit - Replaces Part Number: 6F6-W0093-00

New aftermarket repair kit replacing Yamaha 6F6-W0093-00. The later Yamaha reference is 6F6-W0093-01 and services the single-carburettor E40/40G/40J two-stroke family.

⚙️ Key Features

• Current-service replacement for 6F6-W0093-00

• Includes float, needle-valve and air-adjusting components

• Suitable for the identified E40/40G/40J carburettor family

• Complete one-carburettor overhaul package

• Fuel-resistant replacement gaskets

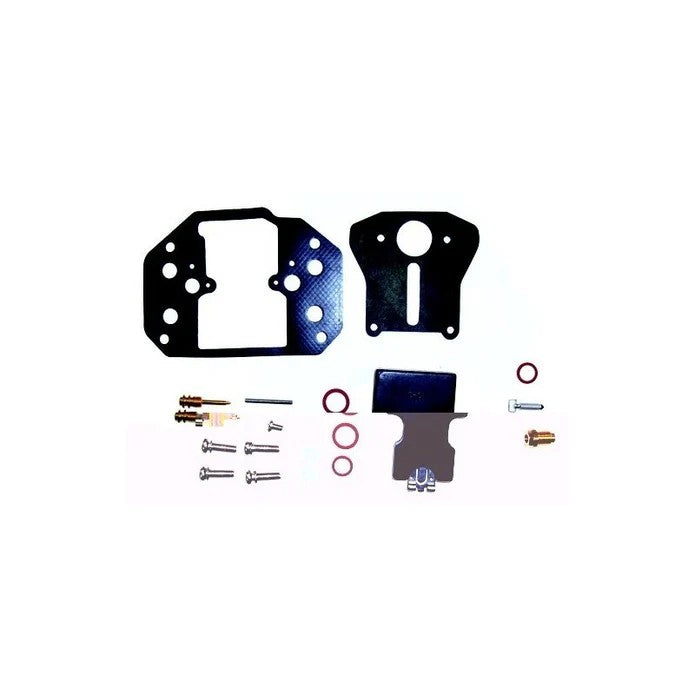

🧰 Kit Contents

• 1 × Float-chamber gasket - Yamaha P/N 6F5-14384-01

• 2 × Gasket - Yamaha P/N 1J2-14398-00

• 1 × Float - Yamaha P/N 6F6-14385-00

• 1 × Binding screw - Yamaha P/N 98980-04006

• 1 × Gasket - Yamaha P/N 6F5-14398-01

• 1 × Needle-valve assembly - Yamaha P/N 6F5-14390-21

• 1 × Needle-valve gasket - Yamaha P/N 367-14195-00

• 1 × Float pin - Yamaha P/N 6E5-14386-01

• 2 × Gasket - Yamaha P/N 6F6-14398-00

• 2 × Air-adjusting screw - Yamaha P/N 6F5-14323-01

• 4 × Pan-head screw with washer - Yamaha P/N 97603-05117

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6F6-W0093-01-00 → Supersedes 6F6-W0093-00-00

OEM / Related Numbers:

• 6F6W009300

• 6F6-W0093-01-00

• 611810M

Aftermarket / Verified Equivalents:

• Recmar: REC6F6-W0093-00

🚤 Compatibility

Commonly used on:

• Yamaha E40/40-series carburetted two-stroke outboards

Typically suits:

• Engine models:

• E40GMH, E40GML and E40GMS

• E40JMH and E40JWH

• 40GWH and 40JWH

• E40 applications specifying the 6F6 carburettor kit

• HP Range: 40HP

• Engine Type: Carburetted two-stroke outboard

• Year Range: Model-dependent; early 1990s through later export-market E40 production

• Serial / Model Identification: Confirm 6F6-W0093-00 or 6F6-W0093-01 in the model-specific parts diagram.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
