6FP-81800-01 Aftermarket Yamaha Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

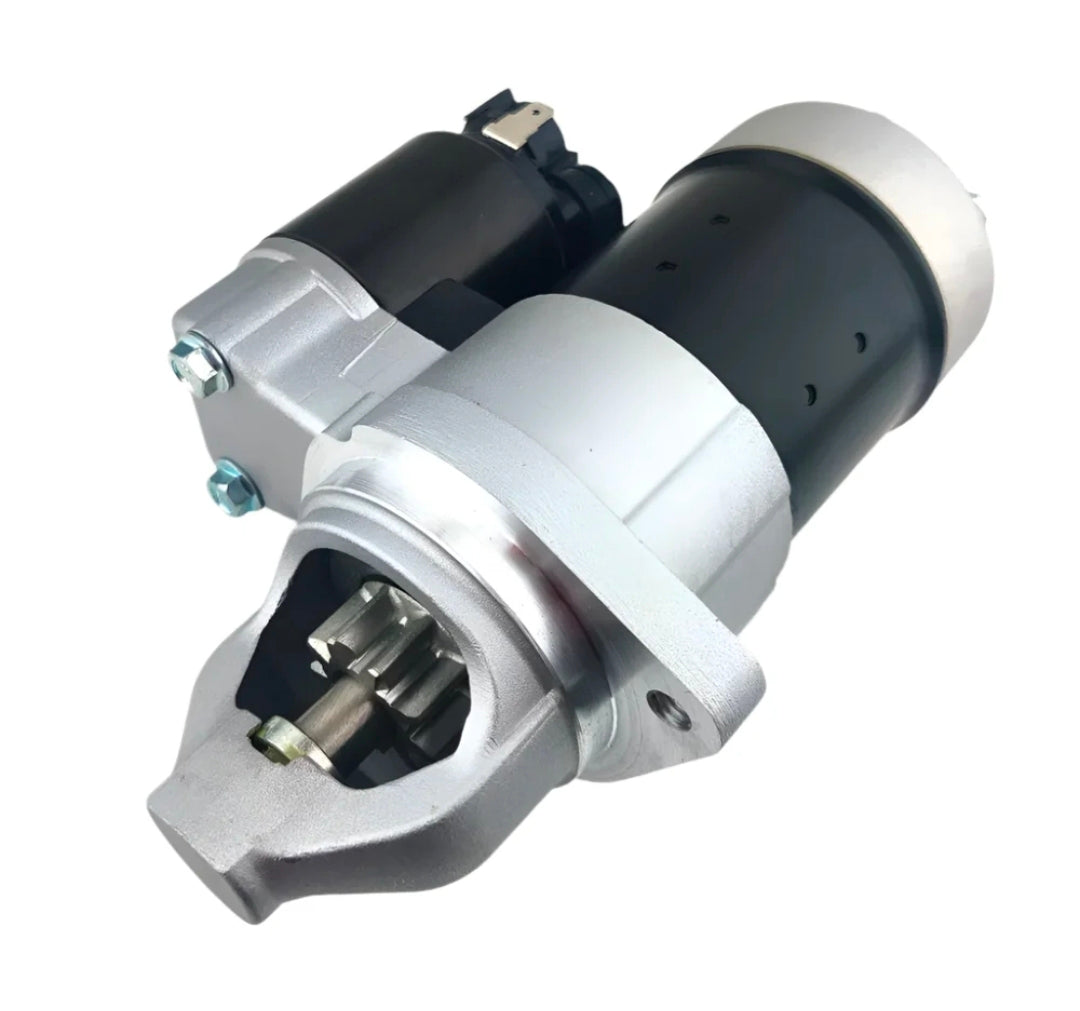

Aftermarket Yamaha F75/F80/F90/F100 Four-Stroke Starter Motor - Part Number: 6FP-81800-01

New aftermarket permanent-magnet starter motor replacing Yamaha 6FP-81800-01 for later mid-range four-cylinder four-stroke outboards. The 12-volt, 1.4kW, 9-tooth assembly is matched to the 6FP mounting and flywheel arrangement used on applicable F75, F80, F90, F100 and VF90 engines.

⚙️ Key Features

• 12-volt marine electrical system

• Approximately 1.4kW rated cranking output

• 9-tooth starter pinion

• Permanent-magnet gear-reduction construction

• Integrated starter solenoid and overrunning clutch

• Direct replacement only when the original starter or engine catalogue specifies the 6FP family

🧰 Assembly Contents

• 1 × Complete starter motor assembly - Part Number: 6FP-81800-01

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed 9-tooth pinion and overrunning clutch

• 1 × Installed armature, field-magnet, brush-holder and drive-housing assembly

• Mounting bolts and battery cables are not included unless specifically supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6FP-81800-01-00 → Later Yamaha service reference replacing 6FP-81800-00-00

• 6FP-81800-00-00 → Earlier complete starter assembly reference

OEM / Related Numbers:

• 6FP-81800-01

• 6FP-81800-01-00

• 6FP-81800-00

• 6FP-81800-00-00

Aftermarket / Verified Equivalents:

• Recmar: REC6FP-81800-01

• Selva shared-platform applications: confirm the original 6FP starter number before substitution

🚤 Compatibility

Commonly used on:

• Yamaha later-generation mid-range four-cylinder four-stroke outboard starting systems

Typically suits:

• F75B and F75LB model families using the 6FP starter

• F80D model families using the 6FP starter

• F90C, F90LB, F90XB and F90JB model families using the 6FP starter

• F100F model families using the 6FP starter

• VF90LA and VF90XA V MAX SHO applications using the same starter reference

• Selva Murena 70, Spearfish 100 and Swordfish 115 only where the installed starter directly cross-references to Yamaha 6FP-81800-01

• HP Range: Approximately 70-115 HP, controlled by exact engine model and OEM starter number

• Engine Type: Yamaha/Selva inline four-cylinder four-stroke outboard

• Year Range: Principally 2017 onward; regional model introduction and production periods differ

• Serial / Model Identification: No single serial range covers every market. Confirm 12V, 1.4kW, 9 teeth, mounting flange and the original 6FP-81800-00/01 reference.

🔌 Function

The starter converts battery power into high cranking torque. When the start circuit energises the solenoid, the pinion engages the flywheel ring gear and turns the crankshaft until the engine starts, after which the overrunning clutch protects the starter from engine speed.

Common signs of failure:

• Solenoid clicks but the starter does not rotate

• Slow cranking with a fully charged, correctly sized battery

• Pinion spins without engaging the flywheel

• Grinding or repeated pinion kick-out during cranking

• Intermittent operation caused by worn brushes, solenoid contacts or heat soak

• Excessive current draw, overheating, burnt odour or corrosion damage

📦 Condition

• Brand-new aftermarket replacement starter motor

• New and unused

• Supplied in suitable manufacturer or equivalent protective packaging
