6G5-43112-01-EK Yamaha Engine Clamp Bracket (Port) | Genuine Used Part

🔧 Product Description

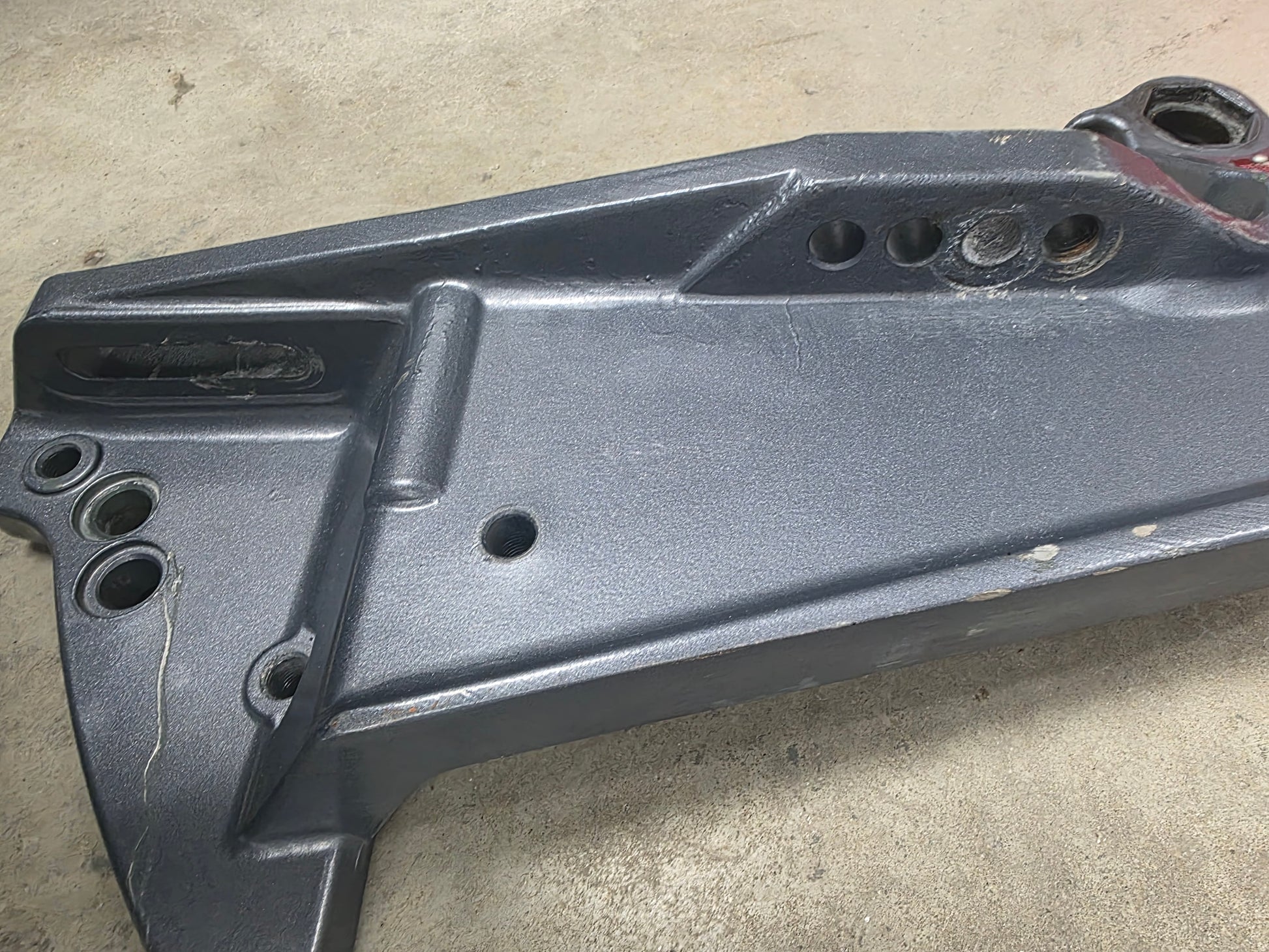

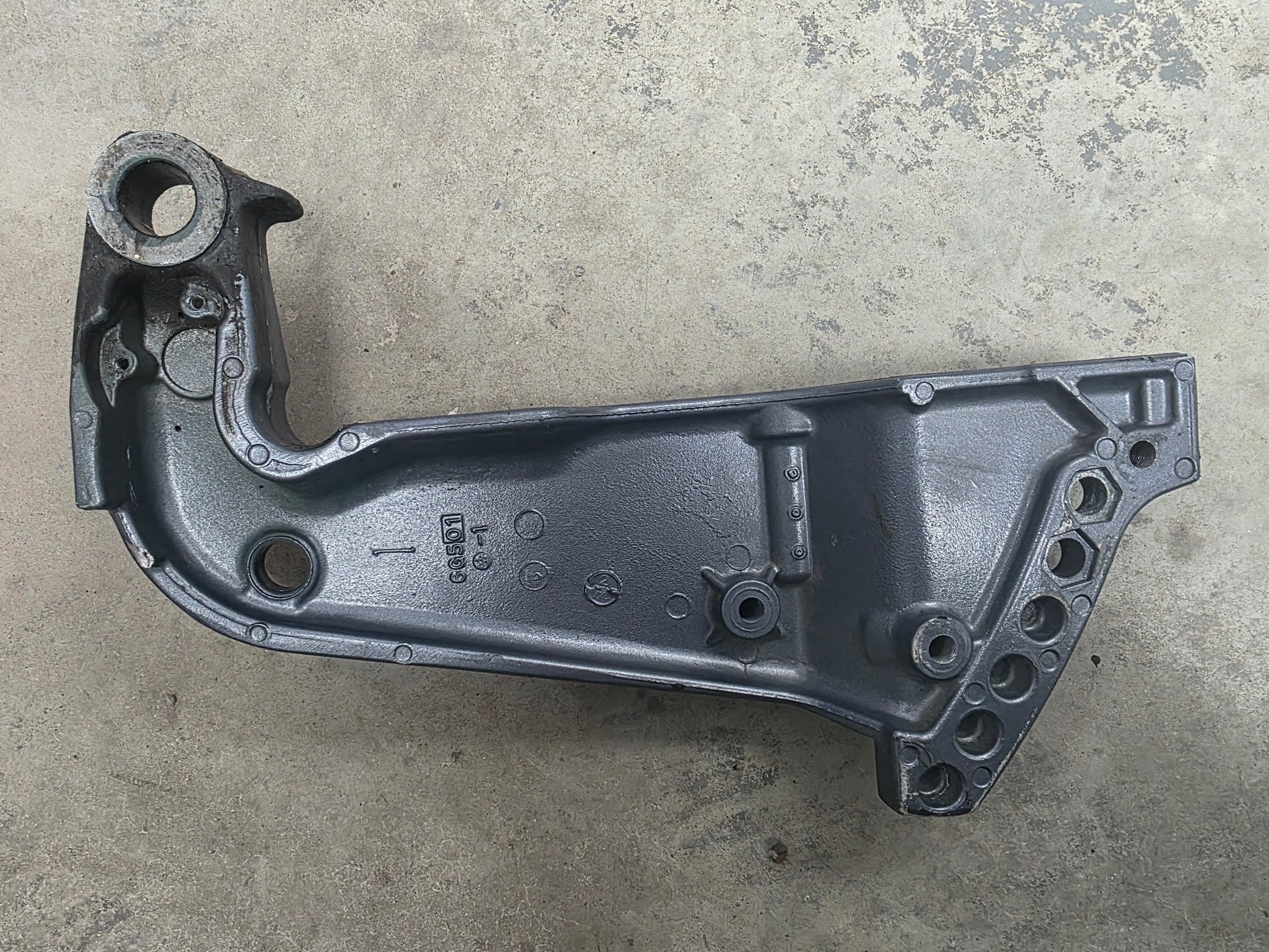

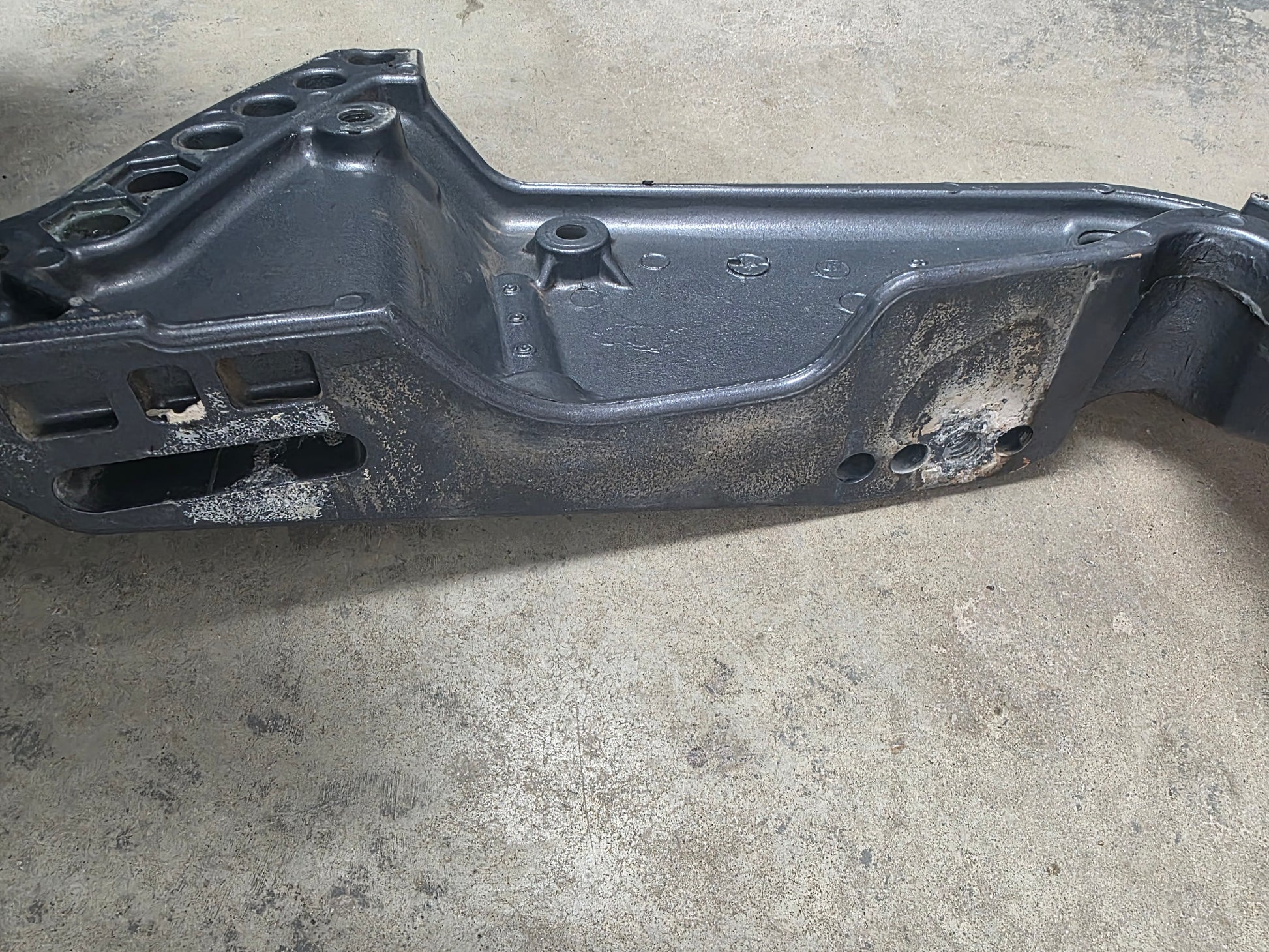

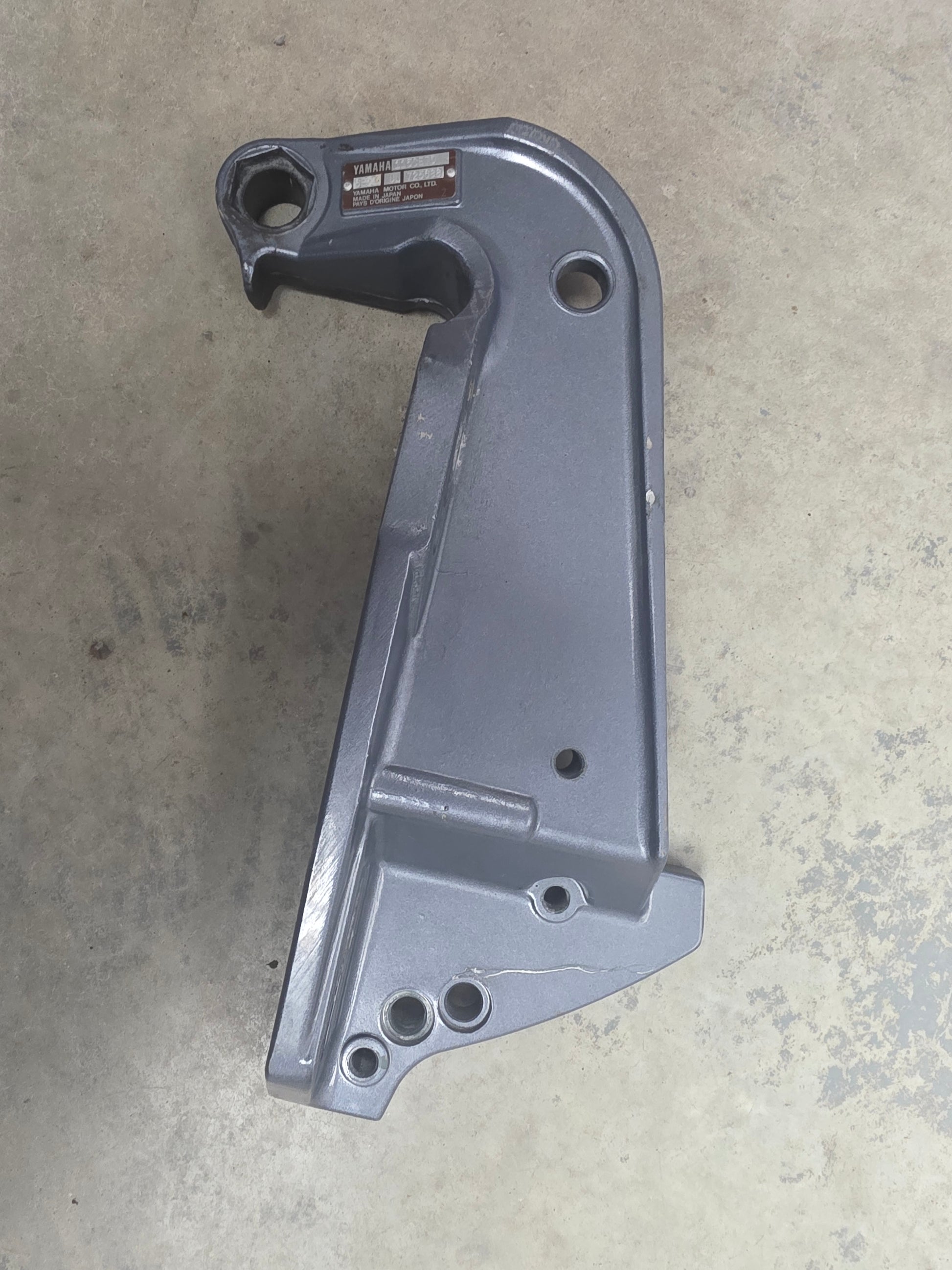

Genuine Yamaha Clamp Bracket (Port) - Part Number: 6G5-43112-01-EK

A genuine used Yamaha clamp bracket 2 for selected 115HP to 225HP V4 and V6 two-stroke outboards.

⚙️ Key Features

• Genuine Yamaha clamp bracket
• Correct part number 6G5-43112-01-EK
• Clamp bracket 2 / port side
• Used on early V4 and V6 two-stroke engines
• Obsolete original-equipment casting

🚤 Compatibility

Commonly used on

• Yamaha 115HP / 130HP V4 two-strokes
• Yamaha 150HP / 175HP / 200HP / 225HP V6 two-strokes
• Early Yamaha Excel, ProV and Saltwater-series mounting systems

Typically suits

• Confirmed on 1987-1992 V6 Excel and 115HP-225HP engines
• Confirmed on 1988 L200 and 1989 115 / 130 diagrams
• Some 1993 engines use later 6G5-43112-02-EK
• Verify matching opposite-side bracket, swivel bracket and tilt tube
• HP Range: Approximately 115HP - 225HP
• Side: Port / clamp bracket 2
• Year Range: Approximately 1987 - 1992
• Fitment Requirement: Match revision, colour, trim system and shaft-length assembly

🔌 Function

The bracket secures the port side of the engine to the transom and supports the tilt tube, swivel bracket and trim system.

⚠️ Common Signs of Failure

• Cracks around the tilt-tube boss
• Corrosion behind the anode
• Worn or seized tilt-tube bore
• Damaged transom-mount holes
• Bracket distortion after impact

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-43112-02-EK later revision on selected 1993-and-later engines
• 6G5-43112-01-EK earlier clamp bracket reference
• Do not confuse with the matching 6G5-43111-series opposite-side bracket

OEM / Related Numbers

• 6G5-43112-01-EK
• 6G54311201EK
• 6G5-43112-02-EK later revision
• 6G5-43111-01-EK / 6G5-43111-02-8D related opposite-side brackets
• 6E5-43131-02-00 related clamp-bracket bolt / tilt tube
• 6G5-45251-01-00 related anode

Aftermarket / Verified Equivalents

• No aftermarket cast bracket verified
• Used genuine Yamaha brackets and transom-bracket sets are the practical replacement
• Aftermarket stainless tilt tubes and bushings are available separately

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
