6G5-43112-02-EK Yamaha Engine Clamp Bracket (STB) | Genuine Used Part

6G5-43112-02-EK Yamaha Engine Clamp Bracket (STB) | Genuine Used Part

$150.00 AUD
$150.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

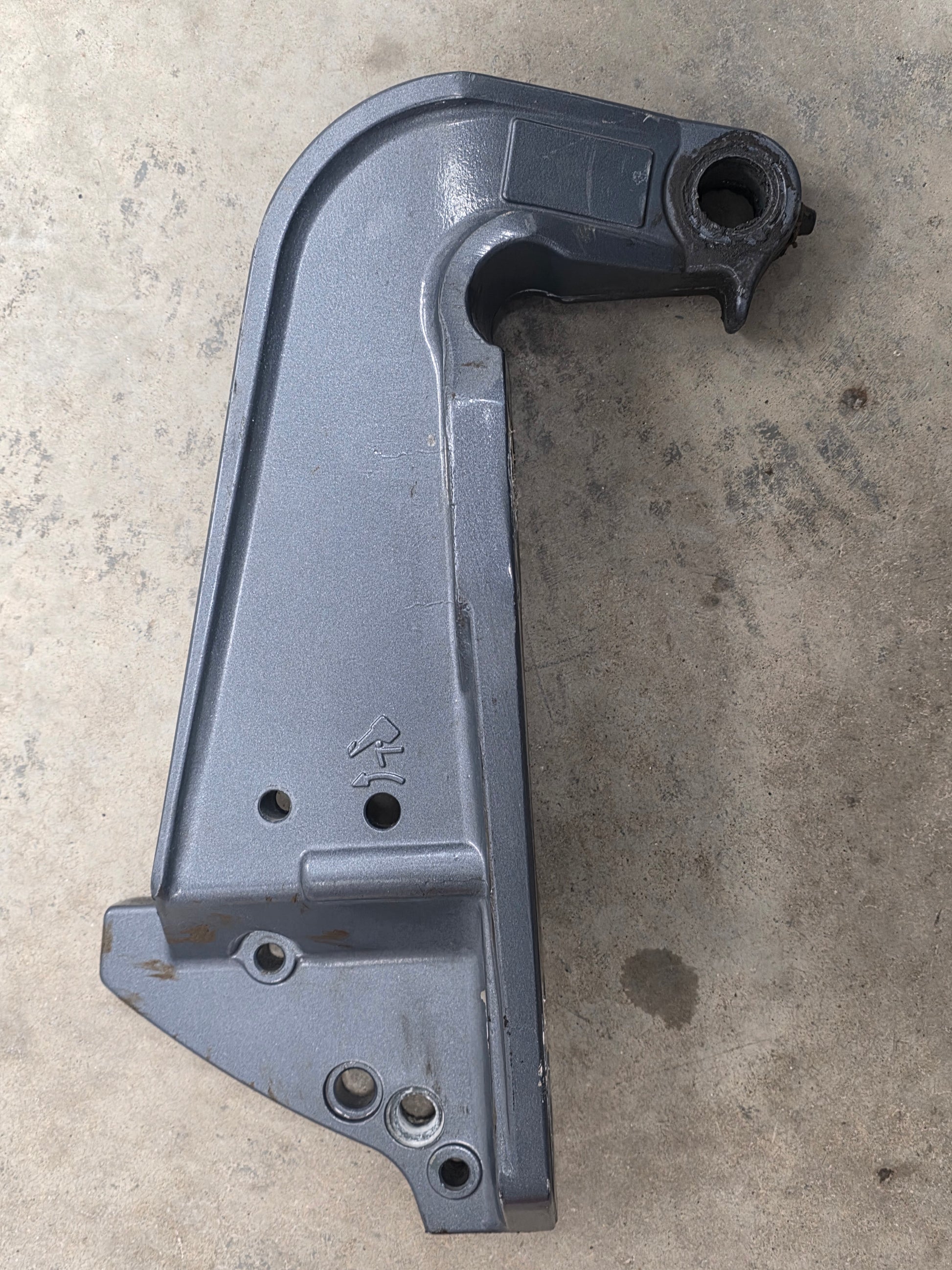

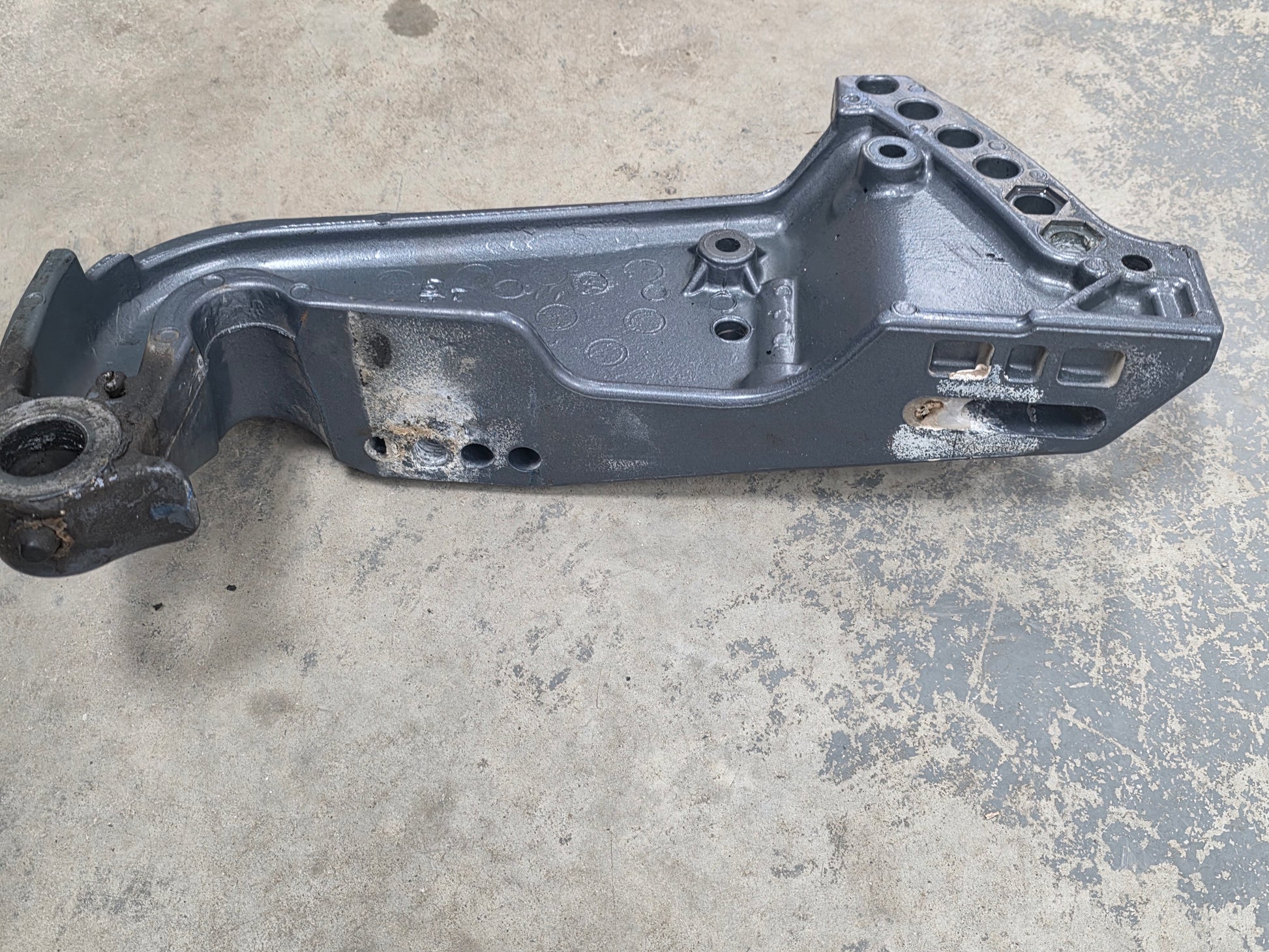

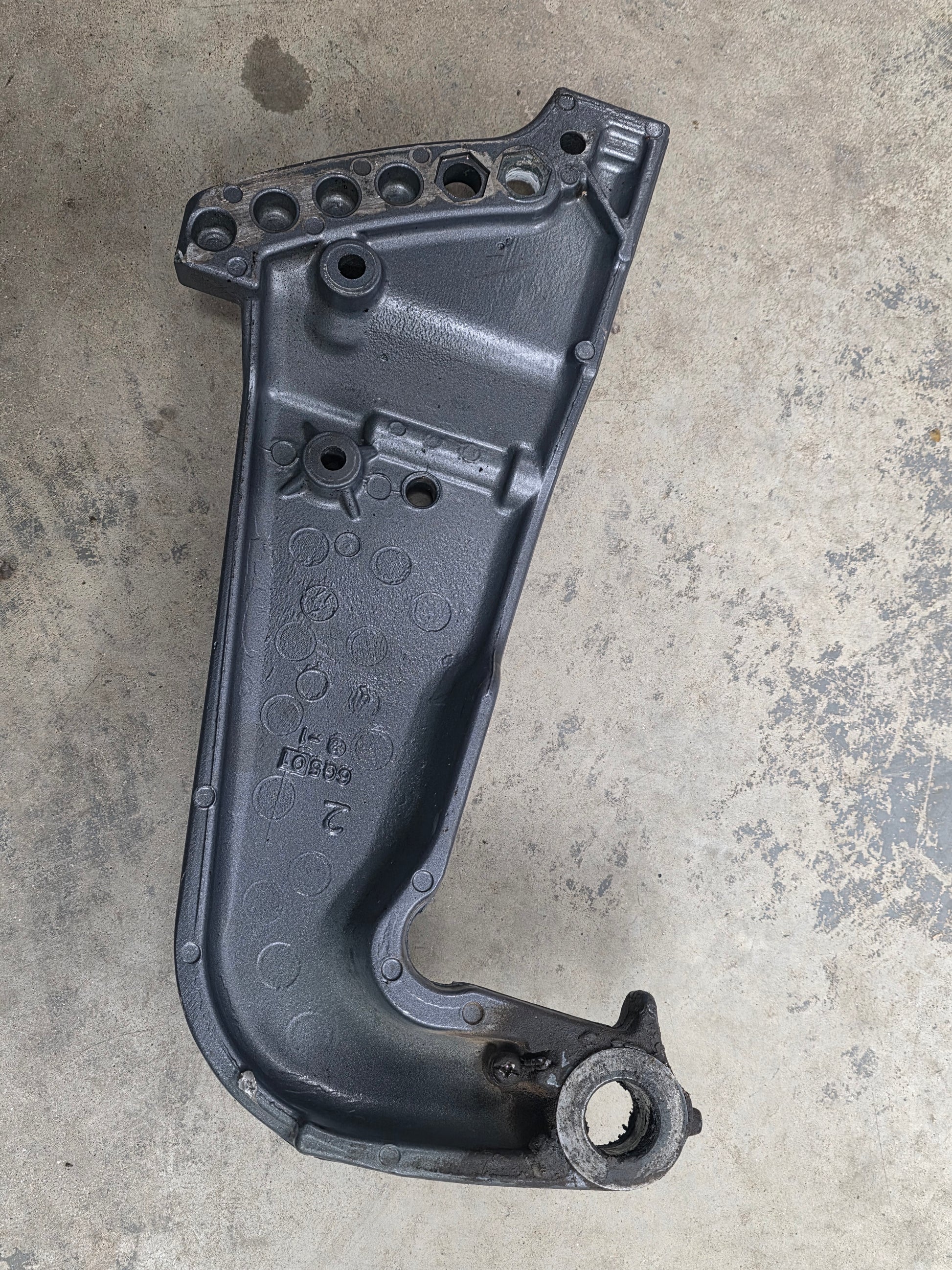

Genuine Yamaha Starboard Clamp Bracket - Part Number: 6G5-43112-02-EK

A genuine used Yamaha clamp bracket 2 for the starboard side of selected 115HP to 225HP two-stroke outboards. The 02-EK version is the later revision used on many 1993-era and related V4 / V6 bracket assemblies.

⚙️ Key Features

  • Genuine Yamaha starboard clamp bracket
  • Correct part number 6G5-43112-02-EK
  • Clamp bracket 2 / starboard side
  • Later revision of the 6G5 bracket family
  • Used on V4 and V6 two-stroke engines

🚤 Compatibility

Commonly used on

  • Yamaha 115HP and 130HP V4 two-stroke engines
  • Yamaha 150HP, 175HP and 200HP V6 engines
  • Selected 225HP V6 and ProV models

Typically suits

  • Confirmed on 1993 115TLR / 115TJR
  • Confirmed on 1993 P150 and 175-series diagrams
  • Used-part references identify 115HP-200HP applications
  • Later engines may use 64E-43112-02-8D instead
  • HP Range: Approximately 115HP - 225HP
  • Side: Starboard / clamp bracket 2
  • Year Range: Primarily 1993 and related early-1990s production
  • Fitment Requirement: Confirm port bracket, tilt tube, trim unit and casting revision

🔌 Function

The bracket supports the starboard side of the engine mounting assembly and carries steering, tilt and thrust loads.

⚠️ Common Signs of Failure

  • Corrosion around the tilt tube
  • Cracked trim-unit mounting area
  • Worn bush bore
  • Damaged transom surface
  • Incorrect pairing with a different bracket revision

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6G5-43112-02-EK later revision of 6G5-43112-01-EK on applicable engines
  • 6G5-43112-01-EK earlier starboard bracket
  • Later 64E-43112-series brackets replace the family on many post-1997 engines

OEM / Related Numbers

  • 6G5-43112-02-EK
  • 6G54311202EK
  • 6G5-43112-01-EK
  • 6G5-43111-02-8D matching port bracket on many assemblies
  • 6E5-43131-02-00 related tilt tube
  • 6G5-45251-01-00 related anode

Aftermarket / Verified Equivalents

  • No aftermarket cast bracket verified
  • Used genuine Yamaha 6G5 brackets are the practical replacement
  • Aftermarket tilt tubes and bushings are available separately

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
