6G5-43181-02-00 65G-43185-02-00 Yamaha Tilt Stop Lever | Genuine Used Part

🔧 Product Description

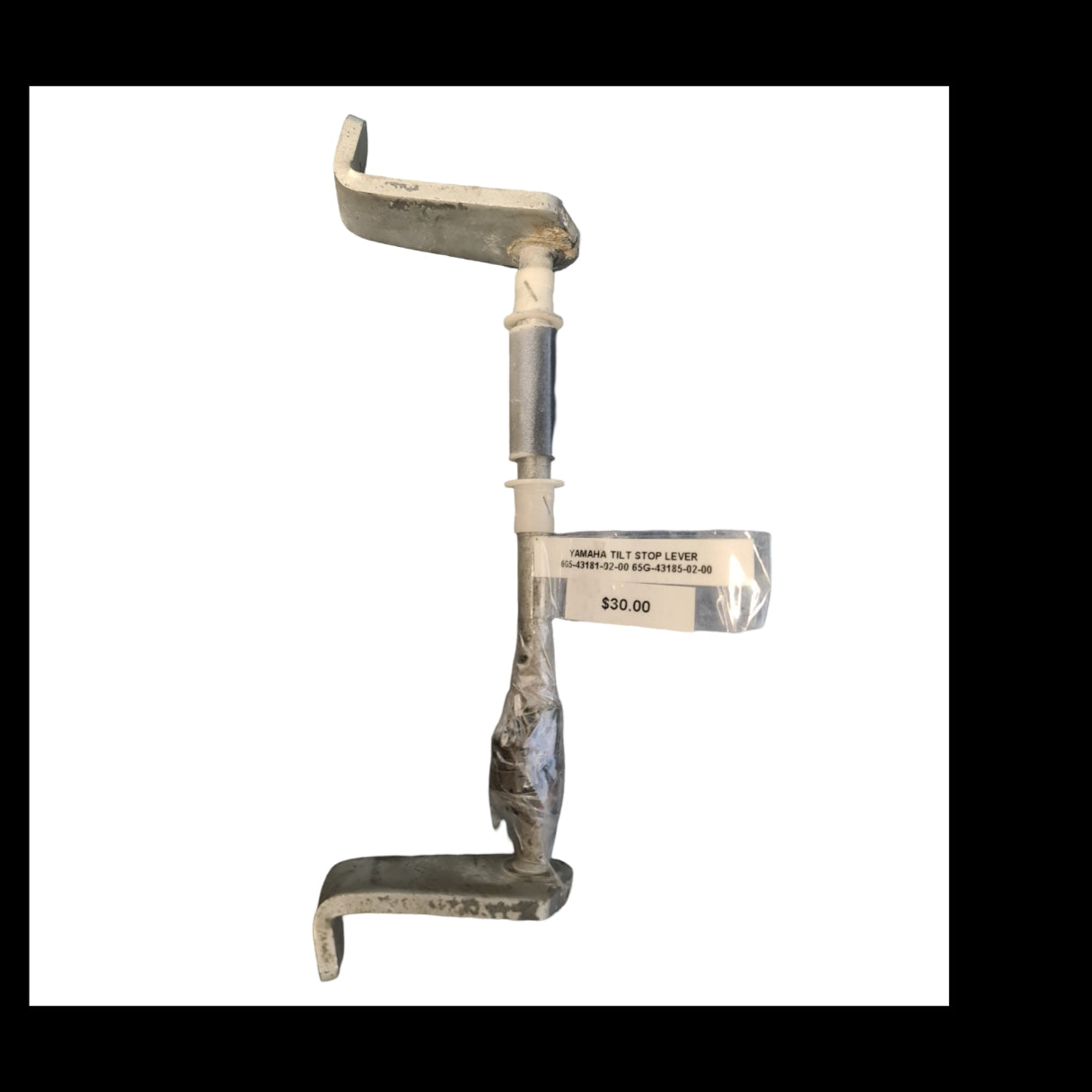

Genuine Yamaha 130HP-200HP Tilt Stop Lever Set - Part Numbers: 6G5-43181-02-00 & 6G5-43185-02-00

A genuine used pair of Yamaha tilt-stop levers for selected V4 and V6 two-stroke outboard motors.

The submitted second reference 65G-43185-02-00 has been corrected to 6G5-43185-02-00. Yamaha identifies the parts as Tilt Stop Lever 1 and Tilt Stop Lever 2. They work together on the clamp-bracket assembly to control or secure the engine's tilt-stop position.

⚙️ Key Features

• Genuine used Yamaha tilt-stop lever pair
• 6G5-43181-02-00 Tilt Stop Lever 1
• Corrected 6G5-43185-02-00 Tilt Stop Lever 2
• Used in selected V4 and V6 clamp-bracket assemblies
• Factory pivot and stop geometry

🚤 Compatibility

Commonly used on

• Yamaha V4 and V6 clamp-bracket and tilt-stop systems

Known catalogue fitment includes

• 1989 150HP, 175HP and 200HP model groups
• 1989 L130 model groups
• Selected 130HP, 150HP, 175HP and 200HP production from approximately 1987-1994
• Selected later international applications through approximately 2008-2009 where the same stop levers remain listed
• HP Range: Approximately 130HP-200HP
• Engine Type: Yamaha V4 or V6 two-stroke outboard
• Production Range: Core fitment approximately 1987-1994; later market-specific reuse possible
• Serial Note: Verify the complete model code and clamp-bracket diagram

🔌 Function

The paired levers provide the mechanical stop or locking action used to control the outboard's tilt position on the clamp bracket.

⚠️ Common Signs of Failure

• Lever is bent or cracked
• Tilt stop will not engage
• Pivot is seized by corrosion
• Spring or retaining pin is missing
• Lever has excessive free play
• Engine cannot be held at the intended tilt angle
• Port and starboard levers do not move together

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-43181-02-00 → Supersedes 6G5-43181-00-00
• 6G5-43185-02-00 → Supersedes 6G5-43185-01-00
• Submitted 65G prefix corrected to the verified 6G5 prefix

OEM / Related Numbers

• 6G5-43181-02-00
• 6G5431810200
• 6G5-43181-00-00
• 6G5-43185-02-00
• 6G5431850200
• 6G5-43185-01-00
• Related tilt-stop shaft, spring, pin and clamp-bracket hardware

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Supplied as the pictured lever set
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
