6G5-43800-06-EK 6G5-43800-05-EK Yamaha Z200 Power Tilt & Trim Assy | Genuine Used Part

🔧 Product Description

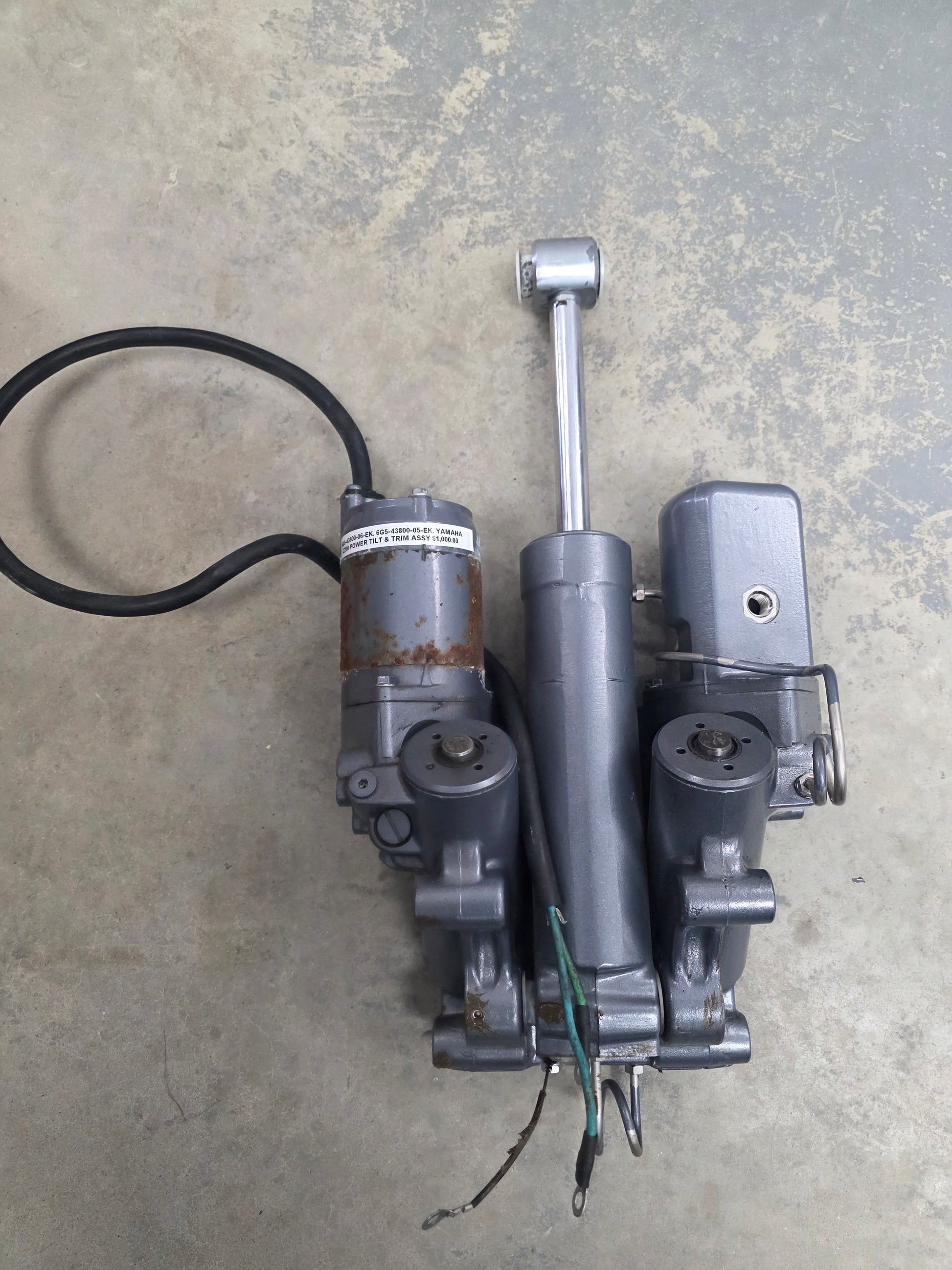

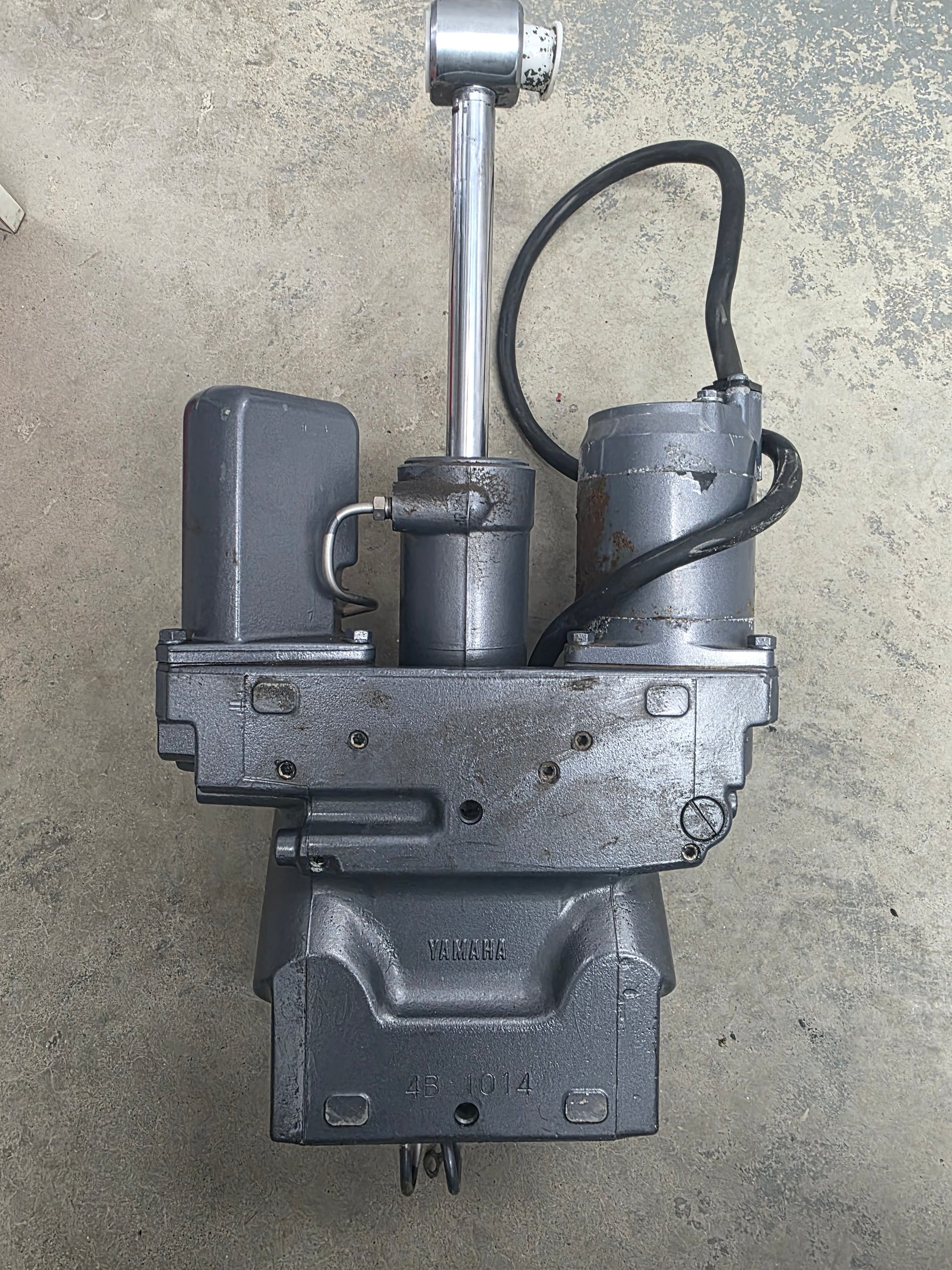

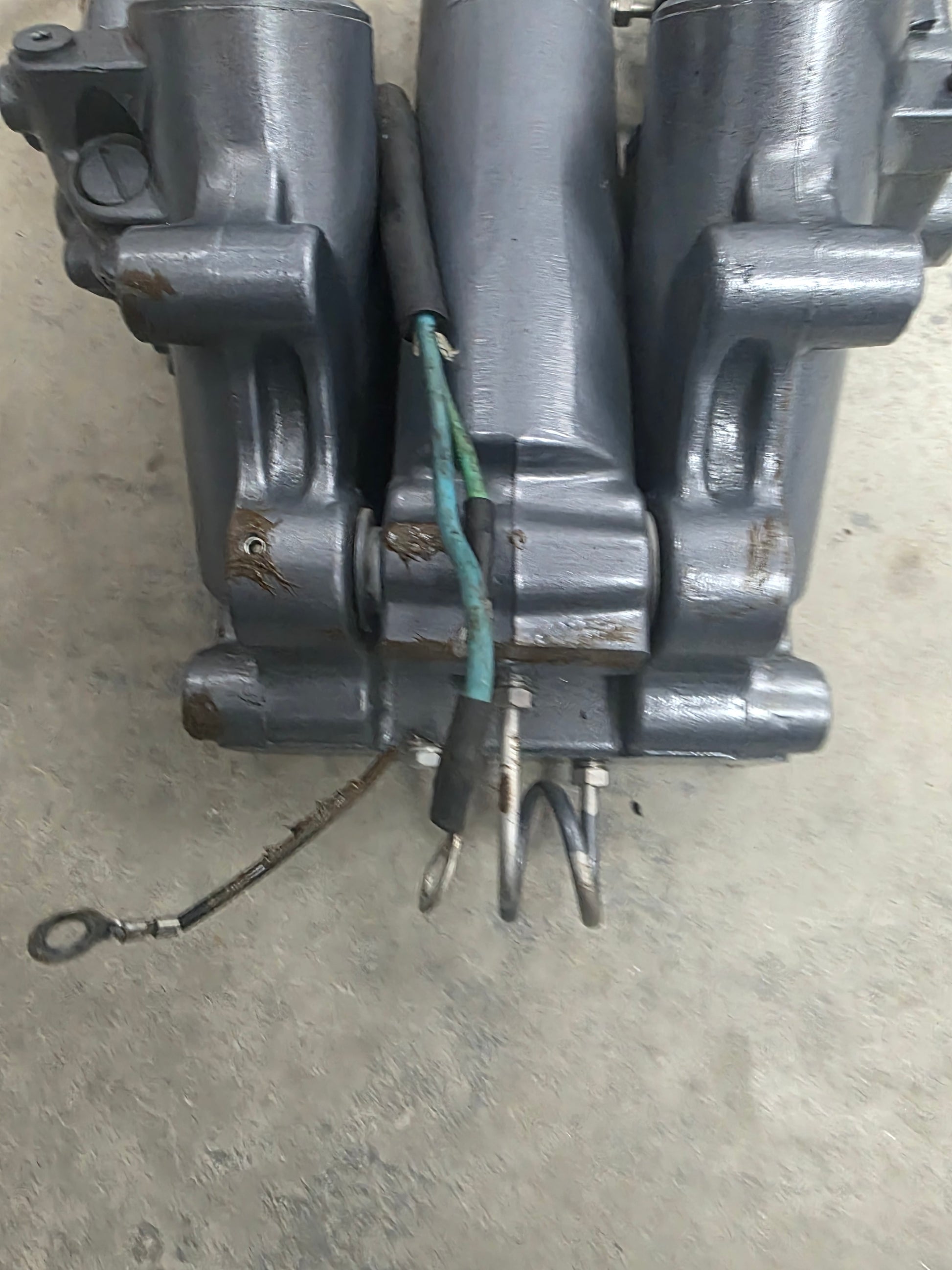

Genuine Yamaha V4 / V6 Power Tilt and Trim Assembly - Part Number: 6G5-43800-06-EK

A genuine Yamaha three-ram hydraulic power tilt and trim assembly for selected V4 and V6 two-stroke outboards. The assembly raises the engine for shallow-water operation and trailering, then provides controlled trim adjustment while underway.

The 6G5-43800-05-EK number is an earlier OEM version replaced by 6G5-43800-06-EK. The inventory title identifies a Z200 application; installation must match the 6G5 hydraulic housing, mounting dimensions, motor connection and transom-bracket configuration.

⚙️ Key Features

• Genuine Yamaha OEM three-ram power tilt and trim assembly
• Correct final service number 6G5-43800-06-EK
• Supersedes 6G5-43800-05-EK and earlier 6G5 assembly revisions
• Complete hydraulic lift, tilt and running-trim mechanism where supplied as pictured
• Used on selected Yamaha 115HP to 200HP V4 and V6 two-stroke outboards

🚤 Compatibility

Commonly used on

• Yamaha V4 and V6 two-stroke transom-bracket assemblies
• Yamaha long and extra-long-shaft power tilt and trim systems using the 6G5 three-ram unit

Typically suits

• Engine models:
• Yamaha 115TLRP
• Yamaha 115TXRQ - 1992
• Yamaha C115TLRR - 1993
• Yamaha 115HP V4 model families using the 6G5-43800 assembly
• Yamaha 130TLRP
• Yamaha 130TXRP
• Yamaha L130TXRR - 1993
• Yamaha 150ETXF - 1989
• Yamaha L150TXRR - 1993
• Yamaha 150HP V6 model families using the 6G5-43800 assembly
• Yamaha 175TLRQ - 1992
• Yamaha 175HP V6 model families using the 6G5-43800 assembly
• Yamaha 200ETXD - 1990
• Yamaha L200TXRR - 1993
• Yamaha 200HP V6 model families using the 6G5-43800 assembly
• Yamaha Z200 / LZ200 installations only where the transom-bracket diagram specifies 6G5-43800-06-EK
• HP Range: 115HP - 200HP
• Engine Type: Yamaha carburetted, oil-injected and applicable early direct-injection V4 / V6 two-stroke outboard
• Year Range: Approximately 1987-1995 for the principal 6G5 assembly applications

🔌 Function

The assembly uses an electric hydraulic pump, centre tilt ram and twin trim rams to raise, lower and trim the outboard. It supports rapid tilt movement outside the running range and precise trim adjustment while the boat is underway.

⚠️ Common Signs of Failure

• Engine will not raise or lower
• Trim motor runs but the engine does not move
• Engine slowly settles after being trimmed
• Hydraulic fluid leaks from ram seals, valve body or reservoir
• Unit operates in one direction only
• Corroded ram rods or worn mounting bushes
• Excessive motor current draw or intermittent operation

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-43800-06-EK → Supersedes 6G5-43800-05-EK
• 6G5-43800-05-EK → Supersedes 6G5-43800-03-EK
• 6G5-43800-03-EK → Supersedes 6G5-43800-02-EK
• 6G5-43800-02-EK → Supersedes 6G5-43800-01-EK
• 6G5-43800-01-EK → Supersedes 6G5-43800-00-EK
• 6G5-43800-00-EK earlier OEM power-trim assembly reference

OEM / Related Numbers

• 6G5-43800-06-EK
• 6G5-43800-05-EK
• 6G5-43800-03-EK
• 6G5-43800-02-EK
• 6G5-43800-01-EK
• 6G5-43800-00-EK
• 6G5-43880-series related power-trim motor
• 6G5-43821-series related tilt cylinder
• 6G5-43810-series related hydraulic reservoir and housing components

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
