6G5-41131-01-CA 6G5-41131-01-5B Yamaha Z200 Exhaust Manifold | Genuine Used Part

🔧 Product Description

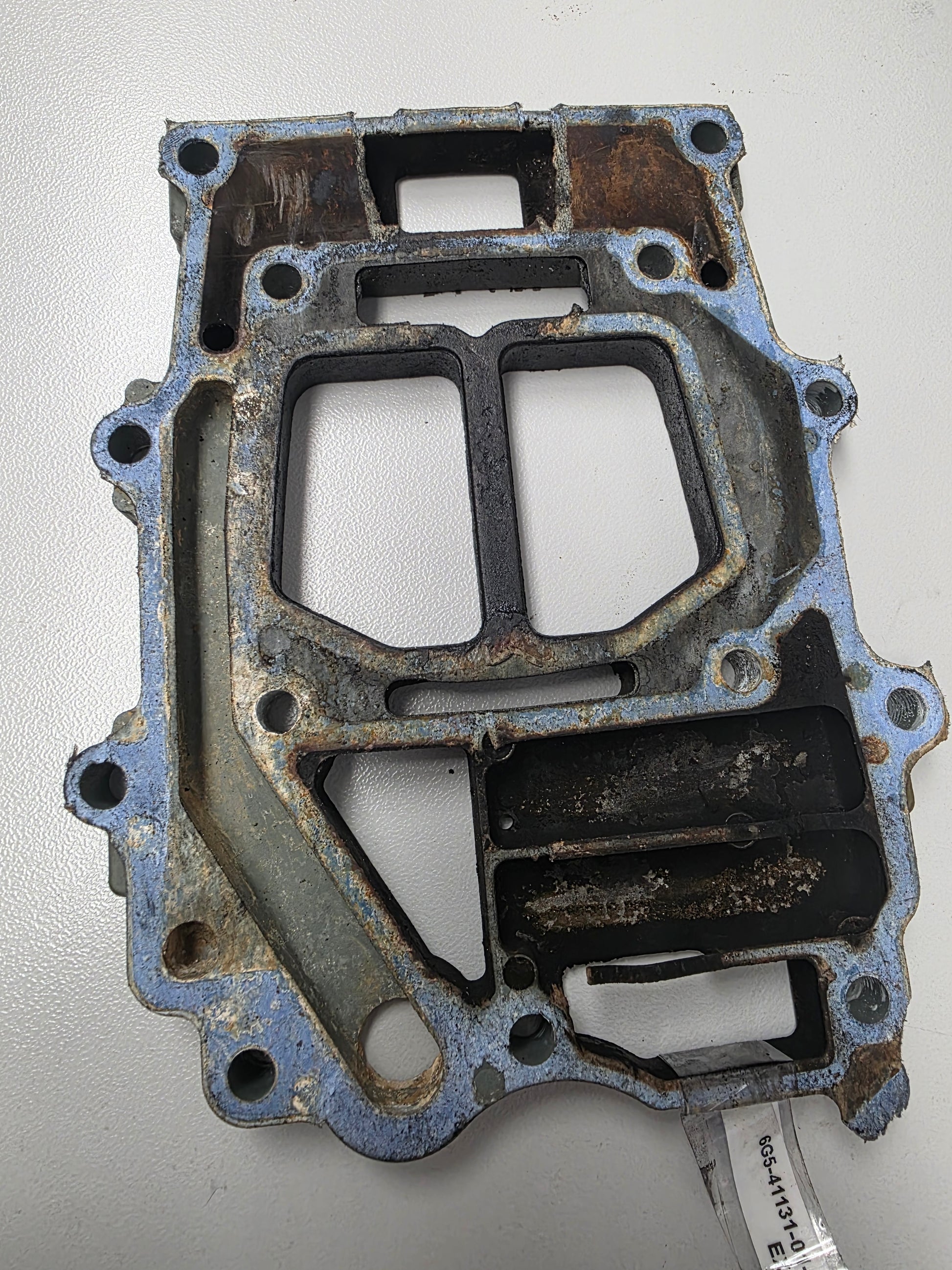

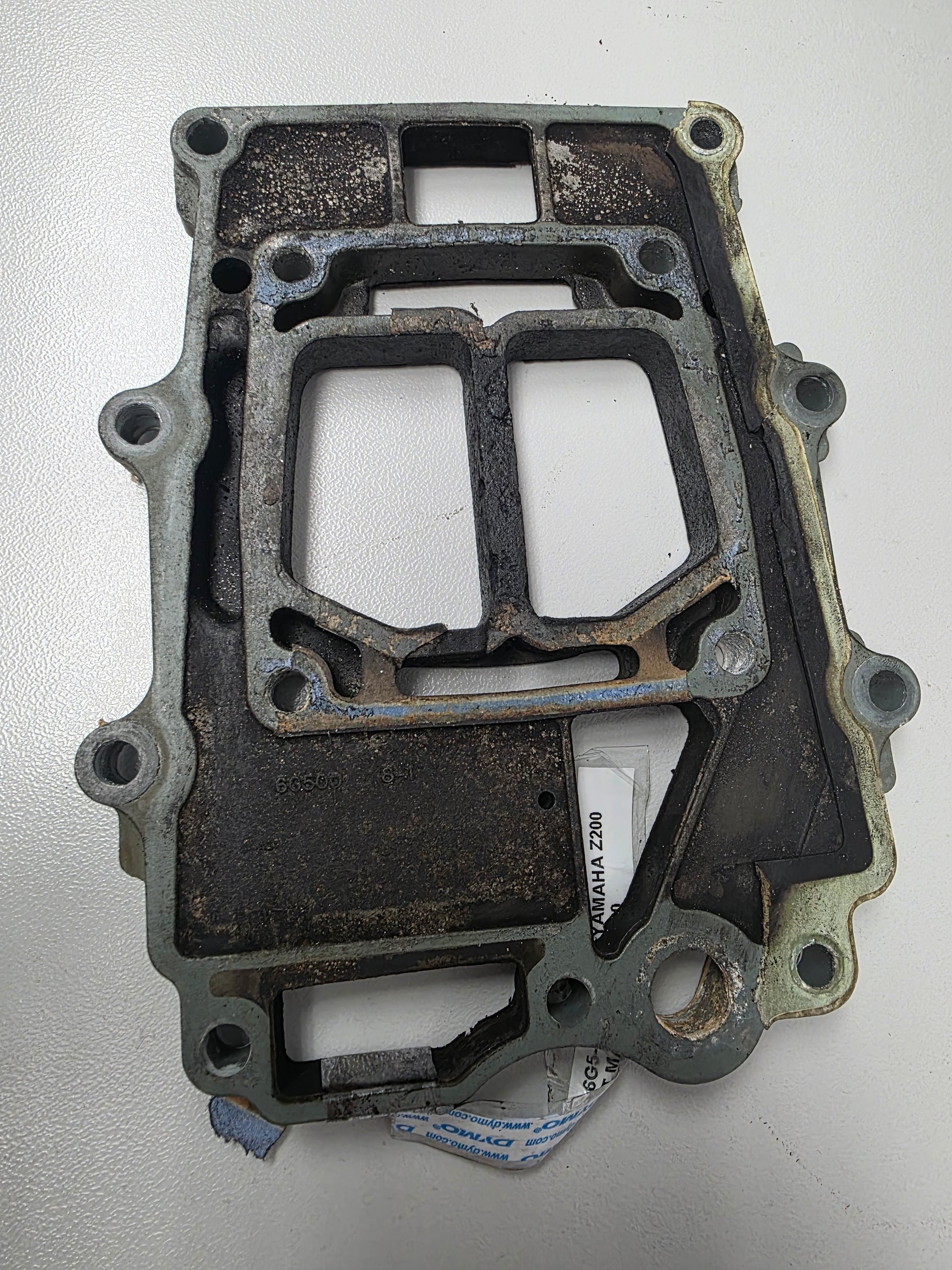

Genuine Yamaha Exhaust Manifold No. 1 - Part Number: 6G5-41131-01-CA

A genuine Yamaha exhaust manifold plate for selected V4 and V6 two-stroke outboards, including Z200 and LZ200 HPDI applications.

The first listing number has been corrected from 6G5-44131-01-CA to the recognised Yamaha exhaust-manifold number 6G5-41131-01-CA. The secondary number 6G5-41131-01-5B is an earlier finish reference superseded by the current CA-suffix part.

⚙️ Key Features

• Genuine Yamaha OEM exhaust manifold
• Correct current part number 6G5-41131-01-CA
• Supersedes earlier 6G5-41131-01-5B and 6G5-41131-00-series references
• Used on selected Yamaha 115HP to 200HP two-stroke engines
• Suitable for carburetted, oil-injected and HPDI exhaust assemblies

🚤 Compatibility

Commonly used on

• Yamaha V4 and V6 two-stroke upper-casing exhaust assemblies
• Yamaha Z200 and LZ200 HPDI exhaust-manifold systems
• Yamaha international AETO, BETO, CETO, DETO and FET engine families

Typically suits

• Engine models:
• Yamaha 115CETO two-stroke applications using manifold 6G5-41131-01-CA
• Yamaha 130HP V4 two-stroke applications using the 6G5 manifold family
• Yamaha L150AETO - 1989
• Yamaha 150CETO - 1990 production families
• Yamaha 150AET / L150AET
• Yamaha L150FET - 2000
• Yamaha 150TXR - 2010
• Yamaha 175BETO - 1990
• Yamaha 175DETO - 2001
• Yamaha VZ175TLR - 2011
• Yamaha 200AETO - 1985 production families
• Yamaha L200AET - 1989 and later international applications
• Yamaha 200BET - 1990
• Yamaha 200AET / L200AET
• Yamaha Z200TXR / LZ200TXR
• Yamaha Z200NETOX / LZ200NETOX
• HP Range: 115HP - 200HP
• Engine Type: Yamaha V4 and V6 carburetted, oil-injected and HPDI two-stroke outboard
• Year Range: Approximately 1985-2015

🔌 Function

The manifold forms part of the upper-casing exhaust passage, directing exhaust gases from the powerhead into the outboard midsection while providing water-jacketed cooling around the exhaust stream.

⚠️ Common Signs of Failure

• Exhaust leakage or soot around the manifold joint
• Internal corrosion between exhaust and water passages
• Cooling-water leakage beneath the powerhead
• Restricted exhaust flow from carbon or salt deposits
• Warped or eroded manifold sealing surfaces

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-41131-01-CA → Supersedes 6G5-41131-01-5B
• 6G5-41131-01-5B → Supersedes 6G5-41131-00-9M
• 6G5-41131-00-9M → Supersedes 6G5-41131-00-5B
• 6G5-41131-00-5B earlier OEM manifold reference

OEM / Related Numbers

• 6G5-41131-01-CA
• 6G5-41131-01-5B
• 6G5-41131-00-9M
• 6G5-41131-00-5B
• 6G5-41131-10-CA alternate market manifold
• 6G5-45114-A1 related exhaust manifold gasket
• 6G5-41133-A0 related exhaust manifold gasket

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
