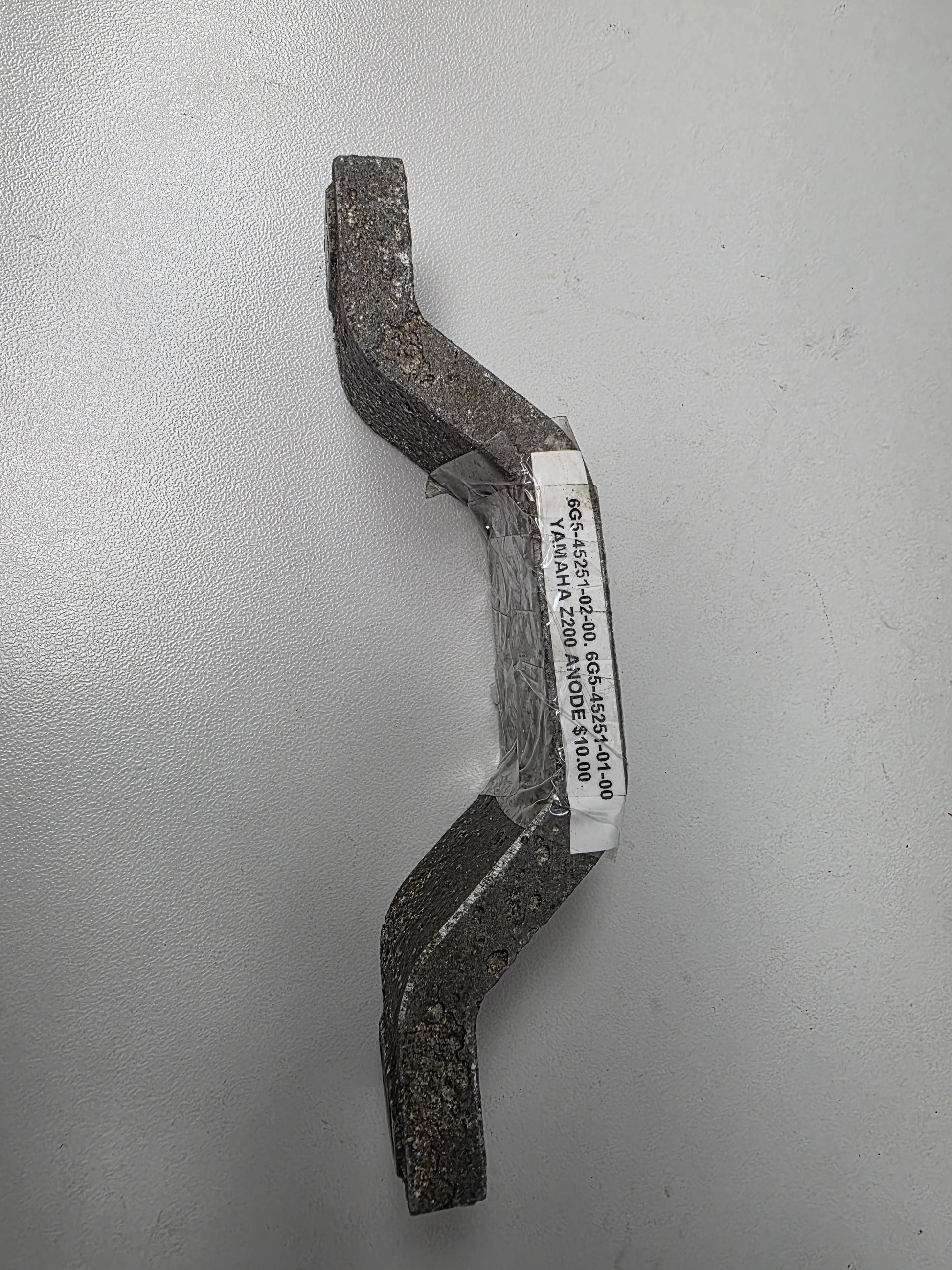

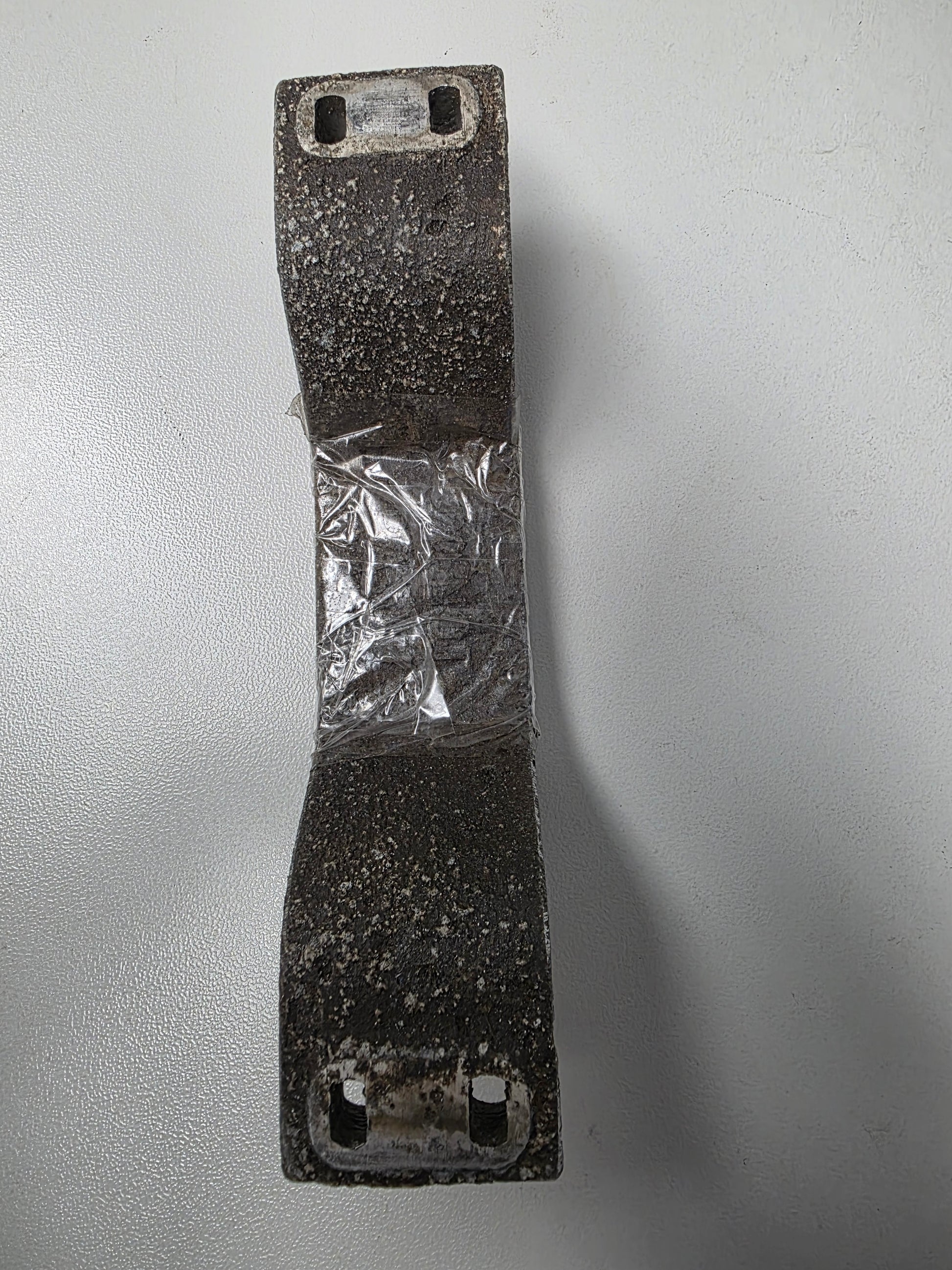

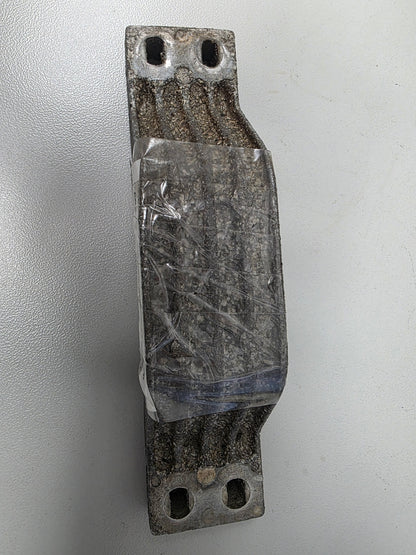

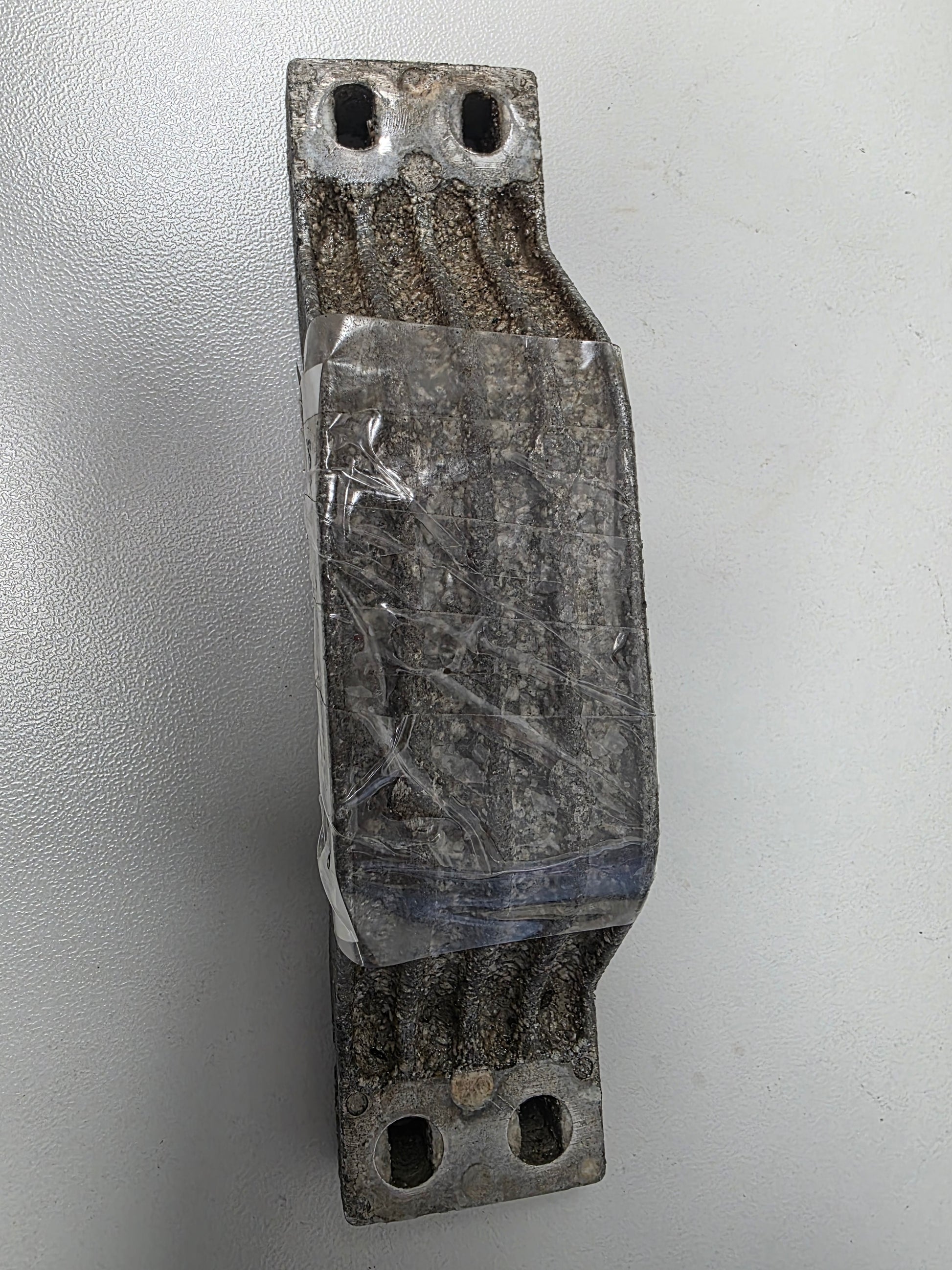

6G5-45251-02-00 6G5-45251-01-00 Yamaha Z200 Anode | Genuine Used Part

🔧 Product Description

Genuine Yamaha Transom Bracket Sacrificial Anode - Part Number: 6G5-45251-02-00

A genuine used Yamaha sacrificial anode for selected Yamaha two-stroke and four-stroke outboard transom and clamp-bracket assemblies.

The anode corrodes preferentially to protect the aluminium stern bracket, swivel bracket and adjacent underwater components from galvanic and electrolytic corrosion.

⚙️ Key Features

• Genuine used Yamaha OEM sacrificial anode
• Current part number 6G5-45251-02-00
• Supersedes earlier anode 6G5-45251-01-00
• Protects aluminium transom and clamp-bracket components
• Broad Yamaha two-stroke, HPDI and four-stroke application coverage

🚤 Compatibility

Commonly used on

• Yamaha transom, swivel and clamp-bracket assemblies
• Yamaha two-stroke, OX66, HPDI and four-stroke outboards

Typically suits

• Engine models:
• Yamaha 100HP two-stroke
• Yamaha 115HP and C115 two-stroke
• Yamaha 130HP two-stroke
• Yamaha 140HP two-stroke
• Yamaha 150HP two-stroke and OX66
• Yamaha Z150 and VZ150 HPDI
• Yamaha 175HP two-stroke and OX66
• Yamaha Z175 and VZ175 HPDI
• Yamaha 200HP two-stroke and OX66
• Yamaha Z200 and VZ200 HPDI
• Yamaha 225HP two-stroke and OX66
• Yamaha Z225 and VZ225 HPDI
• Yamaha 250HP two-stroke and OX66
• Yamaha Z250 and VZ250 HPDI
• Yamaha Z300 HPDI
• Yamaha F80 and F100 four-stroke
• Yamaha F115 and LF115 four-stroke
• Yamaha F150 and LF150 four-stroke
• Yamaha F200 and LF200 four-stroke
• Yamaha F225 and LF225 four-stroke
• Yamaha F250 and LF250 four-stroke
• Yamaha F300 and LF300 four-stroke
• Yamaha F350 and LF350 four-stroke
• 1991 Yamaha 250HP
• 1992 Yamaha 175HP
• 1993 Yamaha C115
• 1994 Yamaha 200HP and 250HP
• 1996 Yamaha 150HP
• 1998 Yamaha B115
• 2010 Yamaha F150
• 2011 Yamaha F115
• 2012 Yamaha F150 and F200
• 2013 Yamaha LF300
• 2019 Yamaha LF200
• 2021 Yamaha F300
• 2023 Yamaha F350
• HP Range: 100HP - 350HP
• Engine Type: Yamaha two-stroke, OX66 EFI, HPDI and four-stroke outboard
• Year Range: Approximately 1989 onward

🔌 Function

The anode sacrifices its own metal through controlled corrosion, reducing galvanic attack on more valuable aluminium bracket and lower-unit components.

⚠️ Common Signs of Failure

• Anode has lost approximately half its original mass
• Surface is deeply pitted or crumbling
• Anode is coated with paint or marine growth
• Mounting surface is heavily corroded
• Anode is loose or no longer has clean electrical contact

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-45251-02-00 → Supersedes 6G5-45251-01-00
• 6G5-45251-01-00 earlier OEM anode reference

OEM / Related Numbers

• 6G5-45251-02-00
• 6G5-45251-01-00
• 6G5452510200
• 6G5452510100
• 6G5-45251-02
• 6G5-45251-01

Aftermarket / Verified Equivalents

• Sierra: 18-6090
• Martyr Anodes: 191339-BLA
• Recmar: REC6G5-45251-02
• Aftermarket Zinc Anode: 6G5-45251-01 / 6G5-45251-02

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
