6G5-45974-03-98 6G5-45974-03-00 Yamaha M2 Series 13 3/4 x 19 RH Stainless Steel Propeller – 15 Spline | Genuine Used Part

🔧 Product Description

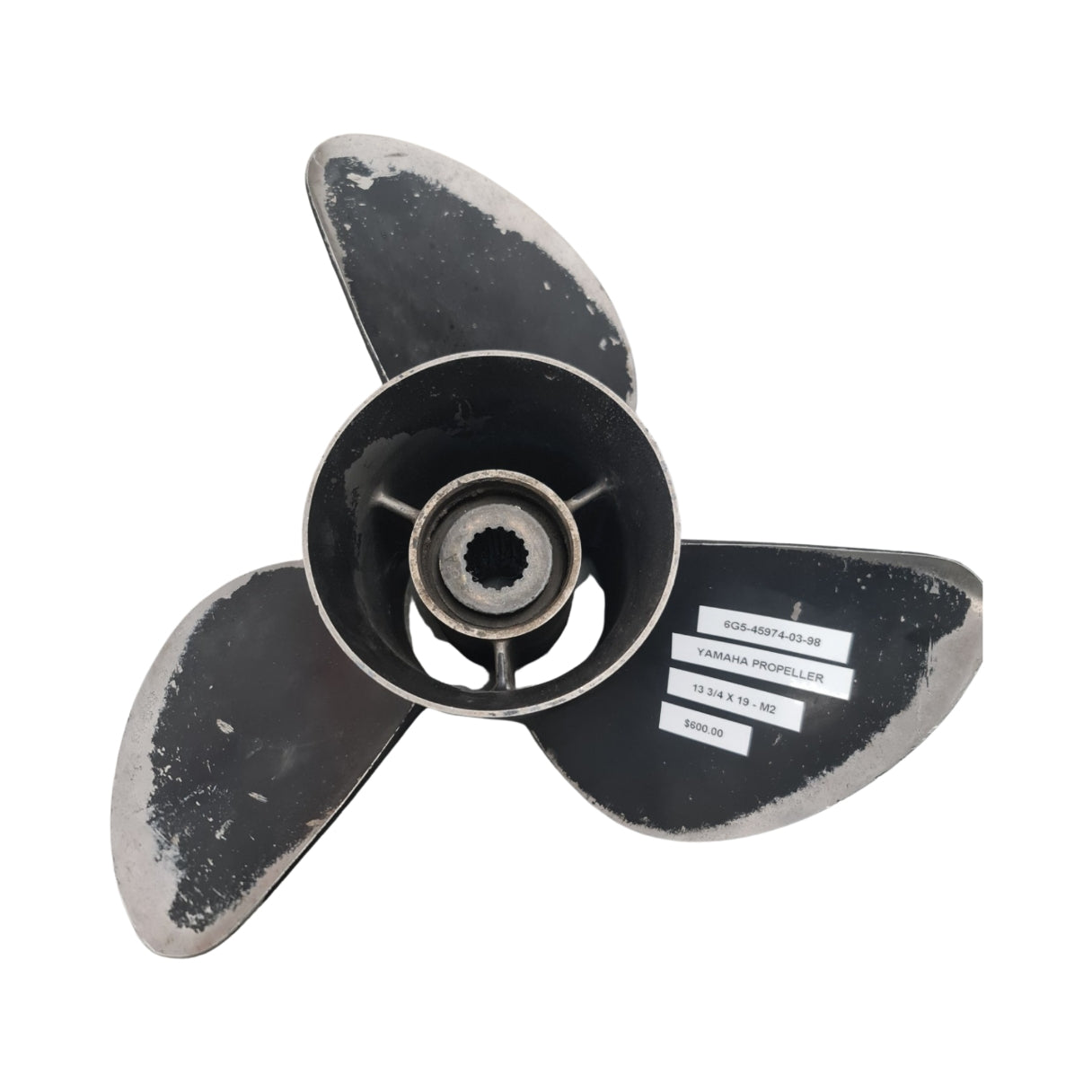

Genuine Yamaha M2 Series 13 3/4 x 19 Right-Hand Stainless Steel Propeller - Part Number: 6G5-45974-03-98 / 6G5-45974-03-00

A genuine used Yamaha M2 Series three-blade right-hand black-painted stainless-steel propeller for large Yamaha outboards using the 4 3/4-inch 15-spline gearcase.

The 19-inch pitch is an all-round large-gearcase option for suitable V6 two-stroke, HPDI and four-stroke hulls. It must be used only on a standard-rotation gearcase.

⚙️ Key Features

• Genuine Yamaha Marine M2 Series propeller
• 13 3/4-inch diameter x 19-inch pitch
• Three-blade painted stainless-steel construction
• Right-hand rotation with pressed 15-spline hub
• Large 4 3/4-inch gearcase application

🚤 Compatibility

Commonly used on

• Yamaha standard-rotation 4 3/4-inch large gearcases
• V6 two-stroke, HPDI, large four-stroke and V MAX SHO applications

Typically suits

• Engine models:
• Yamaha 150HP, 175HP, 200HP, 225HP and 250HP standard-rotation two-stroke V6 outboards
• Yamaha Z150, VZ150, Z175, VZ175, Z200, VZ200, Z225, VZ225, Z250 and VZ250 HPDI standard-rotation models
• Yamaha F150, F175, F200, F225, F250 and F300 standard-rotation four-strokes
• Yamaha VF150, VF175, VF200, VF225 and VF250 V MAX SHO using the compatible 15-spline gearcase
• Excludes L-, LF- and LZ-prefix counter-rotation engines requiring a left-hand propeller
• HP Range: 150HP - 300HP
• Engine Type: Yamaha V6 two-stroke, HPDI or large four-stroke outboard with 15-spline gearcase
• Year Range: Approximately mid-1980s onward, gearcase and rotation controlled

🔌 Function

The propeller converts engine torque into forward thrust. Its 19-inch pitch provides a useful balance of acceleration and cruising speed, while stainless blades reduce flex under load.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6G5-45974-03-00 current production suffix
• 6G5-45974-03-98 earlier finish / packaging suffix

OEM / Related Numbers

• 6G5-45974-03-98
• 6G5-45974-03-00
• 6G5459740398
• 6G5459740300
• Yamaha M2 13 3/4 x 19 propeller

Aftermarket / Verified Equivalents

• Solas HR Titan 3: 3551-140-19 - 14 x 19 stainless-steel Yamaha large-gearcase alternative
• Solas Rubex HR3: 9551-140-19 with RBX-203 Yamaha hub
• Michigan Wheel Apollo: 13 3/4 to 14 x 19 stainless-steel modular-hub alternative
• Yamaha Saltwater Series / Saltwater Series II 19-pitch stainless-steel upgrade

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
