6H0-85510-03-00 Yamaha Stator | Genuine Used Part

6H0-85510-03-00 Yamaha Stator | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$125.00 AUD
$250.00 AUD $125.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

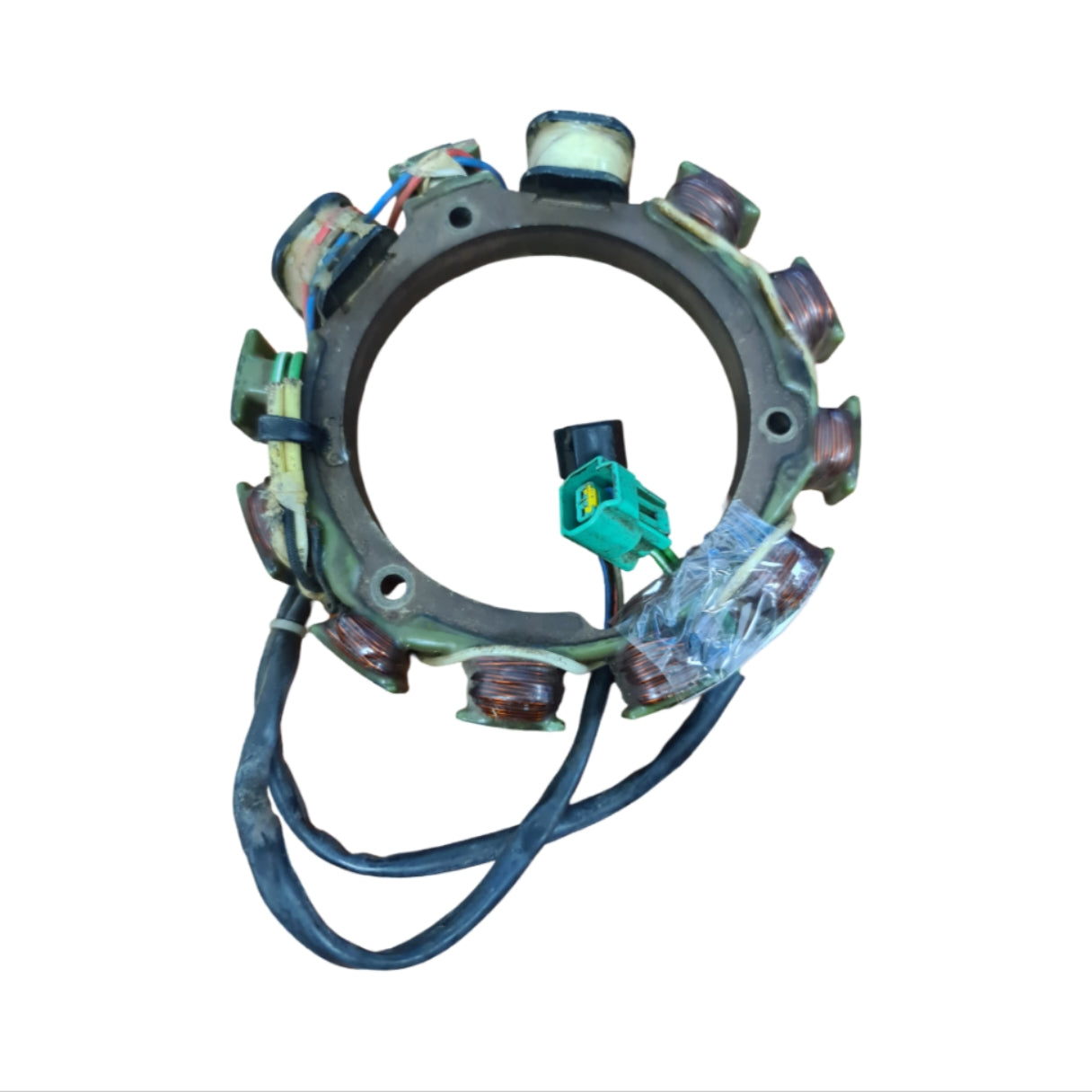

Genuine Yamaha Stator Assembly - Part Number: 6H0-85510-03-00

A genuine Yamaha stator assembly used on Yamaha 25HP and 30HP two-stroke outboards. This later service stator replaces earlier 6H0 stator references and supplies ignition and charging output from beneath the flywheel.

⚙️ Key Features

  • Genuine Yamaha stator assembly
  • Correct Yamaha part number 6H0-85510-03-00
  • Later replacement for earlier 6H0-85510-02-00 stator assembly
  • Used on Yamaha 25HP and 30HP two-stroke generator systems
  • Supports ignition charge and battery charging output

🚤 Compatibility

Commonly used on

  • Yamaha 25HP and 30HP two-stroke generator assemblies
  • Yamaha 6H0-series CDI magneto / stator systems

Typically suits

  • Engine models:
  • Yamaha 25HP two-stroke generator applications where 6H0-85510-03-00 is specified
  • Yamaha 25N / 25D / 25ELH / 25MLH applications using the 6H0 stator family
  • Yamaha 30HP two-stroke generator applications where 6H0-85510-03-00 is specified
  • Yamaha 30D / 30DE / 30ELH / 30MLH applications using the 6H0 stator family
  • Yamaha 25HP / 30HP two-stroke CDI magneto systems using earlier 6H0-85510-02-00 service replacement stator
  • HP Range: commonly 25HP - 30HP
  • Engine Type: Yamaha two-stroke portable / mid-range outboard
  • Year Range: approximately 1980s-2000s depending on model and market
  • System Type: Stator / CDI magneto charging coil assembly

🔌 Function

The stator produces electrical output under the flywheel for ignition charge and battery charging. It supplies the CDI and charging circuit with the current required for spark and electrical-system operation.

⚠️ Common Signs of Failure

  • Weak or missing spark
  • Battery not charging
  • Engine difficult to start
  • Spark loss when engine warms up
  • Misfire under load
  • Burnt windings or damaged stator wiring
  • Cracked insulation or corroded connectors
  • Stator resistance or AC output outside specification

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6H0-85510-03-00 → Supersedes 6H0-85510-02-00
  • 6H0-85510-02-00 earlier Yamaha stator assembly reference
  • 6H0-85510-01-00 related earlier Yamaha stator reference
  • 6H0-85510-00-00 related early Yamaha stator reference

OEM / Related Numbers

  • 6H0-85510-03-00
  • 6H0-85510-03
  • 6H0855100300
  • 6H0-85510-02-00
  • 6H0-85510-02
  • 6H0855100200
  • 6H0-85510-01-00
  • 6H0-85510-00-00

Aftermarket / Verified Equivalents

  • Aftermarket reference: 6H0-85510-03-00
  • Aftermarket Yamaha 25HP / 30HP stator replacement

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
