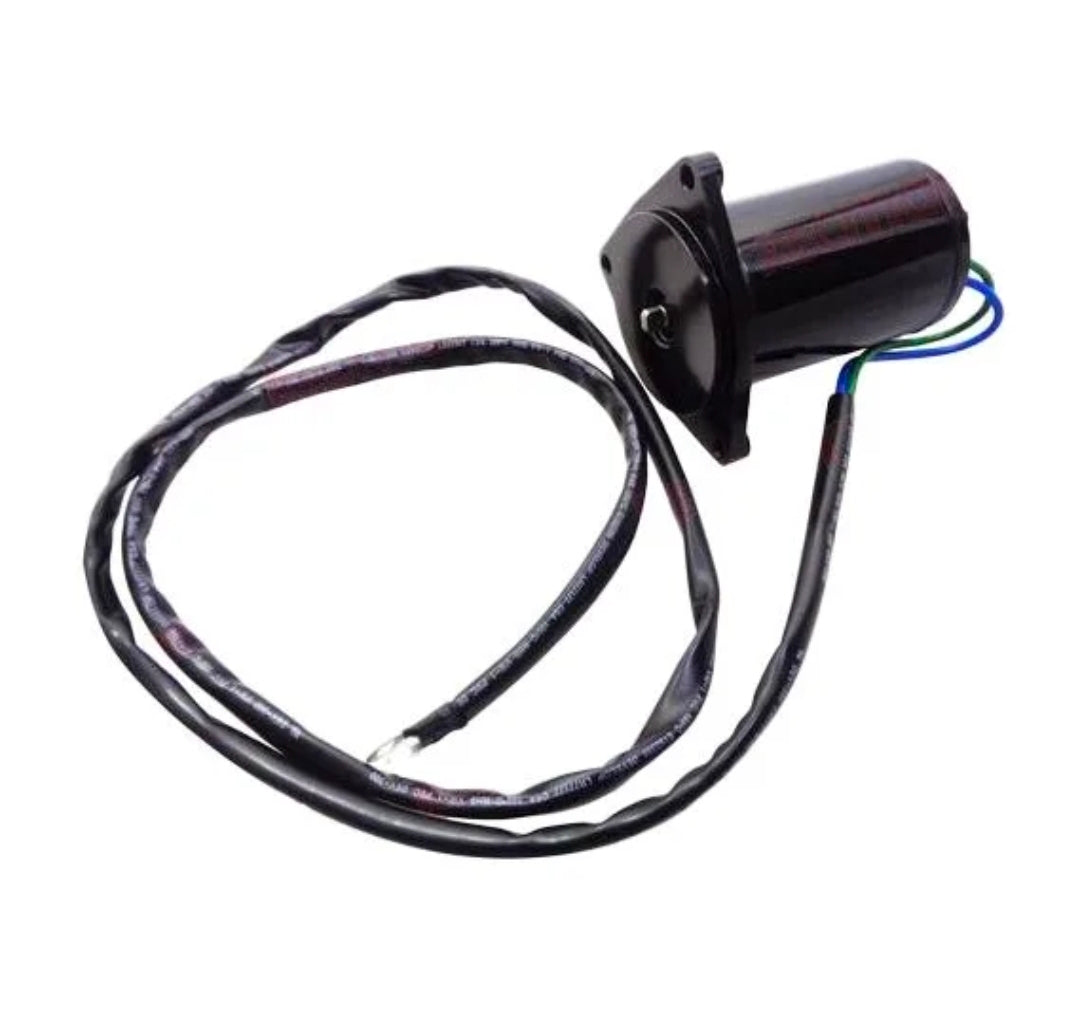

6H1-43880-02 Aftermarket Yamaha Trim/Tilt Motor | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Complete Power Trim & Tilt Assembly - Replaces Part Number: 6H1-43800-17-8D

New aftermarket complete Yamaha 6H1-pattern power trim and tilt unit. It fits specified Yamaha 60HP-90HP two-stroke engines and is used as a Parsun 50HP-90HP cross-reference only after bracket confirmation.

⚙️ Key Features

• Complete motor, pump, valve body and hydraulic ram assembly

• Yamaha 6H1 three-bolt bracket pattern

• Later replacement family 6H1-43800-1A-8D

• Broad 60HP-90HP Yamaha two-stroke coverage

• Parsun cross-use requires exact mounting verification

🧰 Kit / Assembly Contents

• 1 × Complete power trim and tilt assembly - P/N 6H1-43800-17-8D

• 1 × Integrated trim motor - 6H1-43880 service family

• 1 × Integrated hydraulic pump and valve body

• 1 × Main piston/ram assembly

• 2 × Cylinder end screws/glands - service P/N 6H1-43821-11

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6H1-43800-1A-8D → Later service replacement associated with 6H1-43800-17-8D

OEM / Related Numbers:

• 6H1-43800-1A-8D

• 6H1-43880-02

• 6H1-43821-11

Aftermarket / Verified Equivalents:

• Aftermarket Yamaha 6H1 complete trim unit

• Parsun-compatible 50HP-90HP assembly after bracket verification

🚤 Compatibility

Commonly used on:

• Yamaha 6H1 and compatible Parsun outboard trim systems

Typically suits:

• Engine / Drive models:

• Yamaha 60HP, 70HP and 90HP two-stroke model families

• Parsun 50HP-90HP applications using the same complete bracket and hydraulic layout

• HP / Drive Range: 50HP - 90HP

• System Type: Complete outboard electric-hydraulic power trim and tilt assembly

• Year Range: Approximately 1994-2018 across the Yamaha family; model-dependent

• Serial / Component Identification: Confirm bracket width, pin spacing, motor wiring and complete assembly suffix.

🔌 Function

The complete electric-hydraulic power trim and tilt unit uses a reversible motor, pump, valve body and hydraulic ram assembly to raise, lower and hold the outboard at the selected angle.

Common signs of failure / service requirement:

• Outboard will not raise, lower or hold position

• Motor runs but the hydraulic ram does not move

• Hydraulic fluid leaks around the motor, pump, valve body or ram

• Movement is slow, jerky or noisy

• Unit drifts down under engine weight

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
