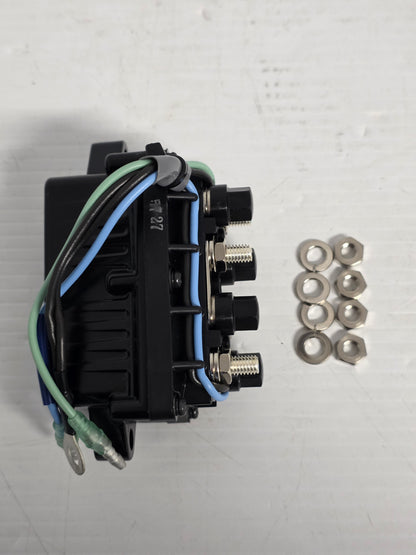

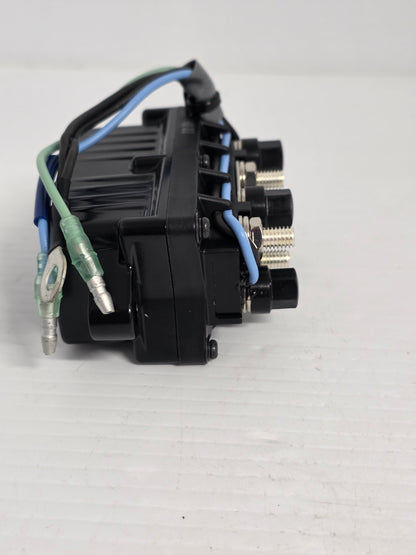

6H1-81950-01 Yamaha Trim Relay 30-60HP | Genuine OEM Yamaha Outboard Part

🔧 Product Description

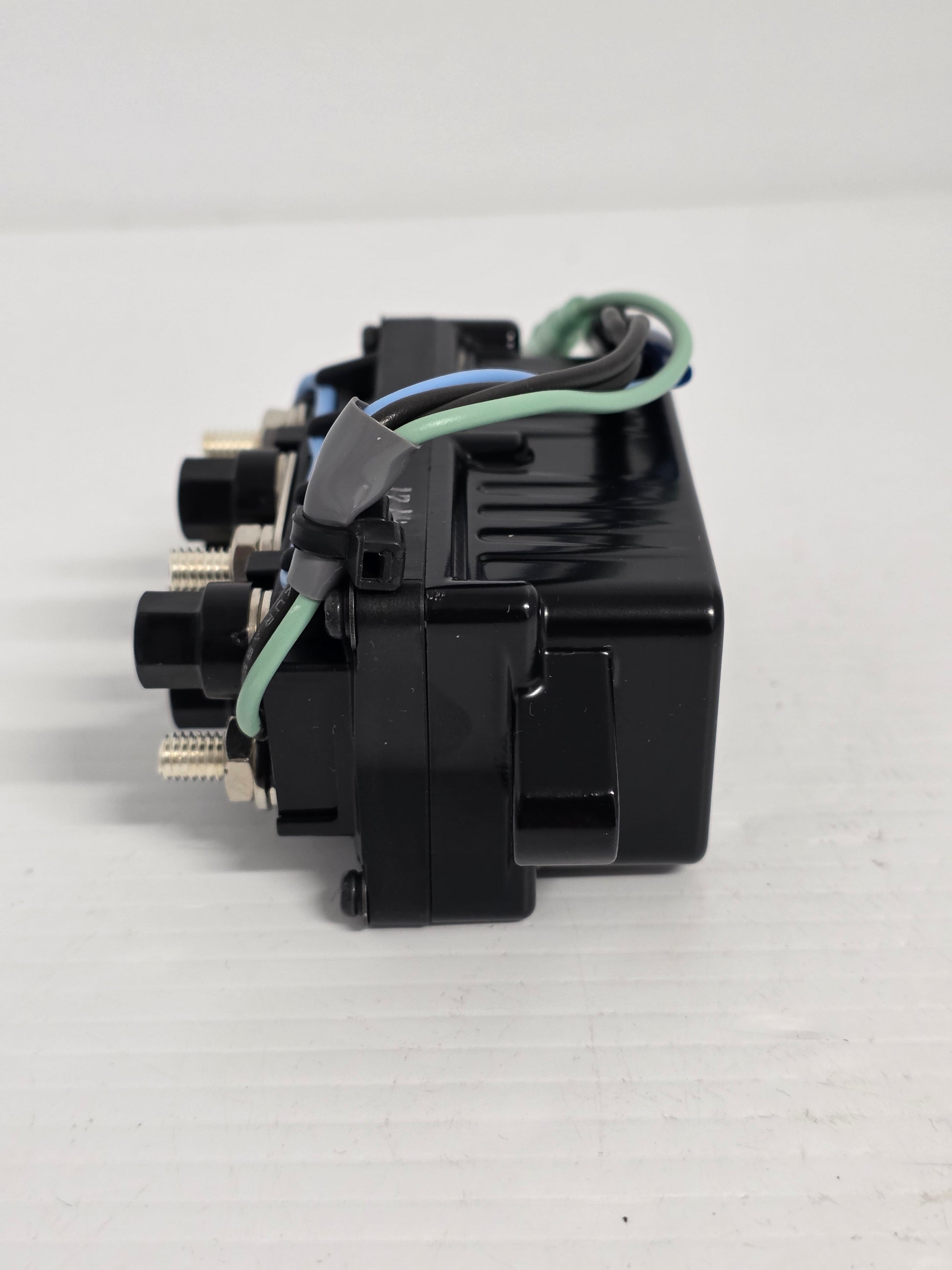

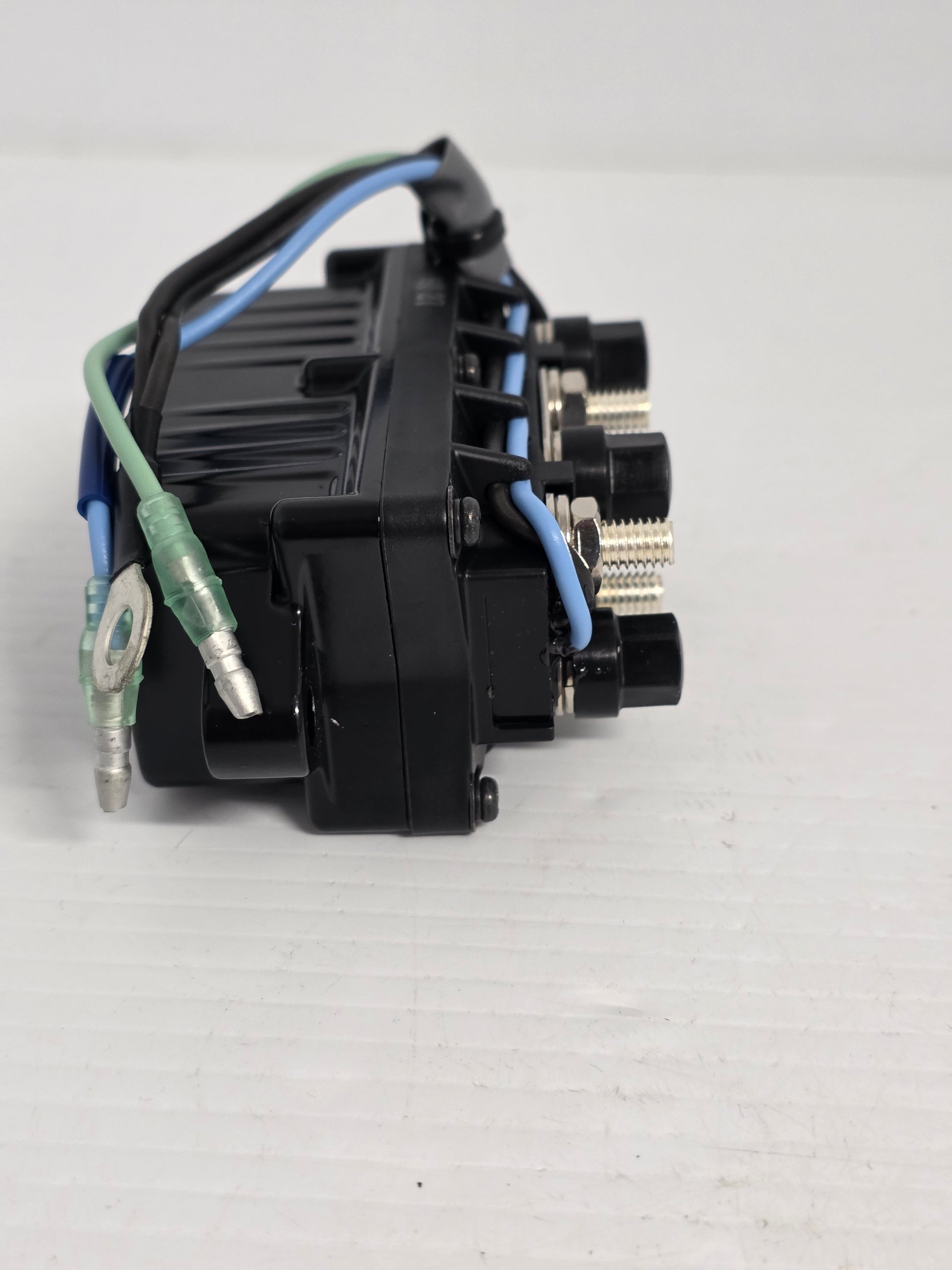

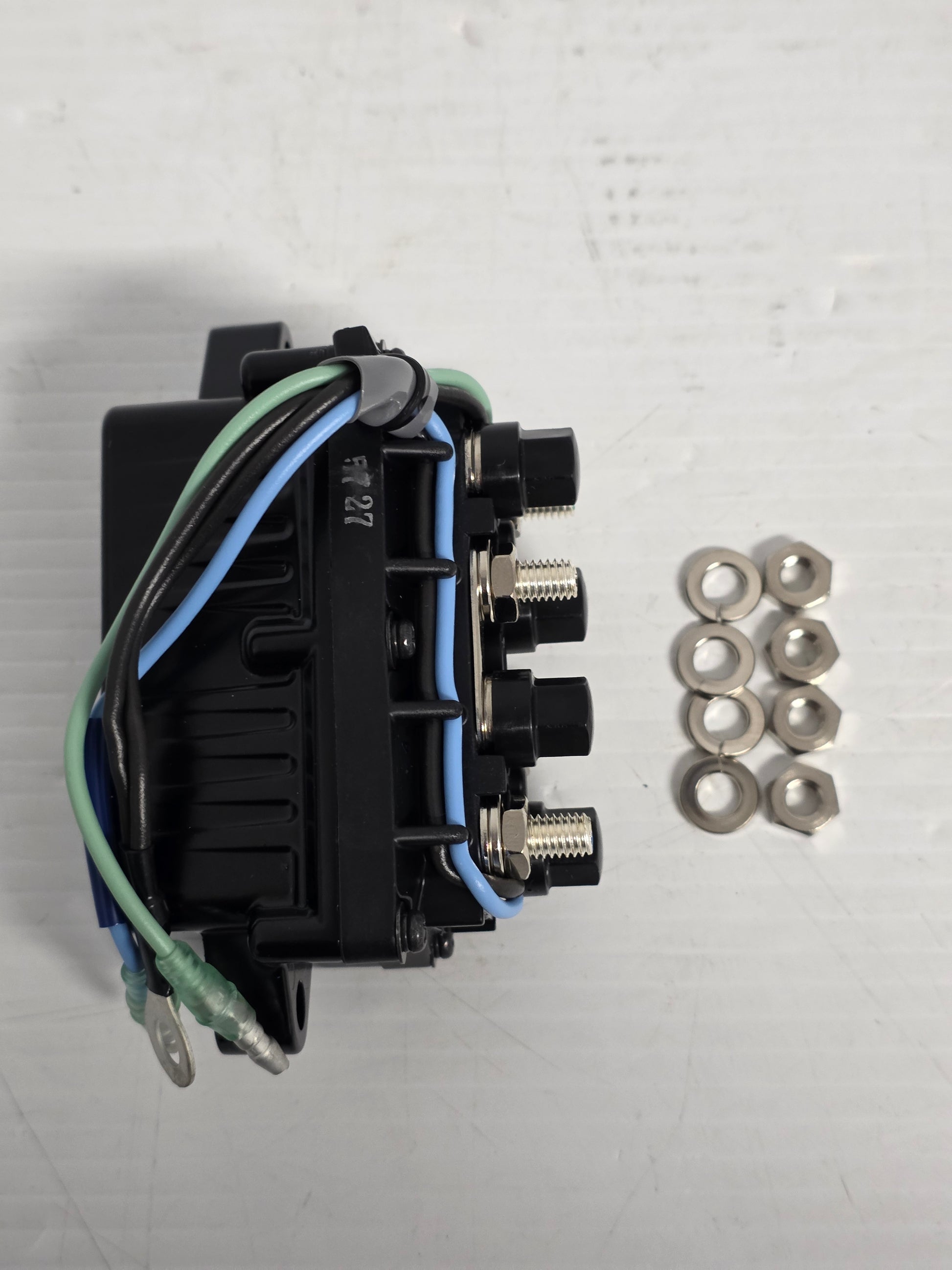

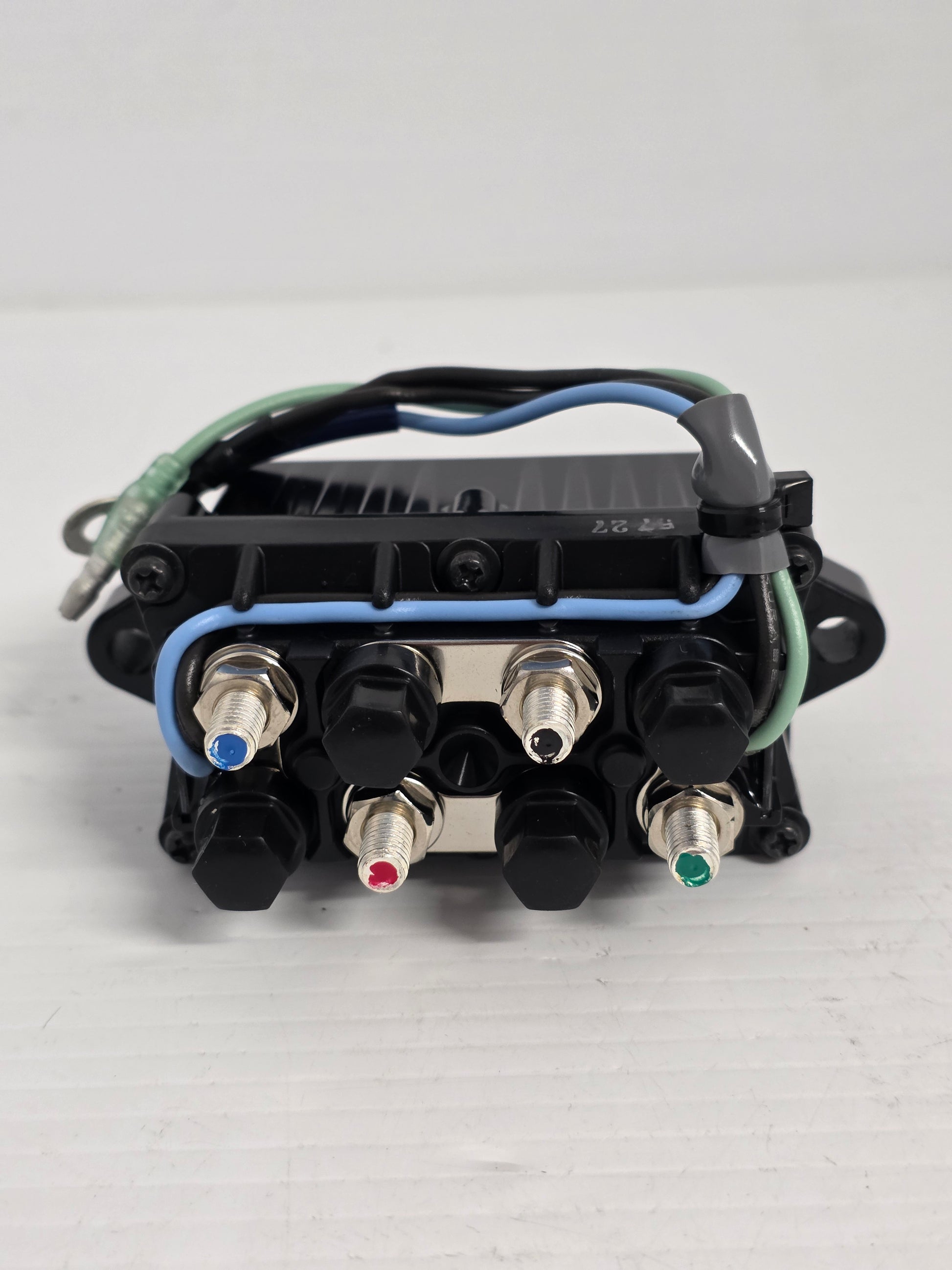

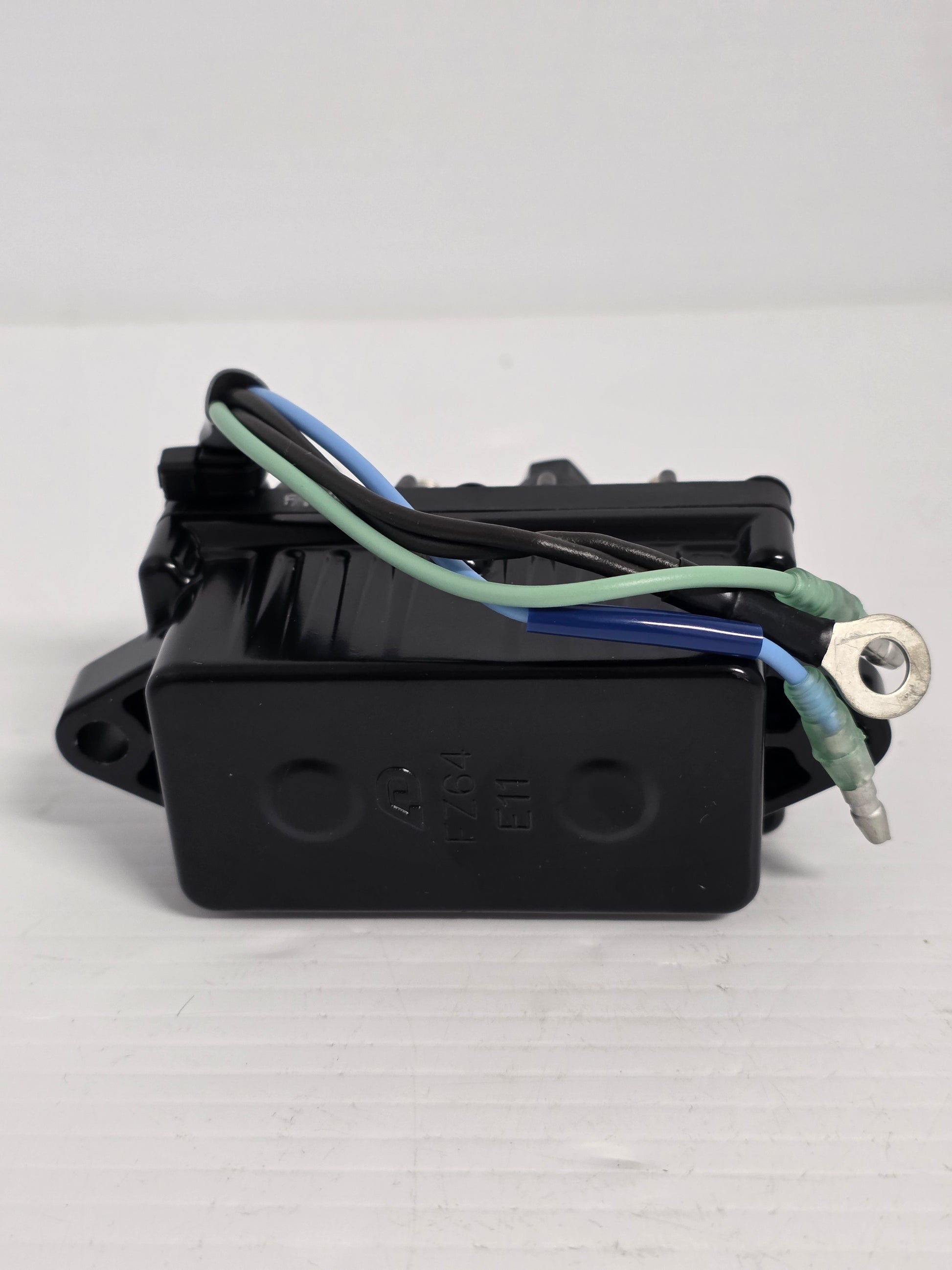

Genuine Yamaha Three-Pin Power Trim Relay Assembly - Part Number: 6H1-81950-01

A genuine Yamaha 12-volt trim and tilt relay for selected 25HP to 90HP two-stroke and four-stroke outboards.

The relay switches high battery current to the trim motor in either direction when the trim-up or trim-down control is operated.

⚙️ Key Features

• Genuine Yamaha OEM three-pin trim relay

• Correct Yamaha part number 6H1-81950-01

• Supersedes earlier relay 6H1-81950-00

• Controls both trim-up and trim-down motor operation

• Multiple direct aftermarket relay assemblies available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6H1-81950-01 → Supersedes 6H1-81950-00

• 6H1-81950-00 earlier Yamaha trim-relay reference

OEM / Related Numbers:

• 6H1-81950-01

• 6H1-81950-01-00

• 6H1819500100

• 6H1-81950-00

• 6H1-81950-00-00

• Related Yamaha three-pin power trim relay wiring assembly

Aftermarket / Verified Equivalents:

• Outboard Spares: OSTR6H1

• Oz Wide / SCP: SLC2061

• 4Boats: 6H1-81950 three-pin relay

• DUZFOREI: 6H1-81950 replacement relay

• LOONGPART / generic: 12V 120A three-pin trim relay

🚤 Compatibility

Commonly used on:

• Yamaha two-stroke and four-stroke power trim systems using a three-pin relay

Typically suits:

• Engine models:

• Yamaha 25Q

• Yamaha 40H, 40V and 40Y

• Yamaha 50D and 50H

• Yamaha 60F

• Yamaha 70B

• Yamaha 75A

• Yamaha 80A

• Yamaha 85A

• Yamaha 90A

• Yamaha F30A power-trim models - approximately 2001-2009

• Yamaha F40A and F40B - approximately 1998-2009

• Yamaha F50A - approximately 1995-2006

• Yamaha T50 / FT50 high-thrust - approximately 1998-2009

• Yamaha F60A - approximately 2002-2006

• Yamaha T60 / FT60 high-thrust - approximately 2003-2006

• HP Range: 25HP - 90HP

• Engine Type: Yamaha two-stroke and four-stroke outboard

• Year Range: Approximately 1992 - 2019, dependent on relay connector

🔌 Function

The relay reverses trim-motor polarity and safely carries the high current required to raise or lower the outboard.

Common signs of failure:

• Trim motor operates in only one direction

• Clicking is heard but the trim motor does not run

• Trim operation is intermittent

• Relay terminals become burnt, corroded or overheated

• Voltage reaches the control circuit but not the trim motor

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
