6H1-W0093-10 Aftermarket Yamaha Carburetor Kit 75CET (1998-2014), 75TLR (2000-02), 80A (2000-02), 90AE/TR/TL | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Carburettor Repair Kit - Replaces Part Number: 6H1-W0093-10

New aftermarket repair kit replacing Yamaha 6H1-W0093-10 for selected 75HP, 80HP and 90HP two-stroke carburettors.

⚙️ Key Features

• Direct replacement for Yamaha 6H1-W0093-10

• Services one carburettor

• Includes needle valve, float-pivot and sealing components

• Used across selected 75HP-90HP Yamaha model codes

• Order the required quantity for multi-carburettor engines

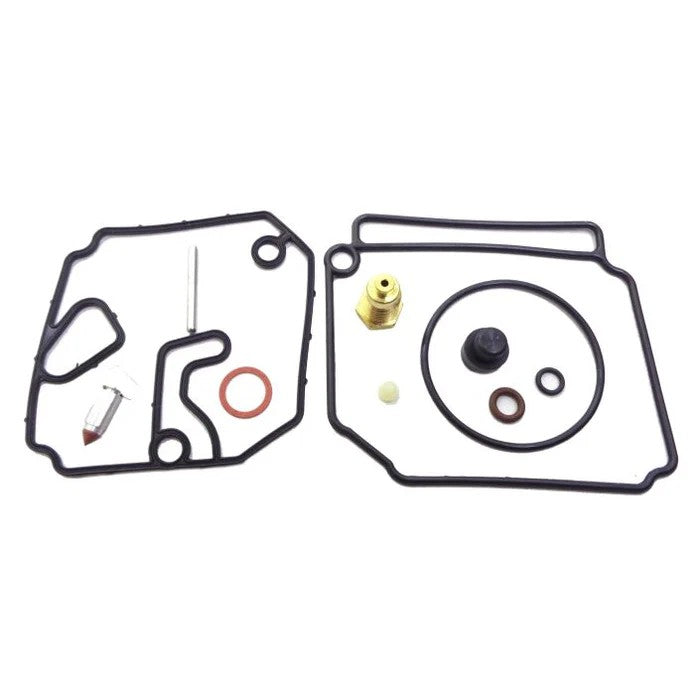

🧰 Kit Contents

• 1 × O-ring - Yamaha P/N 6H4-14147

• 1 × O-ring - Yamaha P/N 93210-04228

• 1 × Needle-valve assembly - Yamaha P/N 692-14590-01

• 1 × Float-arm pin - Yamaha P/N 6H4-14548

• 1 × Clip - Yamaha P/N 633-14159

• 1 × Float pin - Yamaha P/N 676-14186

• 1 × Cap - Yamaha P/N 679-14966

• 1 × Float-chamber gasket - Yamaha P/N 6H4-14984

• 1 × O-ring - Yamaha P/N 93210-04230

• 1 × O-ring - Yamaha P/N 93210-39ME4

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6H1-W0093-10-00 (Yamaha OEM service reference)

OEM / Related Numbers:

• 6H1W009310

Aftermarket / Verified Equivalents:

• GLM: 40699

• Recmar: REC6H1-W0093-10

🚤 Compatibility

Commonly used on:

• Yamaha three-cylinder carburetted two-stroke outboards

Typically suits:

• Engine models:

• 75CET (approximately 1998-2014)

• 75TLR (approximately 2000-2002)

• P75 and C75 applications specifying 6H1-W0093-10

• 80A (approximately 2000-2002)

• 90A, 90AE, 90TR and 90TL model families

• HP Range: 75HP - 90HP

• Engine Type: Three-cylinder carburetted two-stroke outboard

• Year Range: Approximately 1992 - 2014, depending on model code

• Serial / Model Identification: Confirm the original carburettor service number; one kit services one carburettor.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
