6H3-12413-00-1S Yamaha F40 Thermostat Cover | Genuine Used Part

🔧 Product Description

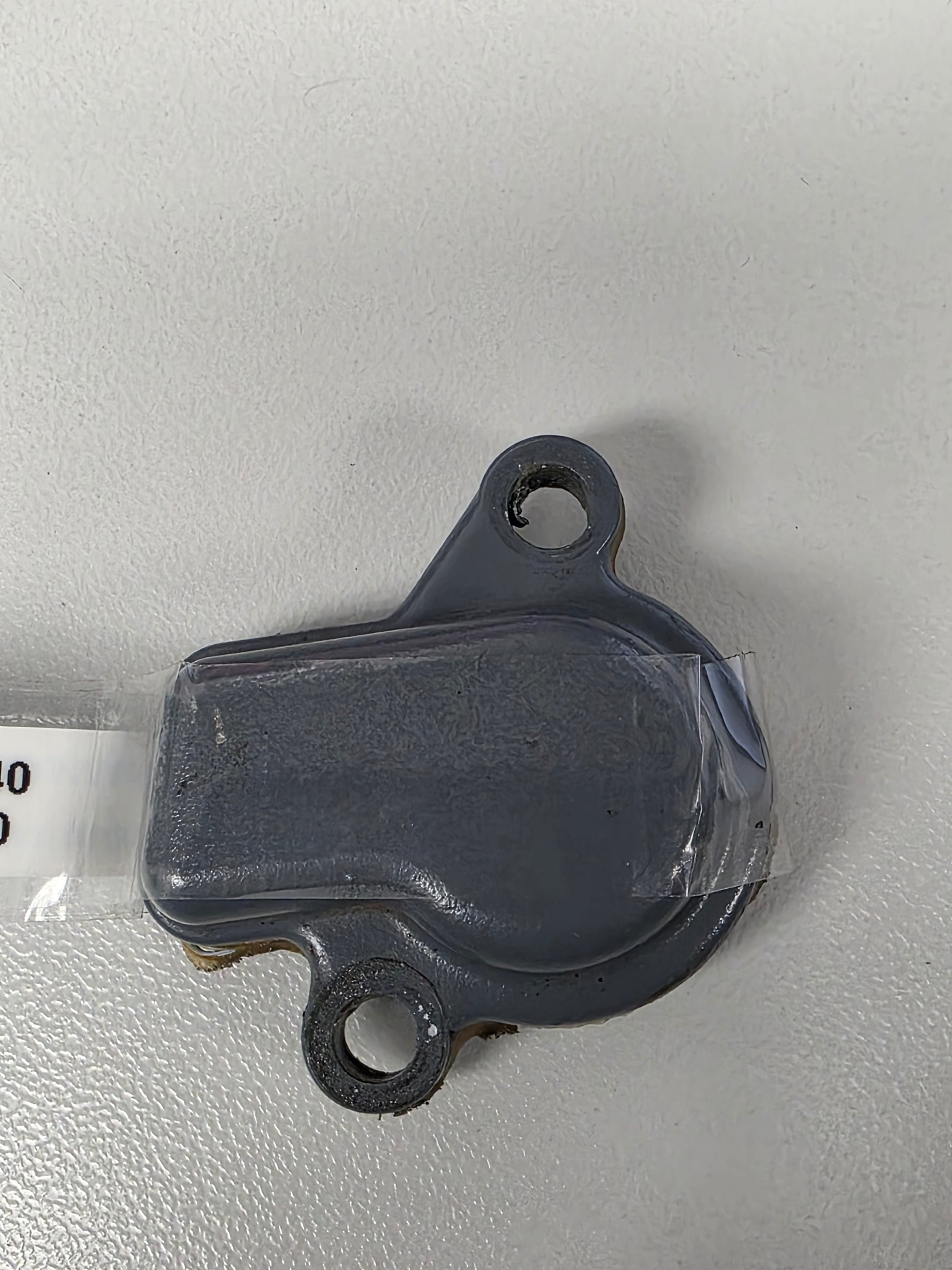

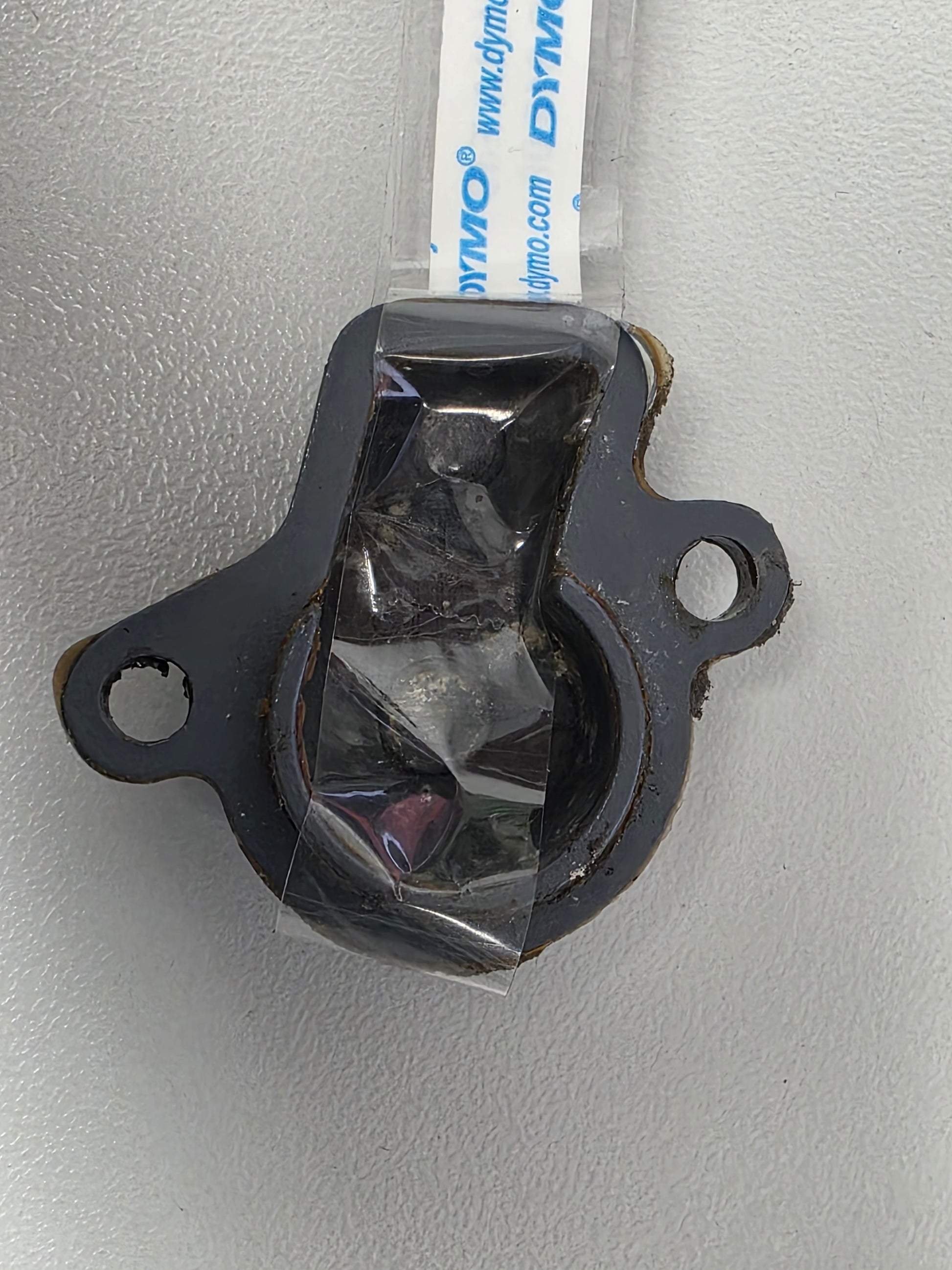

Genuine Yamaha Thermostat and Cooling Water Outlet Cover - Part Number: 6H3-12413-00-1S

A genuine used Yamaha thermostat cover for selected Yamaha two-stroke and four-stroke outboards. The cover closes the thermostat or cooling-water outlet chamber on the cylinder block and maintains the designed coolant path through the engine.

The same casting family is used by Mercury / Mariner and Parsun. Yamaha part number 6H3-12413-00-1S replaces the earlier -00-00, -00-94 and -00-9M versions.

⚙️ Key Features

• Genuine Yamaha thermostat cover
• Correct current Yamaha part number 6H3-12413-00-1S
• Supersedes three earlier Yamaha finish and casting references
• Used on selected Yamaha 9.9HP to 70HP outboards
• Direct Mercury, Mariner, Parsun and Recmar cross references available

🚤 Compatibility

Commonly used on

• Yamaha thermostat and cooling-water outlet chambers
• Mercury / Mariner Yamaha-built four-stroke outboards
• Parsun outboards using cover F15-07010021

Typically suits

• Engine models:
• Yamaha F9.9 four-stroke applications using the 6H3-series cover
• Yamaha F15 four-stroke applications, including 1998 F15MSHW
• Yamaha F20 four-stroke applications using the 6H3-series cover
• Yamaha F25A, F25AEH, F25AEHTL, F25AET, F25AETL, F25AMH, F25AMHL and F25AMHS
• Yamaha FT25BED and FT25BET
• Yamaha F30 four-stroke applications using the 6H3-series cover
• Yamaha F40 and F40A four-stroke applications using cover 6H3-12413-00
• Yamaha F45 four-stroke applications using cover 6H3-12413-00
• Yamaha F50A, F50AEHT, F50AEHTL, F50AET, F50AETL, F50BET and FT50BETL
• Yamaha F60 four-stroke applications using cover 6H3-12413-00
• Yamaha F70 four-stroke applications using cover 6H3-12413-00
• Yamaha 50G, 50GEO and 50GETO
• Yamaha 60F, 60FEDO, 60FEHT, 60FEO, 60FET, 60FETL, 60FETO and 60FETOL
• Yamaha 60FETL, 60FETO and 60FETOL
• Yamaha 60F two-stroke and E60HM / E60HMHDL
• Yamaha 70B, 70BETO, 70BETOL and 70BETOX
• Mercury / Mariner 8HP - serial 0P086824 to 0P400999
• Mercury / Mariner 9.9HP - serial 0G760300 to 1B226999 and 0P075166 to 0P400999
• Mercury / Mariner 13.5HP - serial 0P134638 to 0P400999 and 0P401000 and above
• Mercury 35 Jet - serial 1C453840 and above
• Mercury / Mariner 40HP carburetted and EFI - serial groups from 0T409000 and 0P153500 onward
• Mercury 40HP EFI SeaPro - serial 1C453840 and above
• Mercury 50HP EFI - serial 1C453840 and above
• Mercury 60HP EFI and SeaPro - serial 1C453840 and above
• Mercury 60R Racing - serial 1C615064 and above
• HP Range: Yamaha 9.9HP - 70HP; corresponding Mercury / Mariner applications 8HP - 60HP
• Engine Type: Yamaha, Mercury / Mariner and Parsun two-stroke and four-stroke outboard
• Year Range: Approximately 1990s onward, dependent on model

🔌 Function

The cover seals the thermostat or cooling-water outlet chamber and retains the thermostat and associated gasket. It directs cooling water through the intended engine passages.

⚠️ Common Signs of Failure

• Cooling-water leakage around the cover gasket
• Corrosion or pitting on the sealing face
• Cracks around the mounting holes
• Cover distorted through overtightening
• Thermostat chamber will not seal after servicing

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6H3-12413-00-1S → Supersedes 6H3-12413-00-9M
• 6H3-12413-00-1S → Supersedes 6H3-12413-00-94
• 6H3-12413-00-1S → Supersedes 6H3-12413-00-00

OEM / Related Numbers

• Yamaha: 6H3-12413-00-1S
• Yamaha: 6H3-12413-00-9M
• Yamaha: 6H3-12413-00-94
• Yamaha: 6H3-12413-00-00
• Mercury: 8M0188835
• Mercury: 8M0008243
• Mercury: 857080
• Mercury: 8250311
• Mercury: 825031C
• Parsun: F15-07010021
• Parsun: 15-07010021

Aftermarket / Verified Equivalents

• Recmar / Parsun: PAF15-07010021
• Parsun: F15-07010021
• Mercury / Quicksilver: 8M0188835
• Mercury / Quicksilver: 8M0008243
• Aftermarket cover referencing Yamaha 6H3-12413-00-1S

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
