6H3-44352-00 Yamaha Impeller | Genuine OEM Yamaha Outboard Part

6H3-44352-00 Yamaha Impeller | Genuine OEM Yamaha Outboard Part

$41.00 AUD
$41.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

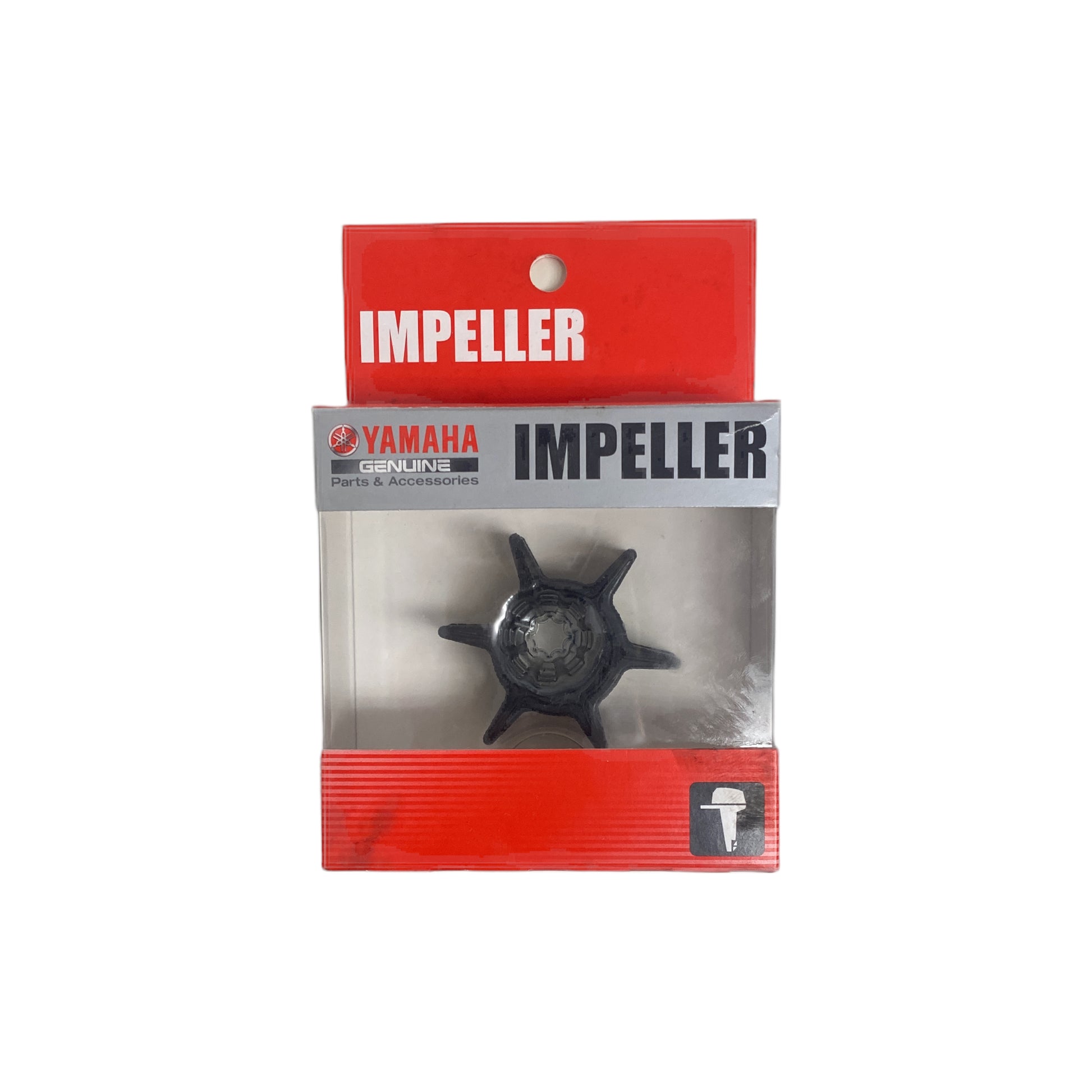

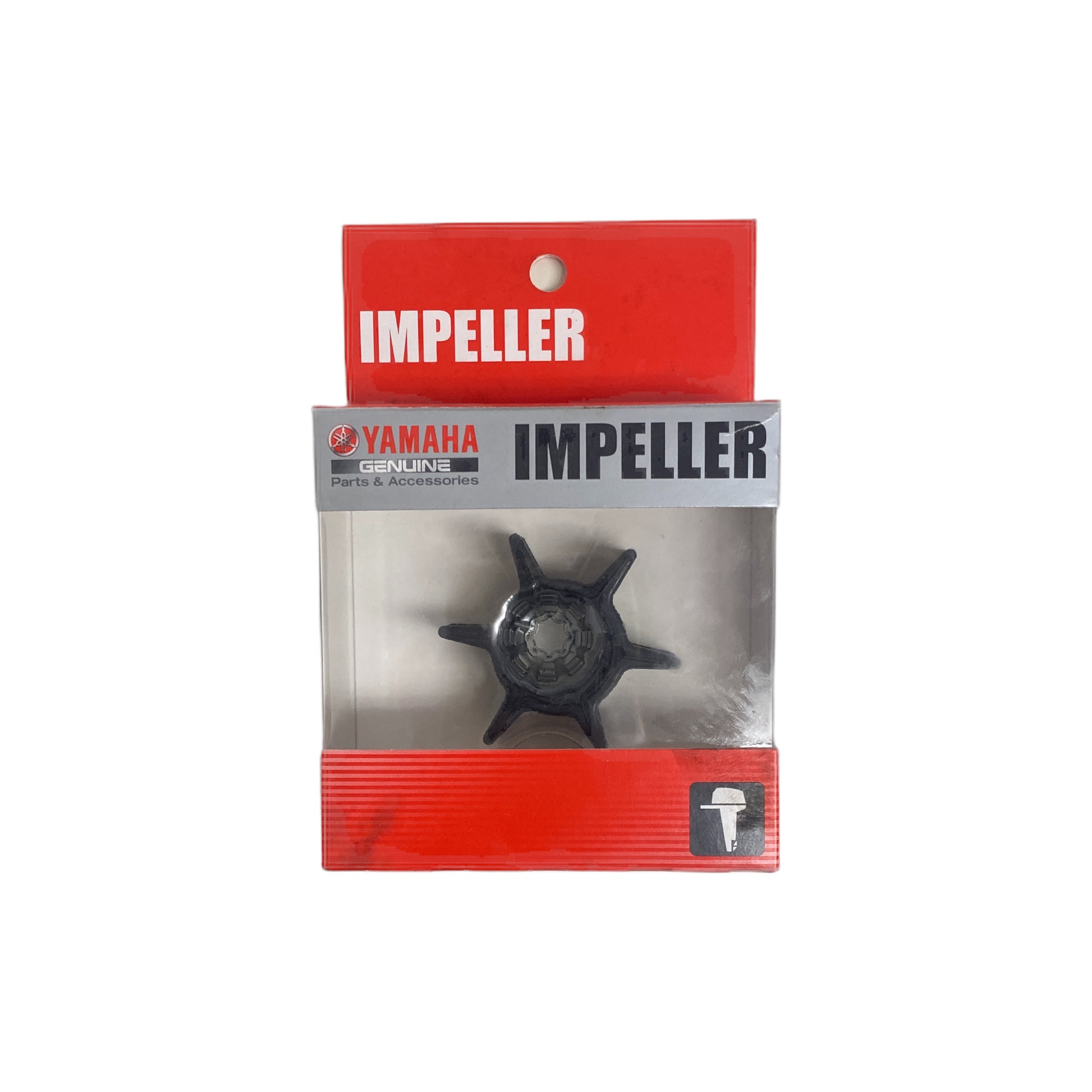

Genuine Yamaha Water Pump Impeller - Part Number: 6H3-44352-00

A genuine Yamaha flexible water-pump impeller for selected 40HP to 70HP two-stroke and four-stroke outboards.

The impeller rotates inside the lower-unit pump housing to draw cooling water through the gearcase inlet and circulate it through the engine.

⚙️ Key Features

  • Genuine Yamaha OEM water-pump impeller
  • Correct Yamaha part number 6H3-44352-00
  • Approximate dimensions: 18.05mm bore, 51.8mm outside diameter and 19mm width
  • Used on Yamaha 40HP to 70HP water-pump systems
  • Sierra, Recmar, HJumbo and Mercury-compatible replacements available

🚤 Compatibility

Commonly used on

  • Yamaha mid-range two-stroke and four-stroke lower-unit water pumps

Typically suits

  • Engine models:
  • Yamaha 25B - approximately 1994-1995
  • Yamaha 40F, 40V and 40Y
  • Yamaha 50G and 50H
  • Yamaha 55B
  • Yamaha 60C and 60F through approximately 2003
  • Yamaha 70B through approximately 2003
  • Yamaha 70C
  • Yamaha F40A, F40C, F40D and F40G
  • Yamaha F50A, F50B, F50D and F50F
  • Yamaha FT50B, FT50C, FT50G and FT50J
  • Yamaha F60A and F60C
  • Yamaha FT60B and FT60D
  • Yamaha F70A and F70L applications using the 6H3 impeller
  • HP Range: 40HP - 70HP, plus selected 25B engines
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Year Range: Approximately 1984 - 2017, dependent on lower-unit design

🔌 Function

The impeller creates the suction and pressure needed to circulate cooling water through the engine.

⚠️ Common Signs of Failure

  • Weak or absent tell-tale stream
  • Engine overheats at idle or under load
  • Impeller blades become cracked, stiff or missing
  • Rubber fragments are found in cooling passages
  • Cooling flow remains poor after clearing the water inlet

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6H3-44352-00 current Yamaha OEM impeller reference
  • 697-44352-00 equivalent Yamaha impeller reference

OEM / Related Numbers

  • 6H3-44352-00
  • 6H3-44352-00-00
  • 6H3443520000
  • 697-44352-00
  • 697-44352-00-00
  • 6H3-W0078-01 related water-pump kit
  • 6H3-W0078-02 related water-pump kit
  • 692-W0078-series related pump-kit family

Aftermarket / Verified Equivalents

  • Sierra: 18-3069
  • Recmar: REC6H3-44352-00
  • HJumbo: J-183
  • QuickMarine: 6H3-44352 replacement impeller
  • Mercury / Mariner-compatible replacement for Yamaha 697-44352-00 applications

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
