🔧 Product Description

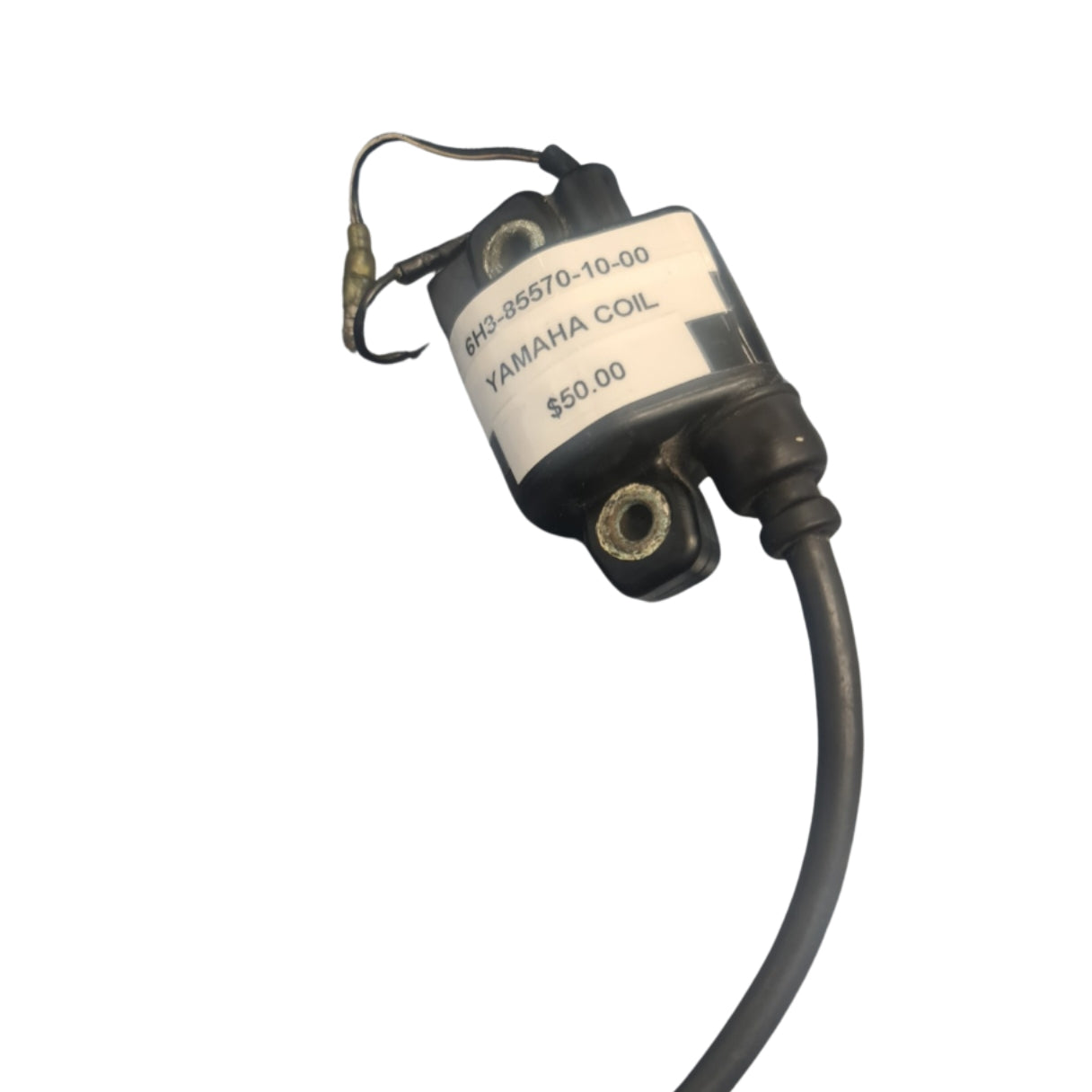

Genuine Yamaha Ignition Coil Assembly - Part Number: 6H3-85570-10-00
A genuine Yamaha ignition coil assembly used on Yamaha 60HP and 70HP two-stroke outboards. This earlier coil reference is superseded by 6H3-85570-11-00 and is commonly used in 60F, E60H and 70B / 70C / 70E ignition systems.
⚙️ Key Features
- Genuine Yamaha ignition coil assembly
- Correct Yamaha part number 6H3-85570-10-00
- Superseded by Yamaha 6H3-85570-11-00
- Used on Yamaha 60HP and 70HP two-stroke engines
- Required quantity commonly 3 coils on three-cylinder engines
🚤 Compatibility
Commonly used on
- Yamaha 60HP and 70HP two-stroke outboards
- Yamaha 6H2 / 6H3 ignition coil systems
Typically suits
- Engine models:
- Yamaha 60F two-stroke - approximately 1984-1991
- Yamaha 60FE / 60F electric-start two-stroke applications using 6H3-85570-10-00
- Yamaha E60H / E60HM two-stroke applications using the 6H3-85570-10 / 6H3-85570-11 coil chain
- Yamaha 70B two-stroke - approximately 1984-1991
- Yamaha 70C two-stroke - approximately 1984-1991
- Yamaha 70E two-stroke applications using 6H3-85570-10-00
- Yamaha 70ETL / 70TLR two-stroke electrical systems using the 6H3 coil family
- HP Range: commonly 60HP - 70HP
- Engine Type: Yamaha three-cylinder two-stroke outboard
- Year Range: approximately 1984 onward for engines listing the 6H3-85570-10 / 6H3-85570-11 coil family
🔌 Function
The ignition coil steps up ignition voltage and delivers high-voltage spark to the spark plug for combustion on each cylinder.
⚠️ Common Signs of Failure
- Weak spark on one cylinder
- Misfire under acceleration
- Rough idle or poor low-speed running
- No-start caused by loss of ignition output
- Heat-related spark failure
- Cracked coil housing or damaged high-tension lead
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6H3-85570-11-00 → Supersedes 6H3-85570-10-00
- 6H3-85570-10-00 earlier Yamaha ignition coil assembly reference
OEM / Related Numbers
- 6H3-85570-10-00
- 6H3-85570-10
- 6H3855701000
- 6H38557010
- 6H3-85570-11-00
- 6H3-85570-11
- 6H3-85470-10 related reference
Aftermarket / Verified Equivalents
- Recmar: REC6H3-85570-10
- WSM: 380-5109
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
