6H3-W0093-02 Aftermarket Yamaha Carburettor Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Three-Carburettor Repair Kit - Replaces Part Number: 6H3-W0093-02

New aftermarket three-carburettor service kit replacing Yamaha 6H3-W0093-02. The OEM-style package contains parts for the complete three-carburettor bank on selected 60HP and 70HP engines.

⚙️ Key Features

• Complete three-carburettor service package

• Includes three needle valves, floats, pilot screws and gasket groups

• Used on selected 60HP and 70HP Yamaha model families

• Fuel-resistant gaskets and O-rings

• One OEM-format kit services all three carburettors

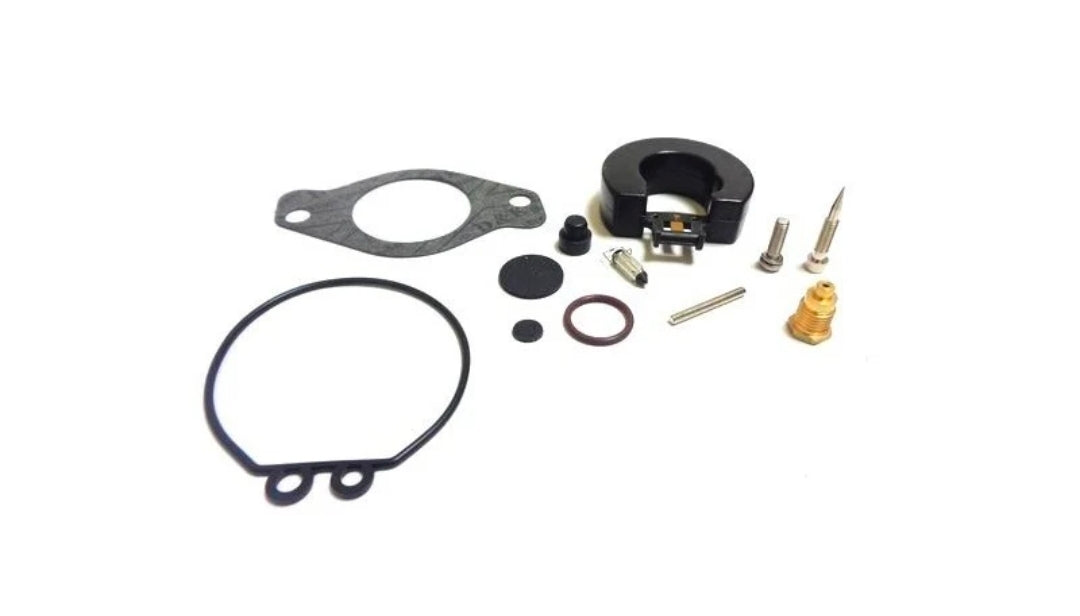

🧰 Kit Contents

• 1 × Carburettor-set gasket - Yamaha P/N 6H3-14198-A1

• 3 × Cap - Yamaha P/N 676-14966

• 3 × Needle valve - Yamaha P/N 6H3-14590-01

• 3 × Clip - Yamaha P/N 663-14159

• 3 × Float pin - Yamaha P/N 676-14186

• 3 × Float - Yamaha P/N 6G1-14985

• 3 × Float-arm pin - Yamaha P/N 688-14548

• 3 × O-ring - Yamaha P/N 6G1-14984

• 3 × Screw with washer - Yamaha P/N 97980-04114

• 3 × O-ring - Yamaha P/N 93210-04230

• 3 × Gasket - Yamaha P/N 663-14126

• 3 × Gasket - Yamaha P/N 688-14126

• 3 × Pilot screw - Yamaha P/N 692-14923

• 3 × O-ring - Yamaha P/N 93210-15M52

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6H3-W0093-02-00 (Yamaha OEM service reference)

OEM / Related Numbers:

• 6H3W009302

Aftermarket / Verified Equivalents:

• Sierra: 18-7766

• GLM: 40698

• Recmar: REC6H3-W0093-02

🚤 Compatibility

Commonly used on:

• Yamaha three-cylinder carburetted two-stroke outboards

Typically suits:

• Engine models:

• P60 (1991 applications)

• C60 and E60 (approximately 1990-1991)

• 70HP applications (approximately 1990-1991)

• E60H, E60MHZ, E60MLH, E60HMHD, E60HW and E60HEHM export-market models specifying 6H3-W0093-02

• HP Range: 60HP - 70HP

• Engine Type: Three-cylinder, three-carburettor two-stroke outboard

• Year Range: Approximately 1990 - 2014, depending on market model

• Serial / Model Identification: Three Sierra 18-7766 kits are required to equal one complete OEM-format Yamaha package.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
