6K7-W0093-09 Aftermarket Yamaha Carburetor Kit 225AET, PROV200, 150CET, 175 BETO, 200BET, 225BET (1987-91) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Six-Carburettor Repair Kit - Replaces Part Number: 6K7-W0093-09

New aftermarket V6 carburettor service kit replacing Yamaha 6K7-W0093-09. The current Yamaha service reference is 6K7-W0093-08 and contains components for the complete six-carburettor bank.

⚙️ Key Features

• Complete six-carburettor V6 service package

• Current replacement for 6K7-W0093-09

• Includes six floats, needle valves, adjustment screws and sealing groups

• Suitable for selected 150HP-225HP V6 model families

• One OEM-format kit services all six carburettors

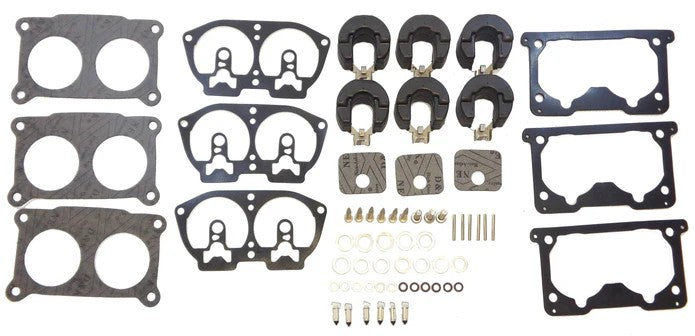

🧰 Kit Contents

• 1 × Carburettor-bank gasket - Yamaha P/N 6K7-14483

• 1 × Gasket - Yamaha P/N 6E5-14198-A2

• 6 × Needle valve - Yamaha P/N 6E5-14546

• 6 × Float pin - Yamaha P/N 6E5-14386-02

• 6 × Float - Yamaha P/N 6E5-14385-02

• 3 × Float-chamber gasket - Yamaha P/N 6E5-14384-03

• 6 × O-ring - Yamaha P/N 6E5-14997

• 6 × Gasket - Yamaha P/N 6E5-14398-01

• 3 × Screw with washer - Yamaha P/N 97885-05116

• 3 × Pan-head screw - Yamaha P/N 92990-05016

• 3 × Spring washer - Yamaha P/N 92903-05100

• 6 × Air-adjusting screw - Yamaha P/N 6E5-14323-03

• 6 × Gasket - Yamaha P/N 6E5-14979

• 6 × Gasket - Yamaha P/N 6J8-14995

• 3 × Gasket - Yamaha P/N 6E5-14959-01

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6K7-W0093-08-00 → Supersedes 6K7-W0093-09-00

• 6K7-W0093-09-00 → Supersedes earlier 6K7-W0093-02/-01/-00 references where specified

OEM / Related Numbers:

• 6R3-W0093-00

• 6K7-W0093-09-00

• 6K7-W0093-08-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7759

• Mallory: 9-37516

• WSM: 600-59-01

• EMP: 1300-09106

• Recmar: REC6K7-W0093-09

🚤 Compatibility

Commonly used on:

• Yamaha carburetted V6 two-stroke outboards

Typically suits:

• Engine models:

• 150CET and ProV150

• 175BETO and ProV175

• 200BET and ProV200

• 225AET and 225BET

• Selected 150HP-225HP V6 applications from the late 1980s through 1991

• HP Range: 150HP - 225HP

• Engine Type: Carburetted V6 two-stroke outboard

• Year Range: Approximately 1987 - 1991; current-kit coverage includes specified 1990-1992 applications

• Serial / Model Identification: Confirm engine model, serial and current Yamaha supersession before ordering.

🔌 Function

This service kit renews the carburettor components that control float level, fuel shut-off, metering and sealing. Correct overhaul helps restore reliable starting, stable idle, clean acceleration and balanced fuel delivery.

Common signs of failure:

• Hard starting or excessive choke required

• Rough, unstable or hanging idle

• Fuel leakage, flooding or strong fuel smell

• Hesitation, bogging or stalling under acceleration

• Poor power, uneven cylinder fuelling or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
