6L2-85570-10-00 Yamaha Coil | Genuine Used Part

🔧 Product Description

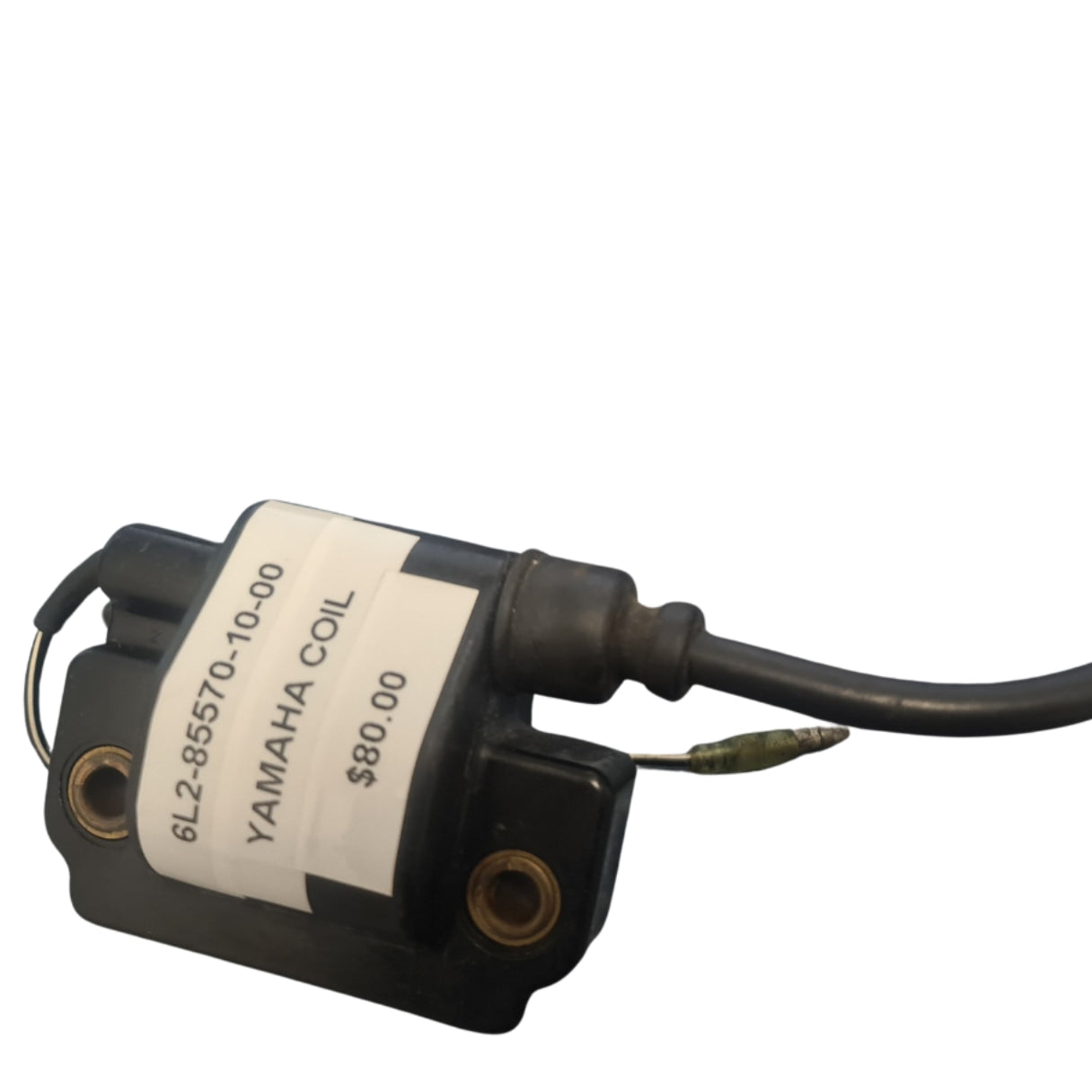

Genuine Yamaha Ignition Coil Assembly - Part Number: 6L2-85570-10-00

A genuine Yamaha ignition coil assembly used on selected Yamaha two-stroke outboard ignition systems. This coil is associated with smaller Yamaha portable and midrange two-stroke applications where the original coil number matches.

⚙️ Key Features

• Genuine Yamaha ignition coil assembly

• Correct OEM part number 6L2-85570-10-00

• Used on selected Yamaha two-stroke ignition systems

• Commonly linked with 20HP, 25HP and 30HP two-cylinder applications in replacement data

• Match by original coil number, connector, lead style and ignition diagram

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6L2-85570-10-00 Yamaha ignition coil assembly reference

• 61N-85570-10 related Yamaha ignition coil reference in replacement data

• 61N-85570-00-00 related Yamaha ignition coil reference in replacement data

OEM / Related Numbers:

• 6L2-85570-10-00

• 6L2855701000

• 61N-85570-10

• 61N8557010

• 61N-85570-00-00

• 61N855700000

• Ignition coil assembly

• Coil assembly

• Yamaha two-stroke coil

• Plug lead coil

Aftermarket / Verified Equivalents:

• Aftermarket replacement for 6L2-85570-10-00 where specified by ignition diagram

• Aftermarket replacement data also references 61N-85570-10 / 61N-85570-00 for related 20HP-30HP systems

🚤 Compatibility

Commonly used on:

• Yamaha two-stroke outboard ignition systems

Typically suits:

• Engine models:

• Yamaha 20HP two-stroke 2-cylinder applications using 6L2 / 61N-style ignition coils

• Yamaha 25HP two-stroke 2-cylinder applications using 6L2 / 61N-style ignition coils

• Yamaha 30HP two-stroke 2-cylinder applications using 6L2 / 61N-style ignition coils

• Yamaha 25HP outboard ignition coil applications listed for 6L2-85570-10-00

• Yamaha C20 / C25 / C30 family ignition applications where the diagram specifies this coil family

• HP Range: commonly 20HP - 30HP confirmed small two-stroke replacement data

• Engine Type: Yamaha two-stroke outboard ignition system

• Year Range: model and serial-number controlled; confirmed replacement data includes 1990s 20HP-30HP applications

• Serial Note: Match by exact Yamaha model code, serial number, coil connector, plug lead length and ignition diagram before installation.

🔌 Function

The ignition coil converts ignition-system voltage into high-voltage spark output for the spark plug.

Common signs of failure:

• No spark

• Weak or intermittent spark

• Hard starting

• Rough idle

• Misfire under load

• Engine cuts out when hot

• Cracked coil body or damaged lead

• Spark returns when a known-good coil is fitted

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
