6LPWC Aftermarket Yanmar 6LP Heat Exchanger End Gasket Kit 119773-44080, 119773-44071 | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yanmar 6LP Heat Exchanger End Gasket Kit - Kit Reference: 6LPWC

Two-piece heat-exchanger end-cover gasket kit for Yanmar 6LP and 6LPA-series marine diesel engines. Designed for heat-exchanger core removal, descaling, pressure testing or end-cap servicing, it replaces both principal end gaskets so the exchanger can be reassembled with a fresh cooling-water seal.

⚙️ Key Features

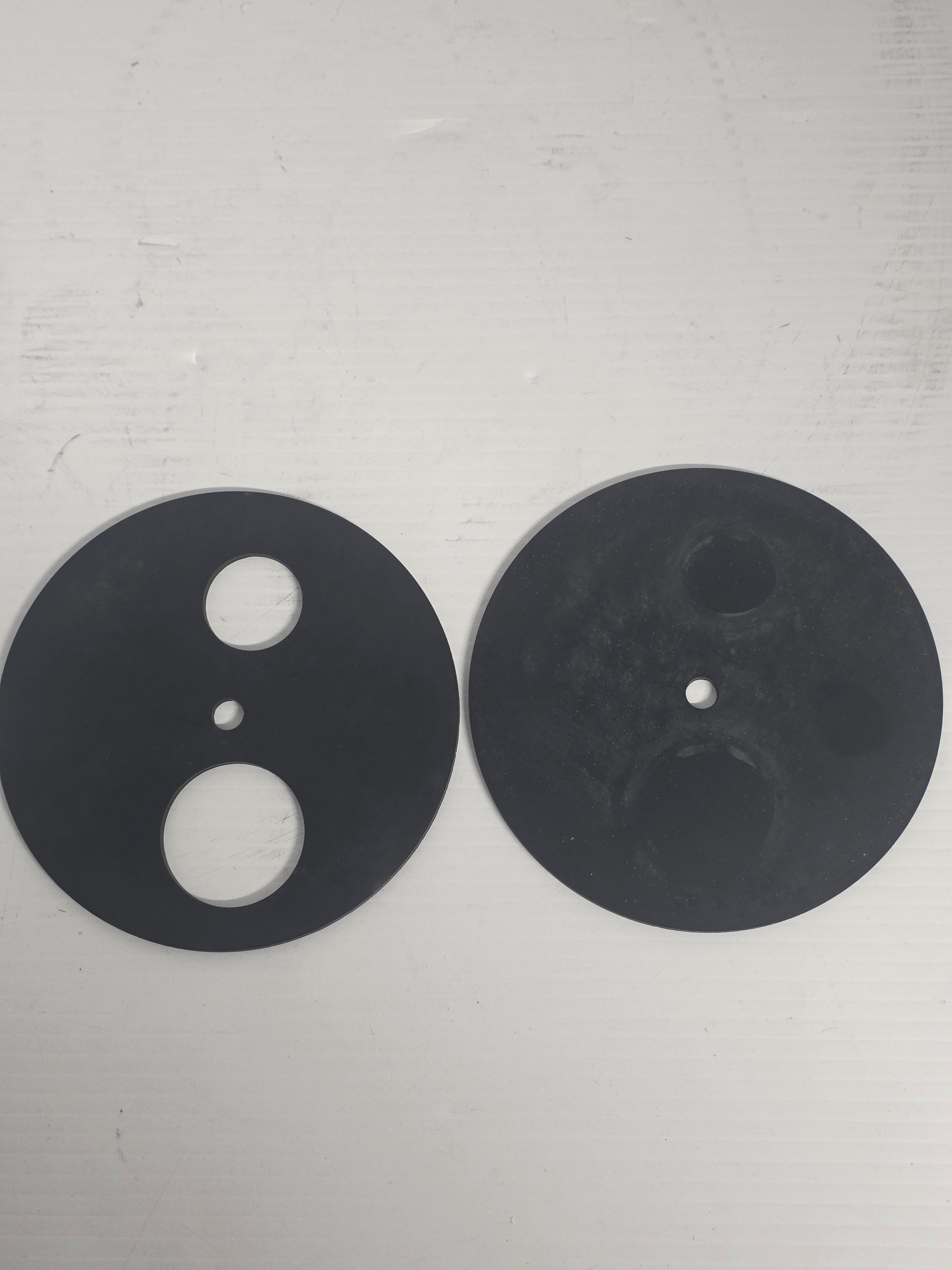

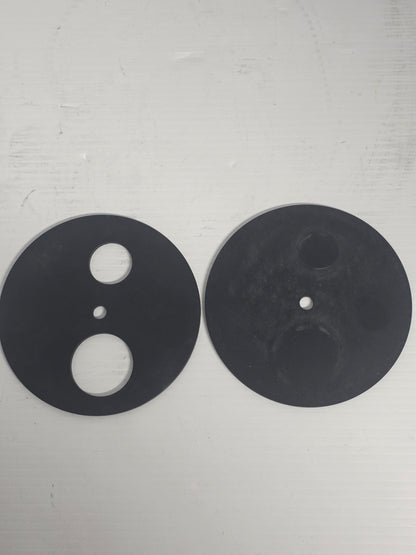

• Two-piece end-cover gasket set for compatible Yanmar 6LP and 6LPA heat exchangers

• Includes 1 × heat-exchanger end gasket - Yanmar reference 119773-44080

• Includes 1 × heat-exchanger end gasket - Yanmar reference 119773-44071

• Suitable for core cleaning, descaling, pressure testing and cooling-system overhaul

• Direct-fit aftermarket replacement for the listed Yanmar gasket references

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6LPWC / REC6LPWC → Replacement kit for Yanmar 119773-44080 and 119773-44071

• No later Yanmar supersession has been confirmed for the two listed gasket references

OEM / Related Numbers:

• 119773-44080

• 11977344080

• 119773-44071

• 11977344071

• 6LPWC

• REC6LPWC

Aftermarket / Verified Equivalents:

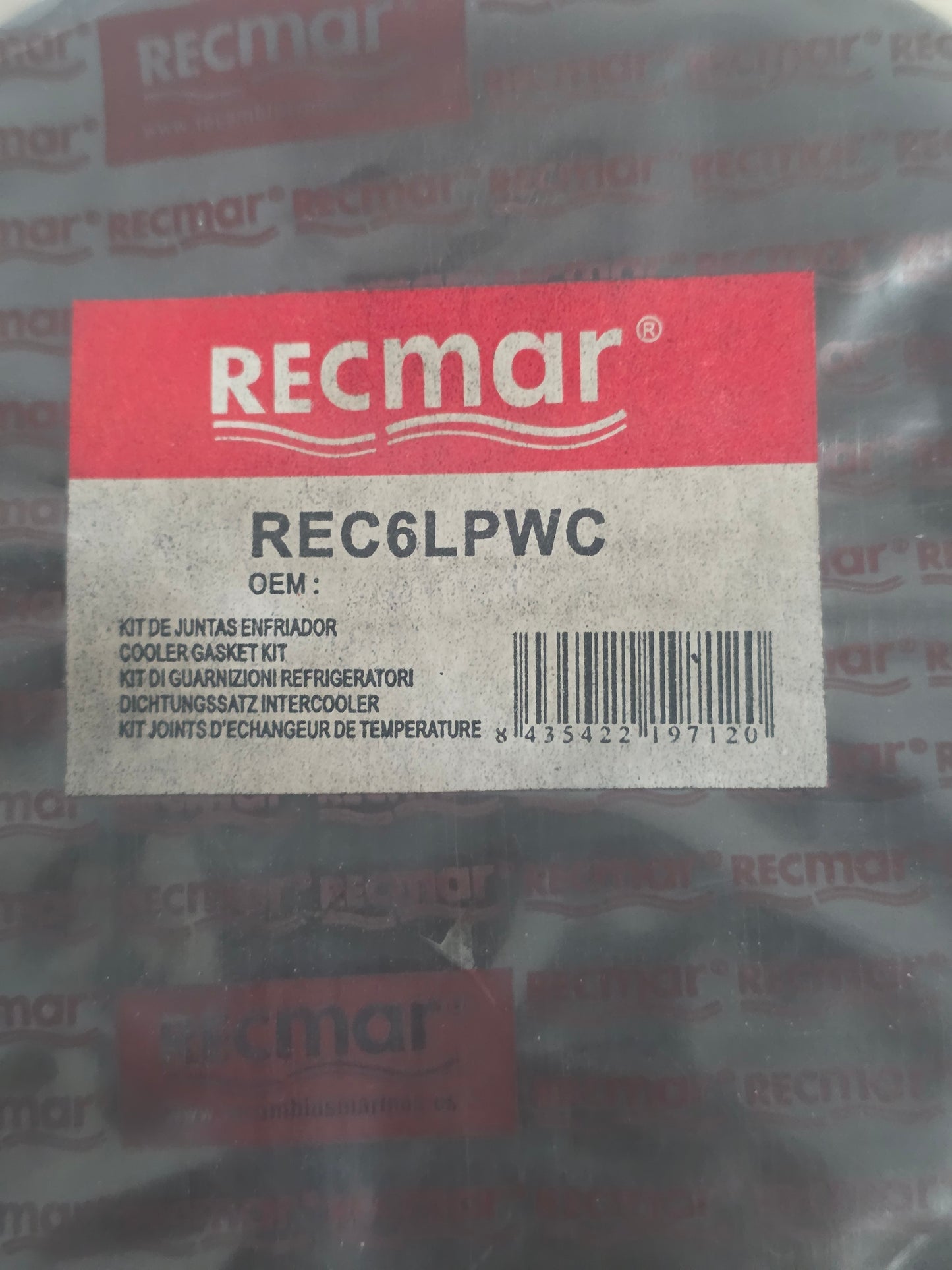

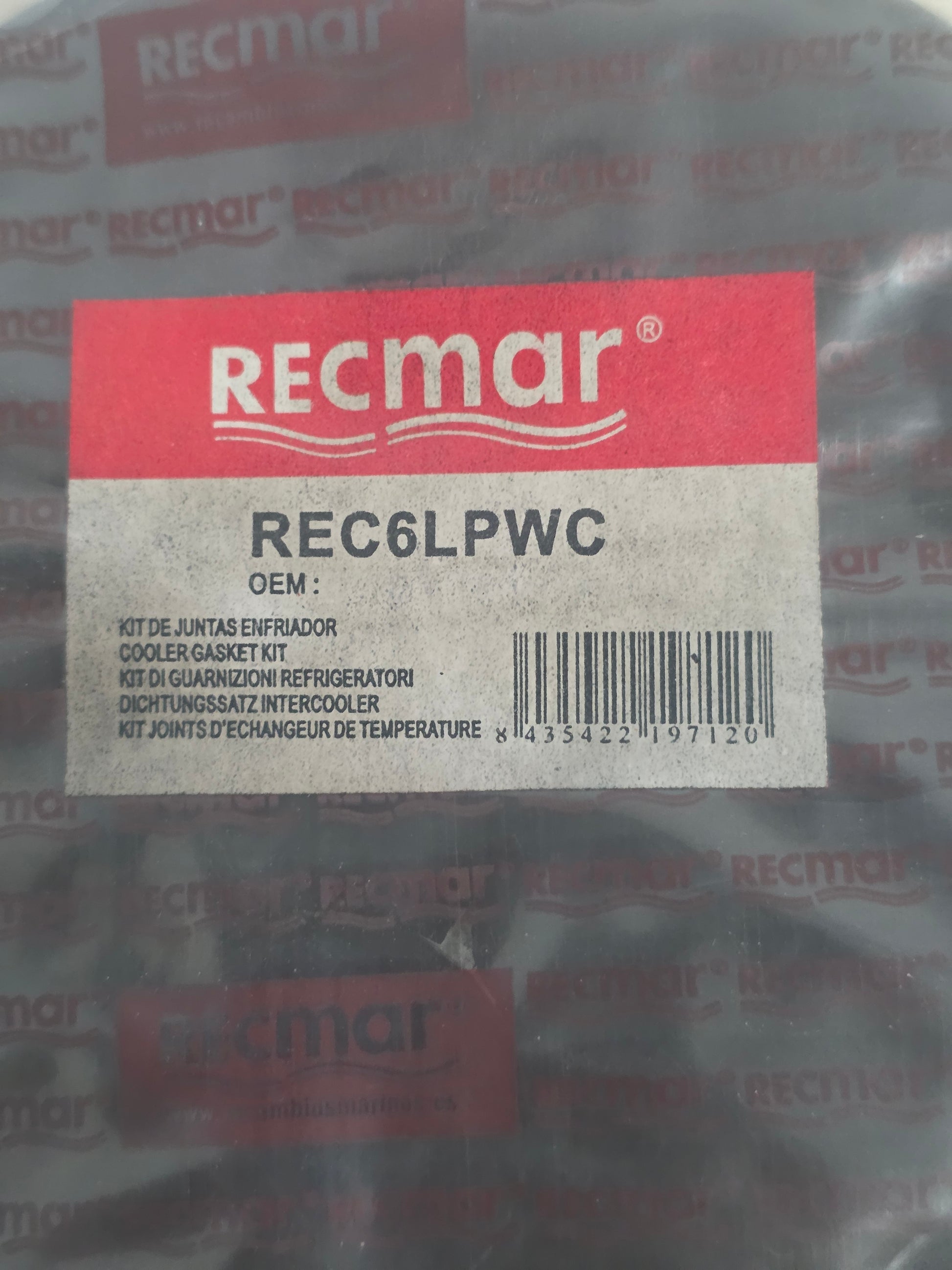

• Recmar: REC6LPWC

🚤 Compatibility

Commonly used on:

• Yanmar 6LP and 6LPA fresh-water heat-exchanger end-cover assemblies

Typically suits:

• Engine models:

• 6LP-DT, 6LP-DTE, 6LP-DTZE, 6LP-DTZE1 and 6LP-DTZY

• 6LP-ST, 6LP-STE, 6LP-STZE, 6LP-STZE1, 6LP-STZY and 6LP-STZYJ

• 6LP-WDT, 6LPWDTZY, 6LP-WST and 6LP-WSTZY

• 6LPA-STP2, 6LPA-STZP2 and 6LPA-STZP3

• Other 6LPA-DT/DTZ/ST/STZ variants whose heat-exchanger diagram specifies both 119773-44080 and 119773-44071

• HP Range: Approximately 250-315 HP

• Engine Type: 4.164 L inline six-cylinder, four-stroke, turbocharged and intercooled marine diesel

• Year Range: Approximately 1997 onward, depending on engine model and exchanger configuration

• Serial / Identification Range: No single universal serial cut-in applies; confirm both gasket references in the engine-specific heat-exchanger diagram

🔌 Function

Seals the heat-exchanger end covers around the tube stack, preventing raw-water and coolant leakage while directing water correctly through the exchanger core.

Common signs replacement is required:

• Raw-water or coolant leakage from an exchanger end cover

• Salt deposits, staining or corrosion around the end caps

• Coolant loss or rising engine temperature

• Damaged gaskets after heat-exchanger removal

• Poor sealing following core cleaning or descaling

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
