6N6-13200-00-00 Yamaha Oil Injection Pump | Genuine Used Part
6N6-13200-00-00 Yamaha Oil Injection Pump | Genuine Used Part
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

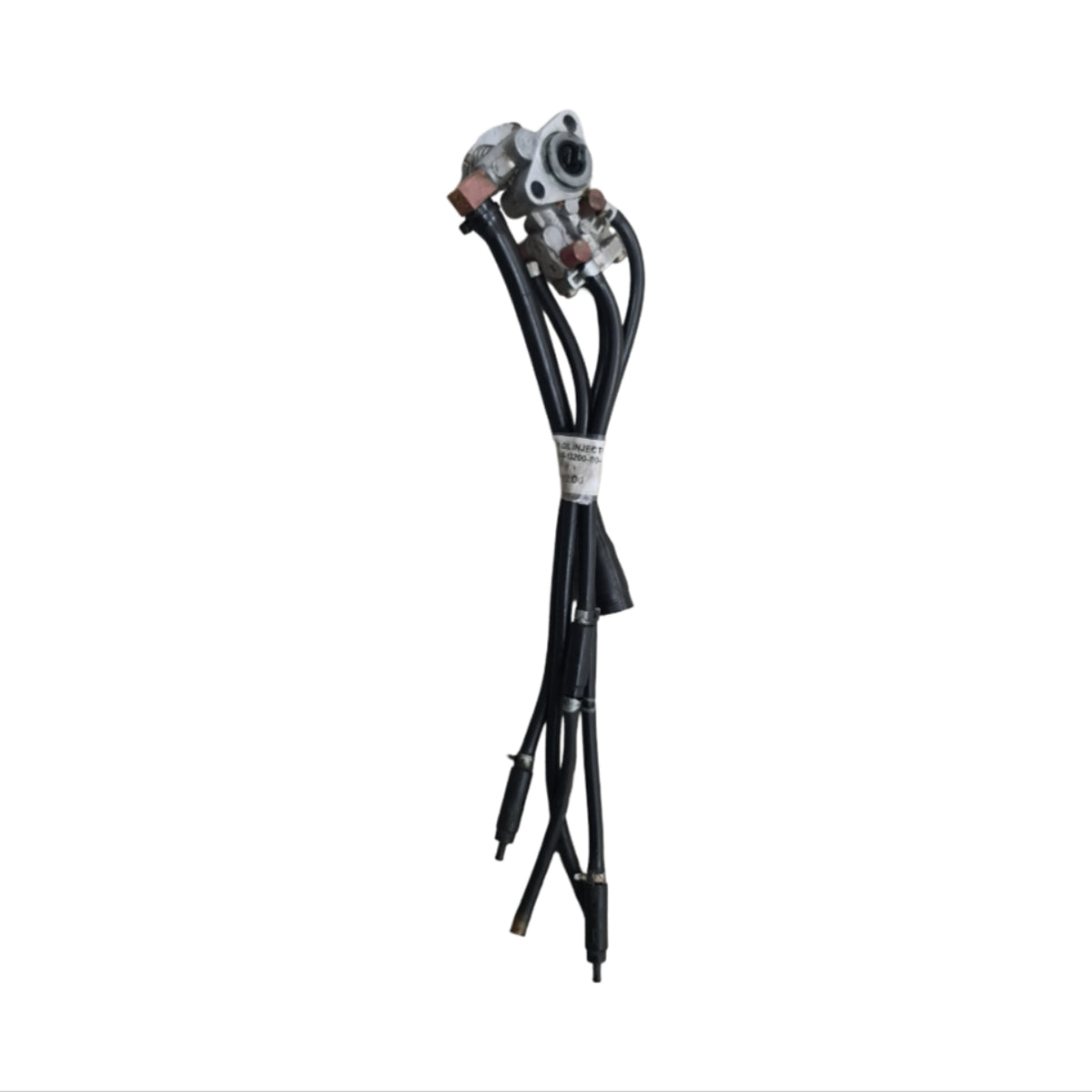

Genuine Yamaha 115HP Precision Oil-Injection Pump - Part Number: 6N6-13200-00-00
A genuine used Yamaha oil-injection pump calibrated for selected 115HP carburetted V4 two-stroke outboard motors.
The mechanically driven pump meters two-stroke oil to the engine according to throttle position and engine speed. Yamaha parts diagrams distinguish the 6N6 pump for the 115HP model from the 6N7 pump used on the 130HP model.
⚙️ Key Features
- Genuine used Yamaha oil-injection pump
- Correct OEM part number 6N6-13200-00-00
- Calibrated for selected 115HP V4 engines
- Multiple metered outlet ports
- Original Yamaha pump body and control arm
🚤 Compatibility
Commonly used on
- Yamaha 115HP V4 automatic oil-injection systems
Typically suits
- Yamaha 115B and 115C
- Yamaha 115ET and 115CETO
- Yamaha C115, P115 and selected S115 model groups
- Known early-1990s 115HP production including 1993 115C diagrams
- Later international variants only where the diagram specifies 6N6-13200-00-00
- HP Rating: 115HP
- Engine Type: Yamaha carburetted V4 two-stroke outboard
- Production Range: Primarily late 1980s through 1990s
- Serial Note: Match the full model code; pump calibration is engine-specific
🔌 Function
The pump meters and distributes two-stroke oil to the engine in proportion to throttle demand and engine speed.
⚠️ Common Signs of Failure
- Oil-warning alarm activates
- Engine consumes too much or too little oil
- Pump leaks
- Control arm sticks
- Oil lines contain air
- Outlet check valves do not flow correctly
- Engine suffers lubrication damage
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6N6-13200-00-00 current original 115HP pump reference
- 6N7-13200-00-00 is the related 130HP pump and is not a verified direct substitute
OEM / Related Numbers
- 6N6-13200-00-00
- 6N6132000000
- 6N6-13200-00
- 6N7-13200-00-00 related 130HP pump
- Related drive gear, pump link, oil hoses and check valves
- 6E5-21708-05-00 related oil-tank sub-assembly
Aftermarket / Verified Equivalents
- No verified aftermarket equivalent
📦 Condition
- Pump timing, bleeding and link adjustment are required after installation
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
