• 6N6-W0078-02 Yamaha Water Pump Kit | Genuine OEM Yamaha Outboard Part
1 1

6N6-W0078-02 Yamaha Water Pump Kit | Genuine OEM Yamaha Outboard Part

6N6-W0078-02 Yamaha Water Pump Kit | Genuine OEM Yamaha Outboard Part

$182.00 AUD
$182.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

Genuine Yamaha Complete Water Pump Service Kit - Part Number: 6N6-W0078-02

A genuine Yamaha water-pump kit for selected 100HP to 140HP two-stroke and early F115 four-stroke outboards.

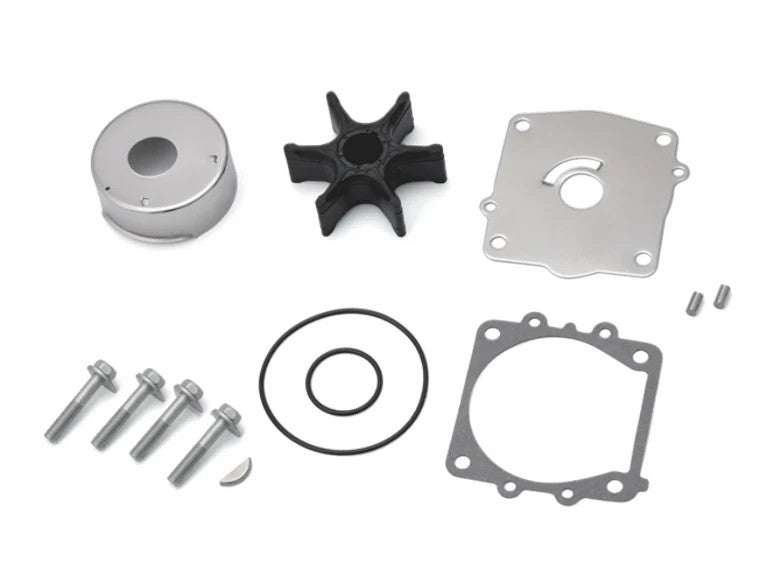

The kit contains the impeller, wear plate, cartridge insert, pump gasket, O-rings, dowels, bolts and drive key required for a comprehensive lower-unit pump service.

⚙️ Key Features

  • Genuine Yamaha OEM water-pump kit
  • Correct current Yamaha part number 6N6-W0078-02
  • Complete impeller, plate, insert, seal and hardware package
  • Uses Yamaha impeller 6E5-44352-01
  • Sierra, HJ Marine and SEI replacements available

🚤 Compatibility

Commonly used on

  • Yamaha V4 lower-unit water pumps
  • Early Yamaha F115 four-stroke gearcases

Typically suits

  • Engine models:
  • Yamaha 100A two-stroke - approximately 1997-2000
  • Yamaha 115B two-stroke - approximately 1997-2011
  • Yamaha 115C two-stroke - approximately 1997-2013
  • Yamaha 130B two-stroke - approximately 1997-2014
  • Yamaha 140B two-stroke - 2003 production
  • Yamaha F115A four-stroke - approximately 2000-2001
  • Corresponding L-series counter-rotation applications where the pump diagram specifies 6N6-W0078-02
  • HP Range: 100HP - 140HP
  • Engine Type: Yamaha V4 two-stroke and early inline-four F115 four-stroke
  • Year Range: Approximately 1997-2014, dependent on engine model.

🔌 Function

The kit renews the water-pump components responsible for drawing seawater through the lower unit and circulating it through the powerhead.

⚠️ Common Signs of Failure

Common signs the kit is required

  • Weak tell-tale stream
  • Engine overheats under load
  • Impeller vanes are damaged
  • Wear plate or cartridge insert is scored
  • O-rings or gasket leak around the pump housing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6N6-W0078-02 → Supersedes 6N6-W0078-01
  • 6N6-W0078-01 earlier OEM water-pump kit reference

OEM / Related Numbers

  • 6N6-W0078-02
  • 6N6-W0078-02-00
  • 61A-44322-02 cartridge insert
  • 93210-86M38 O-ring
  • 93210-37M67 O-ring
  • 6E5-44352-01 impeller
  • 6E5-44323-00 wear plate
  • 6E5-44315-A0 gasket
  • 93606-12019 dowel
  • 90119-08M14 bolt with washer
  • 90280-04M05 woodruff key

Aftermarket / Verified Equivalents

  • Sierra: 18-3313-1
  • Sierra: 18-3312 related pump kit
  • HJ Marine: YHJB-6N6
  • SEI Marine: 96-405-01K
  • Aftermarket Yamaha 6N6 complete water-pump kit

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
