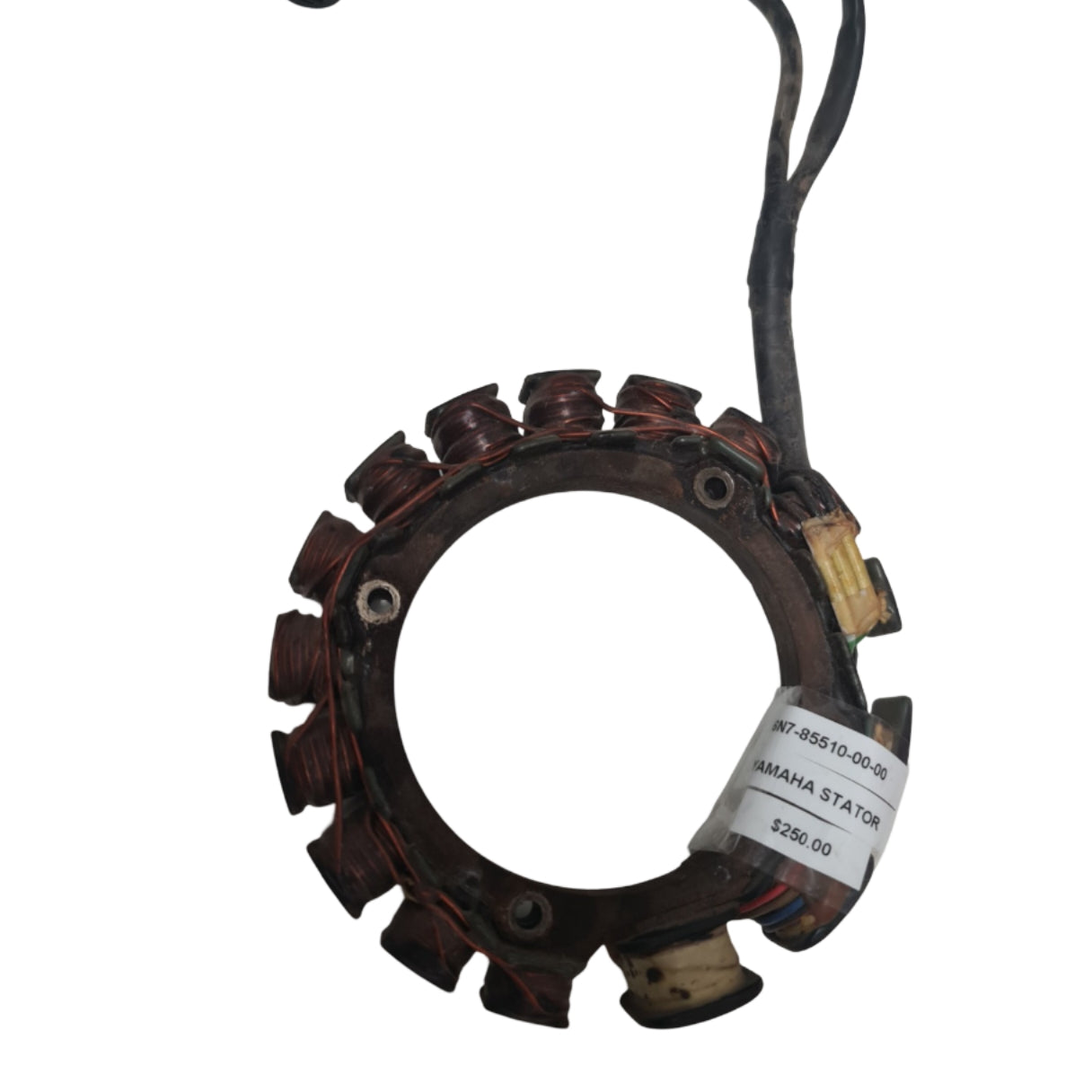

6N7-85510-00-00 Yamaha Stator | Genuine Used Part

🔧 Product Description

Genuine Yamaha V4 Stator Assembly - Part Number: 6N7-85510-00-00

A genuine Yamaha stator assembly used on Yamaha 115HP and 130HP V4 two-stroke outboards. This stator is fitted in the generator / CDI magneto assembly and supplies electrical output for ignition and battery charging.

⚙️ Key Features

• Genuine Yamaha stator assembly

• Correct Yamaha part number 6N7-85510-00-00

• Used on Yamaha 115HP and 130HP V4 two-stroke engines

• Works with 6E5 / 6N7 pulser coil and CDI magneto systems

• Supplies ignition charge and charging-system output

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6N7-85510-00-00 Yamaha V4 stator assembly reference

• 6N7-85510-00 short Yamaha stator assembly format

OEM / Related Numbers:

• 6N7-85510-00-00

• 6N7-85510-00

• 6N7855100000

• 6N78551000

• 6E5-85580-00-00 related pulser coil reference

• 6N7-85580-10-00 related pulser coil reference

Aftermarket / Verified Equivalents:

• Aftermarket reference: 6N7-85510-00-00

• Aftermarket Yamaha 115HP / 130HP V4 stator replacement

🚤 Compatibility

Commonly used on:

• Yamaha V4 two-stroke generator assemblies

• Yamaha 115HP and 130HP CDI magneto systems using 6N7 stator components

Typically suits:

• Engine models:

• Yamaha 115TRQ / 115TLRQ / 115TXRQ CDI magneto applications

• Yamaha 115TLR / 115TXR two-stroke generator applications

• Yamaha 115TJR two-stroke applications where 6N7-85510-00-00 is specified

• Yamaha C115 two-stroke V4 applications using 6N7-85510-00-00

• Yamaha 130TRQ / 130TLRQ / 130TXRQ CDI magneto applications

• Yamaha 130TLR / 130TXR two-stroke generator applications

• Yamaha L130TRQ / L130TXRQ counter-rotation applications where listed

• Yamaha 115HP V4 two-stroke outboards using the 6N7 stator family

• Yamaha 130HP V4 two-stroke outboards using the 6N7 stator family

• HP Range: 115HP - 130HP

• Engine Type: Yamaha V4 two-stroke outboard

• Year Range: approximately 1991-2009 depending on model and market

• System Type: Generator stator / CDI magneto assembly

🔌 Function

The stator generates electrical output beneath the flywheel. It provides ignition charge energy to the CDI system and charging output to support battery and engine electrical systems.

Common signs of failure:

• Weak or missing spark

• Battery not charging

• Engine misfire under load

• Spark loss once warm

• Hard starting or no-start condition

• Burnt stator windings or cracked insulation

• Damaged stator leads or corroded connector

• DVA / resistance readings outside specification

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
