🔧 Product Description

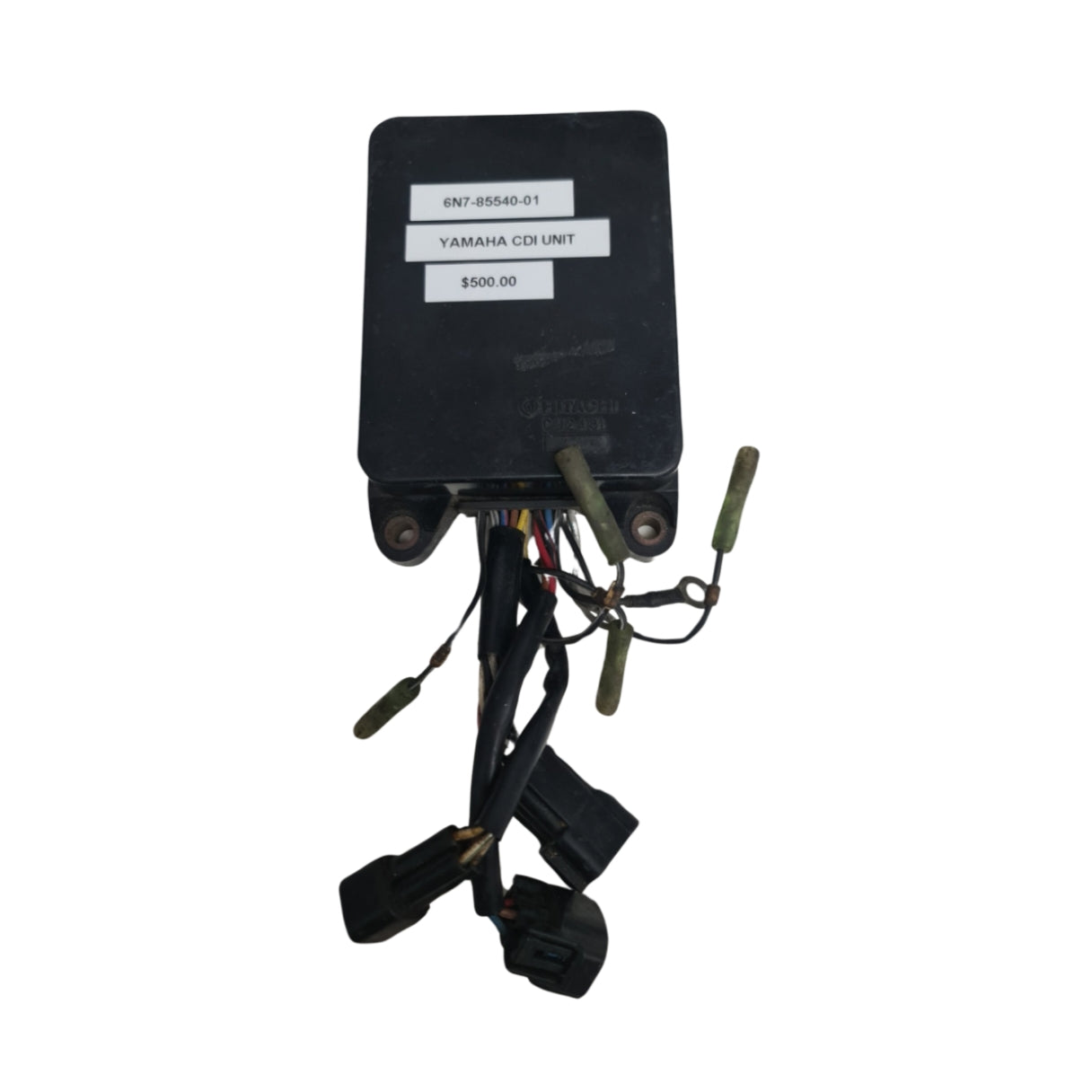

Genuine Yamaha CDI Unit Assembly - Part Number: 6N7-85540-01-00
A genuine Yamaha CDI unit used on selected Yamaha 115HP and 130HP V4 two-stroke outboards. This module controls ignition timing and coil-trigger output across compatible 6N7-family ignition systems.
⚙️ Key Features
- Genuine Yamaha CDI unit assembly
- Correct Yamaha part number 6N7-85540-01-00
- Used on selected Yamaha 115HP and 130HP two-stroke V4 outboards
- Controls ignition timing and spark output
- Must be matched by exact Yamaha model code, serial number and connector layout
🚤 Compatibility
Commonly used on
- Yamaha 115HP and 130HP V4 two-stroke outboard ignition systems
Typically suits
- Engine models:
- Yamaha 115TLRY
- Yamaha 115TXRY
- Yamaha 115TLRZ
- Yamaha 115TXRZ
- Yamaha C115TLRY
- Yamaha C115TXRY
- Yamaha 115CETO
- Yamaha 130TLRY
- Yamaha 130TXRY
- Yamaha L130TXRY
- Yamaha 130TLRZ
- Yamaha 130TXRZ
- Yamaha L130TXRZ
- Yamaha 130BETO
- HP Range: 115HP - 130HP
- Engine Type: Yamaha V4 two-stroke outboard
- Year Range: Approximately late-1990s to early-2000s 6N7 CDI applications, with exact fitment by model code and serial number
- Serial Note: Confirm the serial-numbered electrical diagram, original CDI label and plug configuration before installation.
🔌 Function
The CDI stores and releases ignition energy to the coils at the correct timing point, allowing the engine to produce spark during starting, idle and running conditions.
⚠️ Common Signs of Failure
- No spark across all cylinders or one cylinder bank
- Intermittent spark loss when warm
- Weak spark after charge coil and pulser coil testing
- Hard starting or no-start condition
- High-RPM misfire
- Ignition timing fault after harness checks
- Water ingress or corrosion at CDI connectors
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6N7-85540-01-00 current / listed CDI unit assembly reference
- 6N7-85540-00-00 earlier related 6N7 CDI unit reference
OEM / Related Numbers
- 6N7-85540-01-00
- 6N7-85540-01
- 6N7855400100
- 6N78554001
- 6N7-85540-00-00
- 6N7855400000
- Related 6N7 ignition-system family reference
- Related Yamaha V4 CDI ignition family reference
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
