6N7-85550-01-00 Yamaha Flywheel | Genuine Used Part

🔧 Product Description

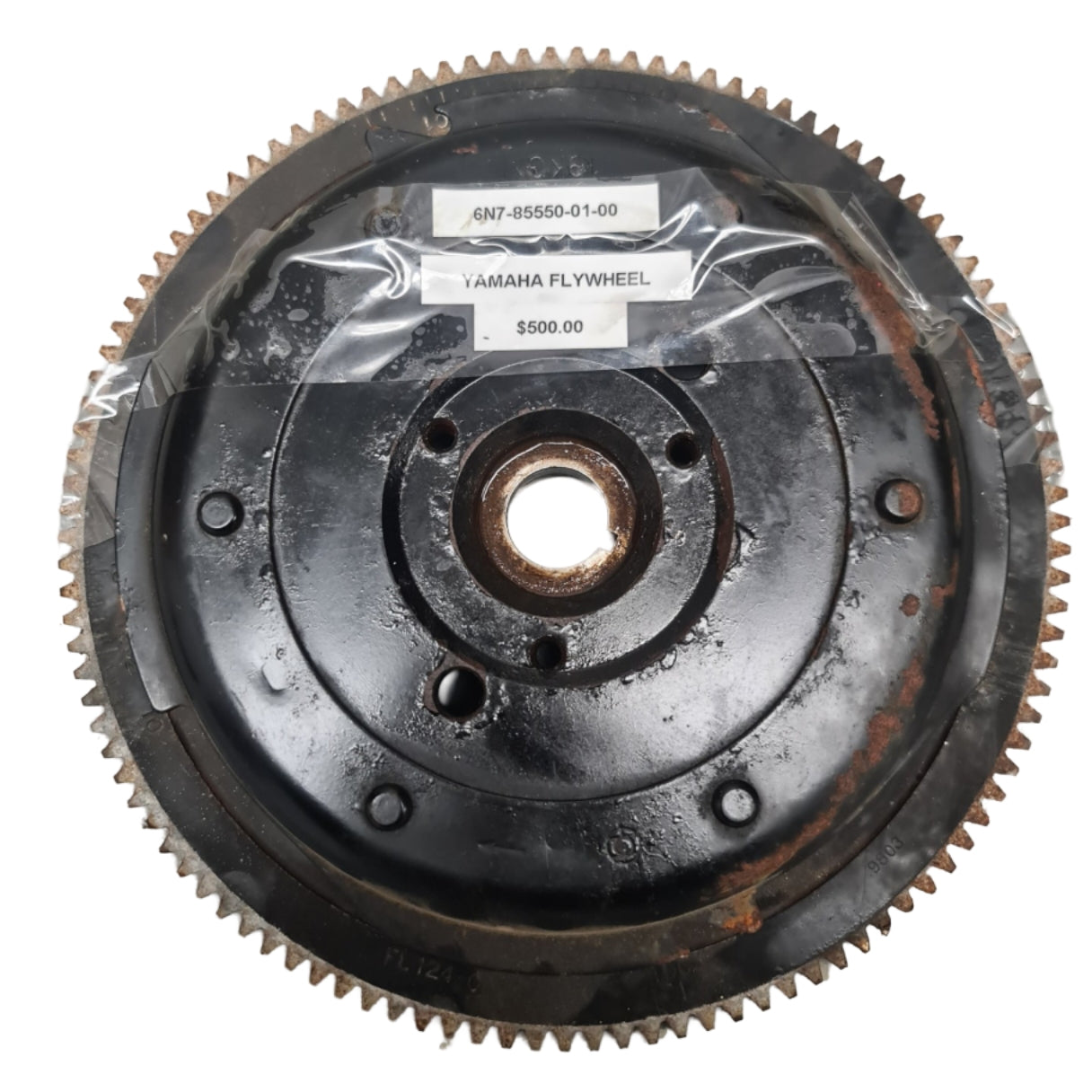

Genuine Yamaha 115HP / 130HP V4 Flywheel Rotor Assembly - Part Number: 6N7-85550-01-00

A genuine used Yamaha magnetic flywheel and rotor assembly for selected 115HP and 130HP V4 two-stroke outboards.

The assembly features a 112-tooth starter ring gear and permanent magnets that rotate around the stator to generate charging and ignition-system power. Yamaha 6N7-85550-01-00 is the later replacement for rotor assembly 6N7-85550-00-00.

⚙️ Key Features

• Genuine Yamaha magnetic flywheel rotor

• Correct Yamaha reference 6N7-85550-01-00

• 112-tooth starter ring gear

• Suits selected Yamaha 115HP and 130HP V4 engines

• Works with stator assembly 6N7-85510-00-00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6N7-85550-01-00 → Supersedes 6N7-85550-00-00

• 6N7-85550-00-00 earlier Yamaha rotor assembly

OEM / Related Numbers:

• 6N7-85550-01-00

• 6N7855500100

• 6N7-85550-00-00

• 6N7855500000

• Stator assembly: 6N7-85510-00-00

• Pulser coil: 6N7-85580-10-00

• Woodruff key: 90280-05015-00

• Flywheel washer: 90201-21M18-00

• Flywheel nut: 90170-20137-00

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Yamaha 115HP and 130HP V4 two-stroke outboards

• Electric-start charging and ignition assemblies

• Yamaha generator systems using the 6N7 rotor family

Typically suits:

• Engine models:

• Yamaha 115TLR

• Yamaha 115TXR

• Yamaha 115TLRD

• Yamaha 115TXRD

• Yamaha 115ETL and 115ETX model variants using the 6N7 generator

• Yamaha 130TLR

• Yamaha 130TXR

• Yamaha 130TLRD

• Yamaha 130TXRD

• Yamaha 130ETL and 130ETX model variants using the 6N7 generator

• HP Range: 115HP - 130HP

• Engine Type: V4 carburetted two-stroke outboard

• Year Range: Approximately 1990 - 2009, dependent on model and market

🔌 Function

The flywheel provides rotational inertia, starter engagement and magnetic flux for the stator and pulser-coil assemblies. These systems generate battery-charging current and ignition-timing signals.

Common signs of failure:

• Starter teeth are worn, chipped or missing

• Internal magnets are loose or cracked

• Battery-charging output is low or absent

• Ignition timing becomes unstable

• Flywheel rubs against the stator

• Crankshaft taper or keyway is damaged

• Excessive flywheel runout or vibration

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
